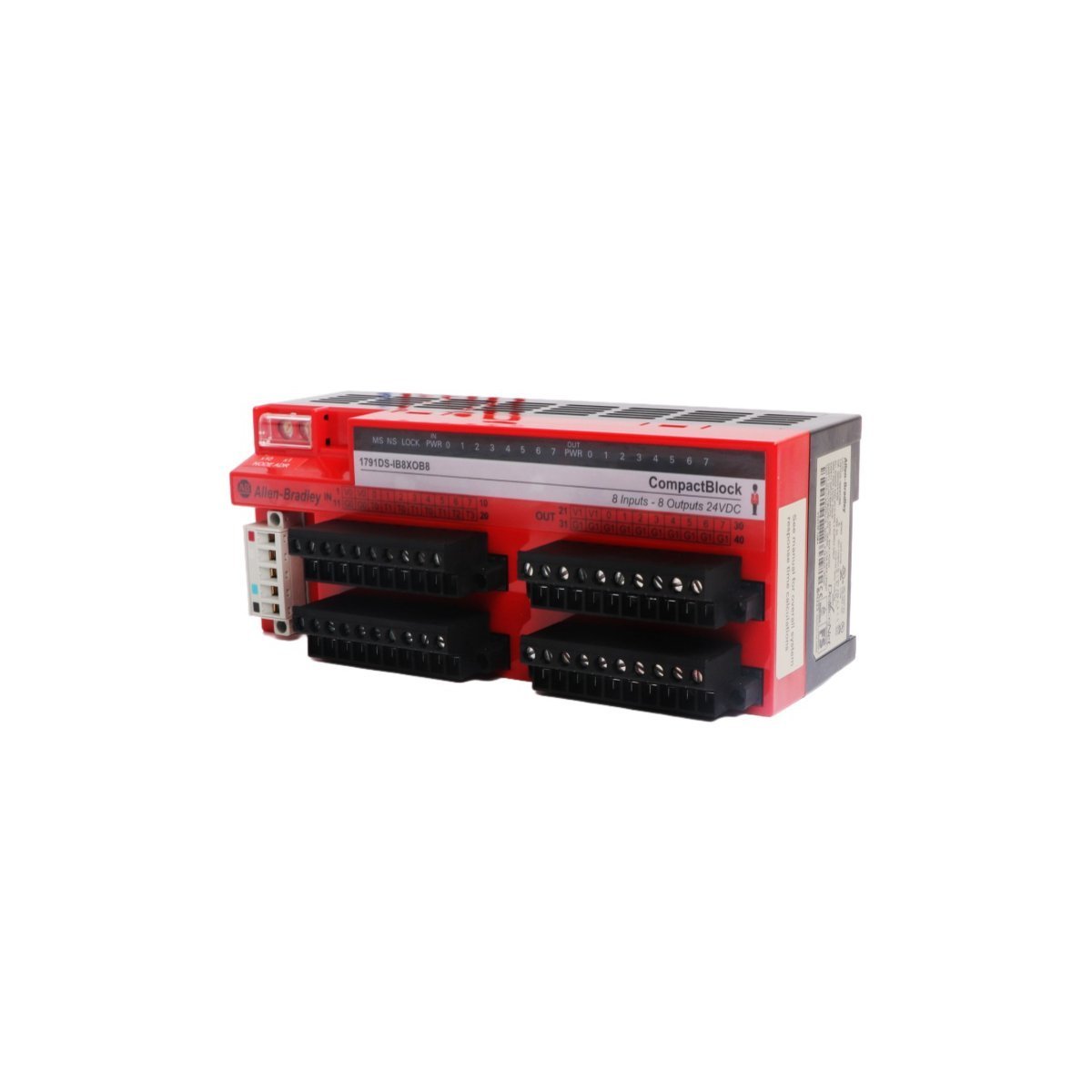

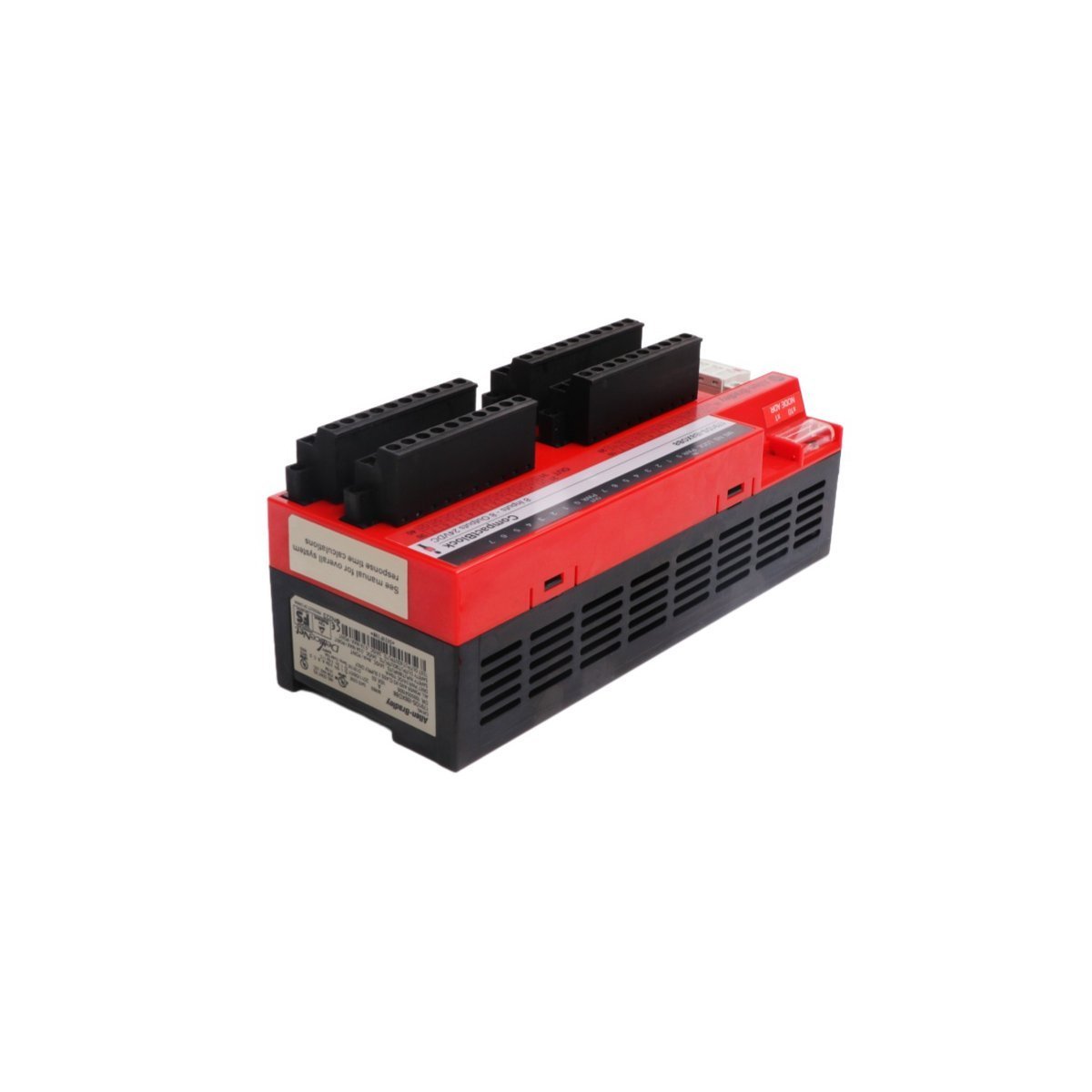

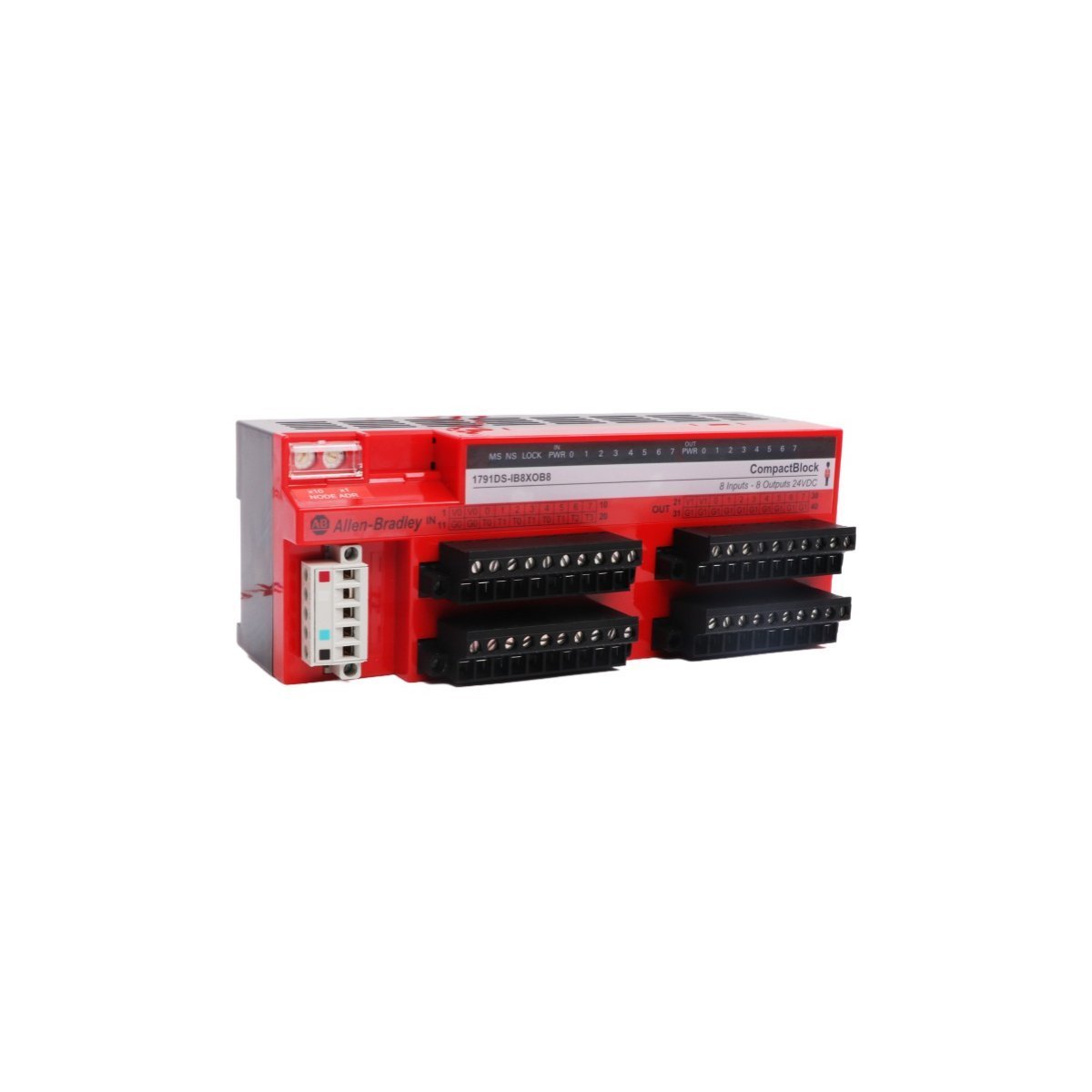

1791DS-IB8XOB8 Rockwell Automation Guard I/O 8-Input 8-Output Safety Block

Brief Product Description

The Allen-Bradley 1791DS-IB8XOB8 functions as a distributed safety I/O block that communicates via DeviceNet to provide decentralized control for emergency stop and light curtain applications. It bridges the gap between field safety devices and the central controller while maintaining the highest levels of functional safety integrity.

Technical Overview and Functional Description

The 1791DS-IB8XOB8 operates as a cornerstone of the Guard I/O family, facilitating secure communication over a DeviceNet network. This module streamlines safety circuit architecture by allowing users to connect safety-rated sensors and actuators directly to the distributed block rather than home-running every cable to a central cabinet. Consequently, this decentralized approach reduces wiring costs and minimizes potential points of failure within the safety loop.

Engineered to meet the rigorous demands of SIL 3 (IEC 61508) and Performance Level e (ISO 13849-1), the hardware incorporates redundant internal circuitry and continuous self-testing. The module utilizes a 24V DC power source and manages eight sinking safety inputs alongside eight sourcing safety outputs. Furthermore, the inclusion of four dedicated test outputs allows the system to monitor for cross-channel short circuits, effectively detecting faults before they lead to hazardous situations.

Core Technical Specifications

• Brand: Allen-Bradley / Rockwell Automation
• Model Number: 1791DS-IB8XOB8
• Communication Protocol: DeviceNet (Safety)
• Safety Input Count: 8 Points (Sinking)
• Safety Output Count: 8 Points (Solid-State Sourcing)
• Test Pulse Outputs: 4 Points
• Operating Voltage Range: 20.4V DC to 26.4V DC
• Output Current Rating: 0.5A per channel (max)
• Safety Rating: SIL 3, Cat. 4, PLe
• Enclosure Rating: IP20
• Mounting Configuration: DIN Rail
• Operational Temperature: -10°C to +55°C

Advanced Safety Features and Implementation

The 1791DS-IB8XOB8 prioritizes system uptime through sophisticated diagnostic reporting. Because the module monitors the specific state of each I/O point, maintenance personnel can identify the exact location of a fault via the network or the onboard LED status indicators. These indicators provide immediate visual feedback regarding network status, module health, and individual channel integrity.

To ensure long-term stability in harsh industrial environments, the module features high vibration resistance and thermal management suitable for enclosed control panels. Security is further enhanced by a configuration lock mechanism; once the safety parameters are established and verified, the software prevents accidental or unauthorized modifications to the safety logic. This ensures that the machine remains in a known, validated safety state throughout its lifecycle.

Industrial Applications

• Robotic work cell guarding and interlocking
• Emergency stop circuit integration
• Safety light curtain and laser scanner monitoring
• Press control and material handling safety systems
• Food and beverage packaging line protection
