Brief Product Description

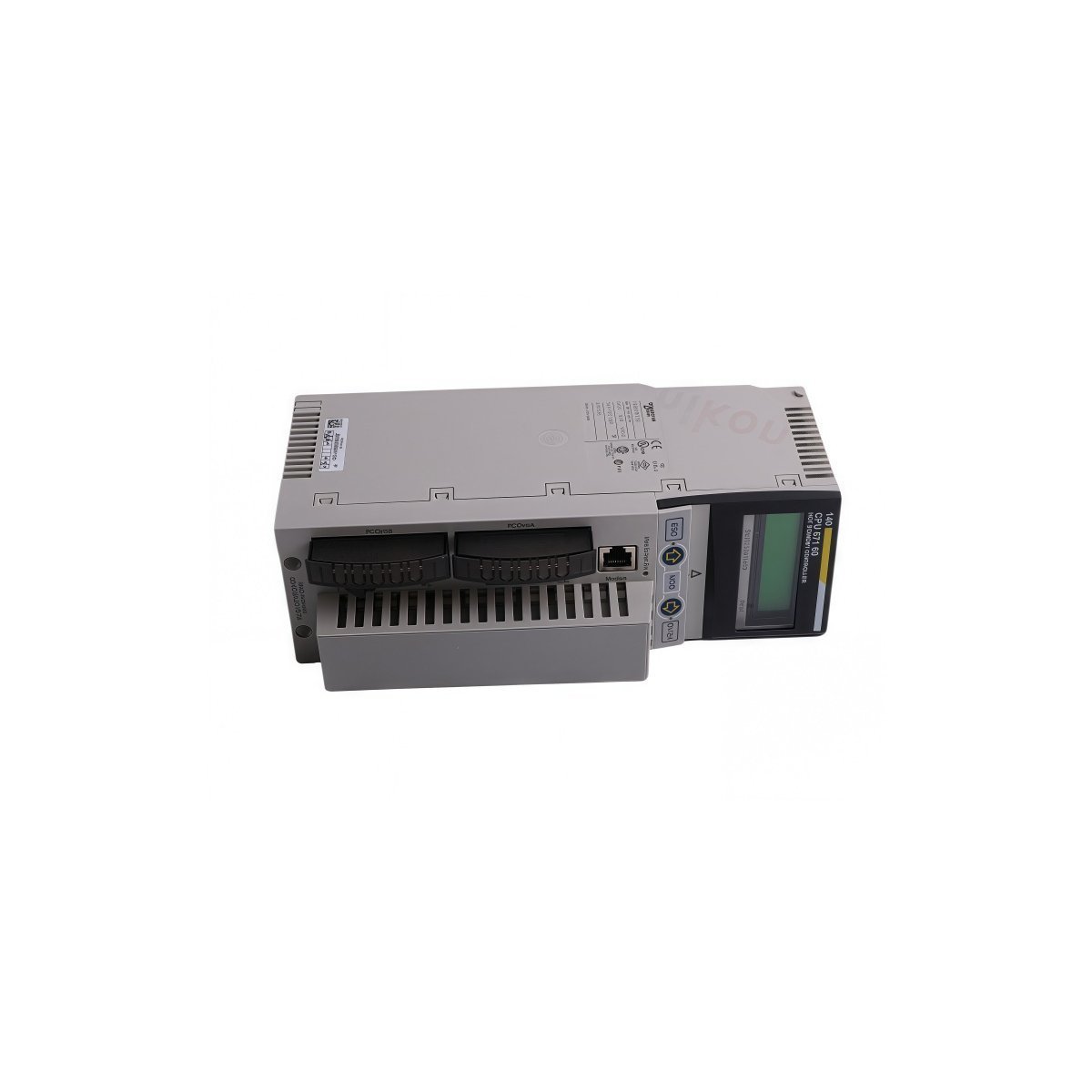

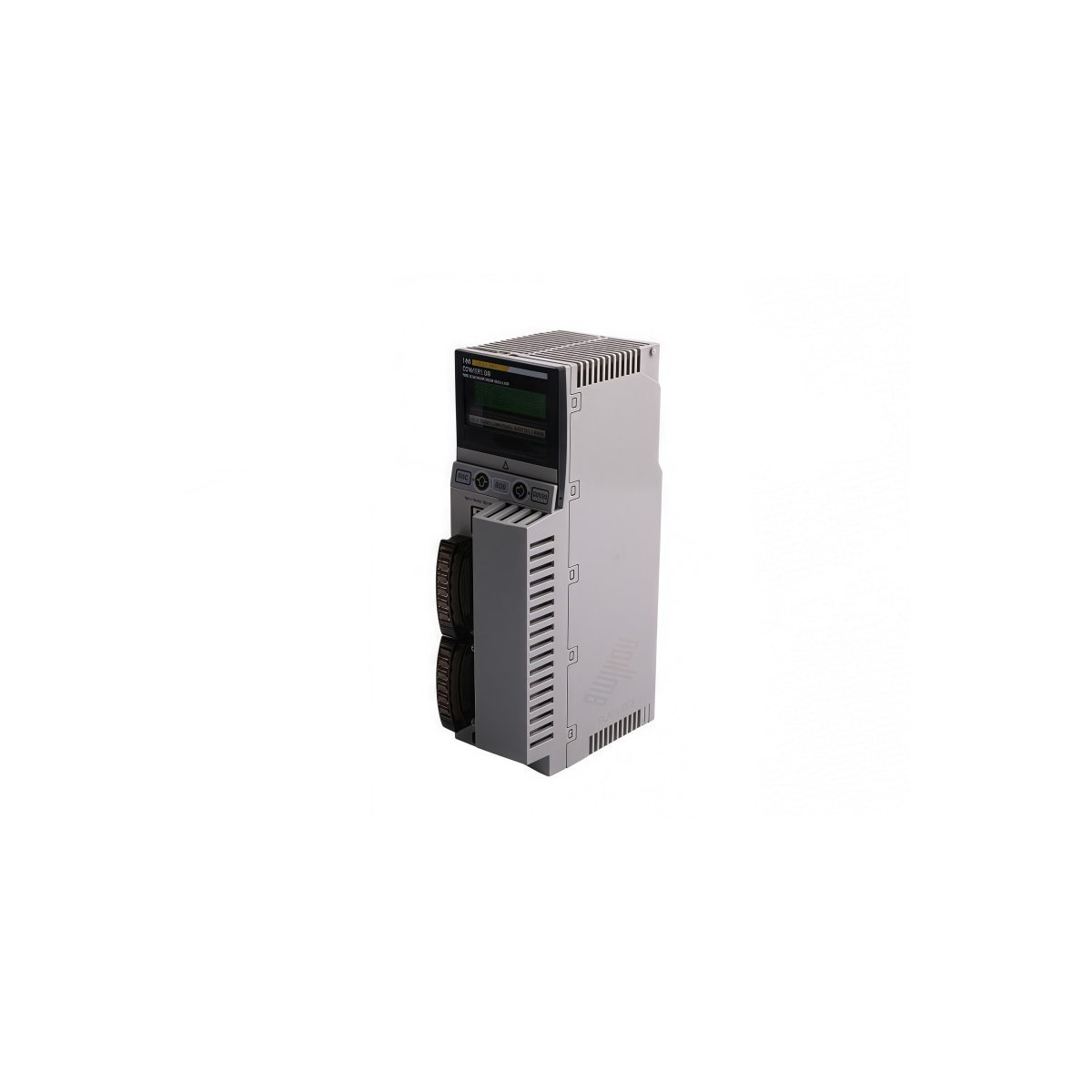

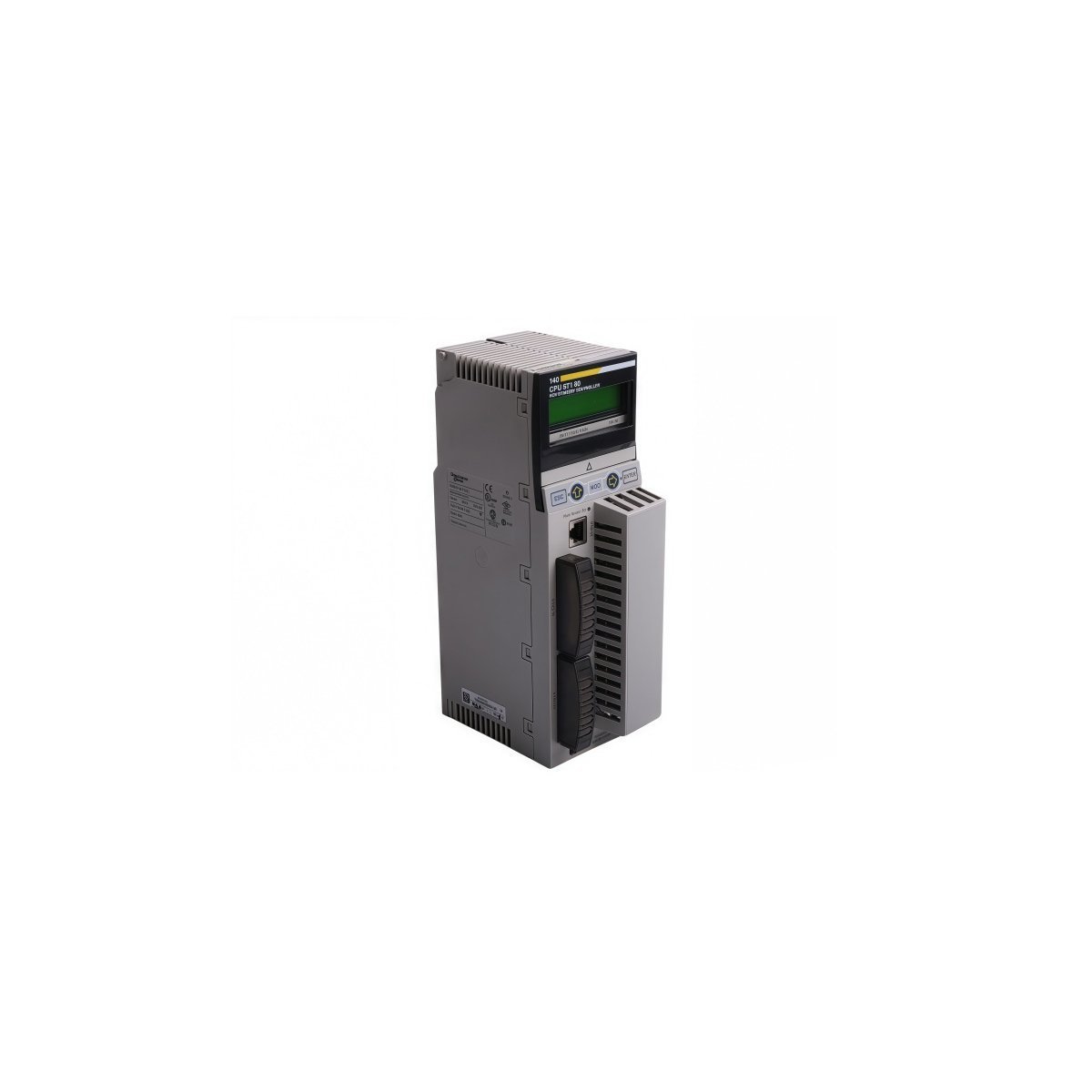

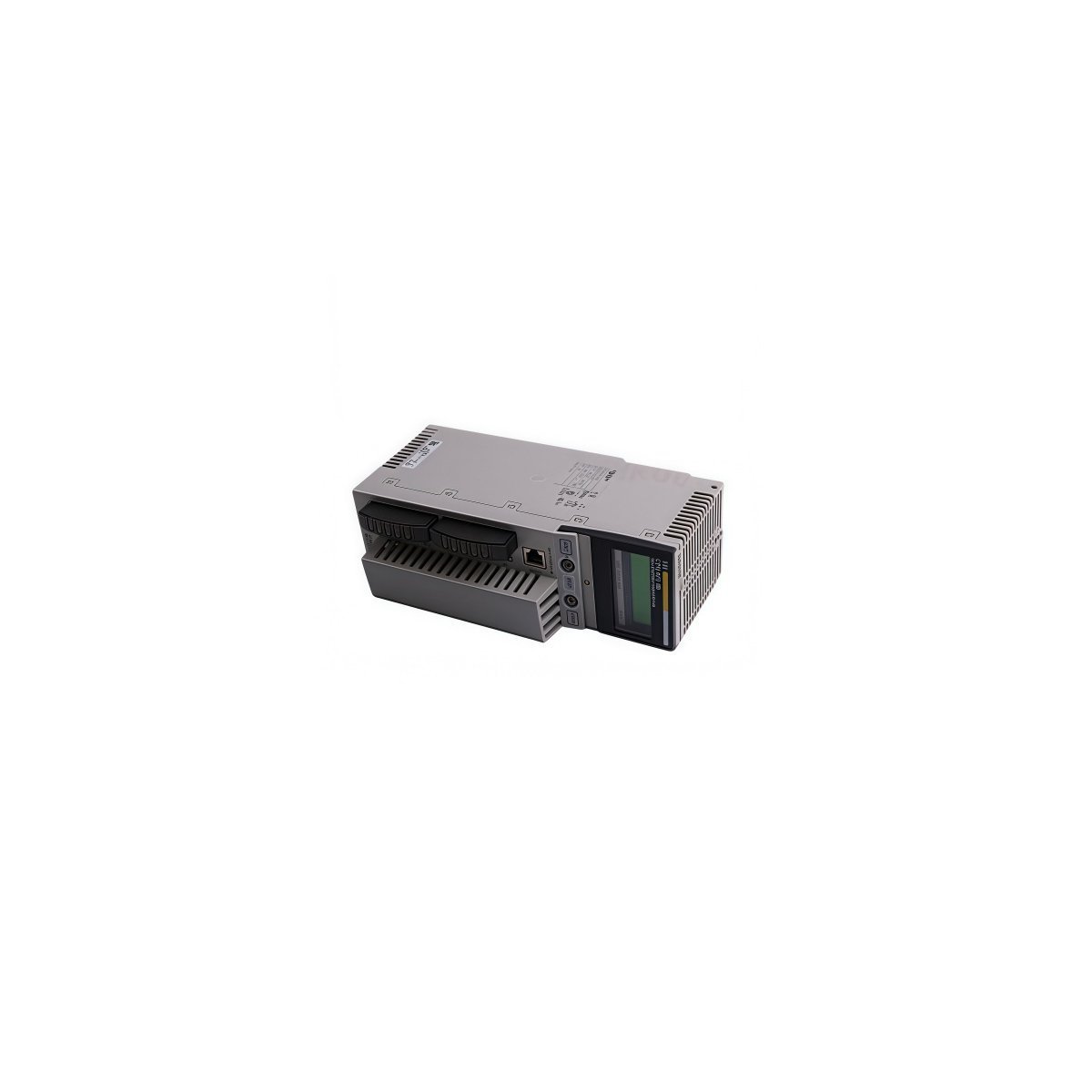

The Schneider Electric 140CPU67160 is a high-availability Unity Hot Standby processor module designed for the Modicon Quantum automation platform. It ensures continuous system operation by providing seamless CPU redundancy and robust processing for complex industrial control applications.
Functional Overview
The 140CPU67160 serves as a critical processing engine within the Modicon Quantum automation platform, specifically engineered to support Hot Standby configurations. This module facilitates high system availability by allowing a secondary processor to take control instantly if the primary unit fails. Consequently, it minimizes downtime in safety-critical and continuous process environments such as petrochemical plants, power generation facilities, and large-scale manufacturing lines.
Furthermore, this processor leverages the Unity Pro software environment, enabling advanced programming capabilities and efficient data management. By integrating integrated communication ports and high-speed internal bus logic, the 140CPU67160 maintains synchronized data states between redundant pairs. Although the manufacturer discontinued this series in late 2018, it remains a vital component for maintaining existing infrastructure due to its legendary reliability and vast installed base.
Technical Specifications
- Manufacturer: Schneider Electric
- Product Range: Modicon Quantum Automation Platform
- Model Number: 140CPU67160
- Module Type: Unity Hot Standby Processor
- Memory Capacity: 1024 KB Internal RAM / Expandable via PCMCIA
- Communication Ports: Modbus, Modbus Plus, and Ethernet (via Router/Bridge)
- Maximum I/O Support: Up to 31 RIO drops / 63 DIO drops
- Dimensions: 250mm x 130mm x 80mm
- Net Weight: 1.18 kg
- Programming Software: Unity Pro (Concept/ProWORX compatible via migration)
Advanced Technical Characteristics
The 140CPU67160 architecture prioritizes deterministic execution and rapid scan times. Because it manages large volumes of complex data across distributed I/O networks, it provides the computational power necessary for PID loops and mathematical algorithms. Moreover, the module features built-in diagnostics that allow maintenance teams to monitor CPU health and redundancy status in real-time.
Transitioning to a Hot Standby setup with the 140CPU67160 provides several advantages:
- Seamless switchover between primary and standby processors without process interruption.
- Increased hardware longevity through high-grade industrial components.
- Simplified troubleshooting via clear front-panel LED status indicators.
- Flexible networking options through the Modicon Quantum backplane.
