1503VC-BMC5 Rockwell Automation IntelliVAC Motor Protection Unit

Product Description

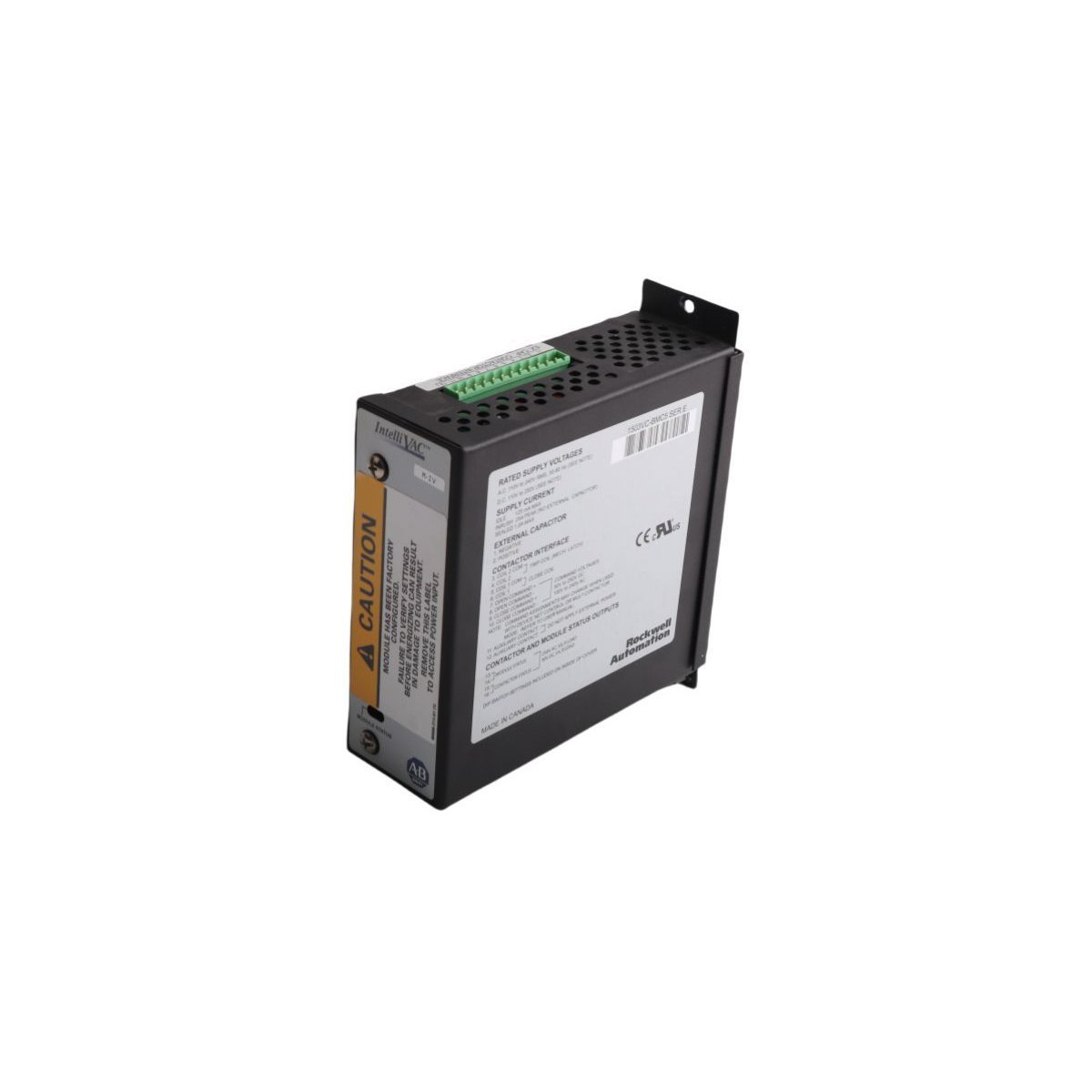

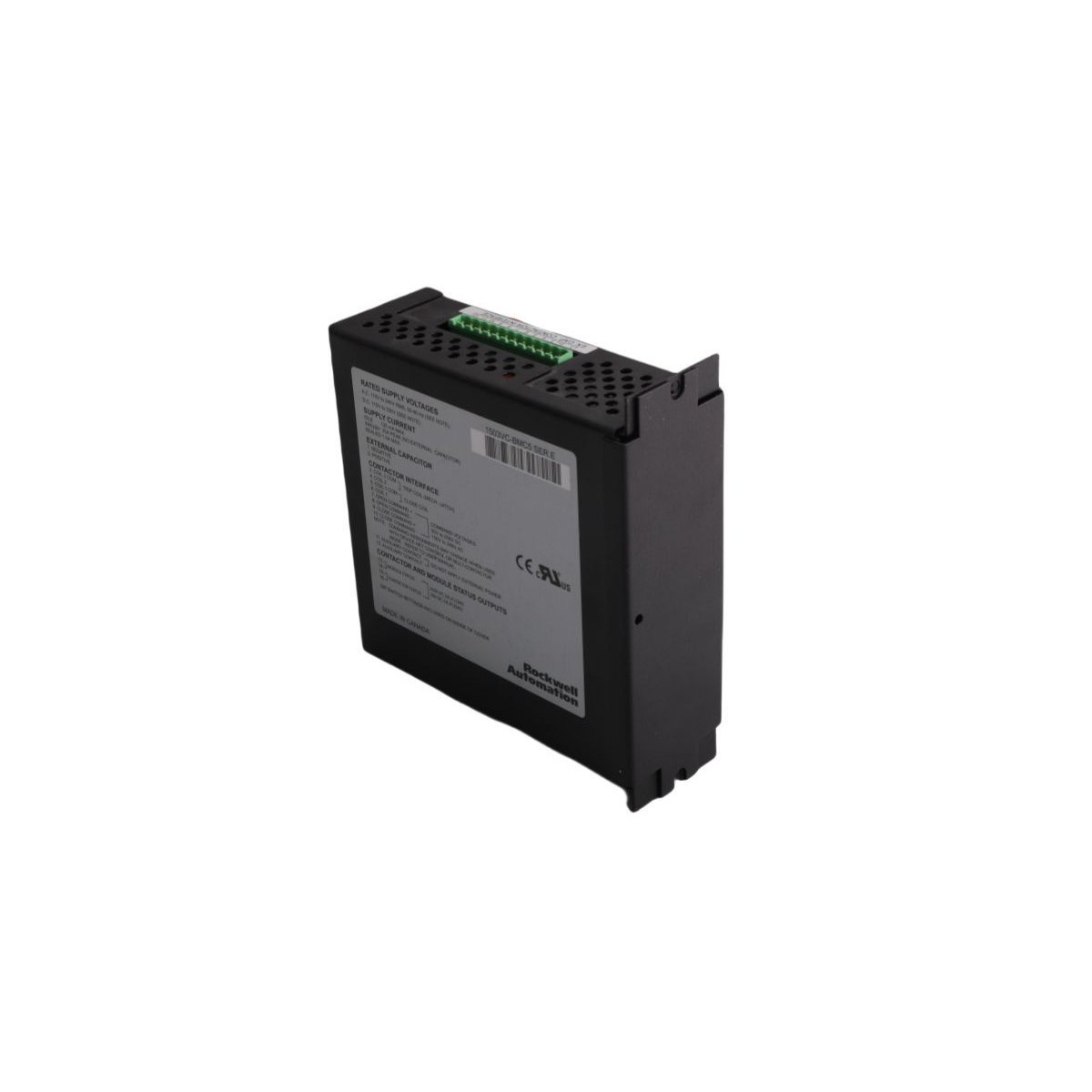

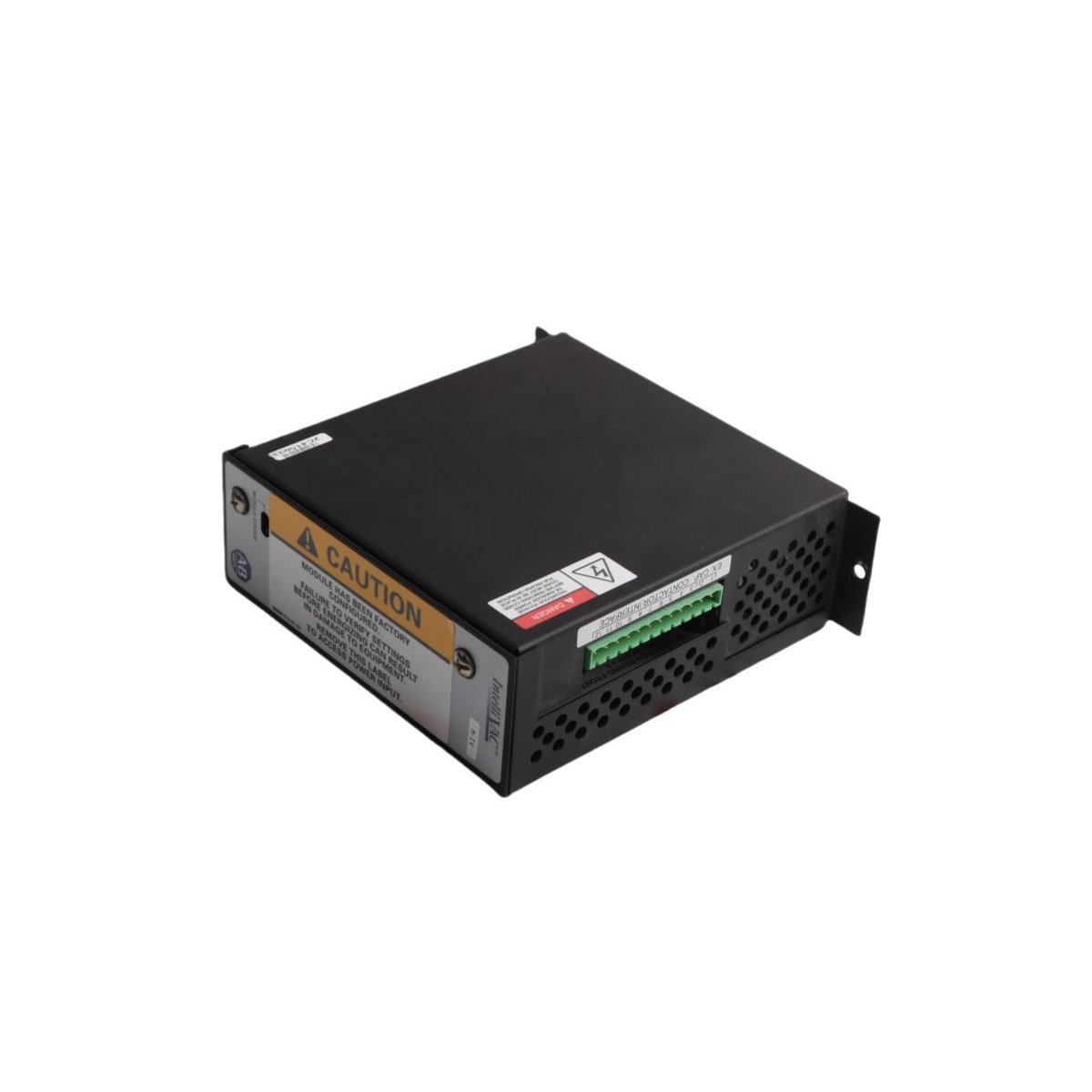

The Allen-Bradley 1503VC-BMC5 functions as a specialized IntelliVAC control interface that manages the operation and protection of Bulletin 1502 vacuum contactors. This 100% brand-new, original module delivers precise control for both electrically held and mechanically latched contactor variants. By integrating advanced monitoring logic, the 1503VC-BMC5 prevents motor damage and ensures stable power distribution in demanding medium-voltage applications.

Technical Specifications

The 1503VC-BMC5 utilizes a wide-range voltage input to maintain compatibility with diverse global industrial power standards.

• Product Type: IntelliVAC Control Module
• Compatible Hardware: Bulletin 1502 Vacuum Contactors (400A and 800A)
• Input Voltage: 110V AC to 240V AC (Universal Range)
• Frequency Support: 50/60 Hz (Auto-sensing)
• Control Logic: Supports Electrically Held and Mechanically Latched configurations
• Protection Circuits: Overload, Phase Loss, and Short Circuit detection
• Dimensions: 6.0 x 16.7 x 18.5 cm
• Weight: 1.2 kg
• Origin: USA

Engineering Advantages

The 1503VC-BMC5 offers several mechanical and operational benefits that empower engineers to improve motor control center (MCC) reliability:

• Advanced Motor Protection: The module actively monitors electrical parameters to identify phase loss or overload conditions. Consequently, it triggers rapid disconnection to protect expensive motor windings from thermal degradation or catastrophic failure.
• Dual Contactor Command Logic: Integrated circuitry allows the 1503VC-BMC5 to operate both mechanically latched and electrically held contactors. This flexibility simplifies spare parts inventory, as one module type services multiple contactor configurations across the plant.
• Efficient Heat Dissipation: The compact housing design incorporates efficient thermal management, allowing for dense installation within control cabinets without compromising the lifespan of internal electronic components.
• Seamless System Integration: Rockwell Automation engineered this module for intuitive installation into existing Bulletin 1502 setups. Therefore, maintenance teams can upgrade legacy motor protection systems with minimal downtime and no significant rewiring.

FAQs

• Can the 1503VC-BMC5 handle different amperage ratings?The module specifically supports Bulletin 1502 vacuum contactors in both the 400 Amp and 800 Amp frames. It scales its control logic to match the requirements of these high-capacity power units.
• Does this module require a specific frequency to operate?The 1503VC-BMC5 operates efficiently on both 50Hz and 60Hz power systems. As a result, it functions correctly in international facilities regardless of regional grid frequencies.
• What type of faults does the IntelliVAC system detect?The unit identifies several critical electrical anomalies, including short circuits, phase imbalances, and prolonged overload states. Upon detection, the module immediately initiates a safety trip to isolate the load.
• How does the 1503VC-BMC5 improve overall system efficiency?By providing precise control over the contactor coils and latching mechanisms, the module reduces unnecessary power consumption and mechanical wear on the vacuum bottles, which extends the overall service life of the contactor.
