Product Overview

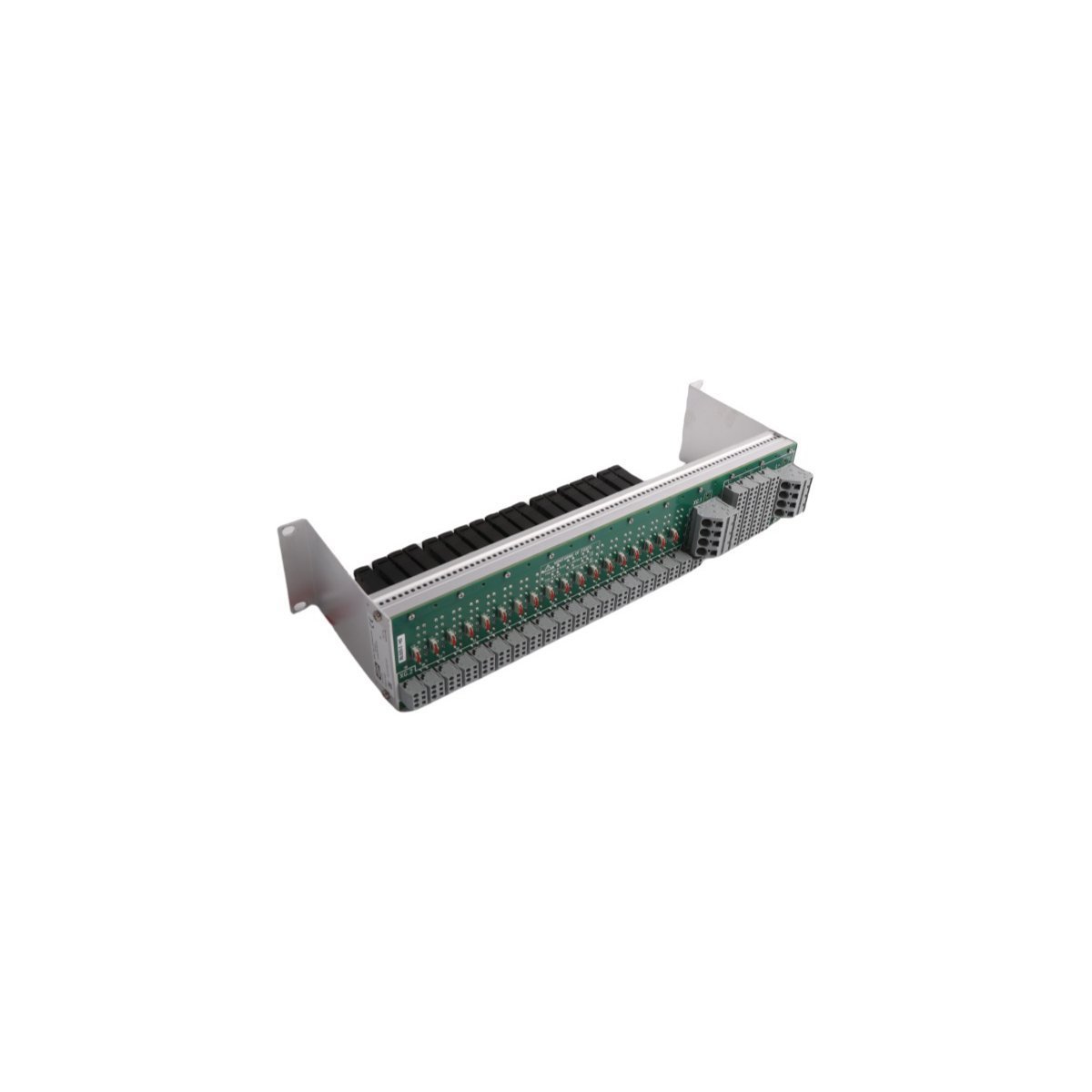

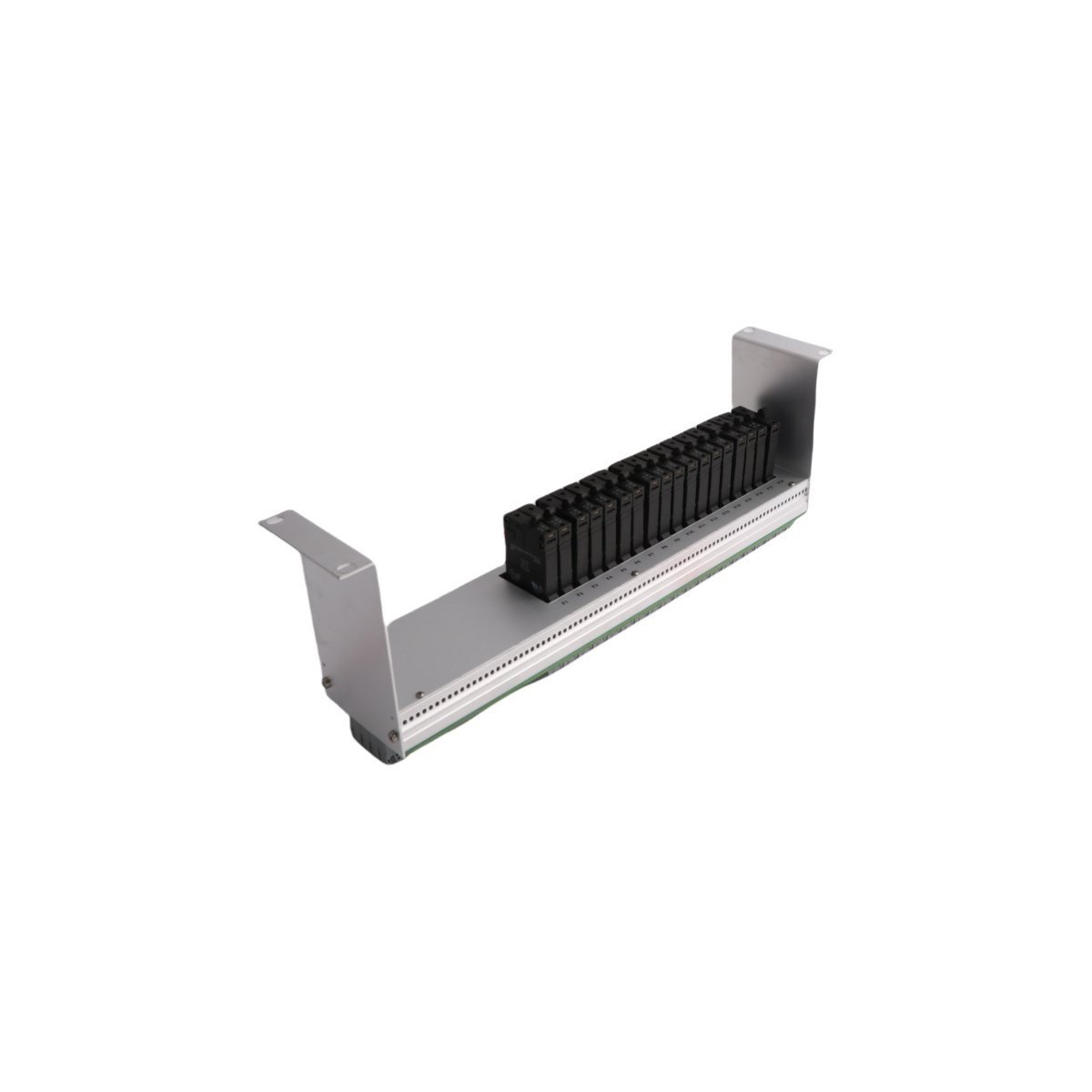

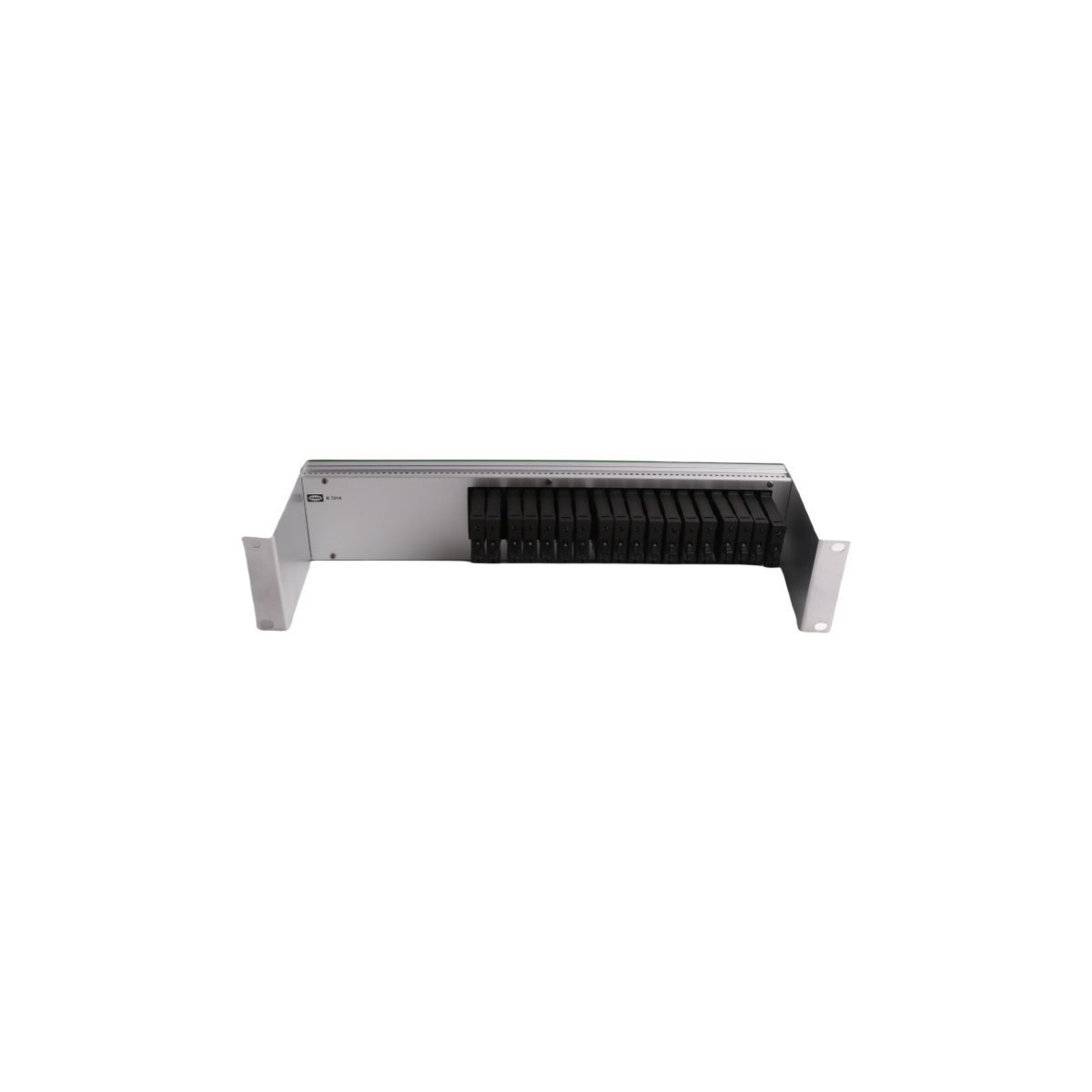

The HIMA K7214 is a high-performance Smart Safety Module belonging to the HIQuad X system, engineered to provide high-integrity monitoring and control within complex industrial safety loops. This versatile unit combines precise analog data acquisition with robust power management to ensure the continuous protection of critical assets in hazardous environments.
Operational Role and Functionality
As a primary interface within a Safety Instrumented System (SIS), the K7214 module processes safety-critical signals with exceptional accuracy. The hardware features 8-fold analog input channels, utilizing a 12-bit resolution architecture to transform field variables into actionable safety data. This high level of precision allows the controller to detect minute fluctuations in pressure, temperature, or flow, facilitating immediate safety responses when parameters exceed defined thresholds.
Furthermore, the K7214 excels in power resilience. It integrates advanced power supply monitoring alongside an internal buffer battery system. These features prevent the loss of safety functions during electrical transients or total plant power failure. By maintaining logic integrity during outages, the module prevents uncontrolled system states, thereby safeguarding both personnel and equipment.
Key Technical Characteristics
- System Compatibility: Optimized for the HIMA HIQuad X control architecture.
- Input Resolution: 12-bit high-resolution processing for 8 analog input channels.
- Safety Certification: Fully compliant with IEC 61508 standards for SIL 3 applications.
- Communication Support: Seamlessly integrates with industrial Ethernet and PROFINET protocols.
- Physical Integrity: Compact form factor (2×8.8x17cm) designed for high-density cabinet mounting.
- Power Management: Features integrated supply voltage supervision and emergency battery buffering.
- Manufacturing Quality: Precision-engineered in Germany for long-term industrial reliability.
Industrial Applications
The K7214 is predominantly utilized in sectors where operational failure is not an option, such as chemical processing, oil and gas extraction, and heavy manufacturing. Because it supports high-speed data transmission and rigorous diagnostic coverage, technical teams often deploy this module for emergency shutdown (ESD) systems and fire and gas (F&G) detection networks. Its ability to operate as a “Smart Safety Module” ensures that it provides not only basic switching but also deep diagnostic insights into the health of the connected field devices and the internal power bus.
