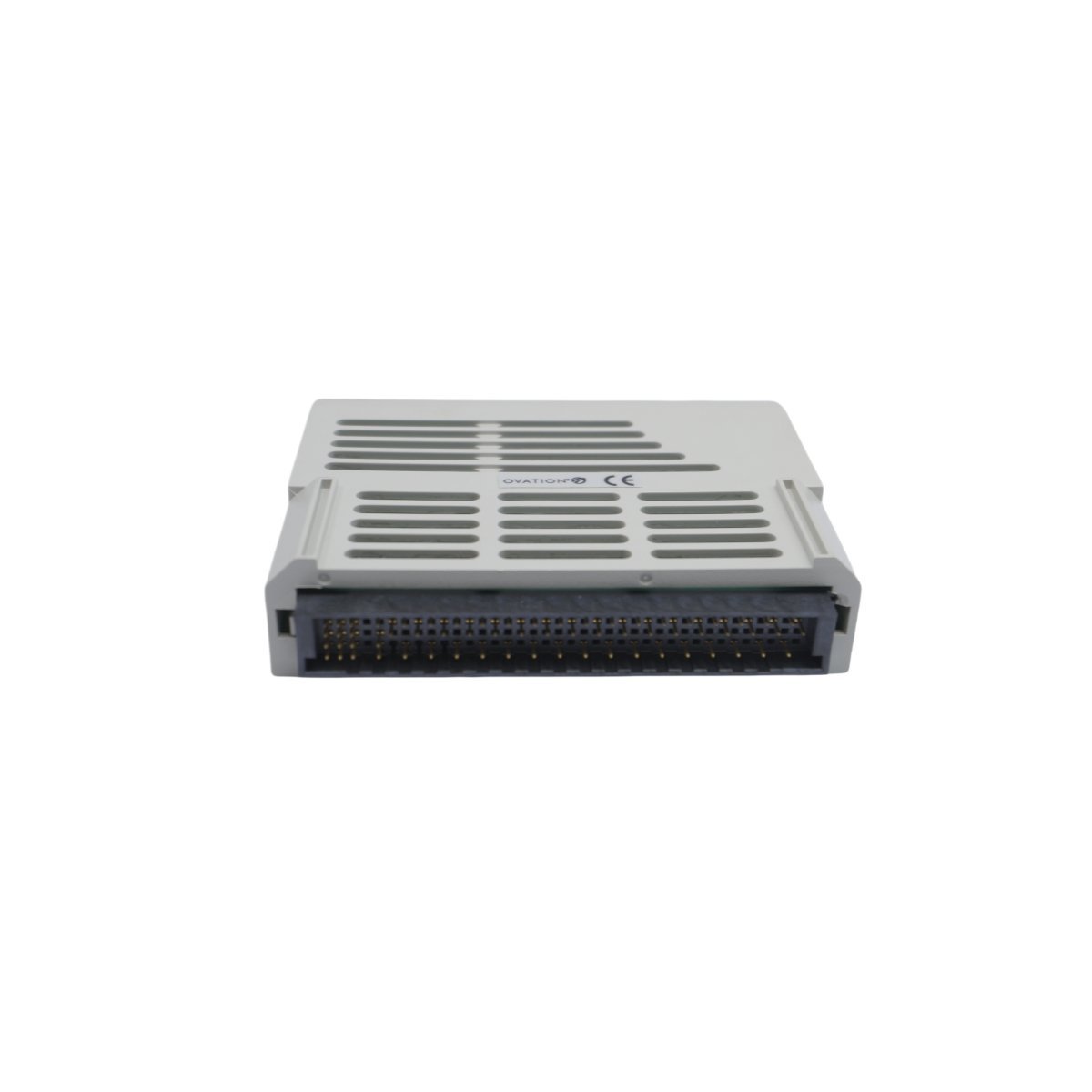

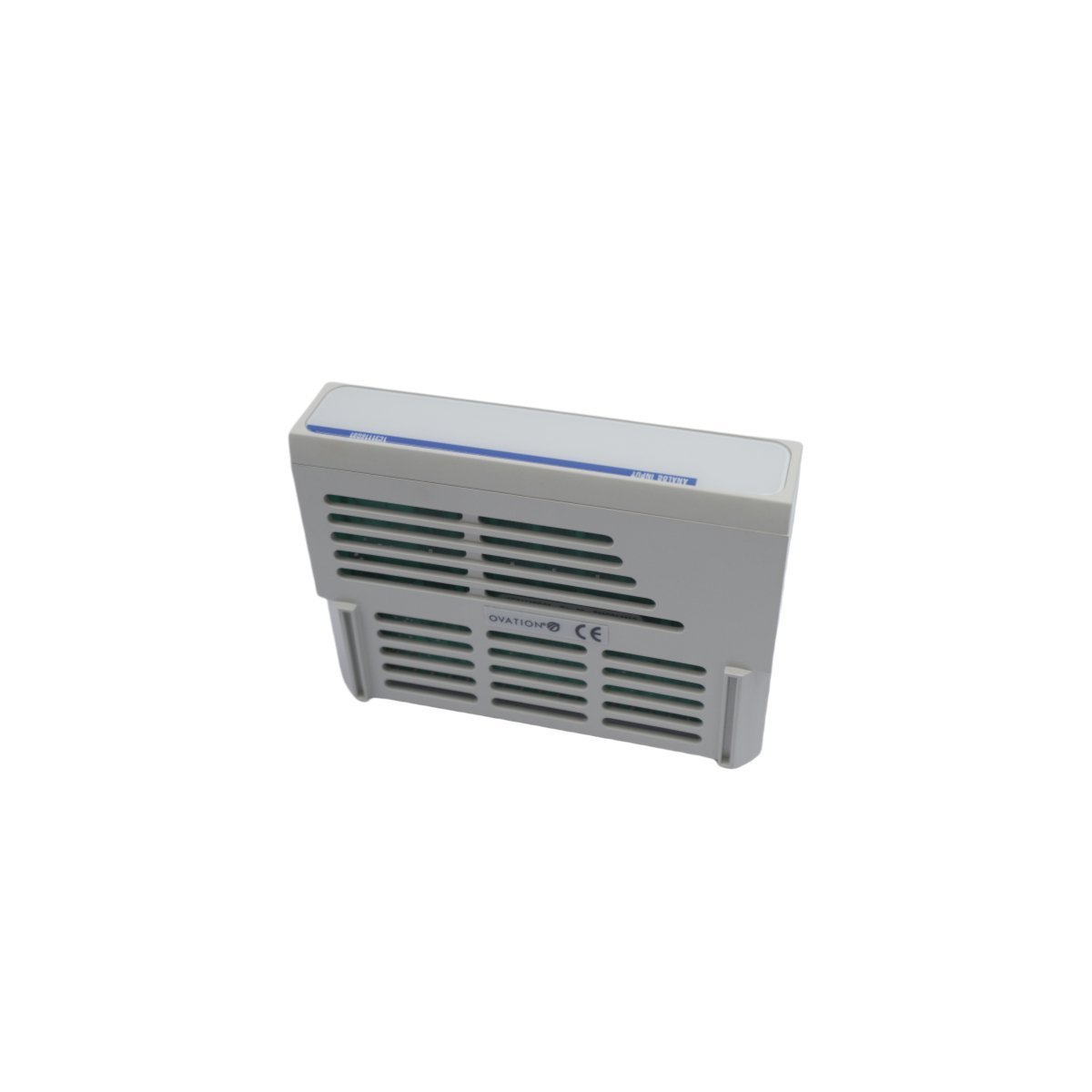

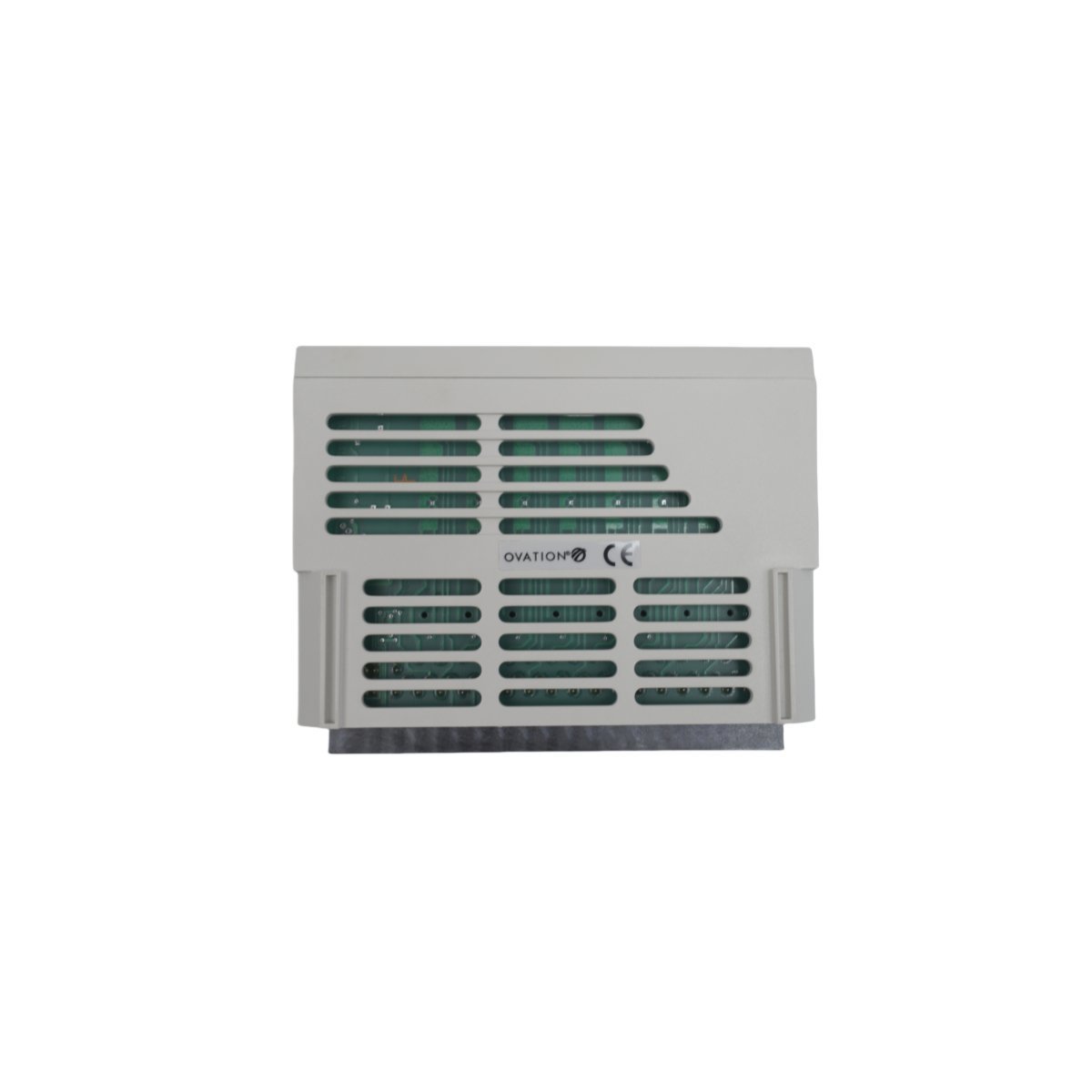

The Emerson 1C31116G01 is a high-accuracy Analog Input PMOD (Power Module) specifically engineered for the Ovation Distributed Control System (DCS). This module serves as a primary interface for digitizing continuous analog variables from field-mounted transmitters. It is designed to capture and process critical process data, such as flow rates, pressure levels, and temperature readings, providing the high-resolution feedback necessary for complex PID control loops and safety-related logic.
Hardware Specifications
| Feature | Specification Details |
| Manufacturer | Emerson Automation Solutions |
| Model Number | 1C31116G01 |
| Product Line | Ovation DCS / Westinghouse legacy |
| Module Category | Analog Input PMOD Assembly |
| Input Density | 8 Channels |
| Dimensions | 11.8 x 2.8 x 9.3 cm |
| Weight | 0.12 kg |
| Manufacturing Origin | USA |
| HS Code | 8537101190 |
Critical System Applications
- Thermal Monitoring: High-precision RTD or thermocouple data processing via external carriers.
- Process Instrumentation: Interfacing with 4–20 mA current loops for pressure and flow transmitters.
- Redundant Control Systems: Integration into fail-safe DCS configurations for power plants.
- Maintenance Spares: Replacement of aging PMOD units in legacy Ovation cabinets.
