Functional Capabilities

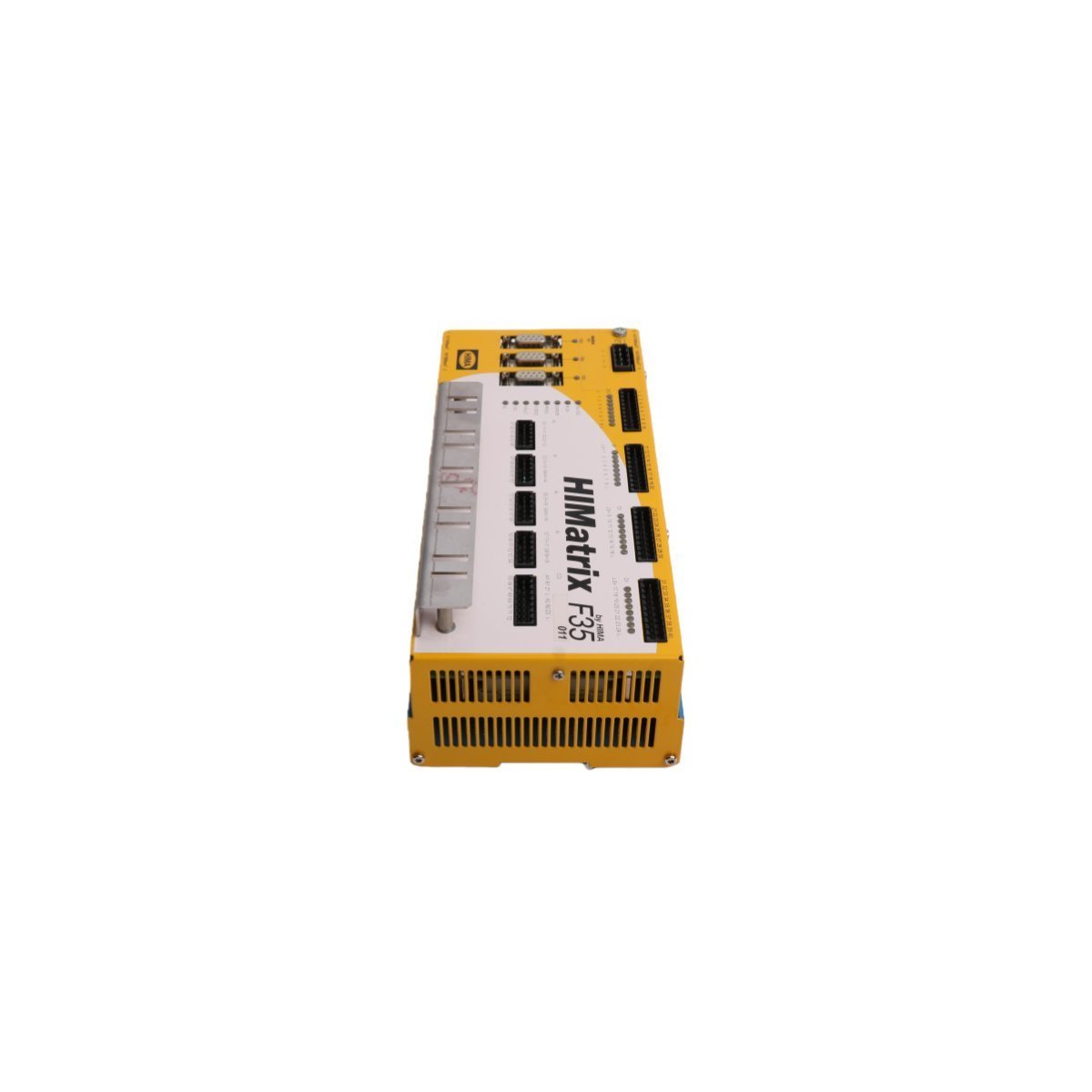

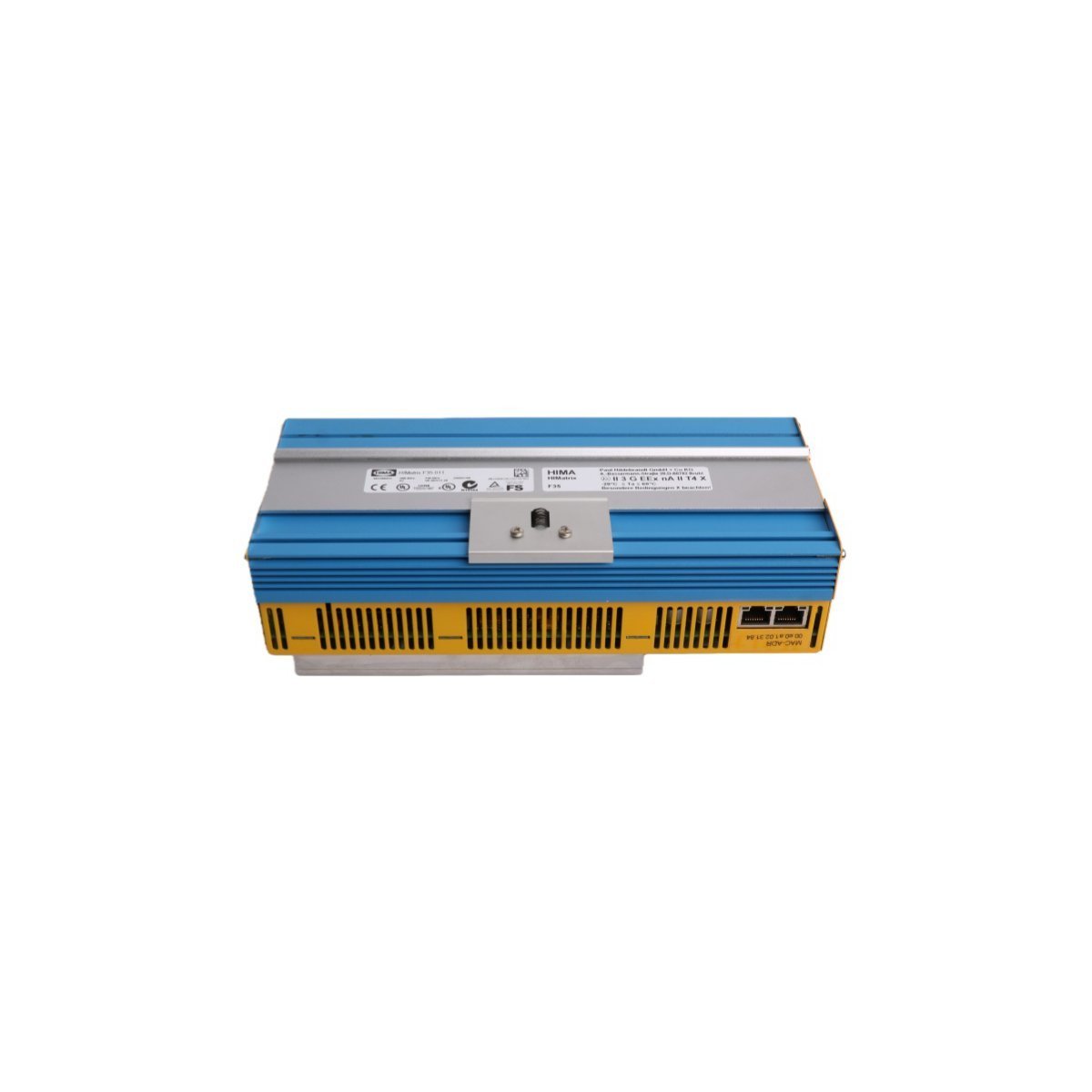

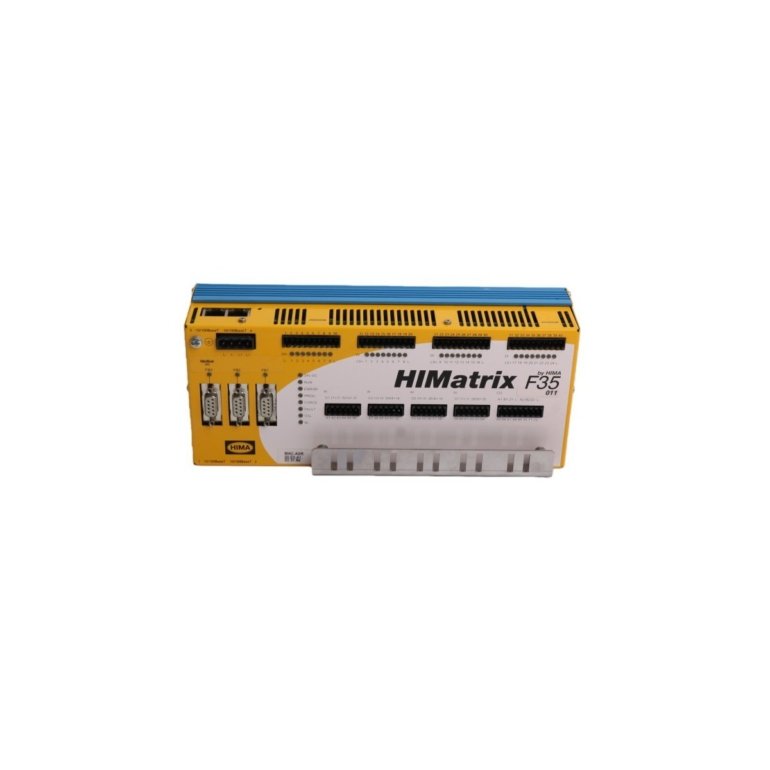

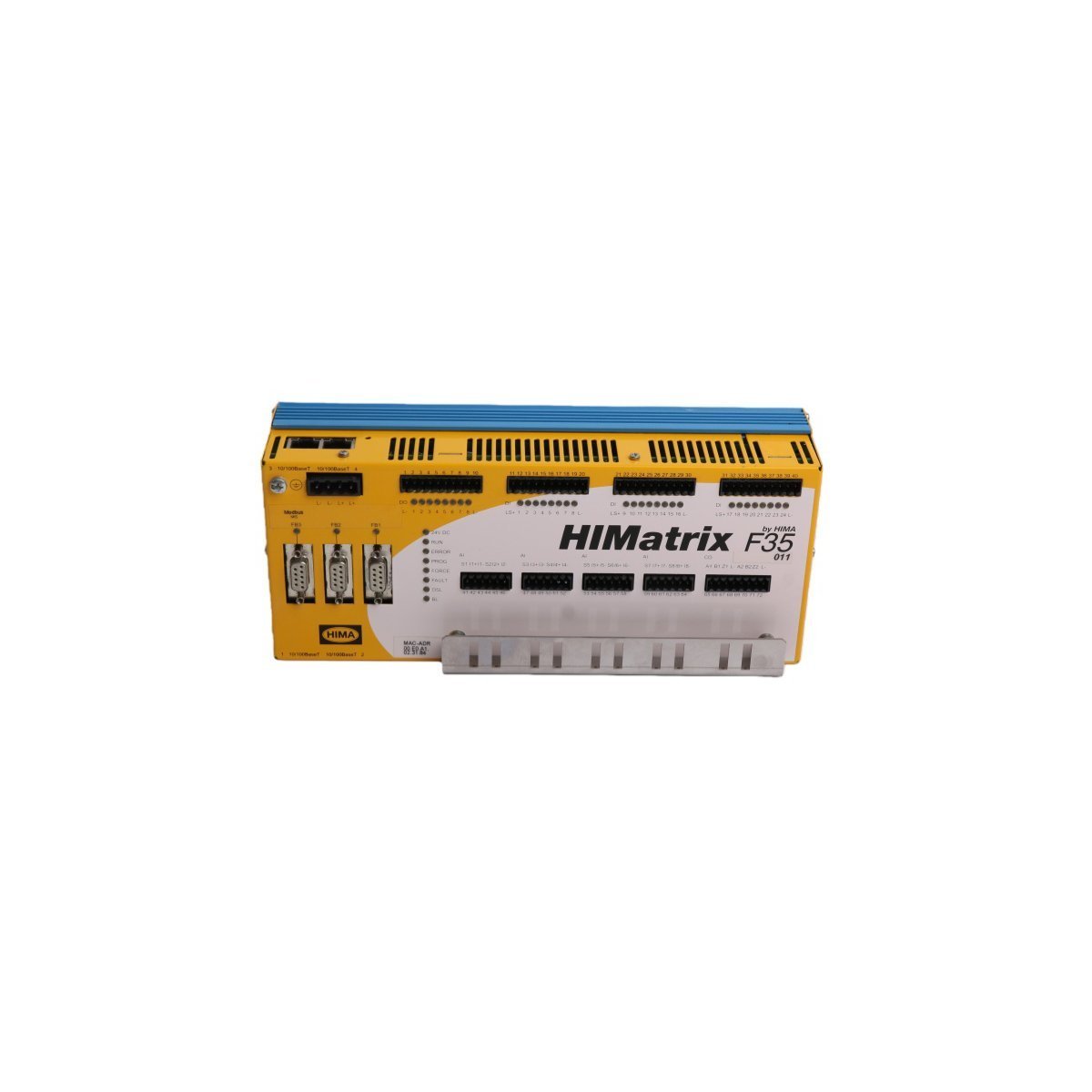

The F35 011 module operates as a standalone safety controller or as part of a larger networked system to provide SIL 3 protection levels. By integrating digital inputs, analog inputs, and high-current outputs into a single chassis, the controller significantly reduces the footprint required for safety cabinets. The system utilizes the specialized SILworX engineering tool, which streamlines the development of safety logic while ensuring all configurations remain compliant with IEC 61508 standards.
Engineers often deploy this module because it handles mixed signal types simultaneously. For instance, the device can manage high-speed counter tasks alongside standard emergency shutdown (ESD) logic. This versatility allows the F35 011 to monitor field instruments, such as solenoid valves or sensors, while providing real-time feedback on the health of the loop.
Core Technical Characteristics
- Safety Rating: Certified up to SIL 3 (IEC 61508) and SIL CL 3 (IEC 62061).
- Input Architecture: Features 24 digital inputs and 8 analog inputs (0-20 mA or 4-20 mA).
- Output Configuration: Provides 8 digital outputs capable of driving up to 2A at 24 VDC.
- Specialized Hardware: Includes 2 dedicated counter inputs for frequency-based safety monitoring.
- Diagnostic Power: Integrated line monitoring detects short-circuits and lead breakages across the field circuit.
- Environmental Tolerance: Operates reliably in temperature extremes ranging from -20°C to +60°C.
- Connectivity: Supports Ethernet-based safety communication for seamless DCS integration.
Industrial Applications
The HIMatrix F35 011 excels in sectors that demand uncompromising reliability and rapid response times. Common applications include Fire and Gas (F&G) systems, Emergency Shutdown (ESD) protocols, and burner management systems (BMS). Because the module features robust German engineering and a high degree of diagnostic coverage, it effectively minimizes the risk of safe failures while preventing hazardous system states. Technical teams benefit from the integrated Ethernet routing capabilities, which simplify the architecture of distributed safety networks across large-scale facilities.
