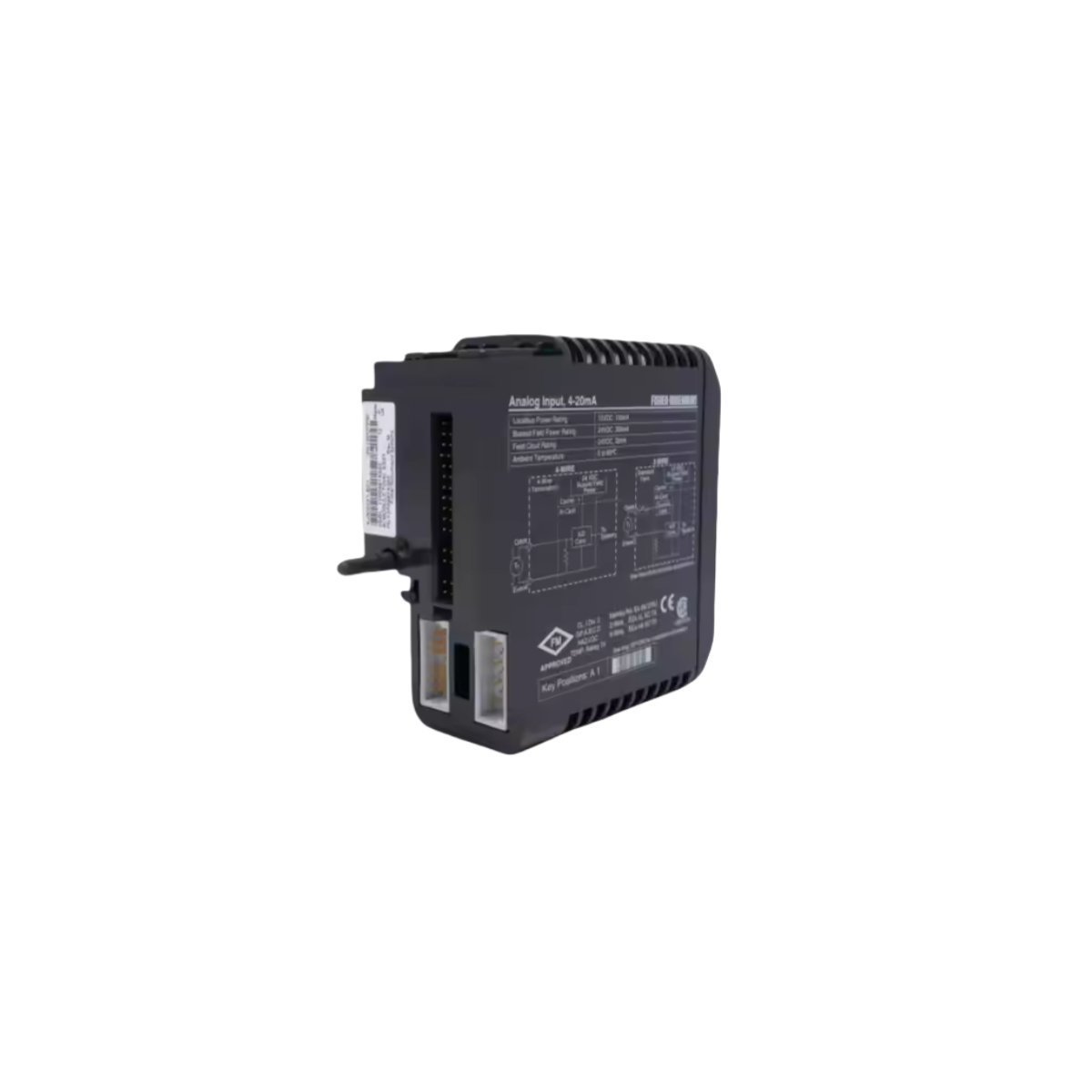

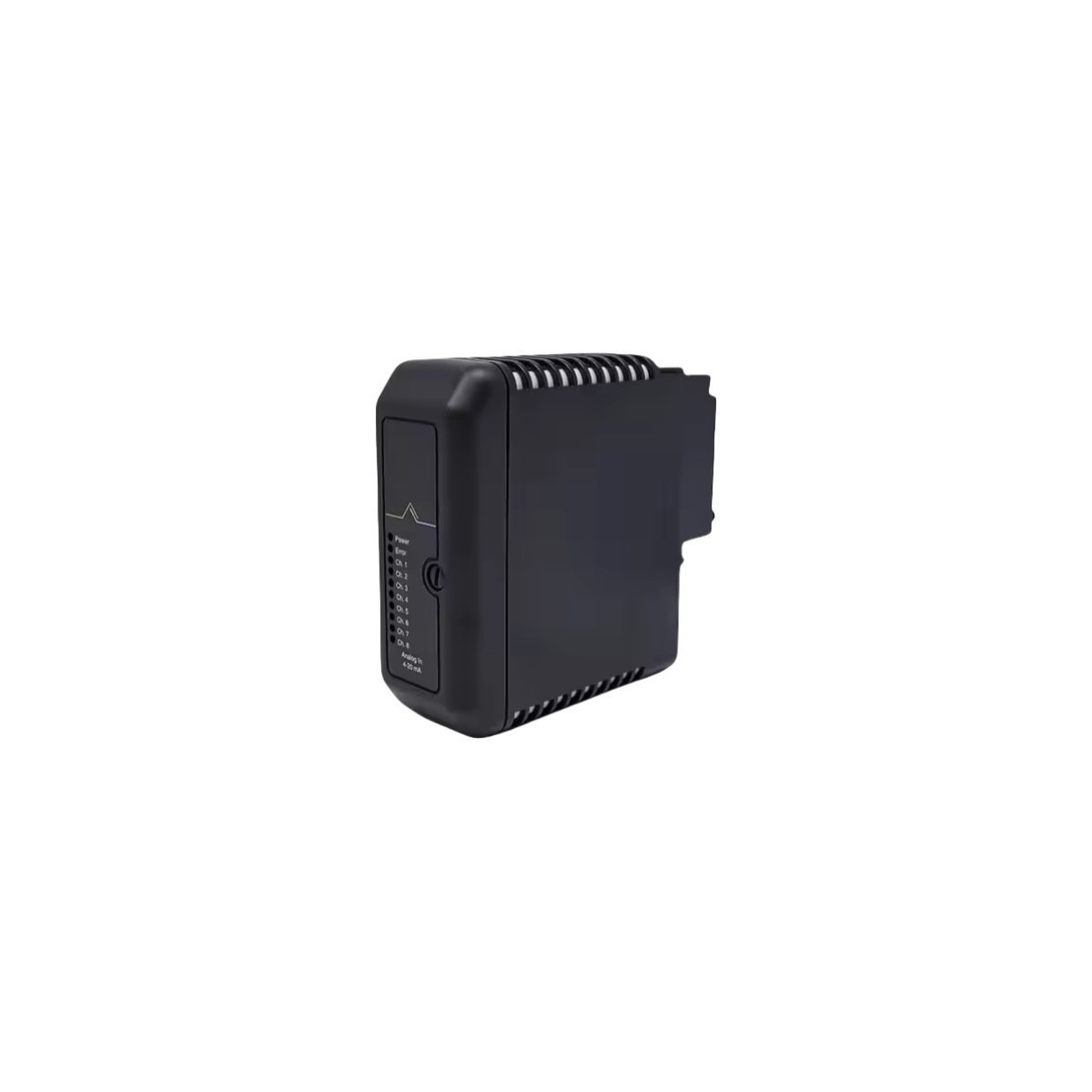

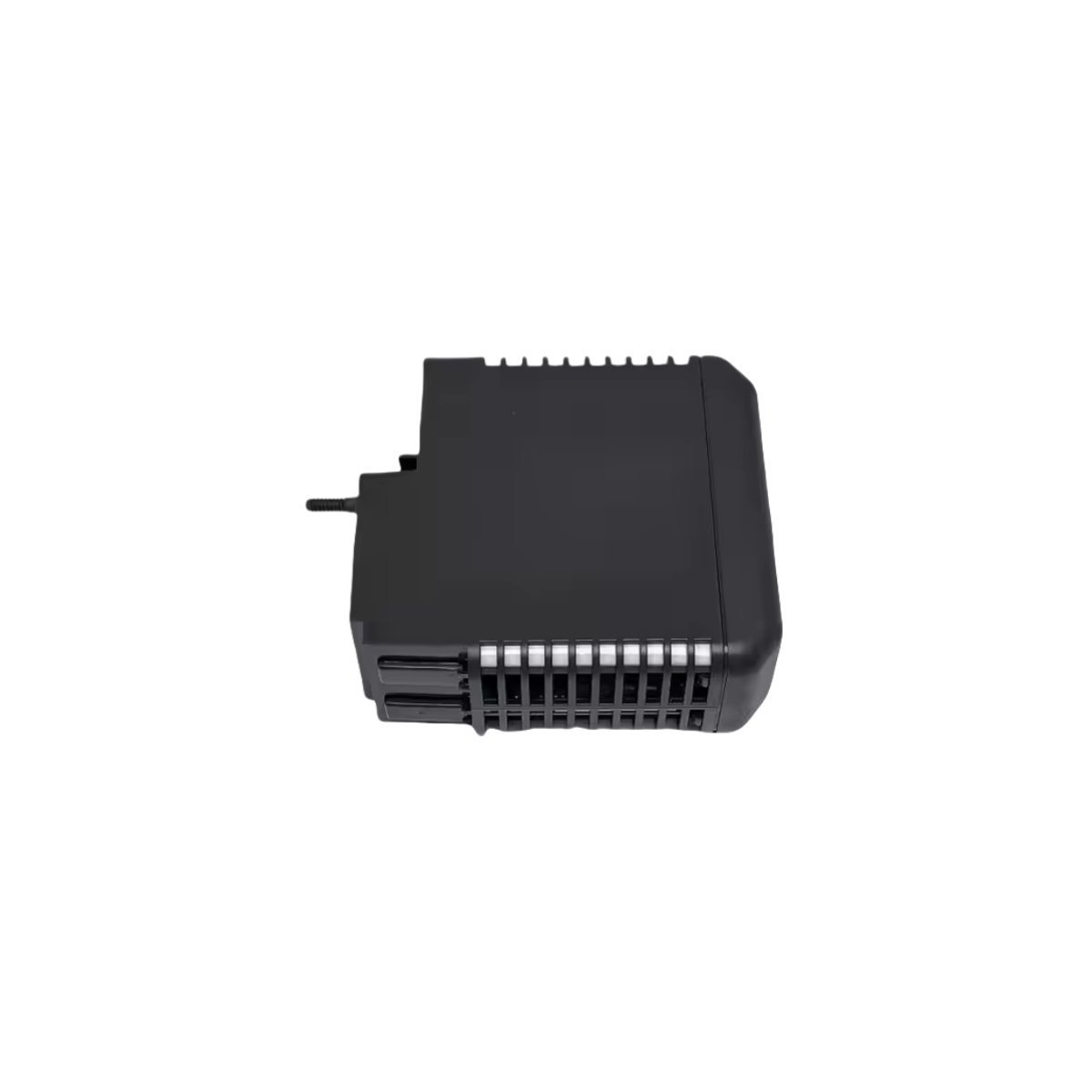

Emerson KJ3002X1-BC1 12P0681X092 VE4003S1B2 DeltaV Analog Input Card

The Emerson KJ3002X1-BC1 functions as a high-performance 8-channel analog input module. This card integrates seamlessly with the DeltaV M-series I/O subsystem to monitor critical process variables. It primarily handles standard 4-20 mA signals from field transmitters. Consequently, operators receive real-time data on pressure, temperature, and flow rates. The module ensures precise data conversion for the distributed control system (DCS). This accuracy supports stable and efficient plant operations.

Engineers frequently deploy this VE4003S1B2 card in oil, gas, and chemical facilities. The hardware supports 4-wire transmitter configurations for diverse instrumentation needs. Furthermore, the module facilitates continuous measurement and discrete status monitoring. Its sophisticated circuitry filters out electrical noise to maintain signal integrity. Reliable data acquisition helps minimize process variability in complex manufacturing environments.

Modular Architecture and Industrial Reliability

The KJ3002X1-BC1 features a rugged, modular design for simplified system expansion. Users can easily scale their control architecture by adding cards to the DeltaV carrier. This flexibility allows the system to grow alongside industrial requirements. Additionally, the card includes built-in signal isolation to protect against ground loops. This protection ensures stable performance even in challenging electromagnetic conditions.

Maintenance teams benefit from the advanced diagnostic capabilities of the 12P0681X092 assembly. The module identifies sensor failures and wiring faults automatically. Therefore, plants can reduce troubleshooting time and prevent unexpected downtime. The hot-swappable design allows for card replacement without interrupting the entire system. This feature maintains high availability for mission-critical industrial processes.

Technical Specifications
