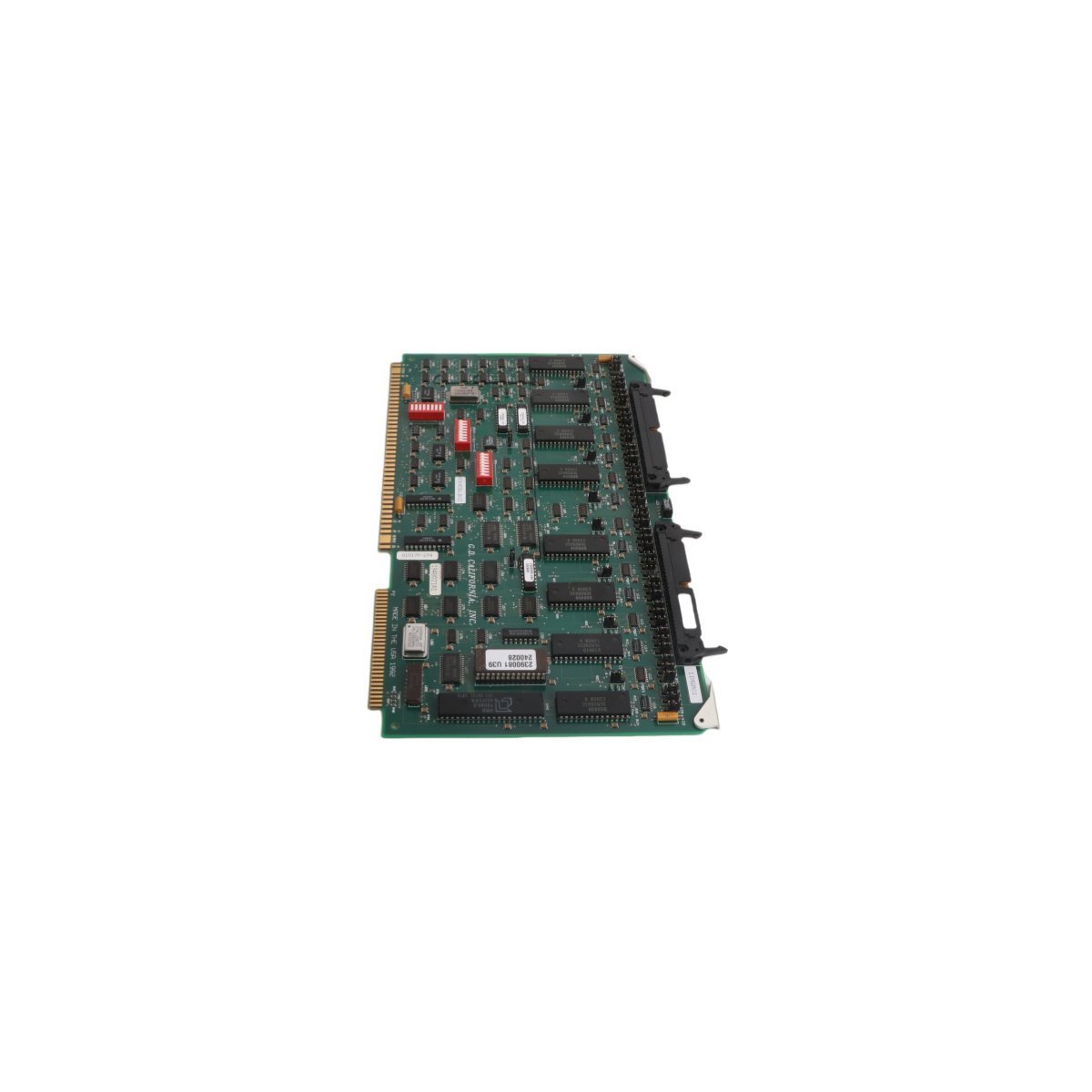

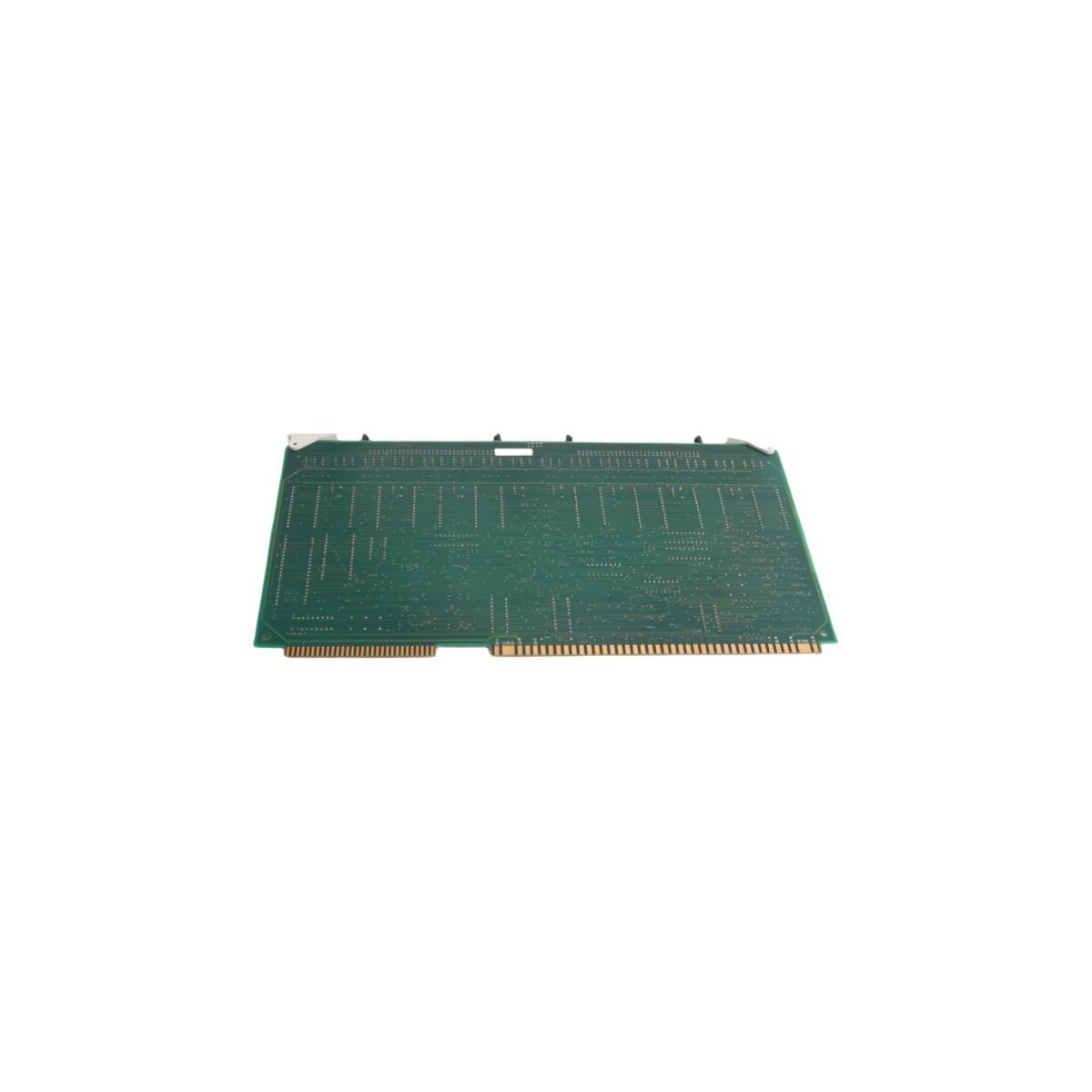

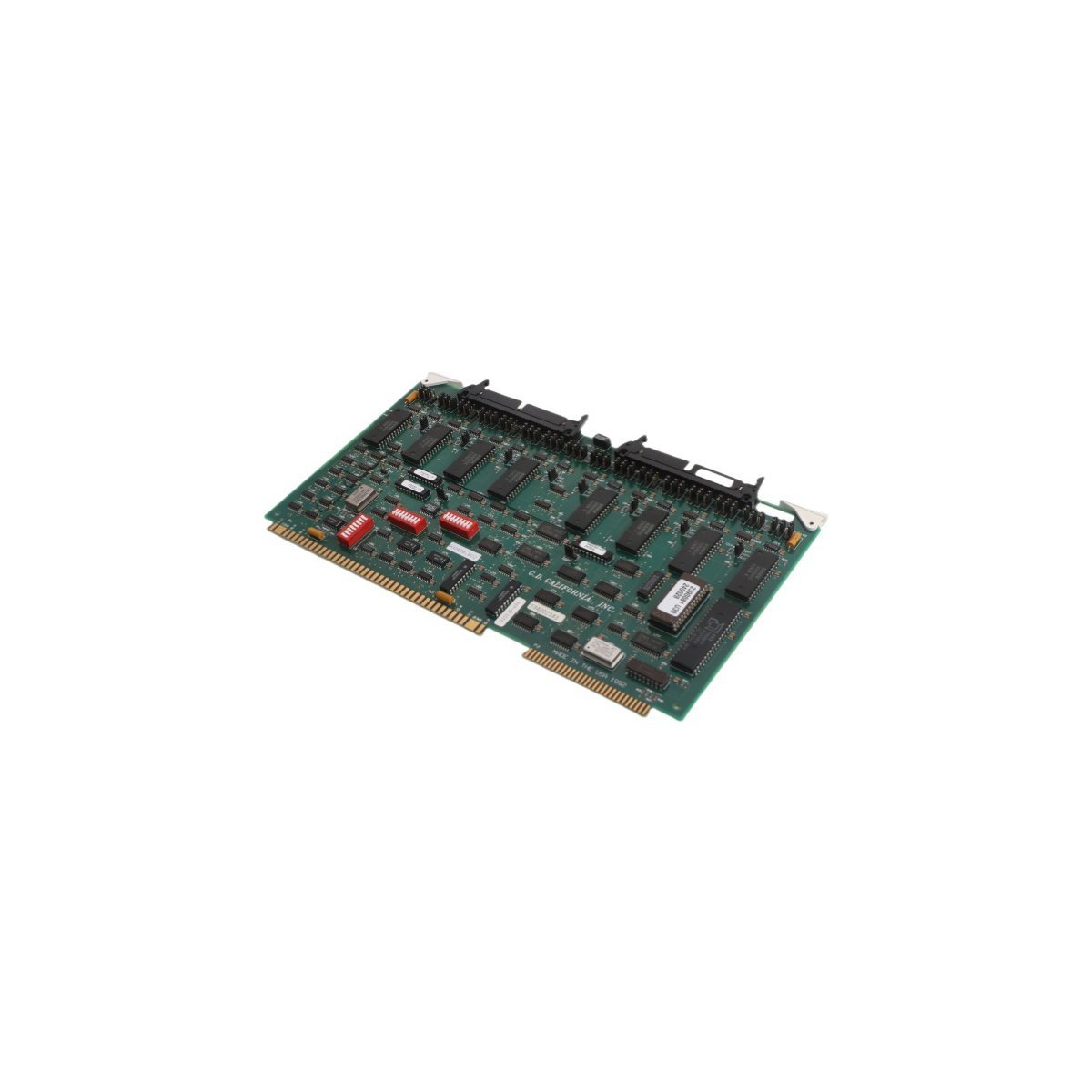

IIMSM01 ABB Harmony Rack Multibus Serial I/O Module

ABB IIMSM01 Multibus Serial I/O Module

The ABB IIMSM01, also cataloged as the IIMSM01 Multibus Serial I/O Module, operates as a dedicated hardware component for multi-channel serial data routing within Harmony Rack I/O systems. Engineers slot this assembly directly into the backplane, where it translates high-level system commands into deterministic serial streams across peripheral field channels. Integrated microprocessors buffer incoming packet payloads, which shields the primary process controller from serial handling overhead while the hardware maintains continuous polling cycles.

Hardware Specifications

Backplane Bus Communication Velocity and Firmware Compatibility

The module links directly to the internal rack structure, where dedicated bus transceivers achieve high-speed data exchanges without impeding adjacent processing nodes. Internal firmware flash chips store operating execution code, which allows seamless compatibility updates when system controllers require modified frame parsing algorithms. Furthermore, onboard logic blocks execute cyclic redundancy checks (CRC) on all transmitted packets, so the hardware discards corrupted frames before they reach field devices or flood the local control loop.

Frequently Asked Questions

Q: How do operators verify firmware flash compatibility during module replacement?

A: Technicians query the onboard memory registers via the system terminal before putting the card online. The system reads the stored hex revision code, whereupon the controller matches the string against the active system profile to ensure full backplane timing synchronization.

Q: What power isolation steps must technicians follow prior to hot-swapping this card?

A: Field staff must isolate field signal loops and disengage serial terminal blocks before pulling the module from the rack. Although backplane traces feature ESD protection, breaking live serial connections under active data loads can corrupt ongoing communications across the shared bus segment.

Q: How does the module handle high-frequency electrical noise on field communications lines?

A: Differential transceivers route incoming signals through optocouplers, which isolate sensitive internal bus logic from external ground loops. Additionally, technicians must terminate cable shields directly to the chassis ground bar to shunt high-frequency electromagnetic noise away from signal conductors.

Field Installation Guidelines

Technicians must install the module vertically inside sealed control enclosures that meet standard IP54 environmental ratings. Align the circuit board edges with the assigned card guides inside the rack frame, and then apply firm, even pressure until the edge connectors seat fully into the backplane socket. Tighten both front-panel captive screws with a manual torque tool, ensuring torque does not exceed 0.5 Nm to prevent connector strain.

Run all serial communication cables and low-voltage signal lines in separate wire trays away from high-voltage AC feeders or variable speed drive outputs. Maintain at least 200 mm of clear spacing between signal paths and power conduits to eliminate inductive coupling. Before applying bus power, confirm that 360-degree ground clamps anchor all cable shields directly to the cabinet entry earth bar, which ensures proper transient suppression across all serial ports.
