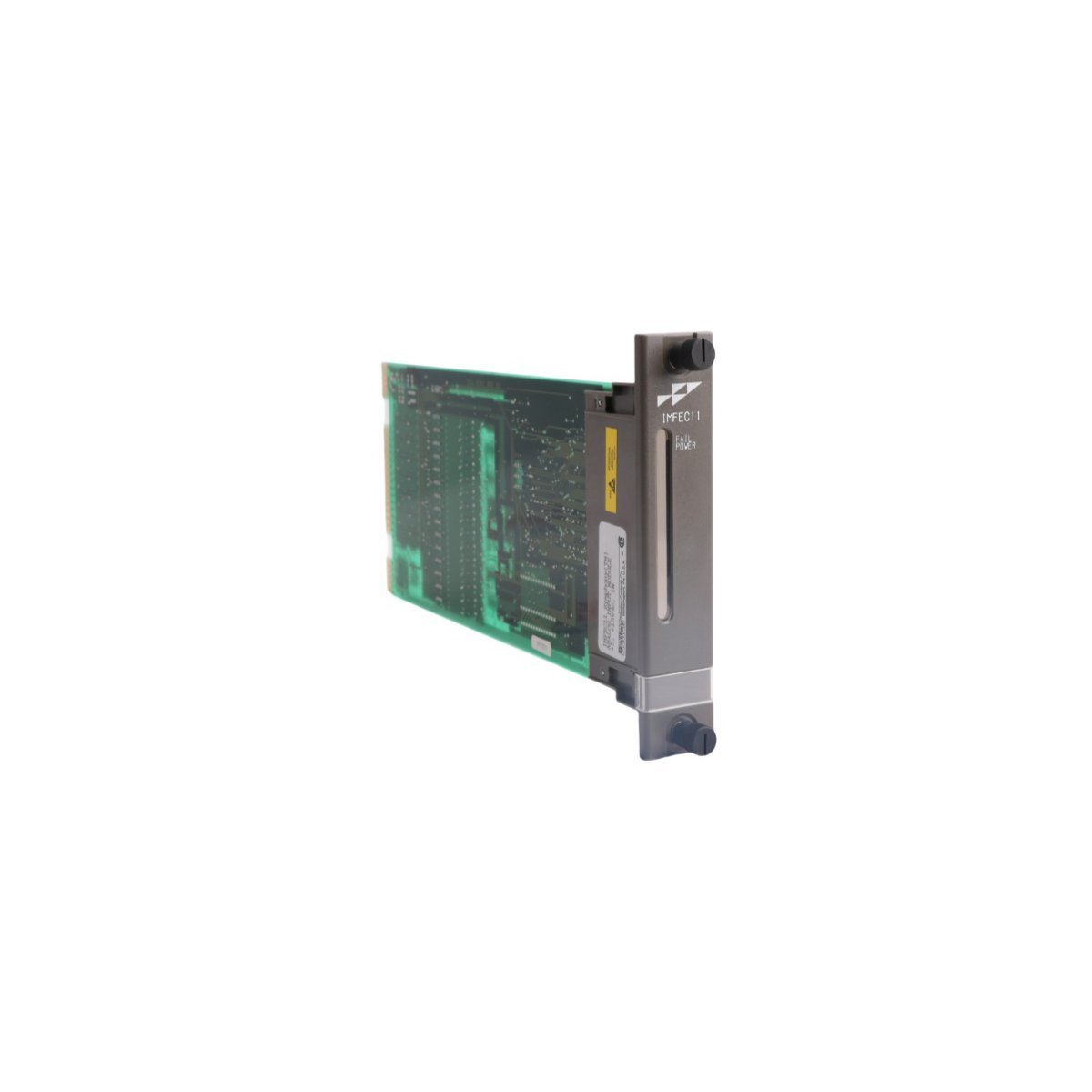

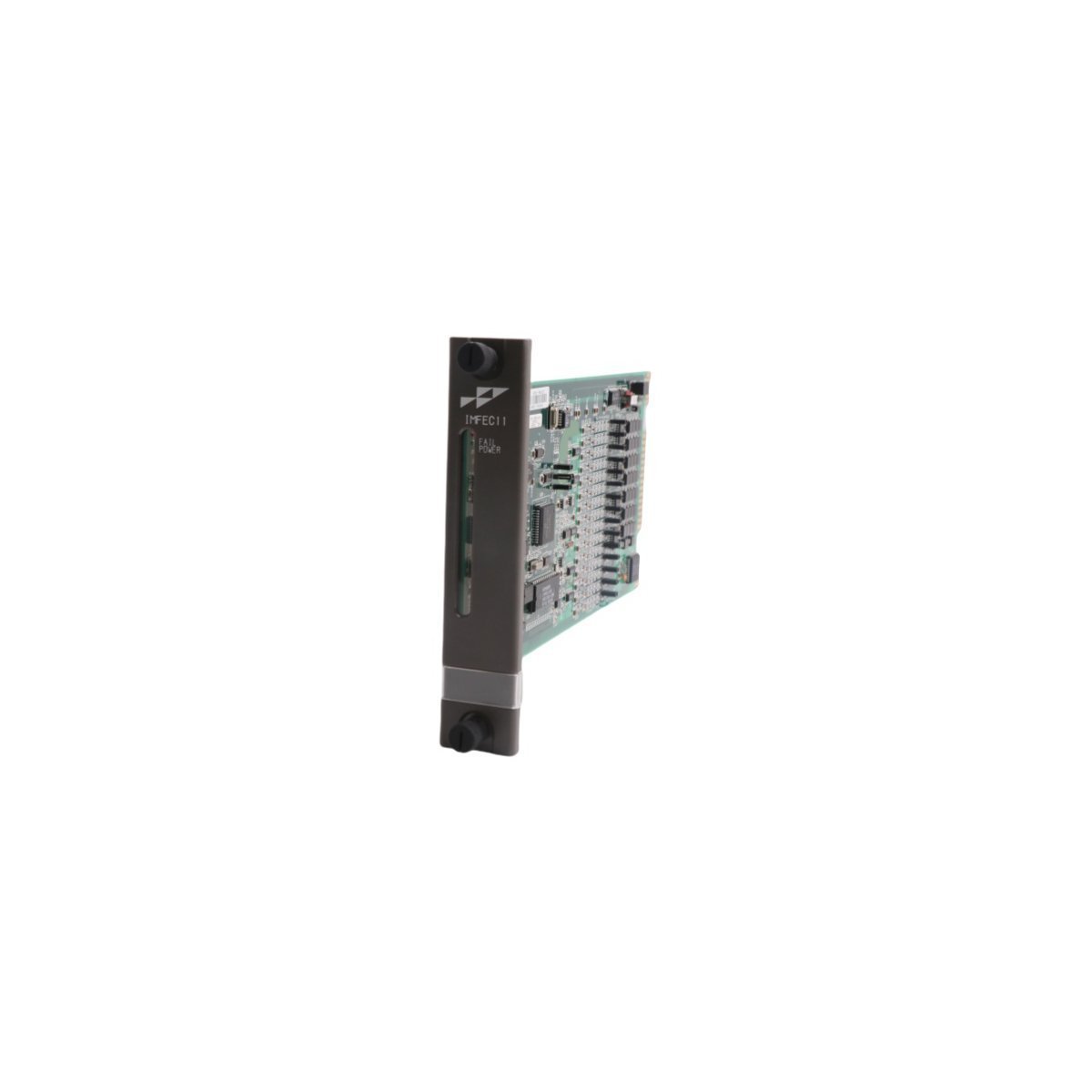

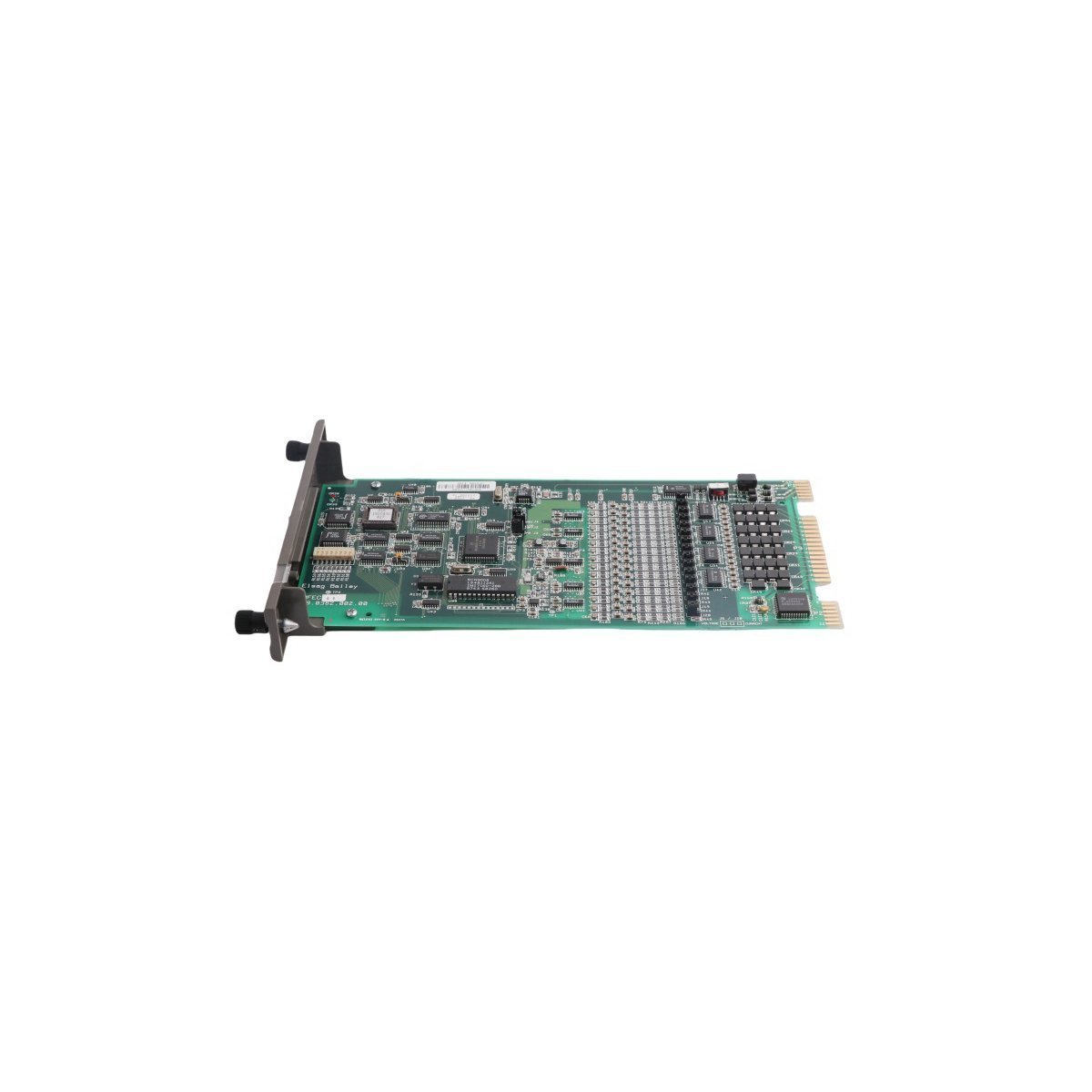

IMFEC11 ABB Analog Input Module FSK Communication Slave

Brief Product Description

The ABB IMFEC11 is a high-precision analog signal acquisition module designed for the Harmony Rack (HR) series DCS, utilizing Frequency Shift Keying (FSK) for robust data transmission in industrial environments.

Product Overview

The IMFEC11 serves as a critical interface within the ABB Harmony Rack (HR) series distributed control system. This module functions as an Analog Input FSK Slave, specifically engineered to capture field-level analog signals and convert them into digital data for high-level processing. By utilizing the Frequency Shift Keying (FSK) communication protocol, the module maintains superior signal integrity even when operating in high-interference environments. Consequently, industrial operators rely on this module for stability and accuracy in mission-critical monitoring applications.

Key Technical Characteristics

The IMFEC11 architecture prioritizes durability and precision through several distinct technical features:

• Advanced Communication Protocol: The module employs FSK technology, which significantly reduces the impact of electromagnetic noise on data transmission.
• System Integration: Designed for seamless compatibility with the Harmony Rack series, it integrates directly into existing DCS infrastructures to enhance signal acquisition capabilities.
• Operational Versatility: This module supports a wide range of voltage and current inputs, allowing it to interface with diverse industrial sensors and transducers.
• Environmental Resistance: Engineered for industrial longevity, the hardware operates reliably across broad temperature ranges, ensuring consistent performance in harsh facility conditions.
• Compact Form Factor: The lightweight, slim design facilitates easy installation within standard rack configurations, optimizing cabinet space and simplifying maintenance procedures.

Technical Specifications

• Brand: ABB
• Model: IMFEC11
• Product Series: Harmony Rack (HR) I/O
• Component Category: Analog Input Slave Module
• Communication Type: FSK Protocol
• Weight: 0.22 kg
• Dimensions: 3.6 x 31.5 x 17.7 cm
• Country of Manufacture: Sweden
• HS Code: 8537101190

Industrial Applications

The IMFEC11 is predominantly utilized in sectors requiring rigorous process control and data monitoring. Typical applications include power generation facilities, water treatment plants, and petrochemical refineries. Furthermore, its ability to maintain stable communication over Ethernet-based DCS architectures makes it an ideal choice for facilities undergoing digital transformation or system upgrades. Because it provides high-resolution data feedback, it directly supports optimized operational efficiency and predictive maintenance strategies.
