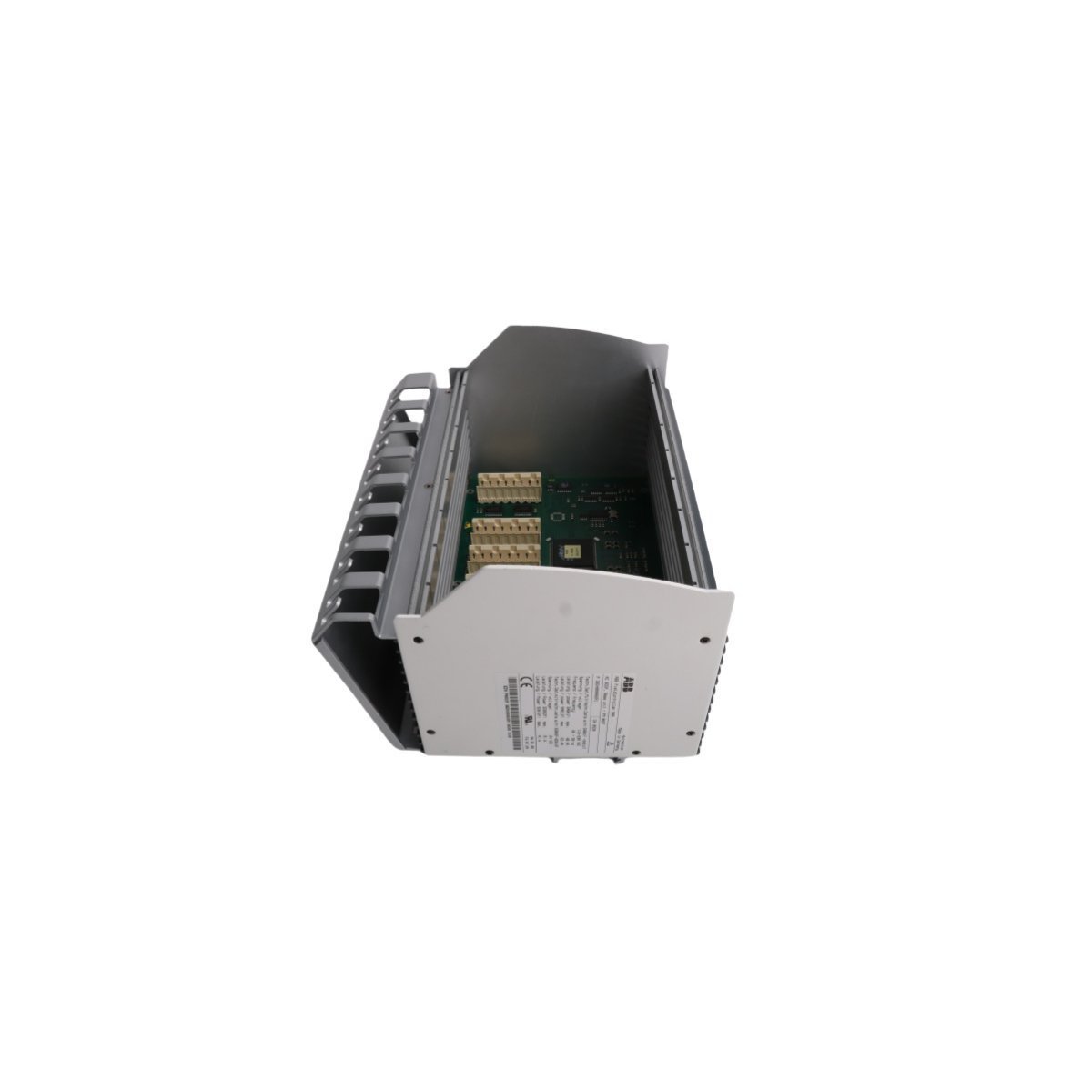

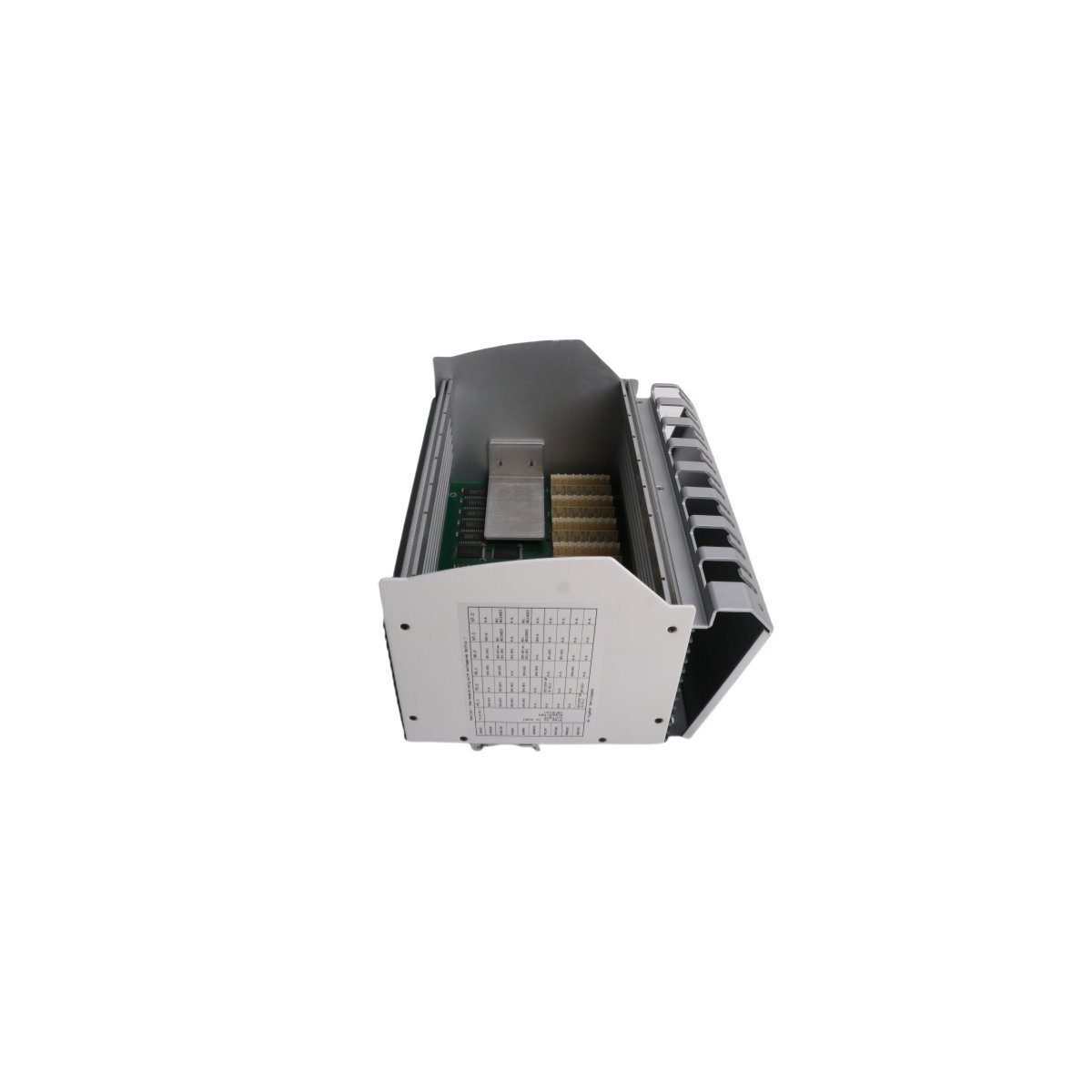

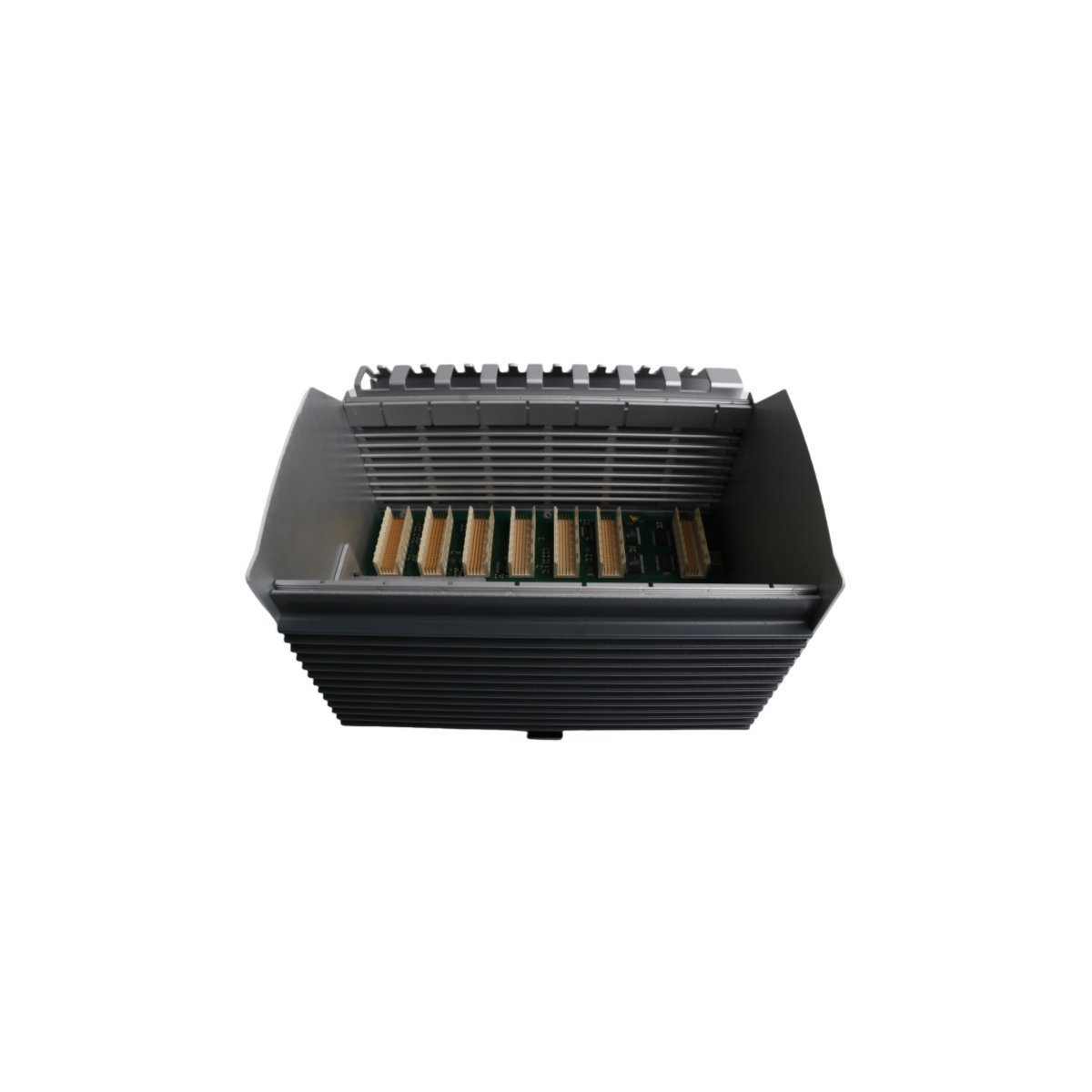

ABB PM802F 3BDH000002R1 AC 800F Field Controller

ABB PM802F 3BDH000002R1 AC 800F Field Controller

The ABB PM802F 3BDH000002R1, also cataloged as the PM802F Field Controller, operates as a dedicated hardware component for process execution and real-time data orchestration within AC 800F platforms. Engineers install this processing unit directly into system racks to run control loops and transmit deterministic fieldbus payloads. Onboard memory buffers process control algorithms rapidly while the module maintains stable communication routines across distributed DCS backplanes.

Hardware Specifications

Backplane Bus Communication Velocity and Firmware Compatibility

The controller utilizes high-speed backplane channels so that central execution cycles execute without packet transfer latency. Internal firmware flash chips maintain compatibility with system engineering tools, whereas hardware-level validation routines confirm image integrity prior to execution. Furthermore, the processor coordinates deterministic network traffic across Profinet and EtherNet/IP buses, which stabilizes cycle times even when field bus throughput scales upward.

Frequently Asked Questions

Q: How does the controller safeguard control routines during a total loss of external power?

A: The board incorporates a dedicated 4 MB battery-buffered RAM circuit. Consequently, the hardware retains application code, force lists, and process states until technicians restore external bus power.

Q: What procedure ensures smooth firmware flash updates across redundant processor nodes?

A: Engineers flash updated binary files through the diagnostic serial port or Ethernet maintenance socket. Onboard verification logic checks the memory image signature before applying updates; thus, the card prevents system halts caused by corrupted firmware writes.

Q: What grounding method suppresses high-frequency electrical noise on fieldbus communication cables?

A: Maintenance teams must clamp incoming cable shields directly to the sub-rack chassis earth bar. Low-impedance grounding straps shunt transient spikes away from sensitive internal bus logic without causing differential mode interference.

Field Installation Guidelines

Technicians must mount the field controller vertically inside grounded IP54-rated metal cabinets. Slide the module evenly into its designated sub-rack guide rails until the backplane connectors lock completely into position. Tighten the panel retention screws using a manual screwdriver, ensuring a torque limit of 0.5 Nm to prevent connector strain.

Route all communication buses and power leads through separate wiring ducts. Keep a minimum clearance distance of 200 mm between low-voltage signal cables and high-power AC lines to minimize inductive coupling. Before applying panel power, verify that 360-degree shield clamps ground all Ethernet and fieldbus lines at the cabinet entry point.
