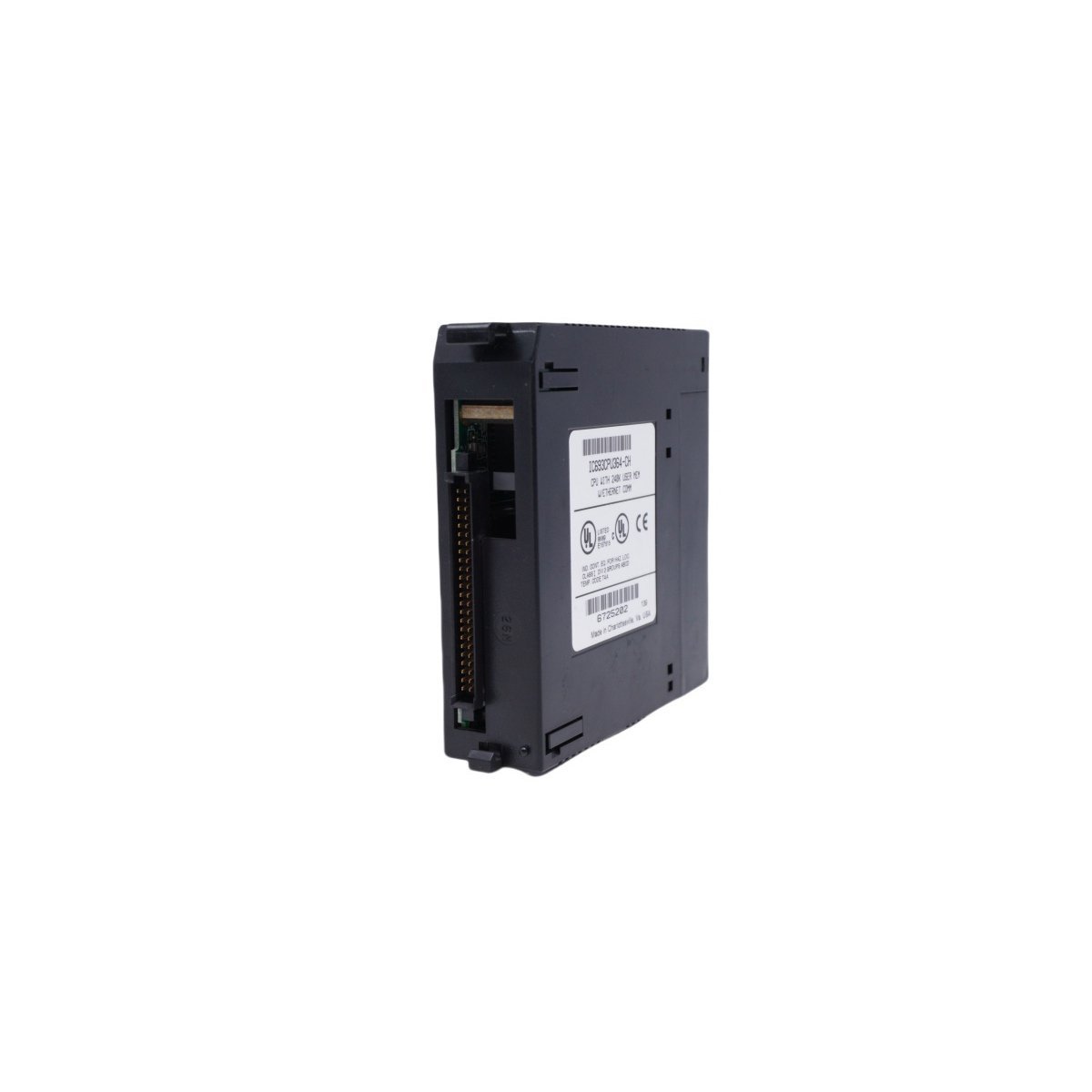

IC693CPU364 GE Fanuc 80386EX 25MHz Programmable Controller Module

Brief Product Description

The GE Fanuc IC693CPU364 is a high-speed, 25 MHz processor module designed for the Series 90-30 PLC platform, featuring integrated Ethernet connectivity. It delivers efficient logic execution and expansive memory management for demanding industrial automation and control environments.

Product Description

The IC693CPU364 functions as the primary control engine for the GE Fanuc Series 90-30 Programmable Logic Controller system. Utilizing a 25 MHz 80386EX processor, this unit executes Boolean logic at a rate of 0.22 ms per 1K, ensuring rapid response times for time-critical industrial processes. This module integrates seamlessly into a single slot of the baseplate, allowing for compact system designs without sacrificing computational power.

Memory and I/O Scalability

This CPU provides 240KB of configurable user memory, which supports logic, registers, and internal variables. System designers can allocate this memory across various data types, including %R (registers), %AI (analog inputs), and %AQ (analog outputs). Furthermore, the IC693CPU364 manages a comprehensive I/O map, supporting up to 2,048 discrete inputs and 2,048 discrete outputs. To accommodate large-scale applications, the processor controls up to eight total baseplates, consisting of one local CPU baseplate and seven expansion or remote racks.

Integrated Connectivity and Communication

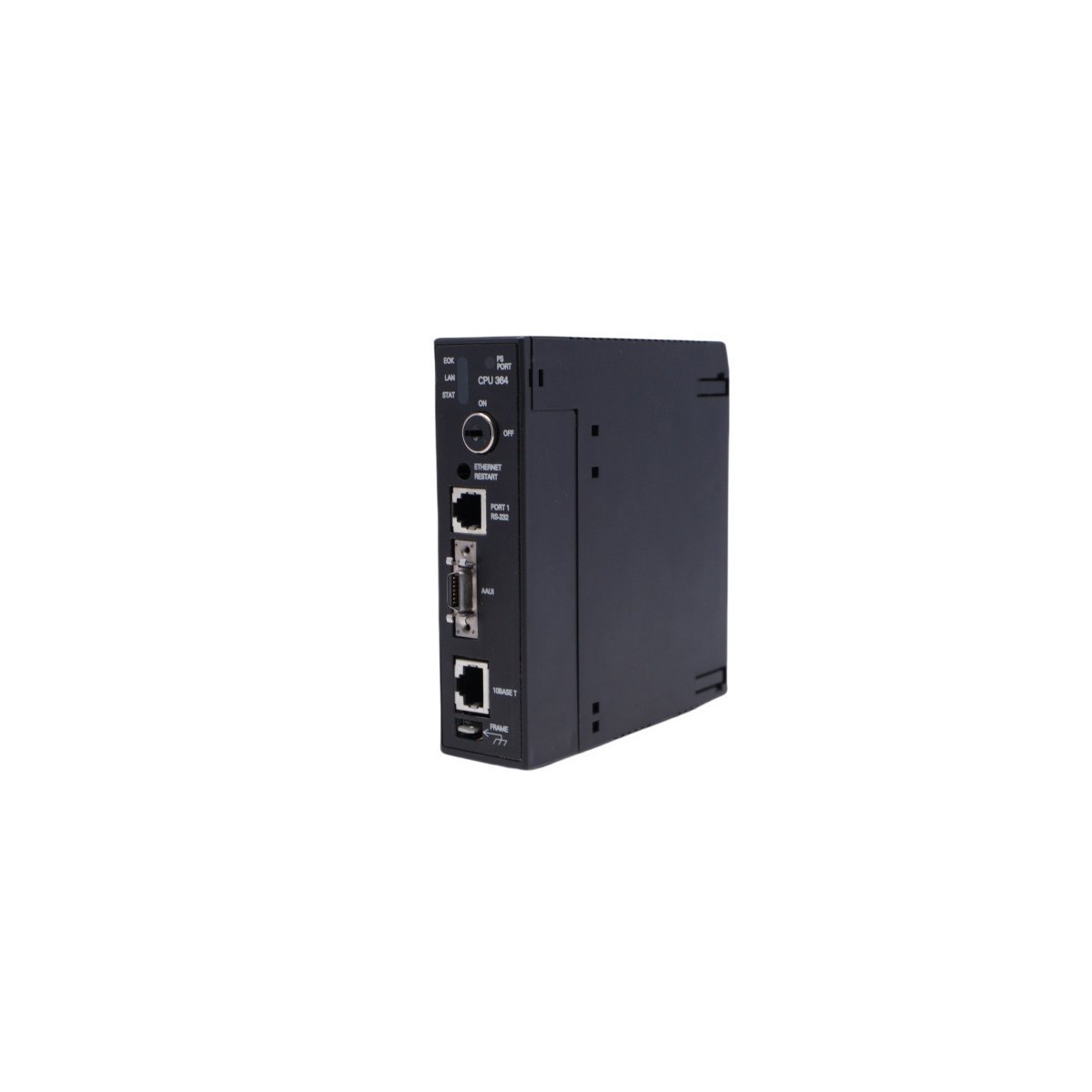

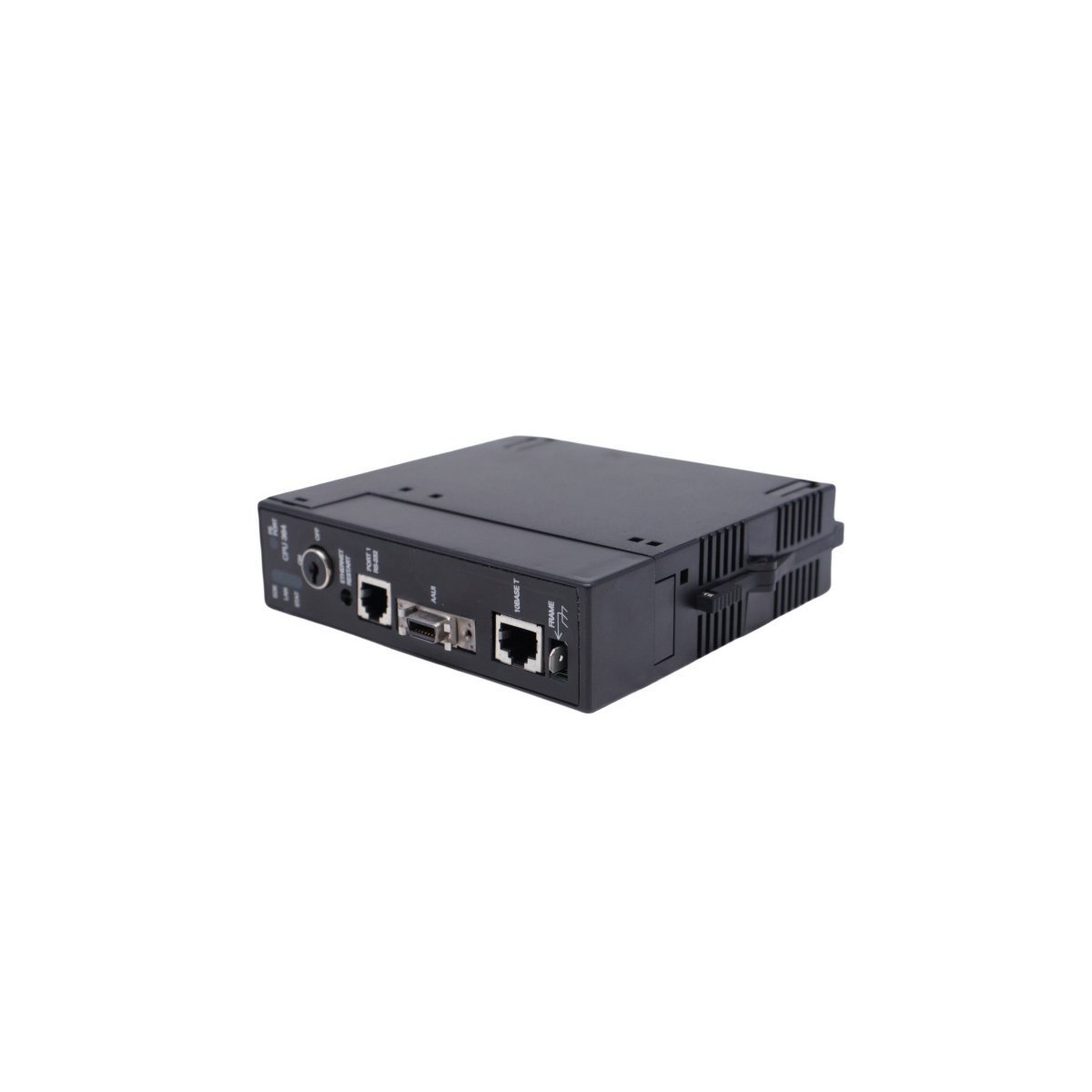

A standout feature of the IC693CPU364 is its built-in Ethernet interface, which facilitates high-speed programming, data monitoring, and network integration. In addition to the Ethernet port, the module utilizes an RS-485 serial port located on the system power supply for auxiliary communication. These dual-path communication capabilities allow the PLC to interface simultaneously with Human Machine Interfaces (HMI), supervisory software, and other networked controllers.

Performance and Environmental Standards

• Logic Execution: 0.22 milliseconds per 1K of Boolean logic.
• Discrete Points: Supports a maximum of 4,096 total discrete I/O points.
• Analog Capacity: Configurable analog I/O available in 128-word increments.
• Power Consumption: Requires 1.51 Amps from the 5V DC bus.
• Thermal Management: Optimized for stable operation between 0 and 60°C.

Technical Specifications
