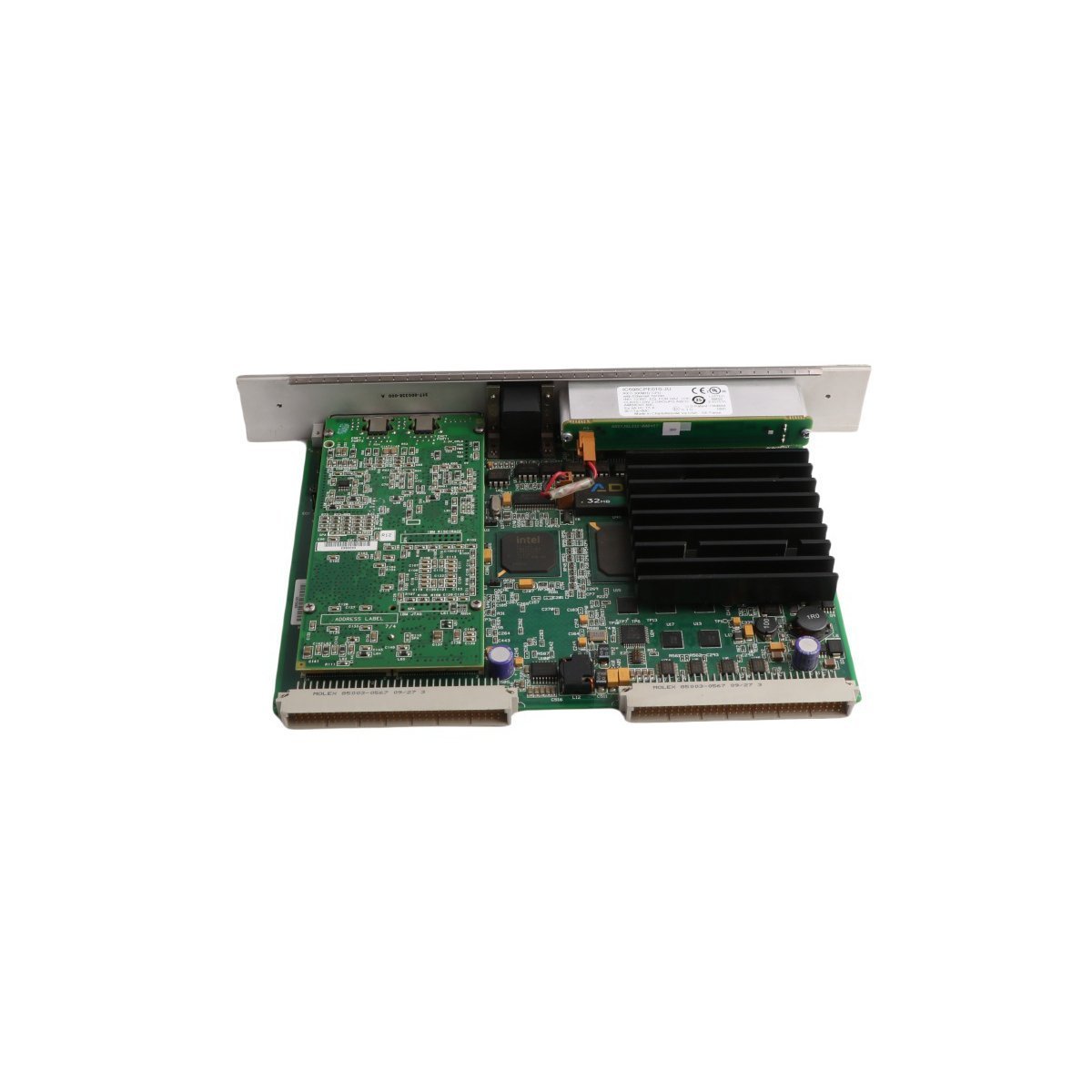

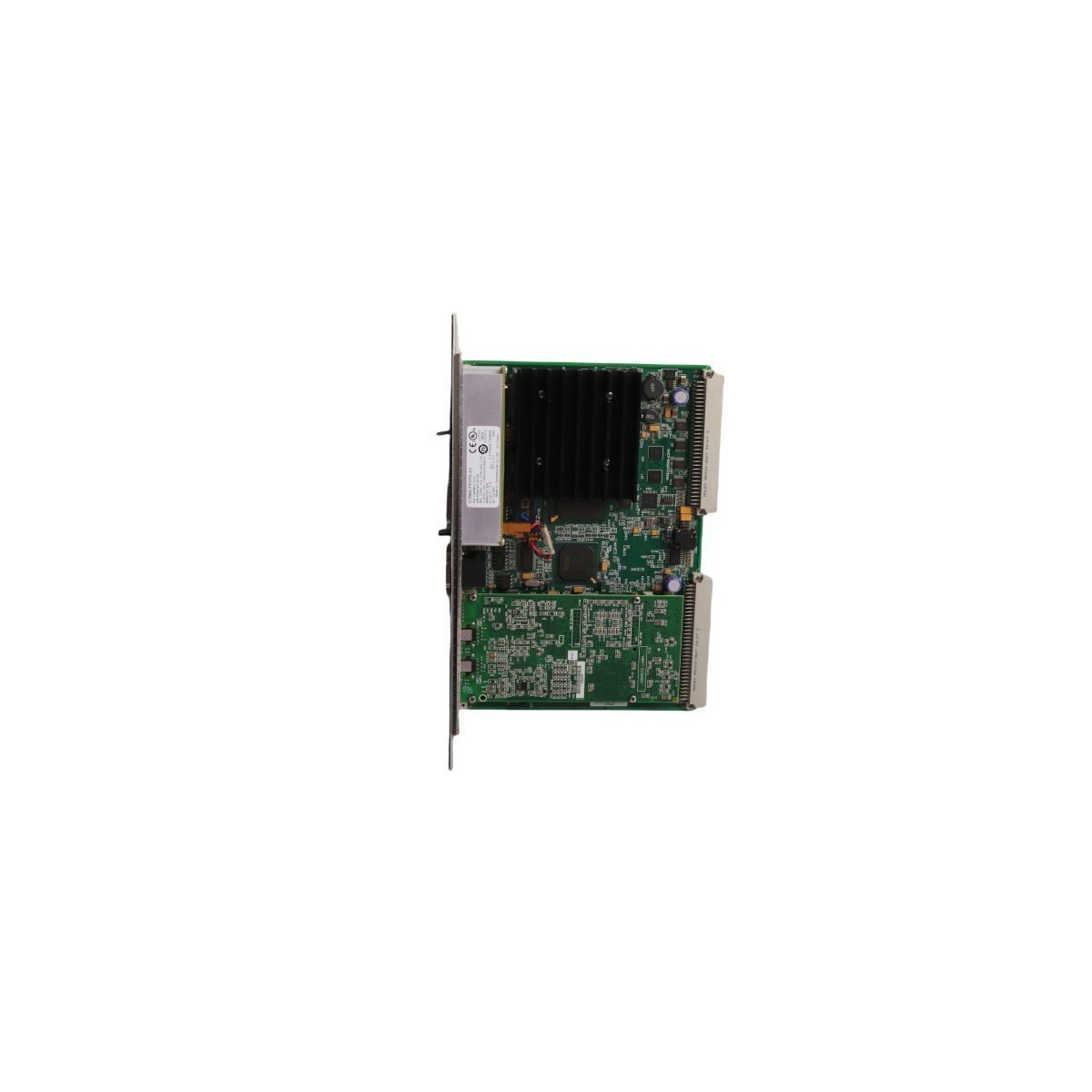

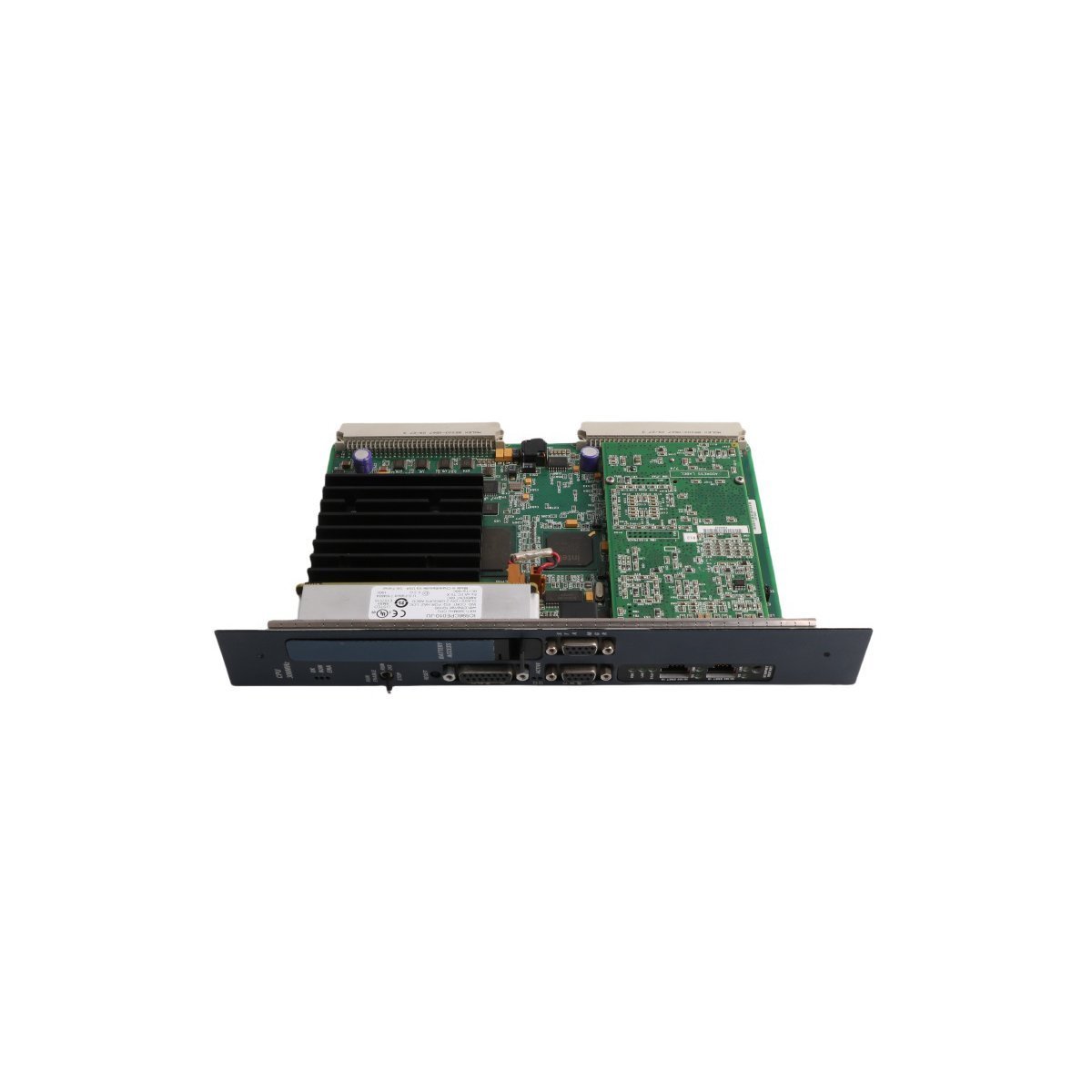

GE Fanuc IC698CPE010 RX7i CPU Module

Technical Specifications

Processing Power and Memory Architecture

This module features a sophisticated memory structure to support intensive programming tasks. The 10 MB of battery-backed RAM ensures your logic and variable data remain secure during power loss. Additionally, a dedicated 10 MB flash memory provides permanent storage for applications and hardware configurations. The CPU supports up to 512 independent program blocks for organized code management. Each individual block can accommodate up to 128 KB of specialized logic. Furthermore, the processor natively supports floating-point math for precise technical calculations. This hardware effectively eliminates bottlenecks in large-scale distributed control systems.

Integrated Network and Serial Connectivity

The IC698CPE010 provides versatile communication options through built-in Ethernet and serial interfaces. Dual Ethernet ports support 10/100 Mbps auto-negotiation for fast plant-floor networking. These ports facilitate multiple protocols including SRTP, Modbus TCP, and Ethernet Global Data (EGD). Moreover, the hardware supports Media Redundancy Protocol (MRP) to ensure continuous network uptime. Three serial ports offer additional connectivity via RS-232 and RS-485 standards. These ports allow direct integration with local HMIs, drives, and legacy serial equipment. Consequently, the module acts as a central hub for multi-layered industrial communications.
