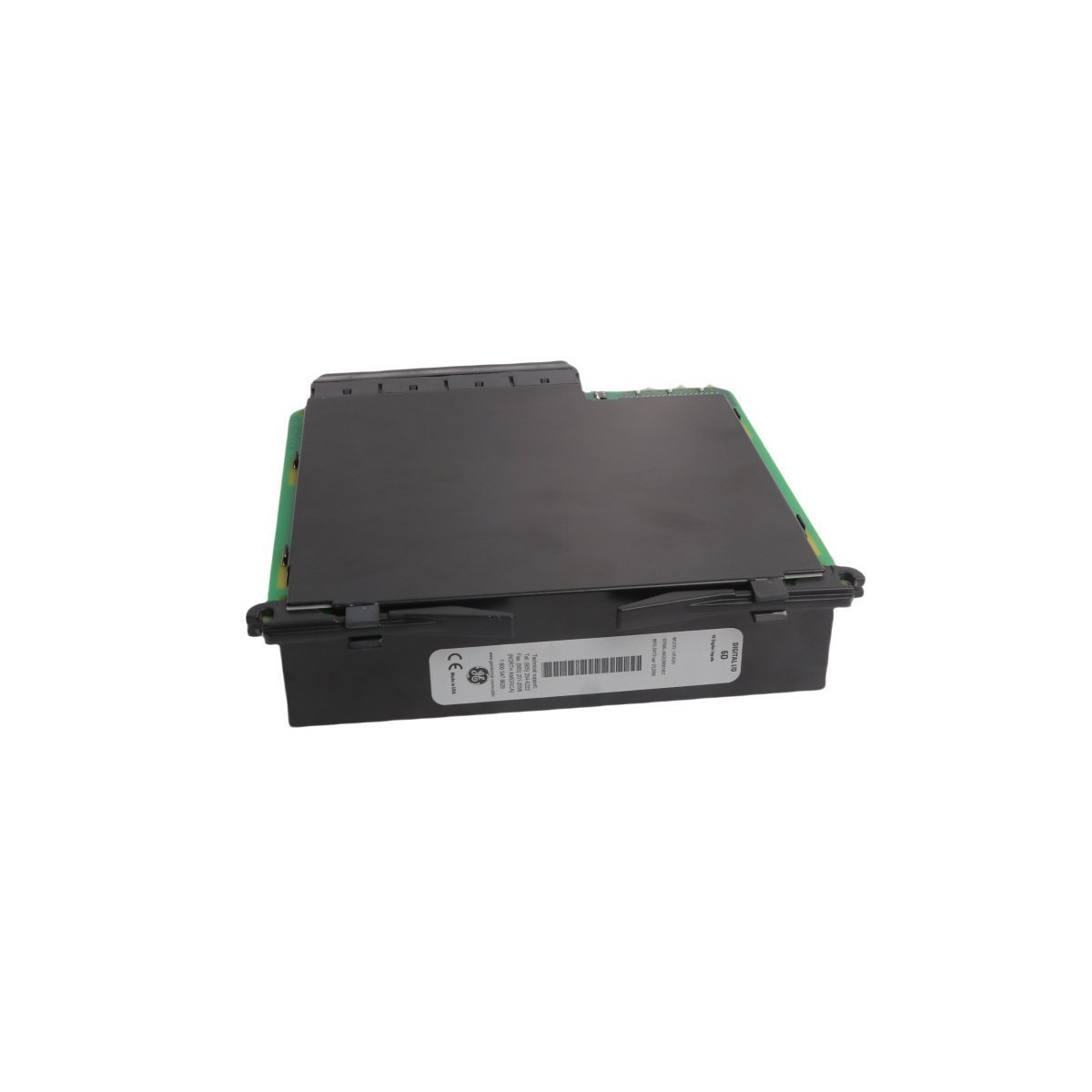

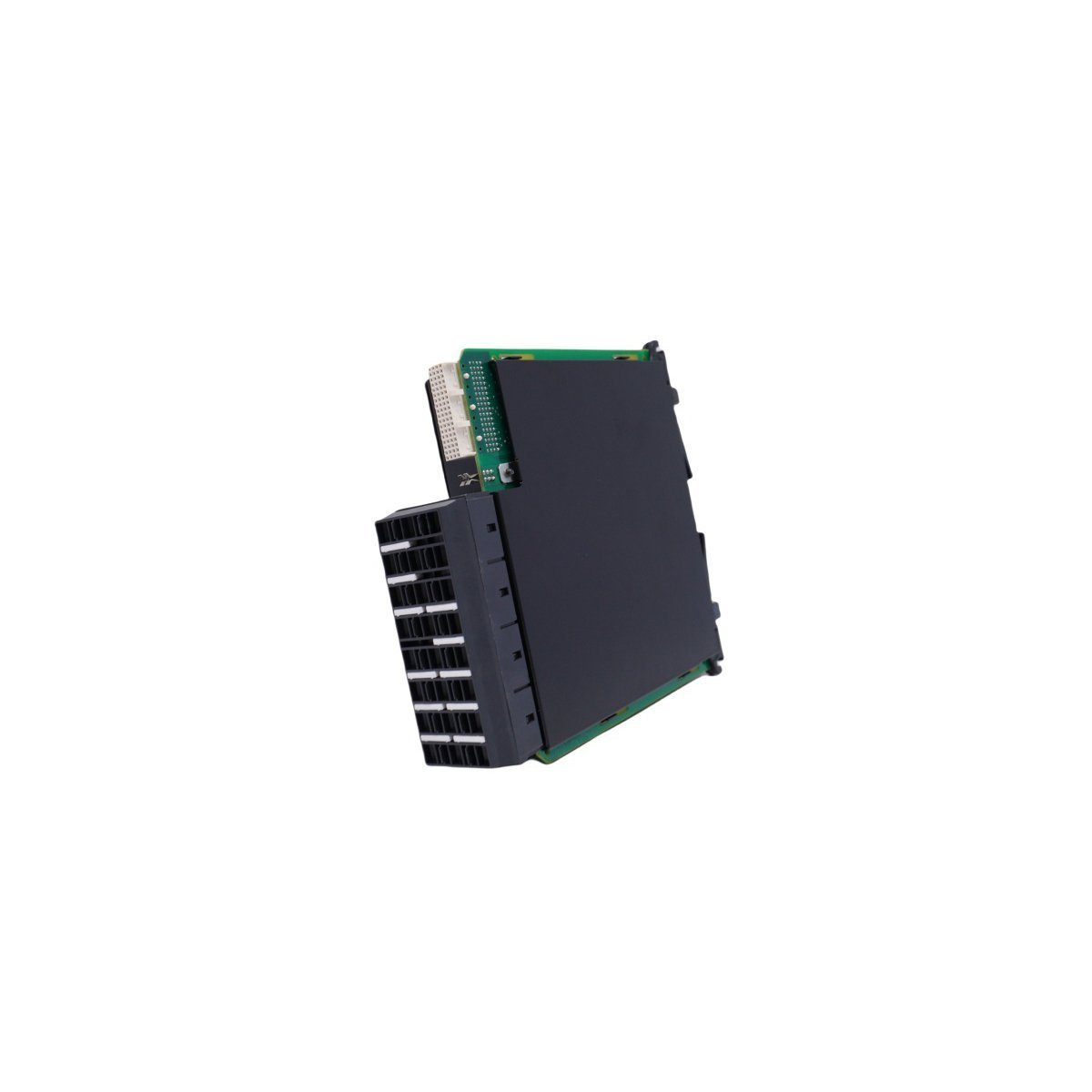

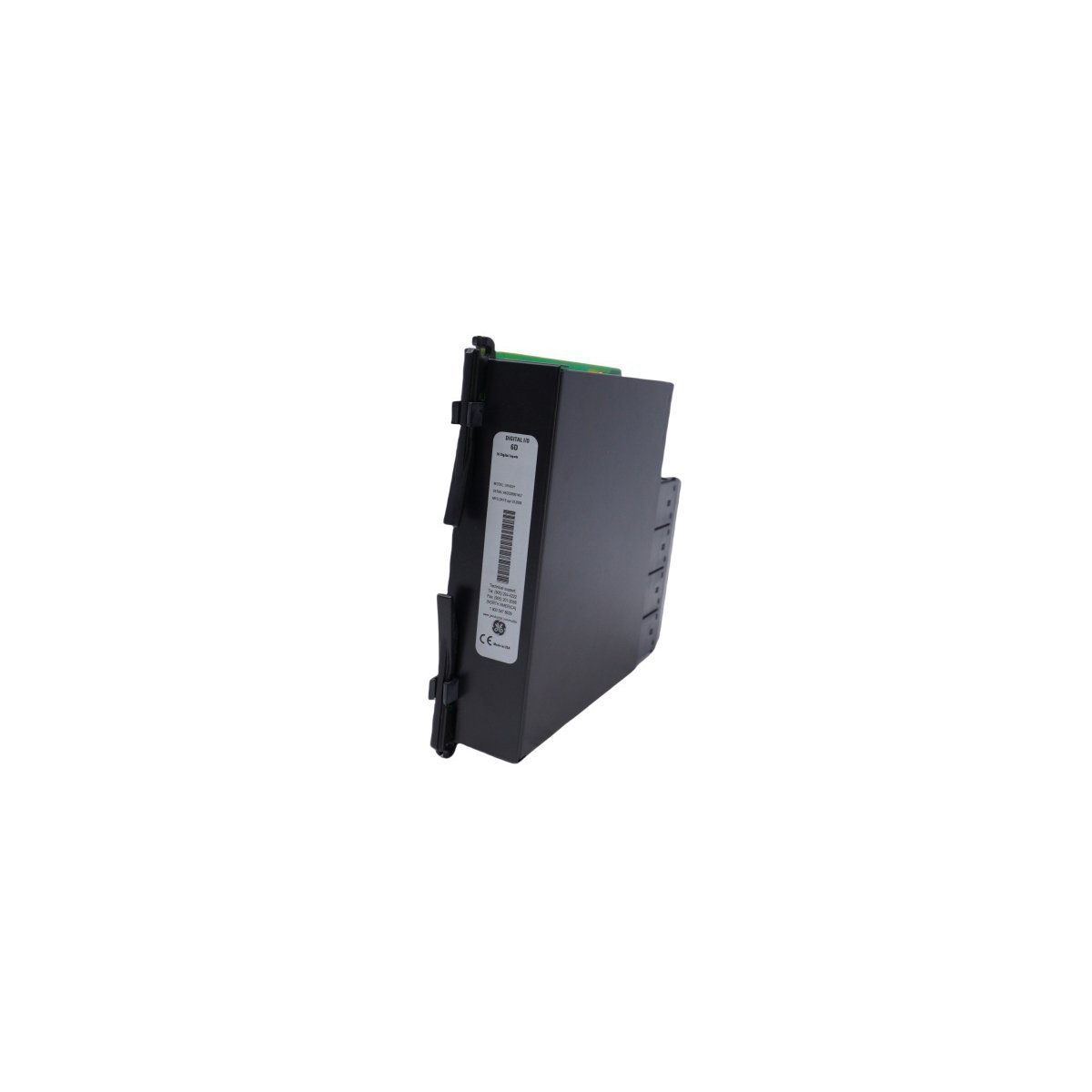

GE Multilin Series UR6DH 16-Input 16-Output Discrete Control Card

Brief Product Description

The GE UR6DH is a high-density digital I/O expansion module from the Multilin Universal Relay series, designed for precision signal acquisition and device control. It facilitates real-time status monitoring and automated switching for advanced substation and industrial protection systems.

Product Description

The UR6DH functions as a critical interface component within the GE Multilin Universal Relay (UR) platform. This module enables the protective relay system to interact with external field equipment by capturing discrete status signals and executing control commands. Because it integrates directly into the UR chassis, the module provides a seamless link between physical hardware states and the system’s logic processing core.

Application and Logic Integration

Specifically engineered for utility substations and heavy industrial power systems, the UR6DH excels in monitoring breaker positions, isolator statuses, and external trip signals. The module processes up to 16 digital inputs and manages 16 digital outputs, allowing engineers to implement complex interlocking and automation schemes. Moreover, the hardware utilizes high-speed sampling to ensure that the protective relay responds to changes in state with minimal latency, which is vital for maintaining system stability during fault conditions.

Durability and Diagnostic Features

Safety and reliability remain central to the UR6DH design. The module incorporates advanced electromagnetic interference (EMI) shielding to operate correctly in high-voltage environments where electrical noise is prevalent. Furthermore, the unit features comprehensive self-diagnostic routines that continuously verify the integrity of the I/O channels. These internal checks proactively identify hardware failures or wiring anomalies, thereby reducing the risk of maloperation and simplifying routine maintenance procedures for technicians.

Key Technical Characteristics

• High-Density I/O: Provides 16 discrete inputs and 16 discrete outputs in a single compact form factor.
• Interference Resistance: Built with industrial-grade hardening to withstand the harsh transients common in power utility applications.
• Real-Time Acquisition: Delivers high-speed digital signal processing for instantaneous status updates and control execution.
• System Compatibility: Designed specifically for the Multilin UR family of protection and control relays.
• Modular Architecture: Supports hot-swappable installation or replacement within compatible GE relay frames.
