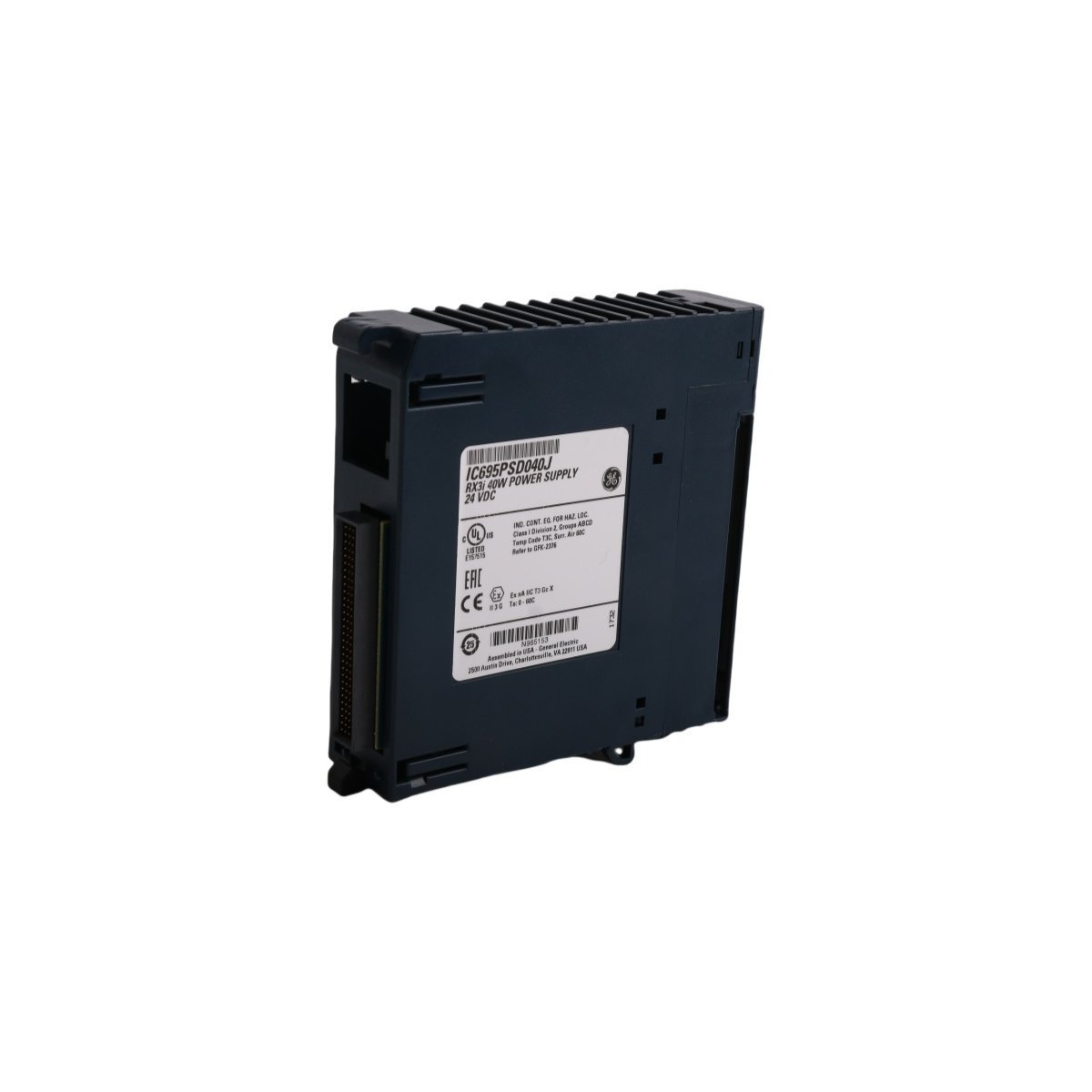

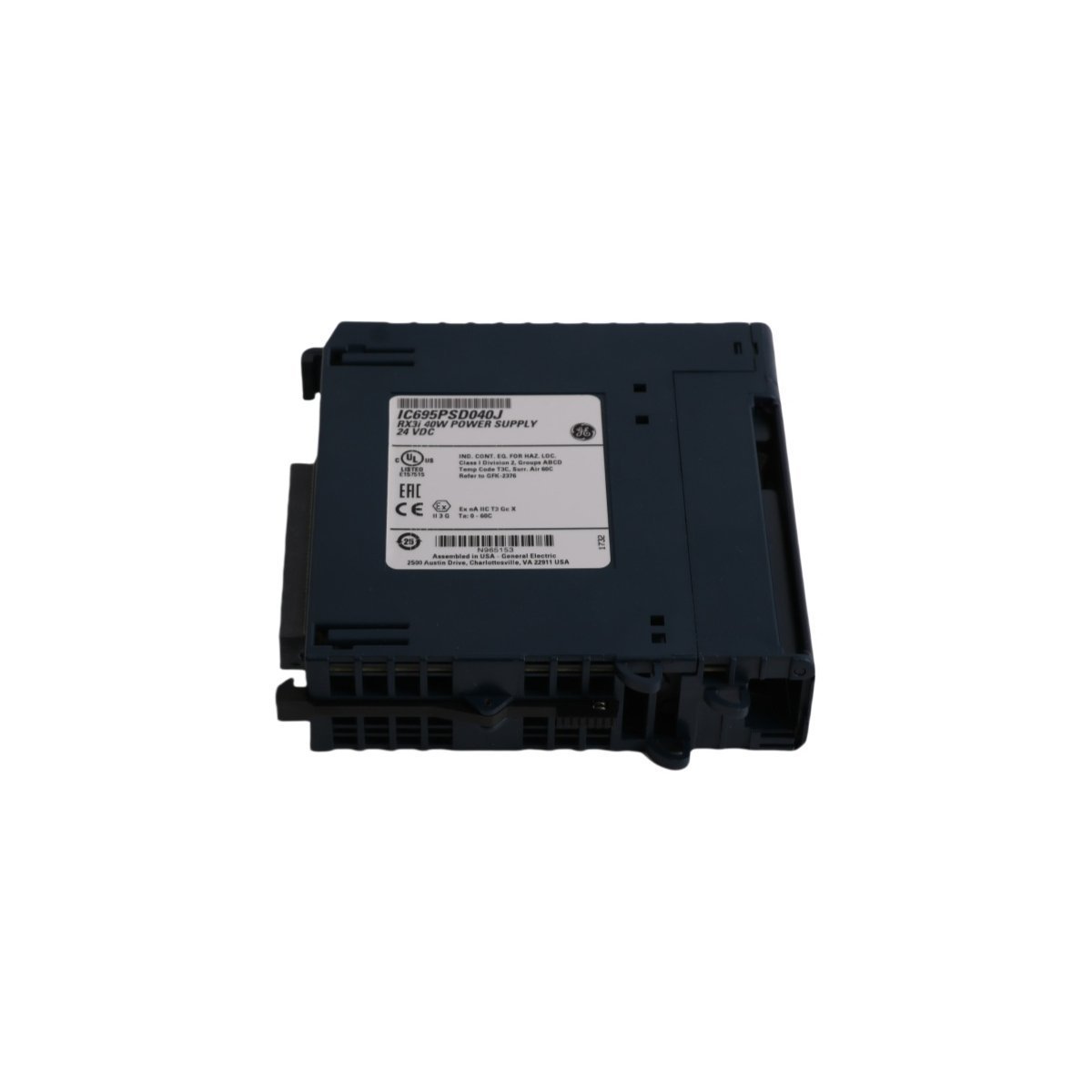

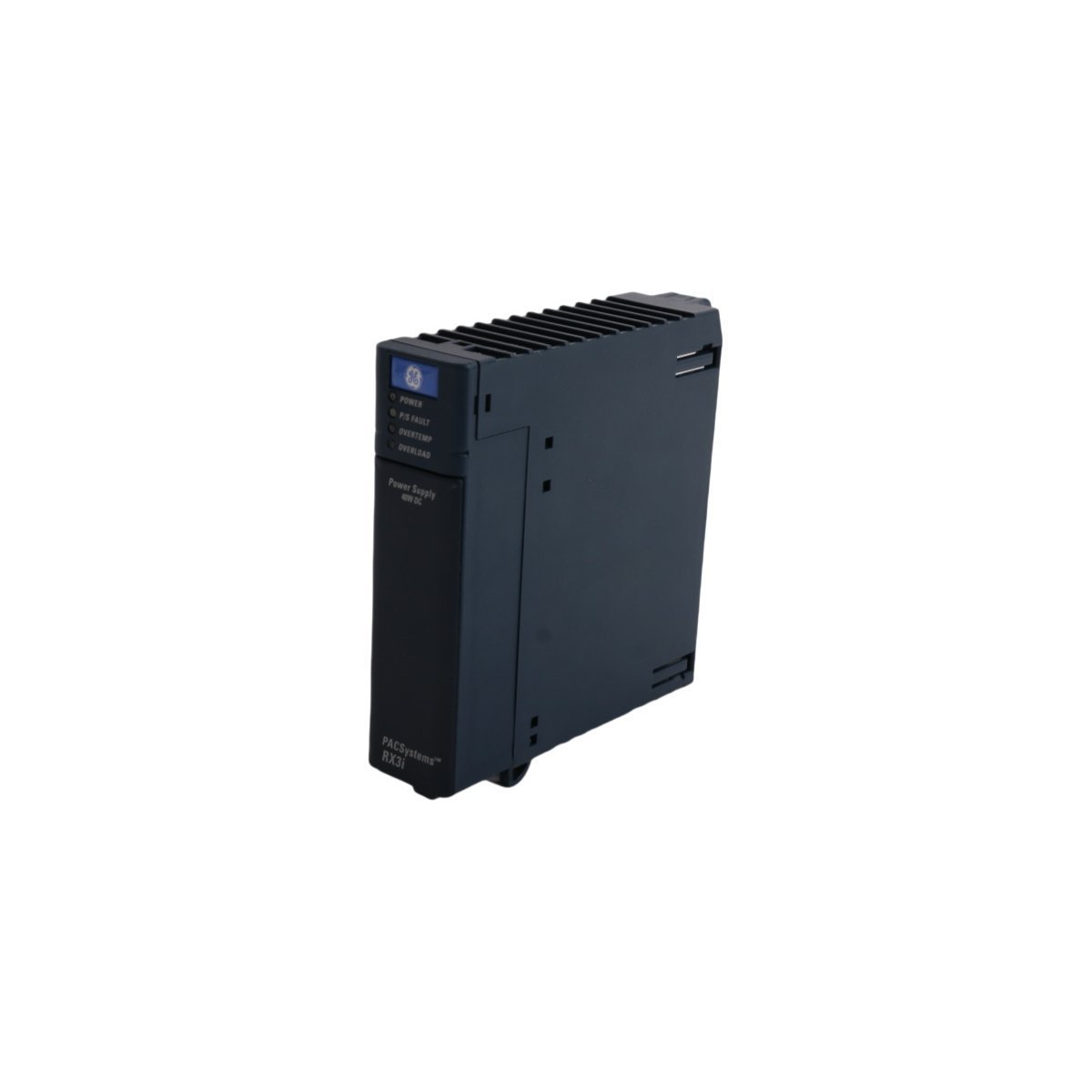

General Electric IC695PSD040 RX3i Universal Backplane Power Supply

The GE IC695PSD040 provides 40 Watts of regulated power for PACSystems RX3i control systems. This module supplies 24V DC directly to the backplane to support CPU and I/O operations. Furthermore, the unit features a compact design that fits into a single universal backplane slot. Engineers utilize this module for non-redundant, standalone power applications in industrial automation. It maintains consistent voltage levels to protect sensitive electronic components from power fluctuations.

Primary Technical Characteristics

Operational Constraints and Safety

This power supply functions exclusively as a single-unit solution for the RX3i platform. Specifically, the IC695PSD040 cannot operate in parallel or redundant modes with other power modules. Attempting to install multiple supplies in one backplane may cause significant hardware damage. Consequently, users must calculate the total power consumption of all rack modules before installation. If the load exceeds 40W, operators should distribute modules to expansion or remote racks.

Diagnostic and Monitoring Capabilities

The IC695PSD040 includes intelligent circuitry to monitor the health of the incoming and outgoing power. For instance, the module detects voltage drops and immediately signals the CPU. This communication allows the controller to generate fault codes and initiate safe shutdown procedures. Additionally, front-facing LED indicators provide immediate visual status of the power supply performance. These diagnostics help maintenance teams quickly identify power-related issues during troubleshooting.

Installation and System Compatibility

Engineers must verify the hardware revision level before adding this module to an existing system. Earlier versions of this supply have specific restrictions regarding backplane placement and neighboring modules. Moreover, the unit prioritizes heat dissipation through its optimized housing design. This ensures reliable performance in standard industrial DCS and PLC cabinets. The IC695PSD040 remains a cost-effective choice for basic control configurations requiring stable 24V DC power delivery.
