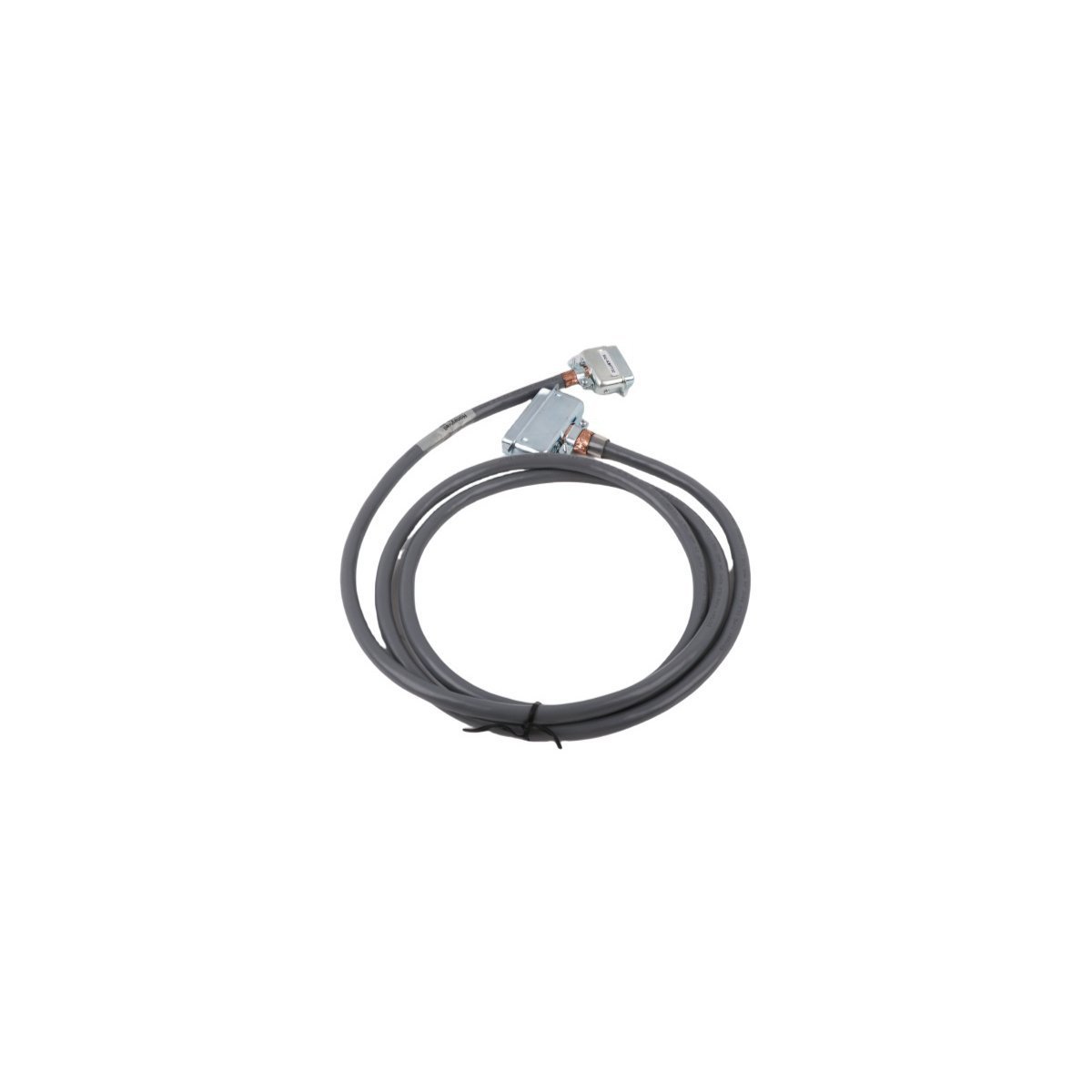

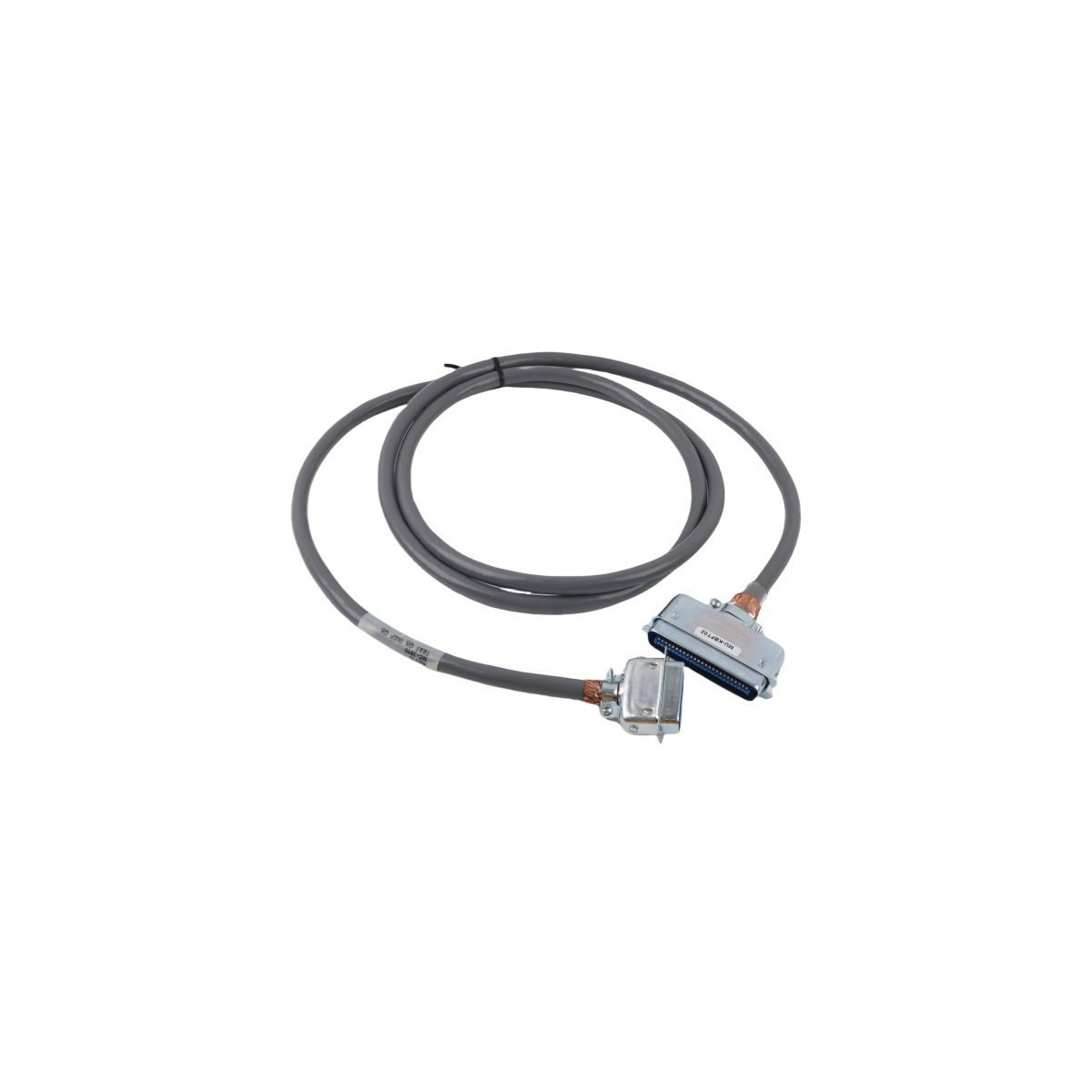

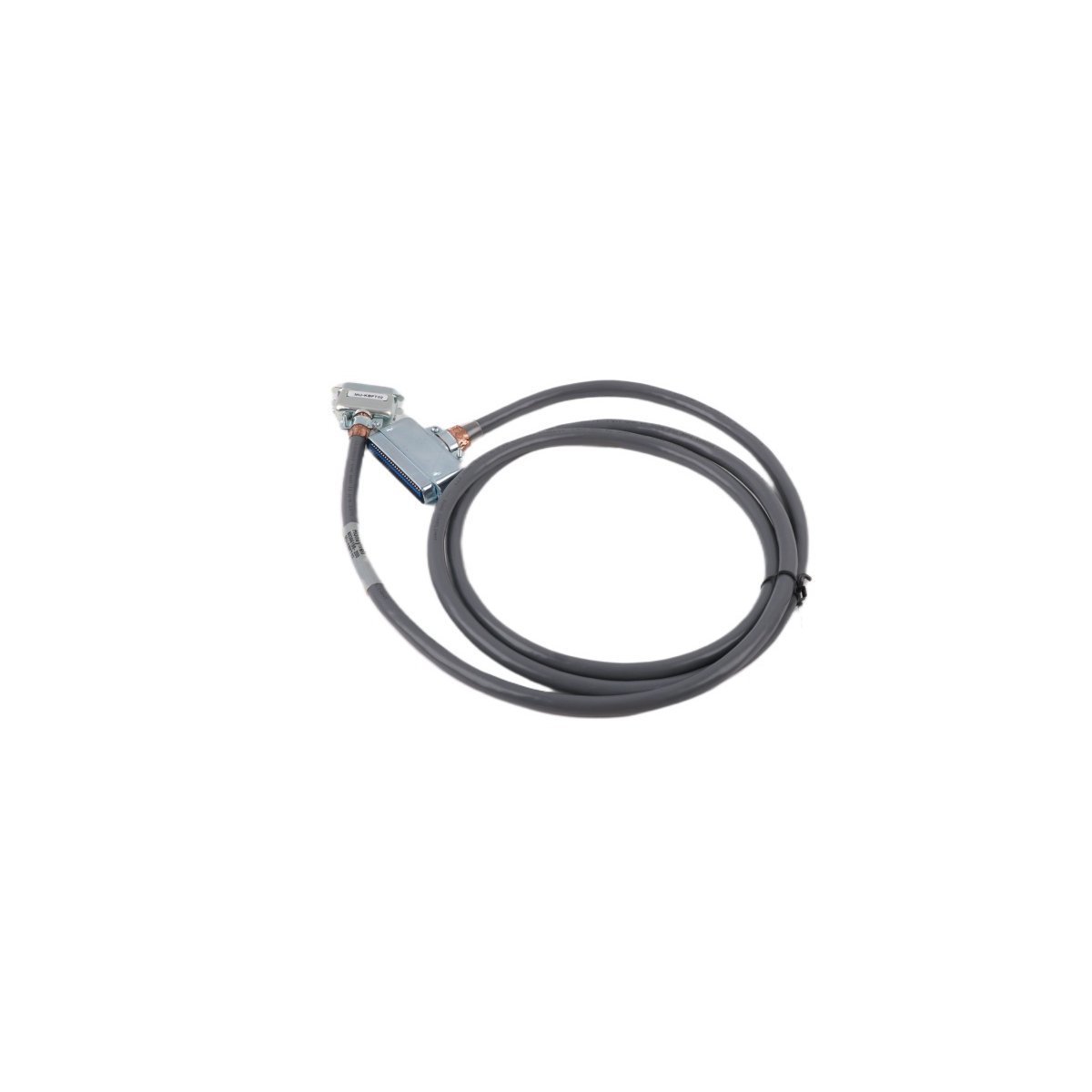

Configured for inter-panel field termination assembly connections in Experion PKS DCS networks, the Honeywell MU-KBFT02 80366198-200 (MU-KBFT02 INST HPM FTA Cable Bridge) provides direct physical/electrical execution. The hardware establishes multi-channel point-to-point electrical bridging between High-Performance Process Manager I/O cards and Field Termination Assemblies, conducting low-voltage process measurements and control outputs without signal distortion.

Hardware Specifications

4-20 mA HART & Channel Galvanic Isolation Performance

While operating as a passive wiring bridge between I/O modules and FTAs, the assembly maintains strict signal purity across 4-20 mA HART loop channels. The high-conductivity copper conductors minimize line resistance, so field transmitters can transmit digital HART data overlays without attenuation. Moreover, heavy-duty insulation prevents channel-to-channel crosstalk and eliminates ground loops between field wiring blocks and central process cabinets, which ensures uncompromised analog signal conversion across all connected measurement loops.

Frequently Asked Questions

Q: Does this cable assembly require external power or configuration before deployment?

A: No, field technicians install the cable bridge as a purely passive interconnect assembly. It requires no internal software setup, loop power supply, or firmware programming.

Q: How does the cable construction tolerate mechanical stress during field maintenance?

A: The integrated PVC jacket and strain-relief molding deliver a minimum pull strength of 200 N. Consequently, the connectors resist axial tension and prevent conductor shear when technicians manipulate cable bundles in dense wiring raceways.

Field Installation Guidelines

Technicians must verify that both connector locking levers snap firmly into the FTA header sockets to guarantee an IP67 seal. Installers must route the cable assembly through dedicated low-voltage instrument trays, maintaining a minimum bend radius of six times the cable diameter to prevent conductor fatigue. In addition, field personnel must separate these instrument bridges from AC power cables by at least 150 mm to suppress electromagnetic interference, while tying the cable braid shield directly to the main system grounding bar at a single termination point.
