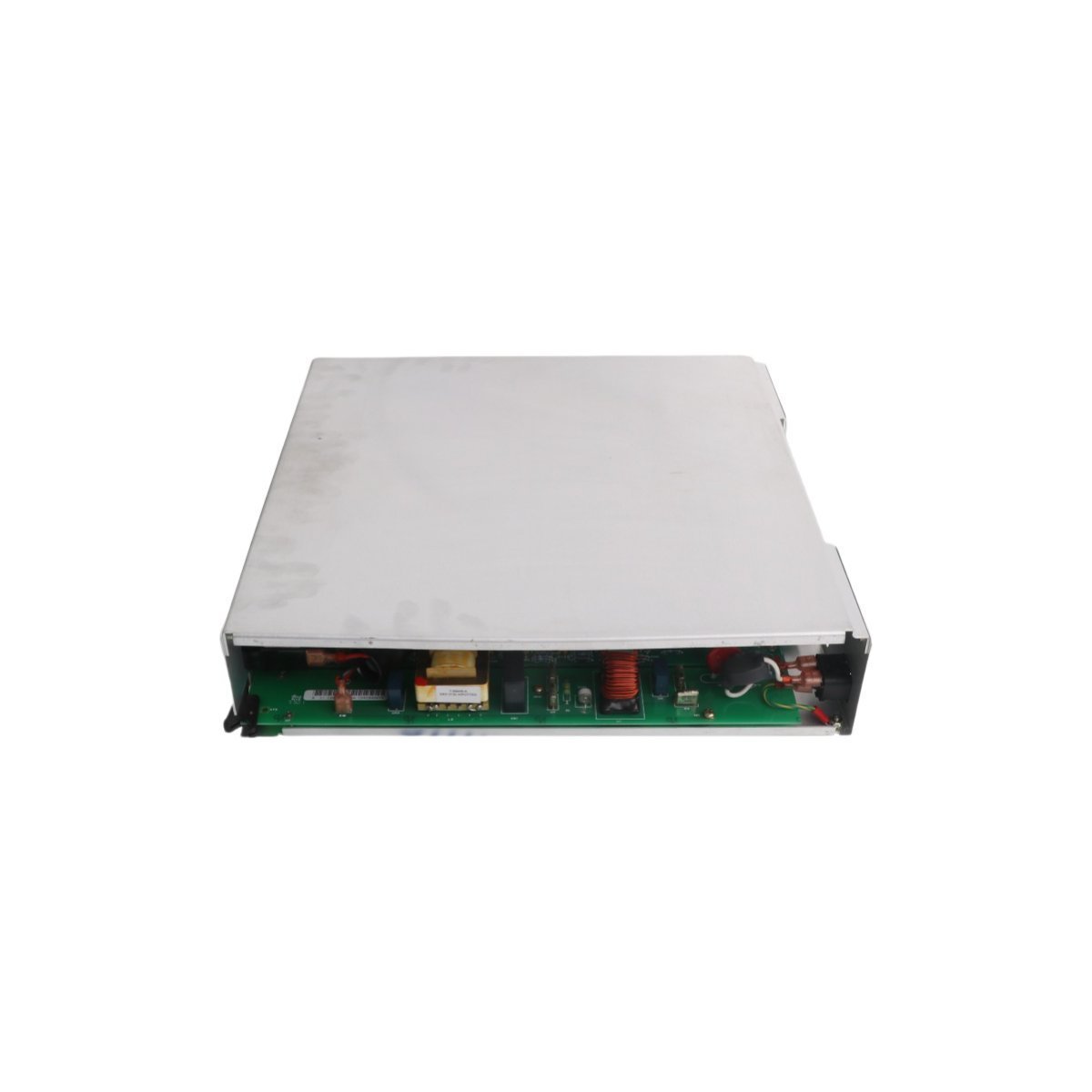

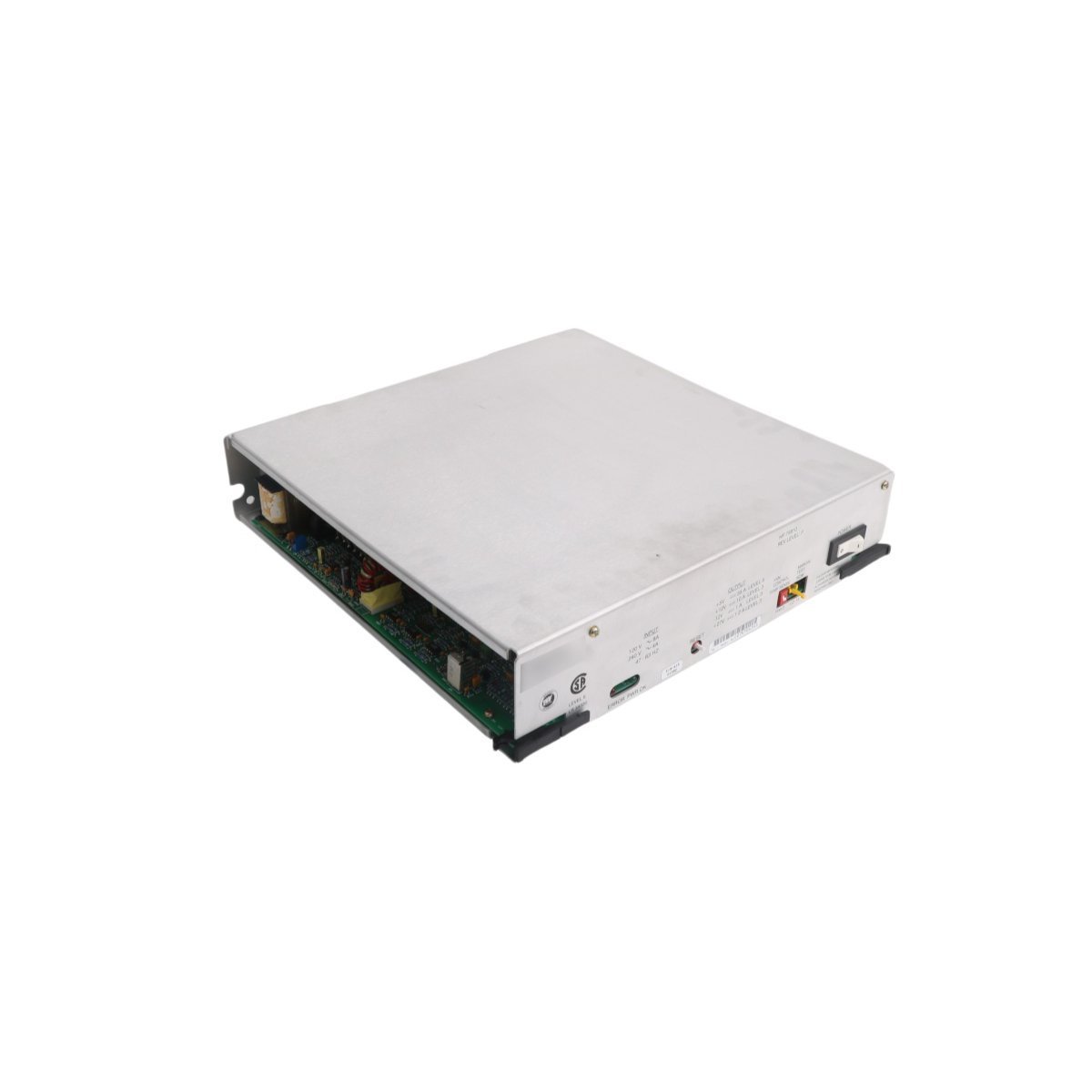

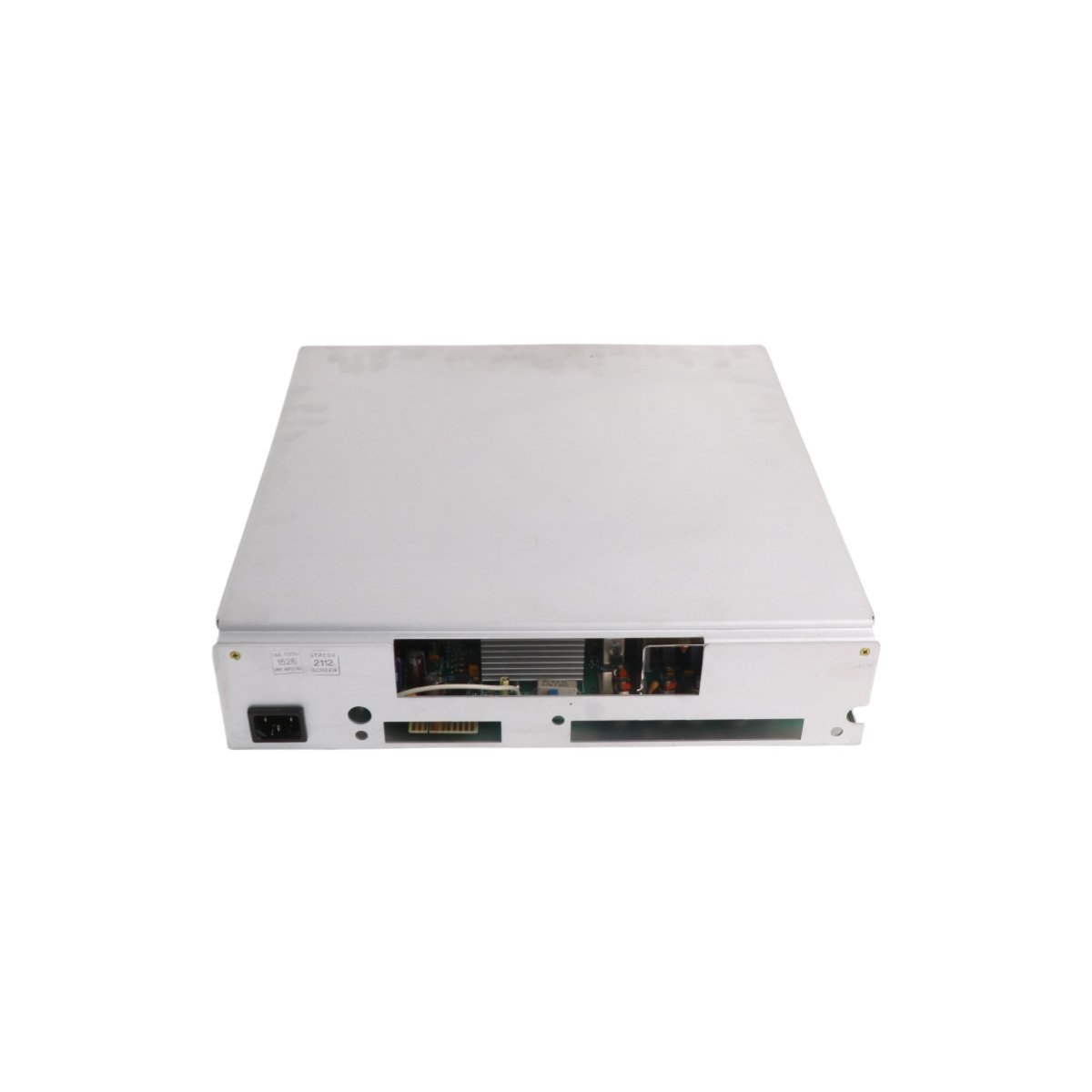

51196654-100 Honeywell Experion PKS TDC Micro Power Supply

Honeywell 51196654-100 Experion PKS TDC Micro Power Supply

The Honeywell 51196654-100, also cataloged as the 51196654-100 TDC Micro Power Supply, operates as a dedicated hardware component for direct current regulation and internal bus voltage delivery within Experion PKS DCS platforms. The unit converts incoming primary AC power into regulated DC supply rails, maintaining stable current distribution across backplane racks, system controllers, and connected I/O chassis assemblies.

Hardware Specifications

4-20 mA HART & Channel Galvanic Isolation Performance

The power supply module delivers filtered DC voltage across the system backplane, ensuring that power ripple and electromagnetic noise do not interfere with downstream 4-20 mA HART loop communications. Internal transformer stages provide robust galvanic isolation between primary AC supply lines and sensitive low-voltage control logic. Consequently, this isolation prevents power line transients and ground loops from affecting channel-to-channel isolation on analog I/O modules. Furthermore, integrated noise suppression circuits maintain stable voltage lines so field instruments can transmit low-level process signals without signal distortion or thermal measurement drift.

Frequently Asked Questions

Q: How do internal protection circuits react when a downstream I/O module experiences a short circuit?

A: Onboard current-limiting circuits instantly detect overcurrent conditions and fold back output current to protect the internal bus. Once maintenance technicians clear the field fault, the power supply automatically resets and restores normal DC voltage output to the rack.

Q: Can engineers install two 51196654-100 modules in a parallel redundant configuration?

A: Yes, the unit supports redundant power supply architectures via internal diode-ORing circuitry. When one power supply fails, the secondary supply seamlessly assumes the full load without causing voltage drops or triggering controller reboots.

Field Installation Guidelines

Installers must mount the assembly vertically into designated power supply slots inside the cabinet frame, ensuring that airflow channels remain unobstructed. Technicians must verify line voltage settings before wiring primary AC supply cables to the screw terminals. In addition, field personnel must secure main earthing conductors directly to the cabinet ground stud, using heavy-gauge copper braid to maintain low-impedance grounding paths. Installers should also maintain at least 100 mm clearance around the housing heat sinks to ensure proper heat dissipation.
