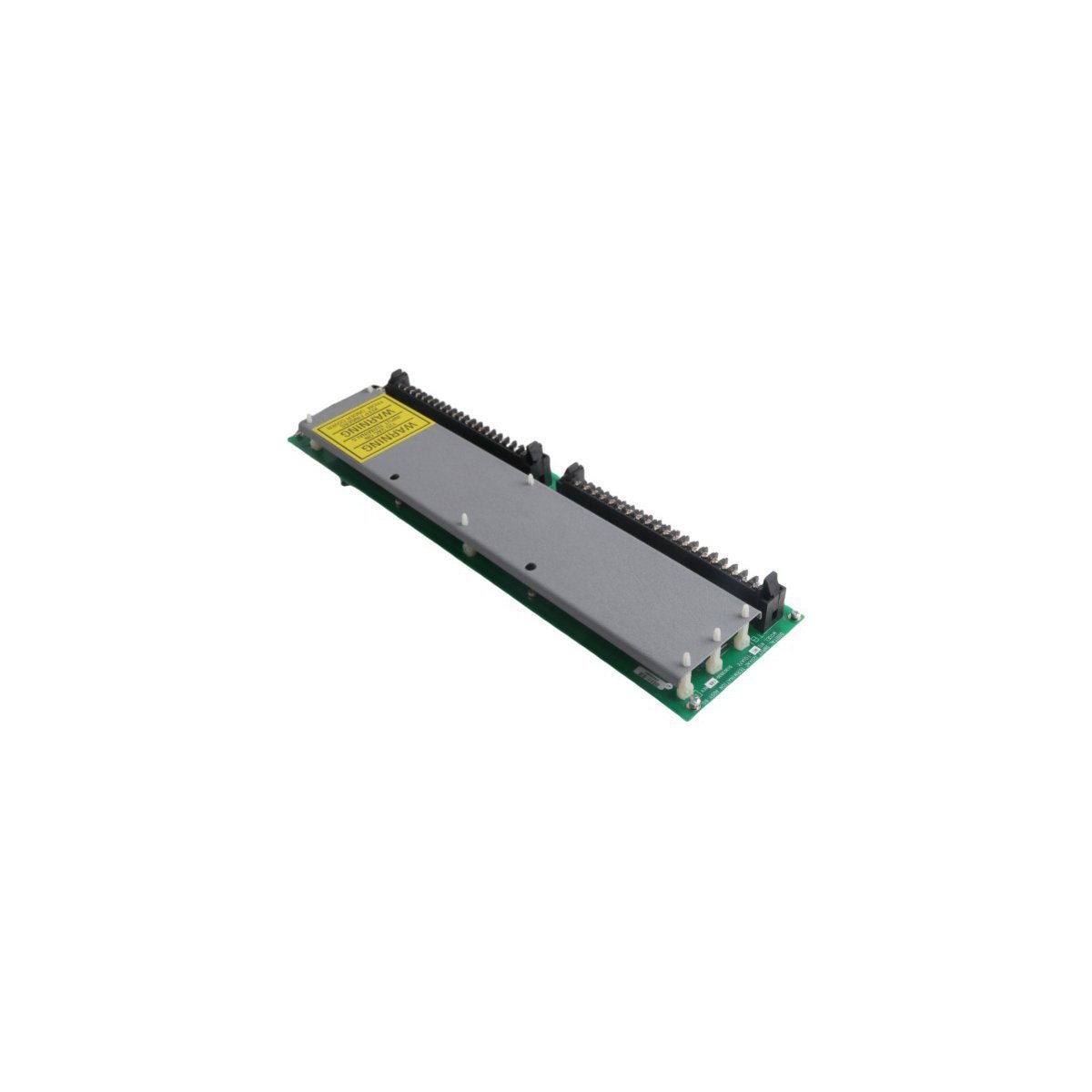

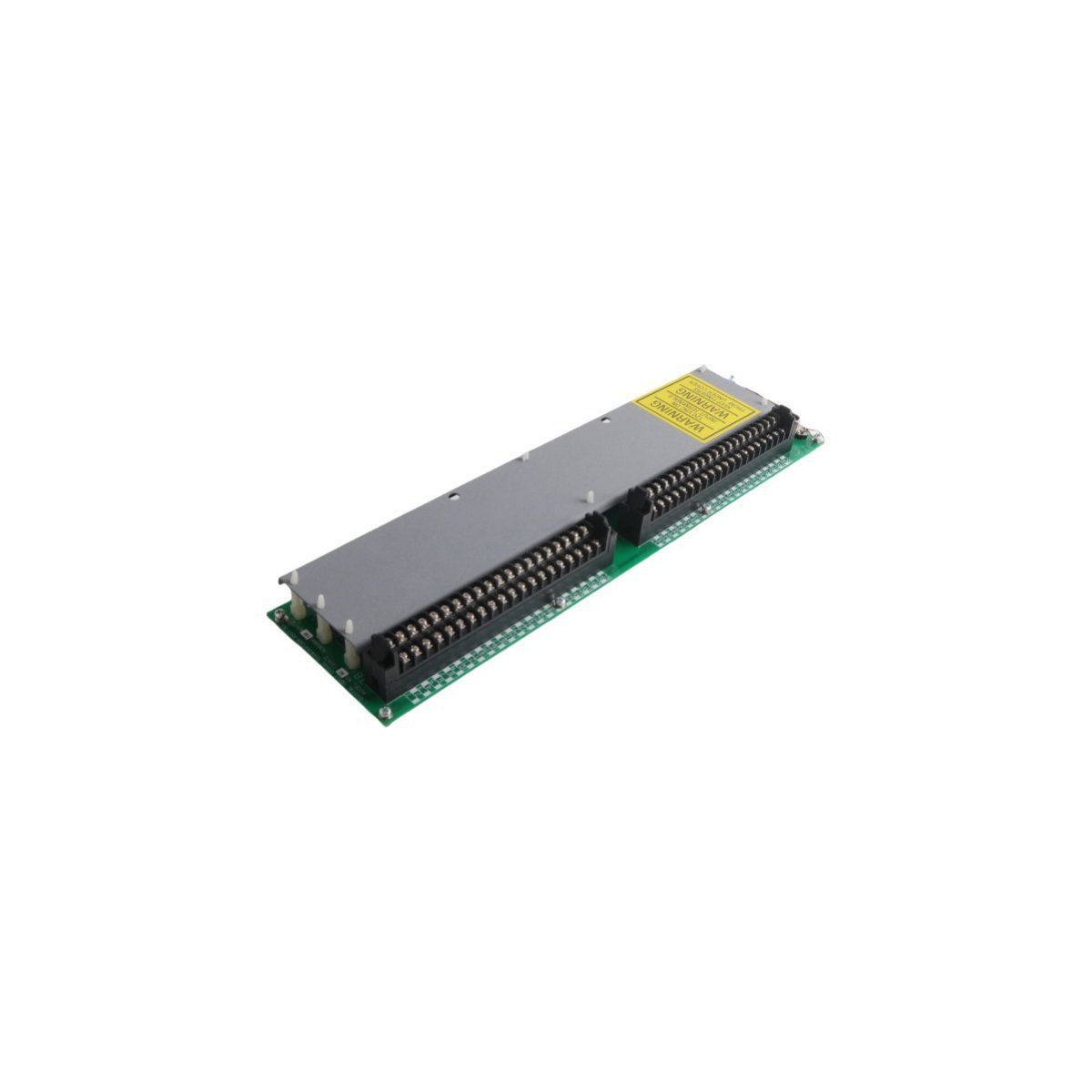

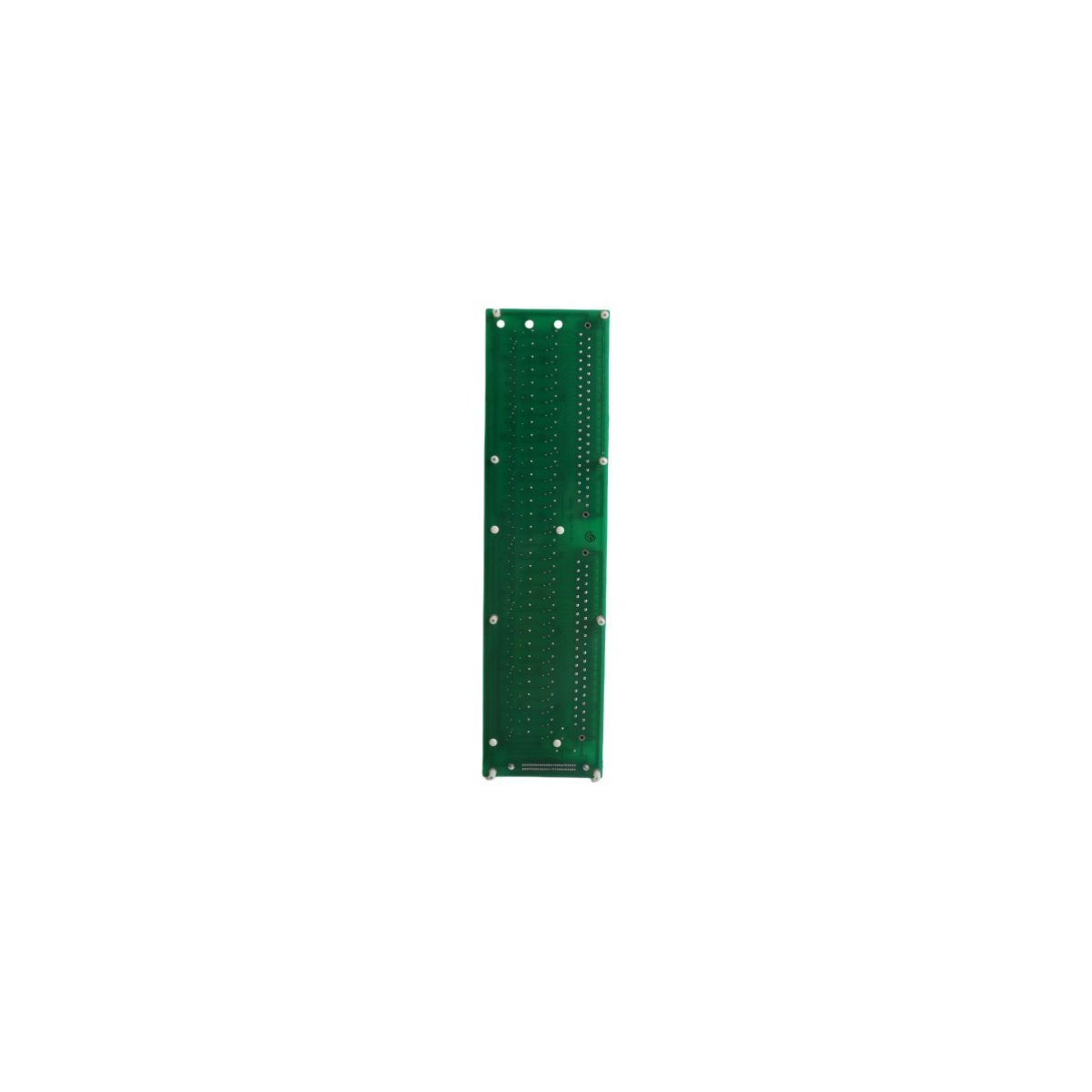

Honeywell MC-TDIA72 51303930-150 Digital Input Termination Board

The MC-TDIA72 functions as a critical Digital Input Field Termination Assembly (FTA) for Honeywell Process Manager systems. This board serves as the primary physical interface between field-level digital devices and the Distributed Control System (DCS). Because industrial environments generate significant electrical noise, the board provides high-integrity signal conditioning for all incoming data. It facilitates the organized connection of 24V DC field wiring to the controller electronics. Consequently, it ensures that the DCS receives clean, debounced signals from switches and contacts.

Electrical Performance and Signal Integrity

This termination board supports multiple channels with a design optimized for low-power consumption and high reliability. Each input circuit handles up to 10mA, allowing the module to interface with diverse sensors and dry contacts. Furthermore, the high input impedance minimizes voltage drops across long field cable runs. This characteristic preserves signal accuracy for sensitive monitoring tasks across large plant facilities. The board also features integrated protection circuitry to shield internal system components from field-side voltage transients. Therefore, it maintains continuous operation even during minor electrical disturbances.

Mechanical Design and Installation

The MC-TDIA72 features a specialized elongated form factor to maximize cabinet density and improve wiring accessibility. Its compact dimensions allow engineers to install multiple boards within standard Honeywell mounting racks efficiently. Moreover, the clear labeling of terminal blocks simplifies the wiring process for maintenance technicians. This organized layout reduces the risk of connection errors during initial commissioning or system upgrades. The board supports secure panel mounting, which provides excellent resistance to industrial vibrations and mechanical stress.

Technical Specifications
