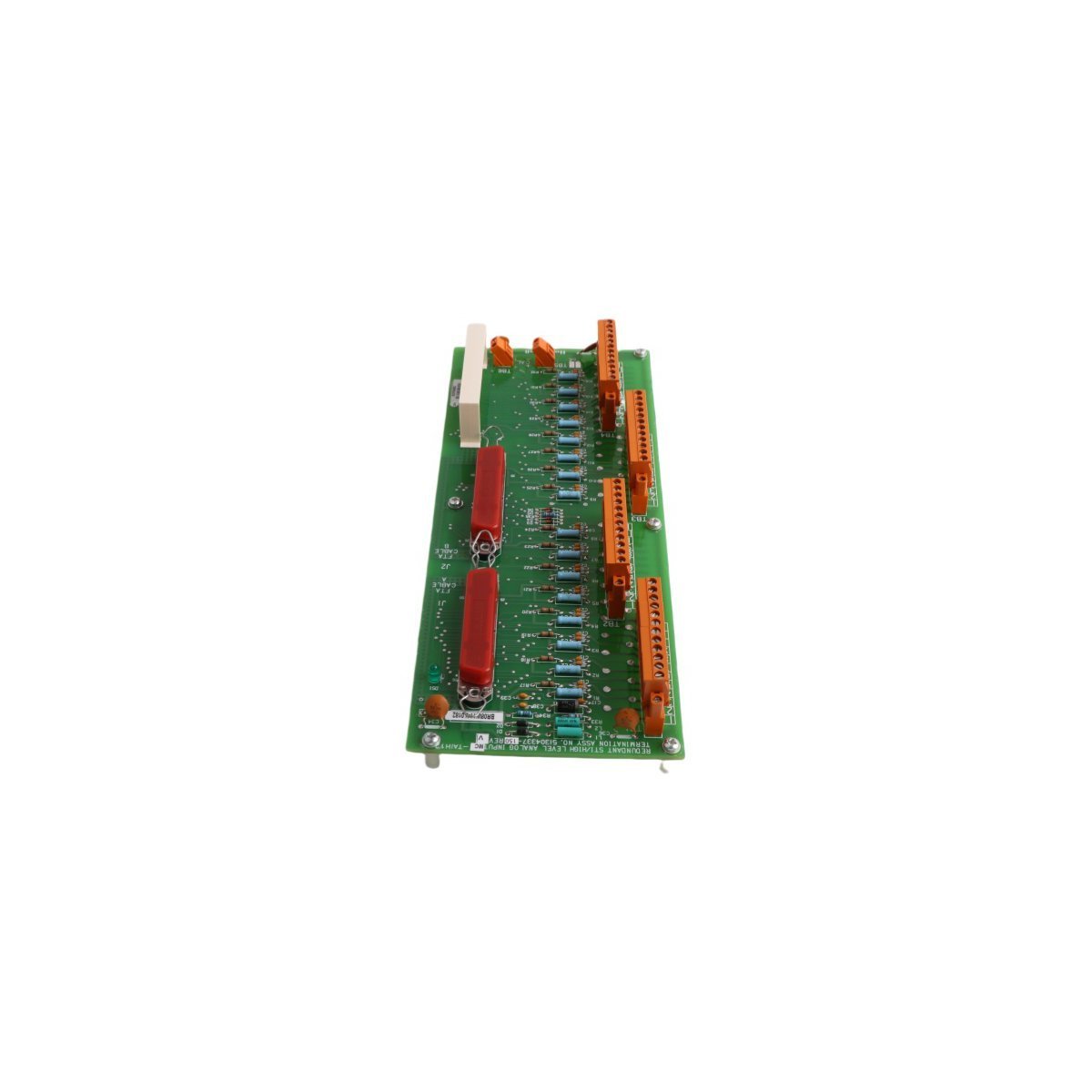

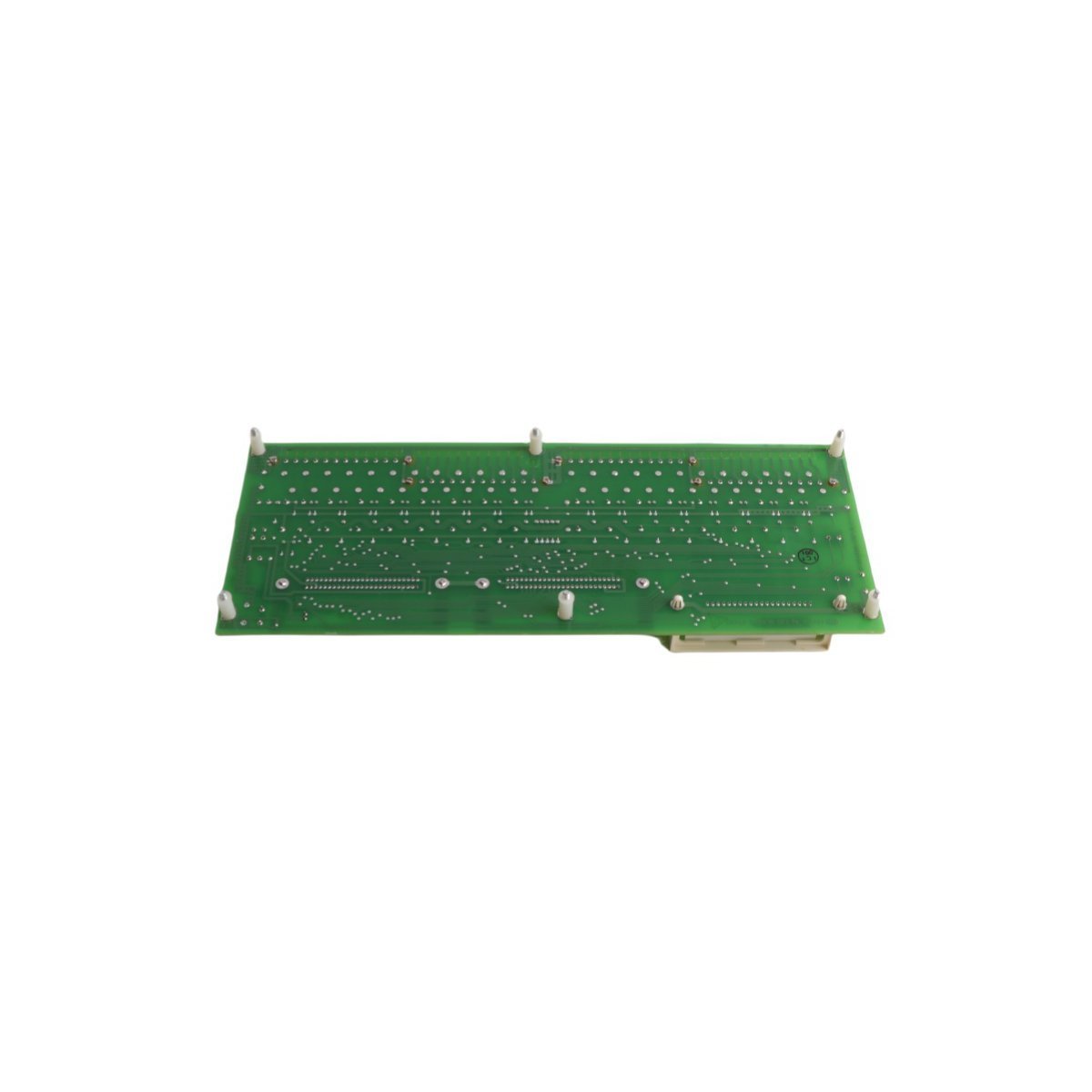

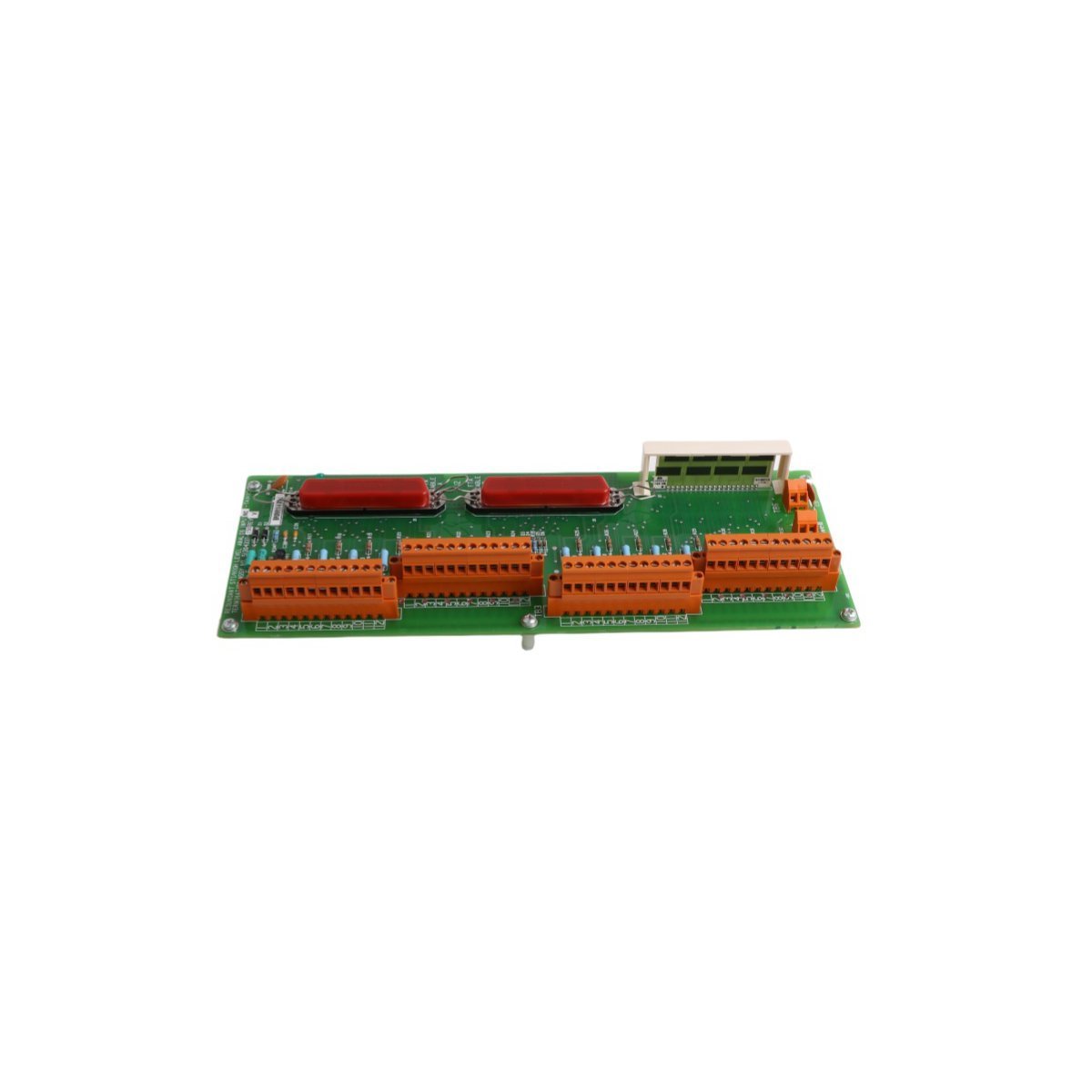

Honeywell MC-TAIH12 51304337-150 Analog Input/STI FTA Module

The Honeywell MC-TAIH12, identified by part number 51304337-150, serves as a specialized Field Termination Assembly (FTA). This module functions as the primary interface for high-level analog inputs and Smart Transmitter Interface (STI) applications. Specifically, it integrates with the TDC 3000 and Experion PKS control architectures to manage critical turbine data. By facilitating the connection between field sensors and the High-Level Analog Input (HLAI) processor, it ensures precise signal conditioning. This component is essential for facilities requiring high-accuracy monitoring of axial position, vibration, and thermal expansion.

Technical Specifications and Hardware Overview

Core Functionality and Signal Integration

This FTA module specializes in streamlining the communication between field-mounted transmitters and the controller. It provides the necessary termination points for analog signals, effectively reducing electromagnetic interference through advanced grounding. Furthermore, the STI capability allows for the integration of smart field devices. This dual functionality enables operators to access both process variables and device diagnostics simultaneously. Consequently, the module improves data transparency across the Distributed Control System (DCS).

Turbine Protection and Condition Monitoring

The 51304337-150 plays a pivotal role in protecting mission-critical rotating machinery. During turbine startup and load transitions, the module tracks subtle mechanical shifts with extreme precision. Its circuitry handles high thermal and mechanical stress levels without degrading signal quality. Because it monitors differential expansion and axial thrust, it helps prevent catastrophic equipment damage. Therefore, the module serves as a cornerstone for any comprehensive machinery protection and predictive maintenance program.
