51304540-200 Honeywell TDC 3000 Series DCS Paddle Board Module Interface

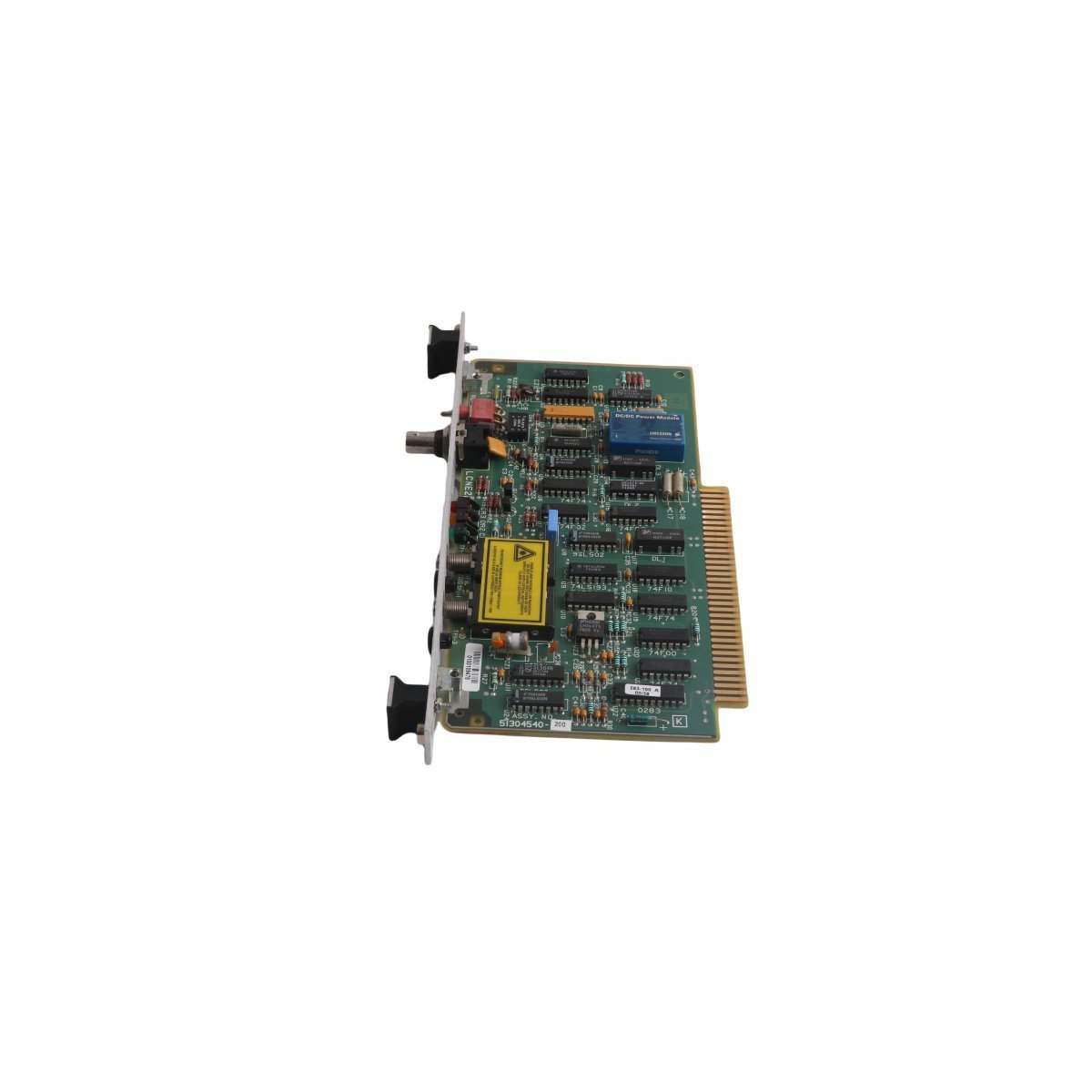

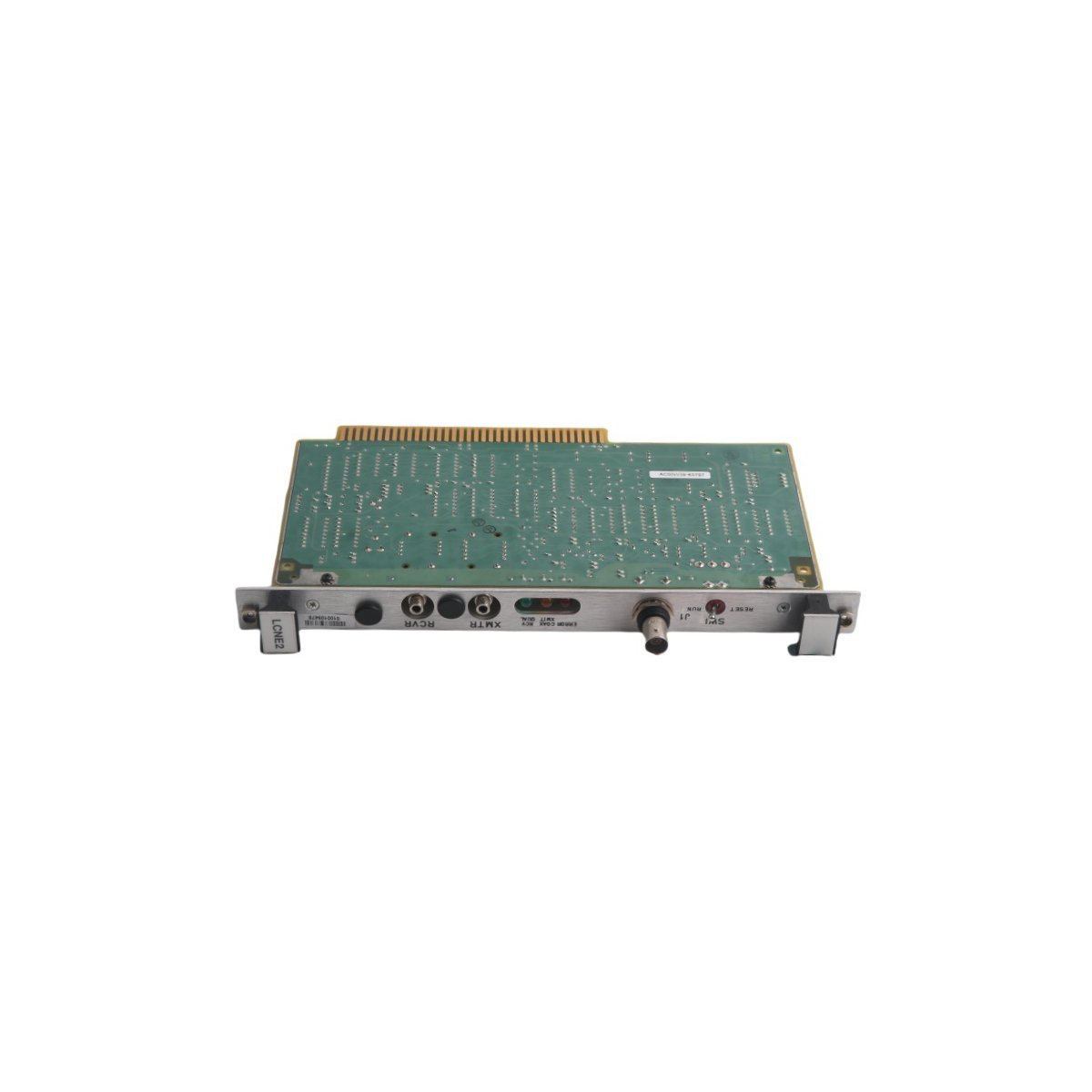

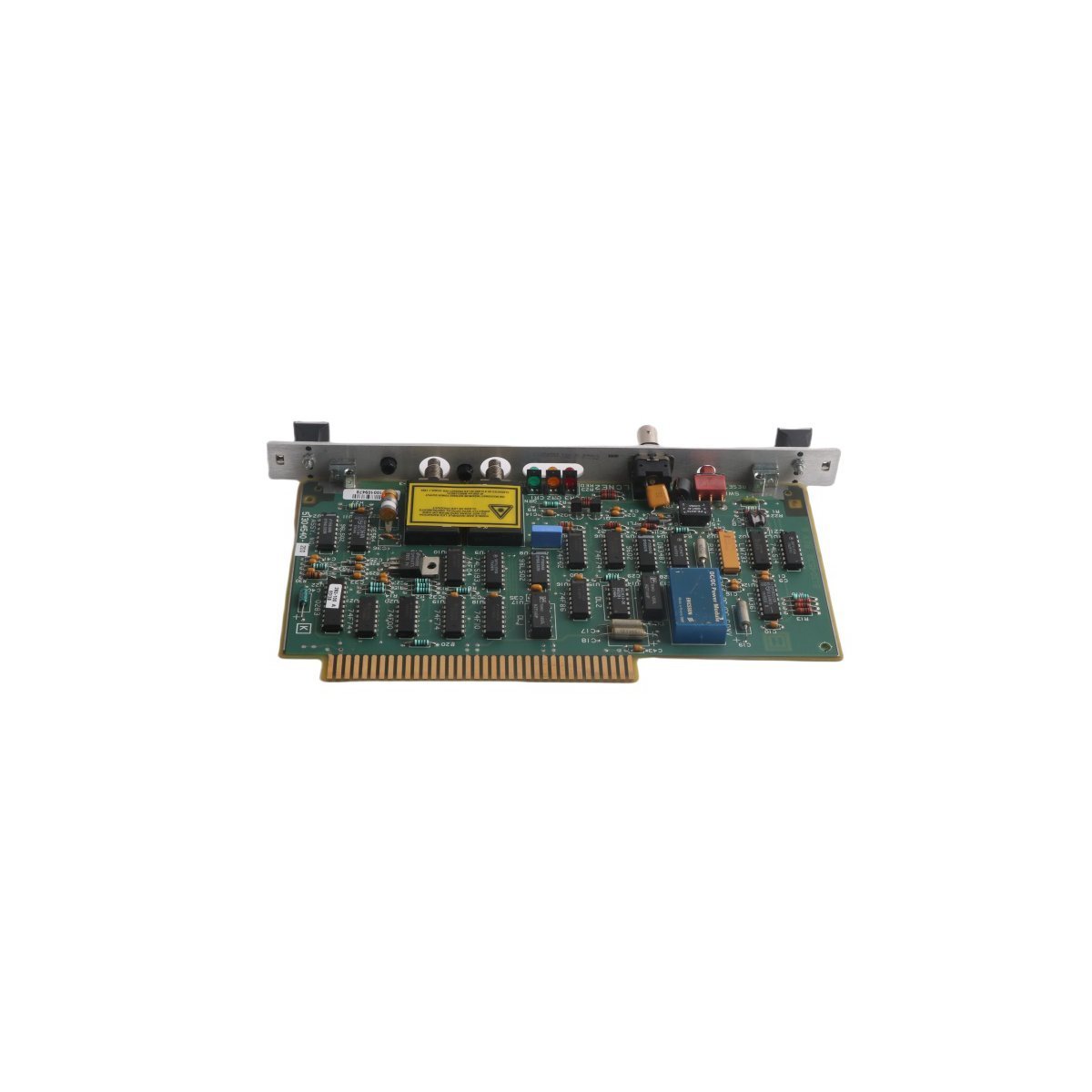

Honeywell 51304540-200 TDC 3000 Paddle Board

The Honeywell 51304540-200, also cataloged as the 51304540-200 Paddle Board, operates as a dedicated hardware component for optoelectronic signal conversion and physical layer data transmission within Honeywell TDC 3000 Universal Control Network (UCN) architectures.

Hardware Specifications

Process Control & Channel Isolation

Technicians configure the 51304540-200 Paddle Board to execute high-speed signal routing while maintaining channel-to-channel isolation across complex DCS nodes. The module mitigates common-mode voltage offset issues across distributed field points, while integrated optoelectronic barriers convert incoming copper trace signals into optical media pathways. Furthermore, internal signal conditioning circuits filter out high-frequency noise spikes, which prevents data frame corruption during high-throughput network transfers across industrial backplanes.

Frequently Asked Questions

Q: Does the 51304540-200 Paddle Board support live removal during control system operation?

A: Engineers must power down the specific card cage rack before pulling or inserting the 51304540-200, because improper live extraction generates voltage transients that disrupt adjacent nodes on the TDC 3000 UCN bus.

Q: How does the module handle electrical ground loops in high-noise environments?

A: The board relies on internal optical isolation stages, which separate the external field wiring loop from the internal DCS logic circuitry, effectively blocking ground loops and electrostatic discharges.

Field Installation Guidelines

1. Technicians must wear a grounded ESD wrist strap before handling the card to prevent static damage to sensitive optoelectronic components.
2. Align the board edges strictly with the card cage guide rails, then slide the unit inward until the rear edge connectors fully engage the backplane receptacle.
3. Tighten the retaining hardware to maintain a continuous shield ground connection and prevent mechanical vibration from unseating the board.
4. Ensure a minimum clearance of 50 mm around the card cage exhaust vents so that convection currents draw heat away from the surface components effectively.
