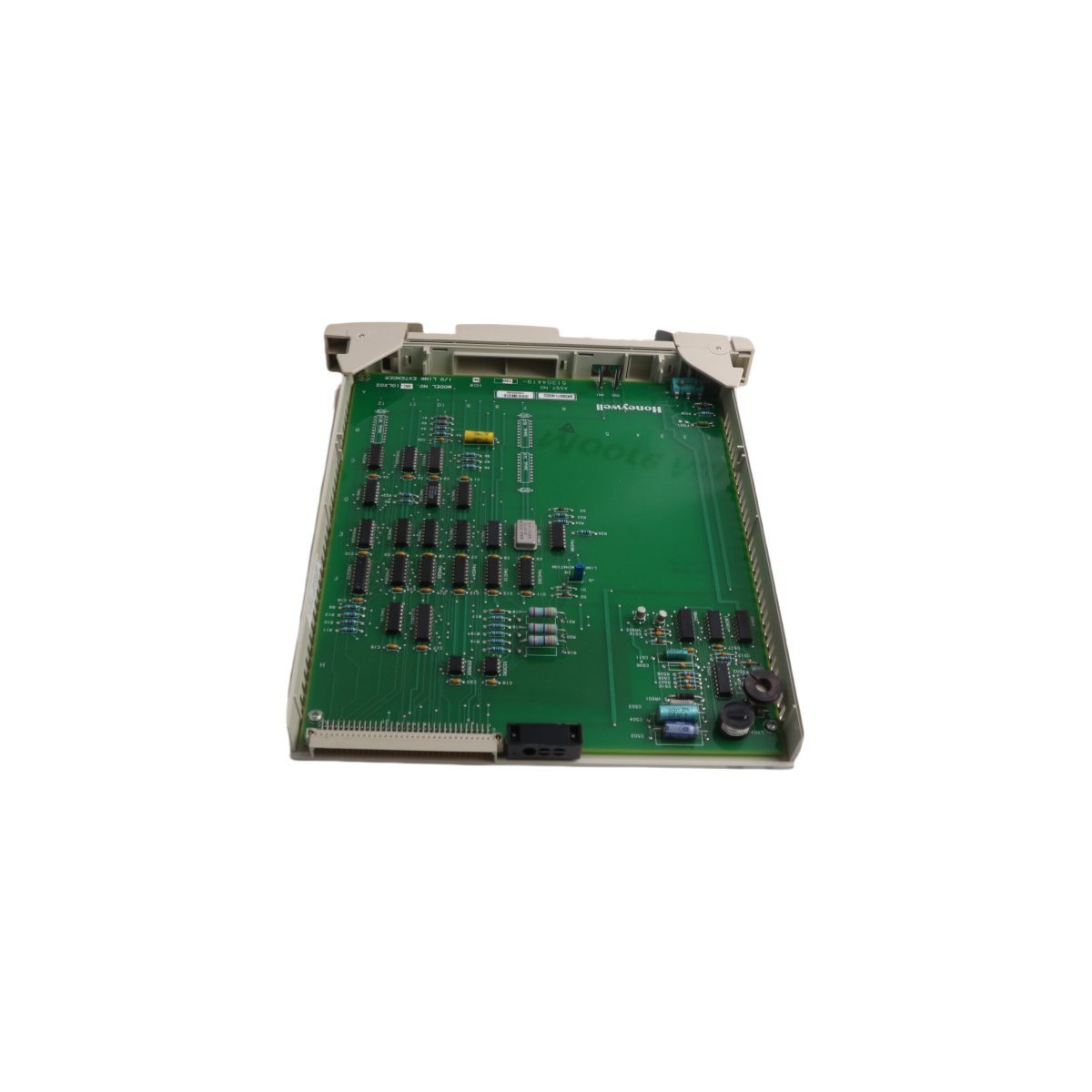

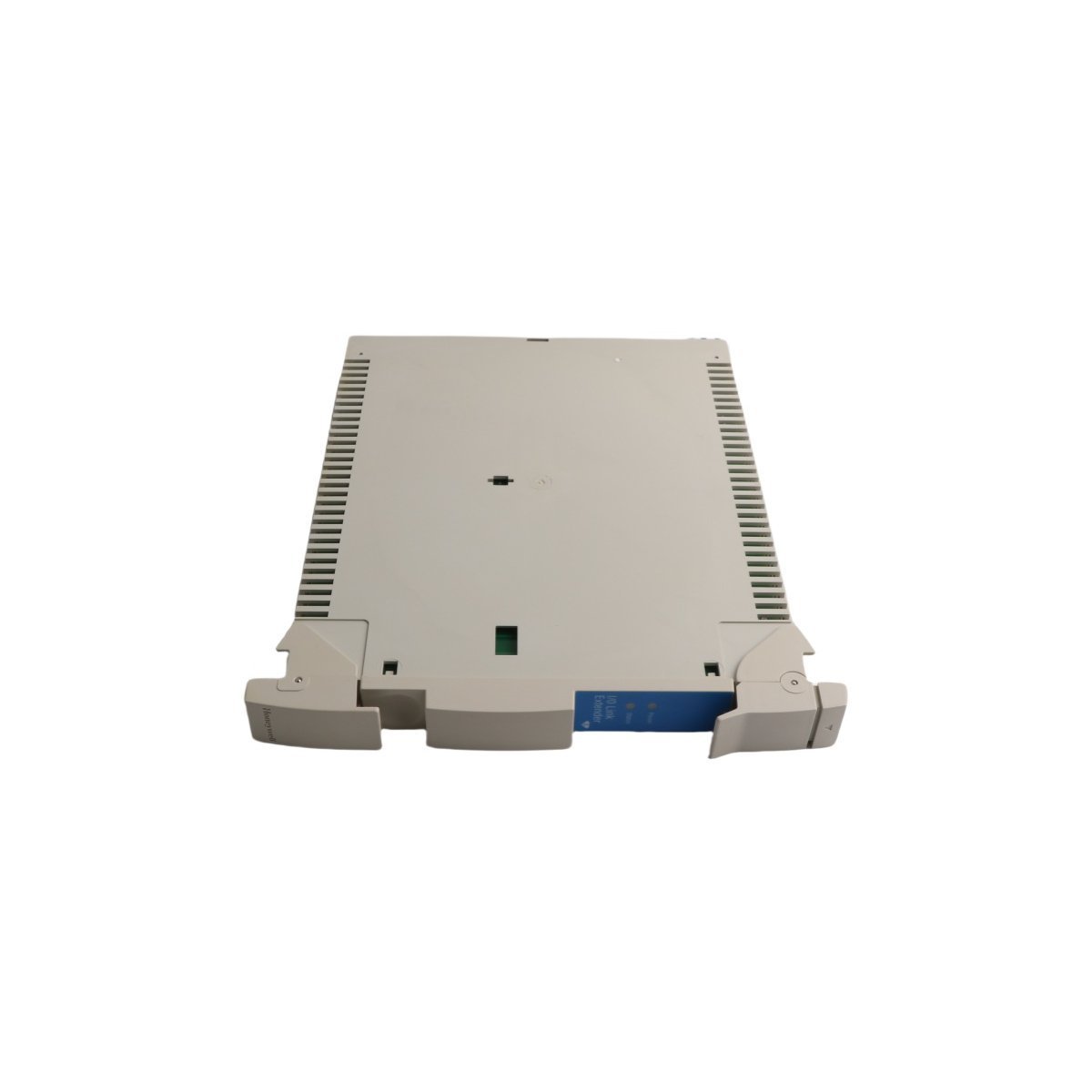

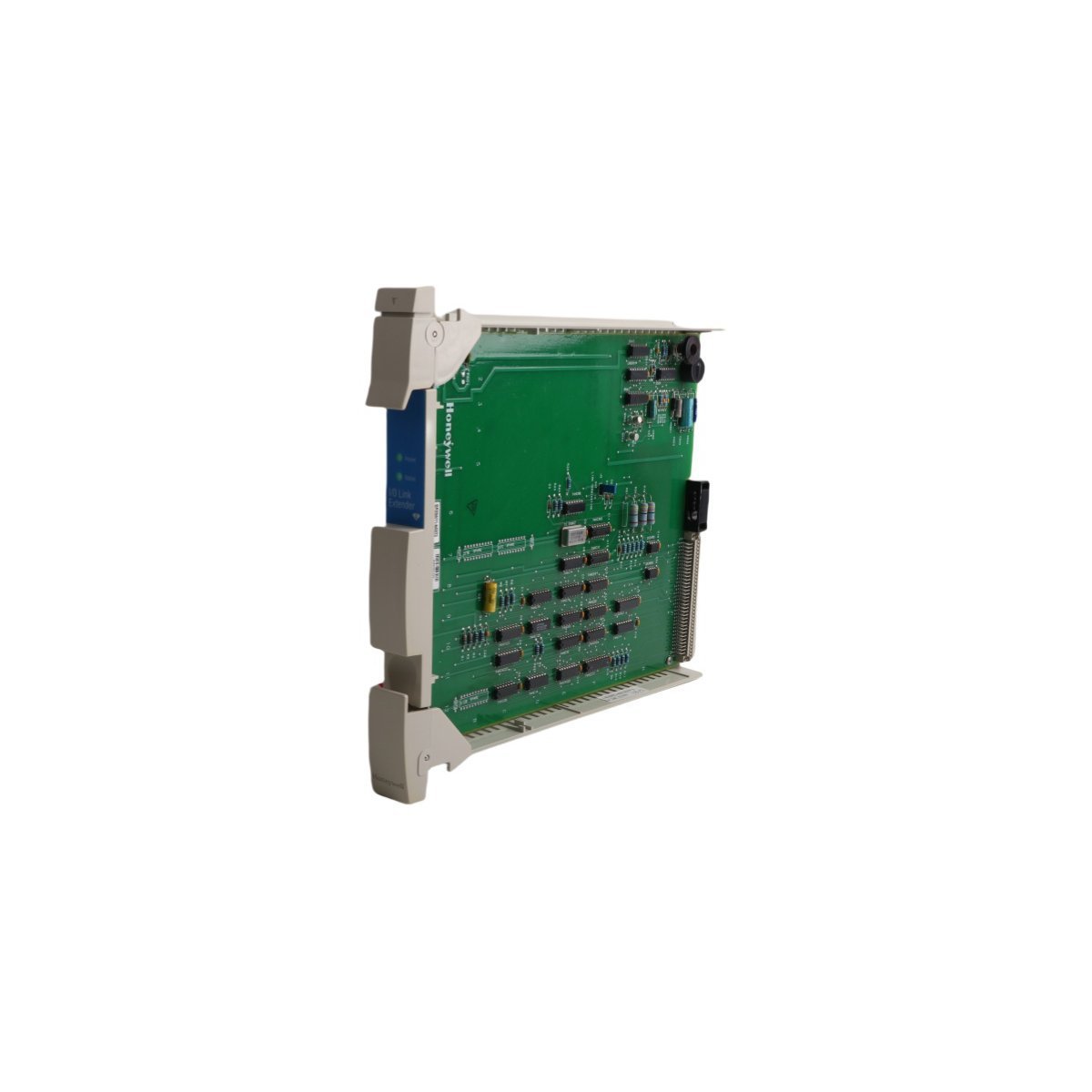

Honeywell MC-IOLX02 51304419-150 MU-T I/O Link Extender Cards

Honeywell MC-IOLX02 51304419-150 MU-T Series I/O Link Extender Card

The Honeywell MC-IOLX02 51304419-150, also cataloged as the MC-IOLX02 I/O Link Extender Card, operates as a dedicated hardware component for extending I/O bus signal distances over fiber optic pathways within Honeywell TDC 3000 and Experion PKS MU-T series DCS platforms.

Hardware Specifications

4-20 mA HART Loop Protocol & Channel-to-Channel Isolation

The module drives bidirectional fiber optic serial streams to transfer digital and analog process values across remote rack chassis. Consequently, field transmitters utilizing the 4-20 mA HART loop protocol route their modulated current loops through standard I/O processors connected via this extender card. High-speed optical conversion stages provide robust channel-to-channel isolation, which successfully eliminates electrical noise, ground loops, and high-voltage transients between distributed cabinet locations.

Frequently Asked Questions

Q: How does the MC-IOLX02 card extend I/O link distances across cabinet clusters?

A: The board converts standard backplane copper I/O link electrical signals into optical pulses, whereupon fiber optic cables transmit the data over extended distances without signal attenuation.

Q: Do technicians need to configure software parameters when installing the card?

A: Field engineers can install the module directly using hardware jumpers and address switches because the extender operates transparently on the physical layer of the I/O bus.

Field Installation Guidelines

Engineers must mount the MC-IOLX02 card into its assigned slot on the MU-T card cage, securing all mounting screws tightly to establish solid backplane electrical connection and chassis ground contact. Thereafter, installers should connect the fiber optic cable pairs, ensuring clean optical connectors and respecting minimum bending radiuses to prevent micro-bends in the fiber core. Technicians should route the optical patch cables through separate wire troughs away from high-power AC conductors or heavy relay wiring to prevent mechanical damage. Finally, operators must verify that power supply voltages match required rack specifications before powering up the subsystem.
