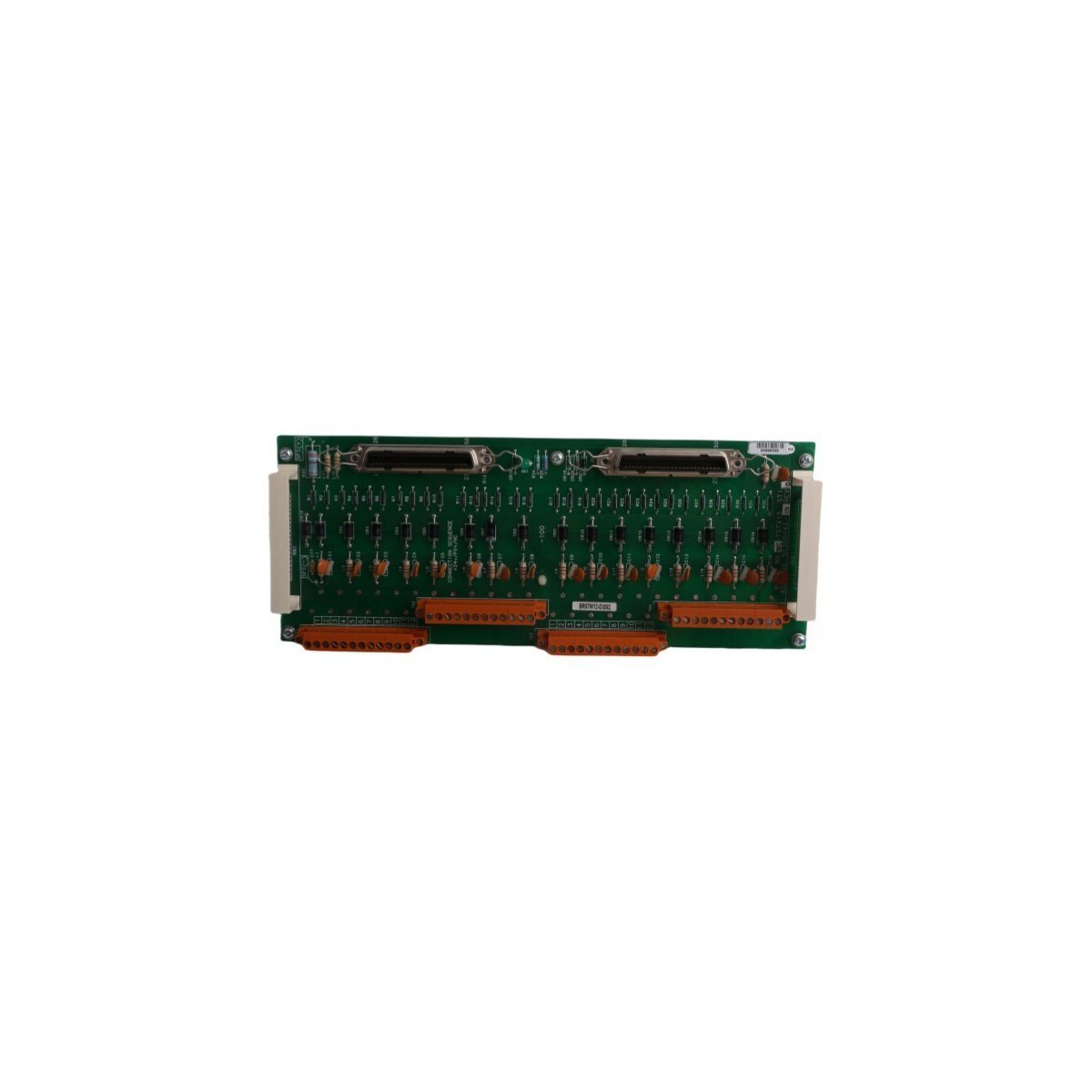

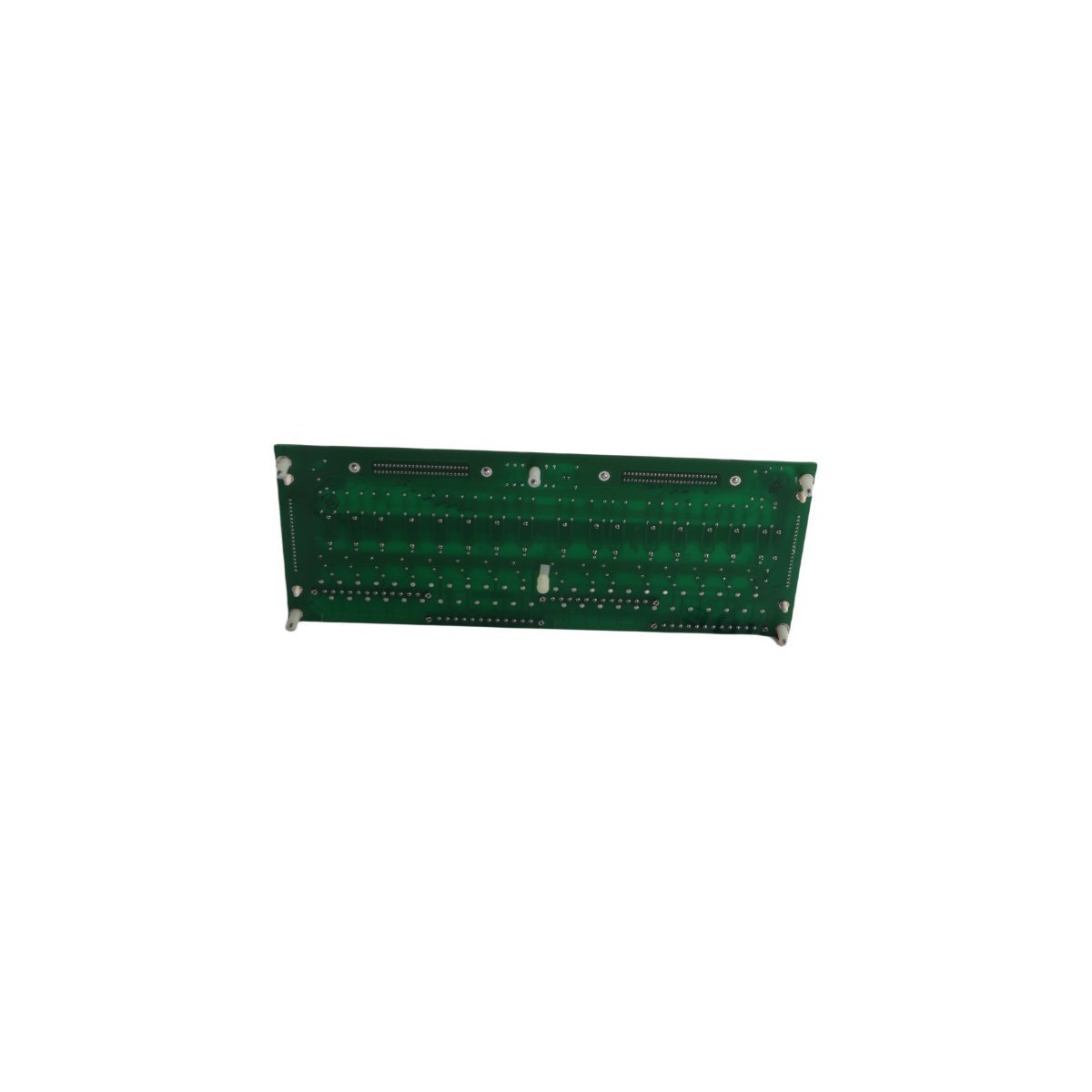

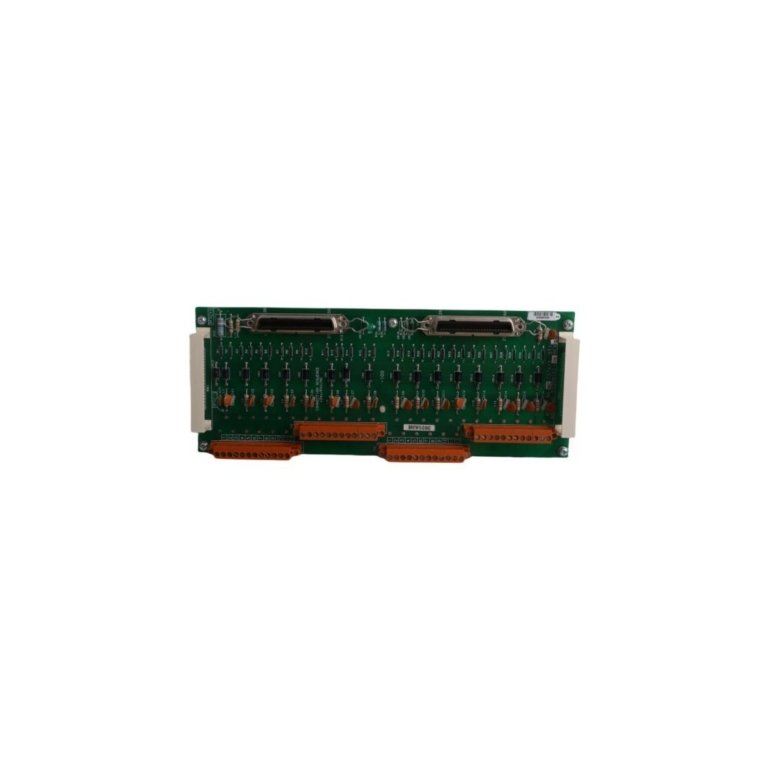

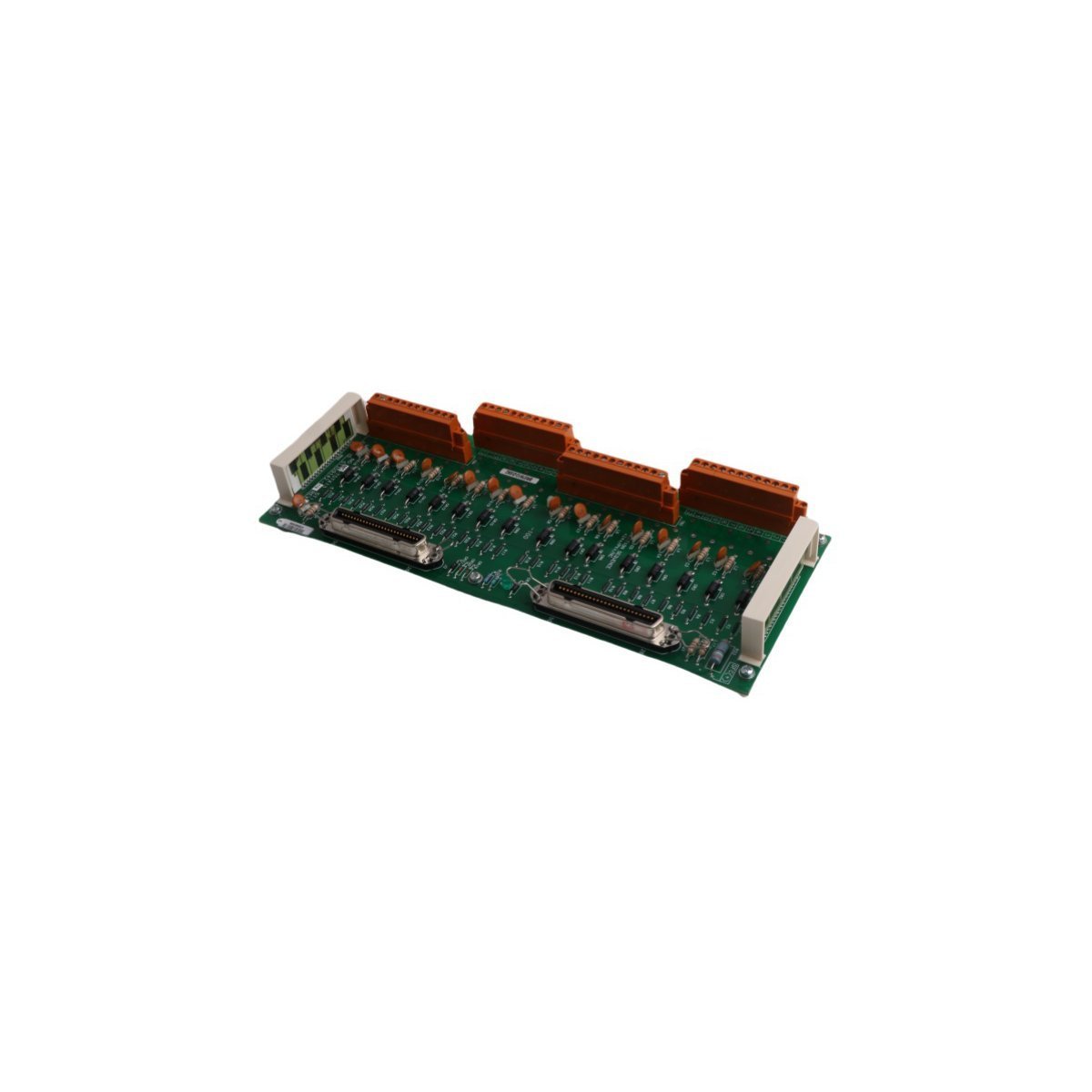

Honeywell MU-T Series MC-TSTX13 Smart Transmitter Interface Board 51309142-175

Brief Product Description

The Honeywell MC-TSTX13 51309142-175 serves as a high-precision digital input interface within Honeywell distributed control systems. This module establishes dedicated, noise-immune communication channels with intelligent field transmitters to stream real-time process data back to the central processing architecture.

Product Overview

The Honeywell MC-TSTX13 51309142-175 acts as a vital data conversion bridge within legacy and modern Honeywell industrial automation networks, primarily interacting with the MU-T series component family. Raw distributor catalogs occasionally introduce errors by associating these dedicated input cards with general commercial networking gear like Ethernet routers. In actual field deployment, this board functions strictly as a Smart Transmitter Interface Module (STIM) that decodes high-accuracy field sensor protocols. By shifting data acquisition from standard analog conversion to native digital integration, this hardware eliminates the typical signal drift caused by environmental thermal variations. Consequently, plant operators receive uncompromised, high-fidelity process metrics directly at the controller level.

Technical Specification Matrix

Functional Characteristics and Network Integration

This specific interface board utilizes a dedicated processing architecture tailored to manage multiple field transmitter connections simultaneously. The electronic assembly extracts primary process variables alongside secondary diagnostic data directly from intelligent field instruments. Because the hardware relies on native digital communications, it maintains excellent signal integrity over long field wiring runs without experiencing the attenuation common to basic 4-20mA loops.

Furthermore, the module includes power-efficient circuitry that minimizes the thermal footprint inside crowded marshaling panels. This low power consumption effectively extends the operating lifecycle of the card and prevents localized hot spots within the control enclosure. Built-in electrical isolation safeguards the internal system bus against unexpected voltage surges originating from the field, which stabilizes the broader distributed control system network during electrical faults.

Industrial Automation Applications

Engineering teams deploy the Honeywell MC-TSTX13 51309142-175 across critical industrial infrastructure facilities that require continuous, highly accurate process variables. It performs exceptionally well in petrochemical processing plants, oil refining operations, custody transfer stations, and large-scale power generation facilities.

The rigid mechanical frame allows the module to withstand standard industrial vibration profiles, making it suitable for mounting in close proximity to heavy rotating machinery. By using this smart transmitter interface, industrial operations ensure a dependable path for flow, pressure, and temperature data from specialized field sensors straight into their primary automated automation strategies.
