51304540-100 Honeywell TDC 3000 Safety Manager Modules

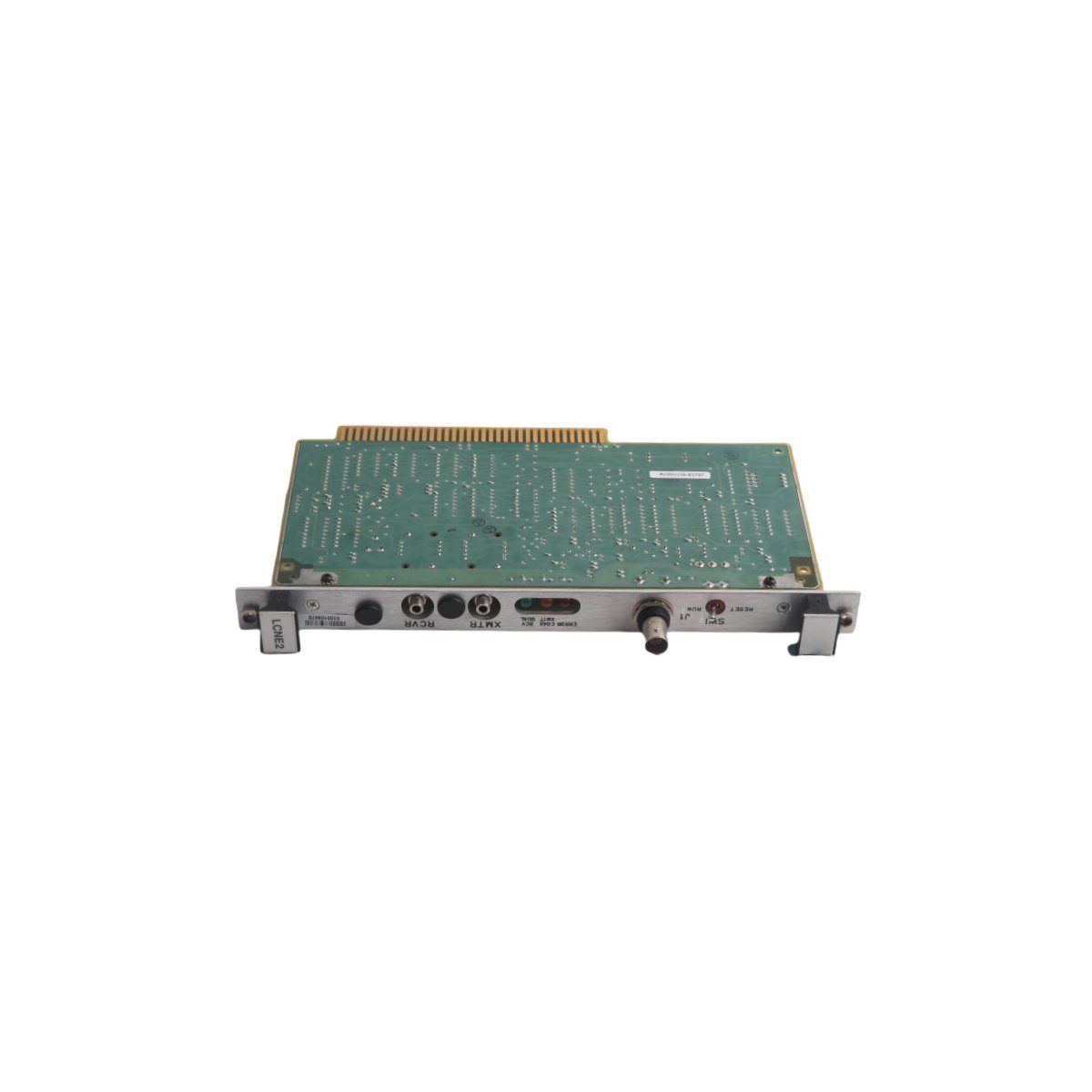

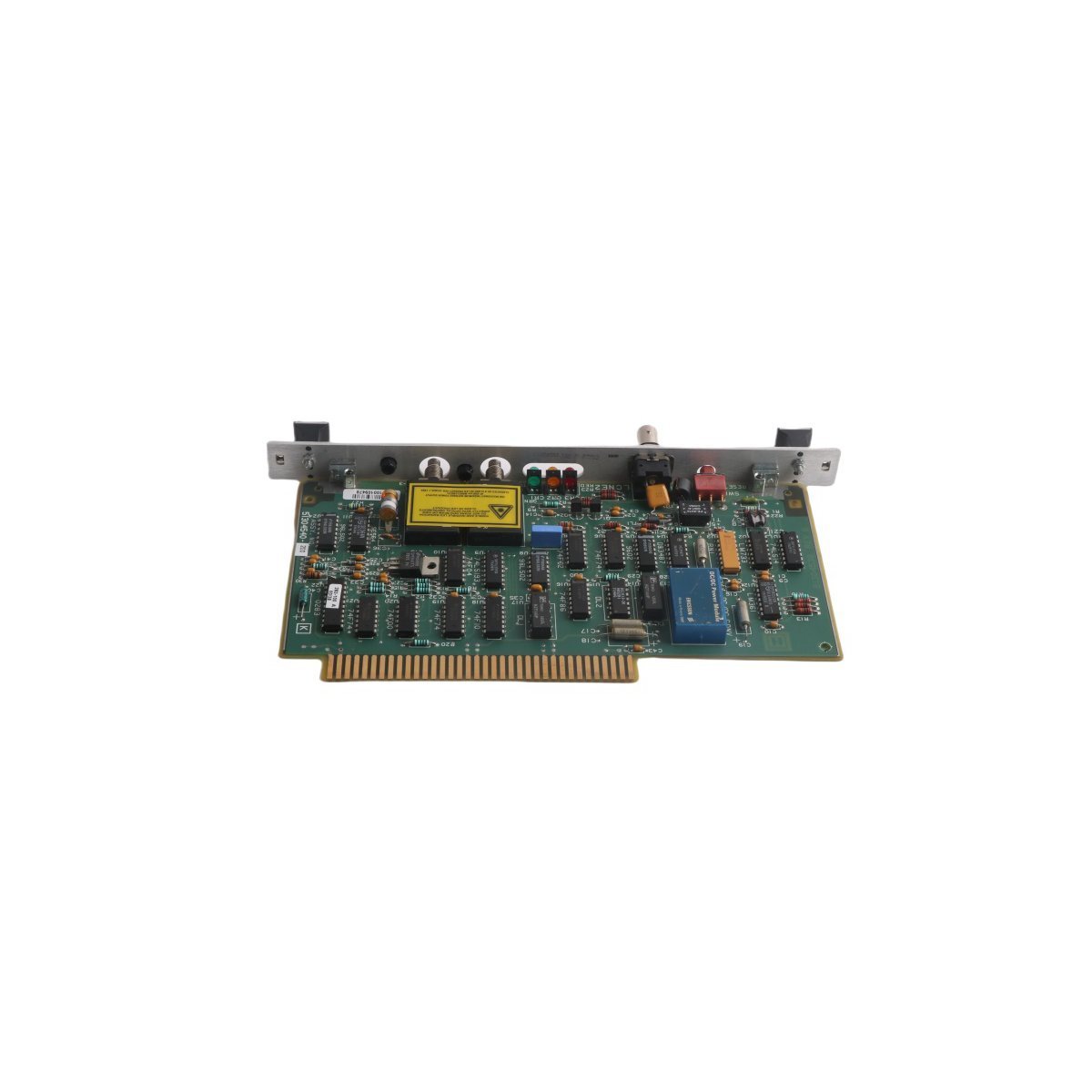

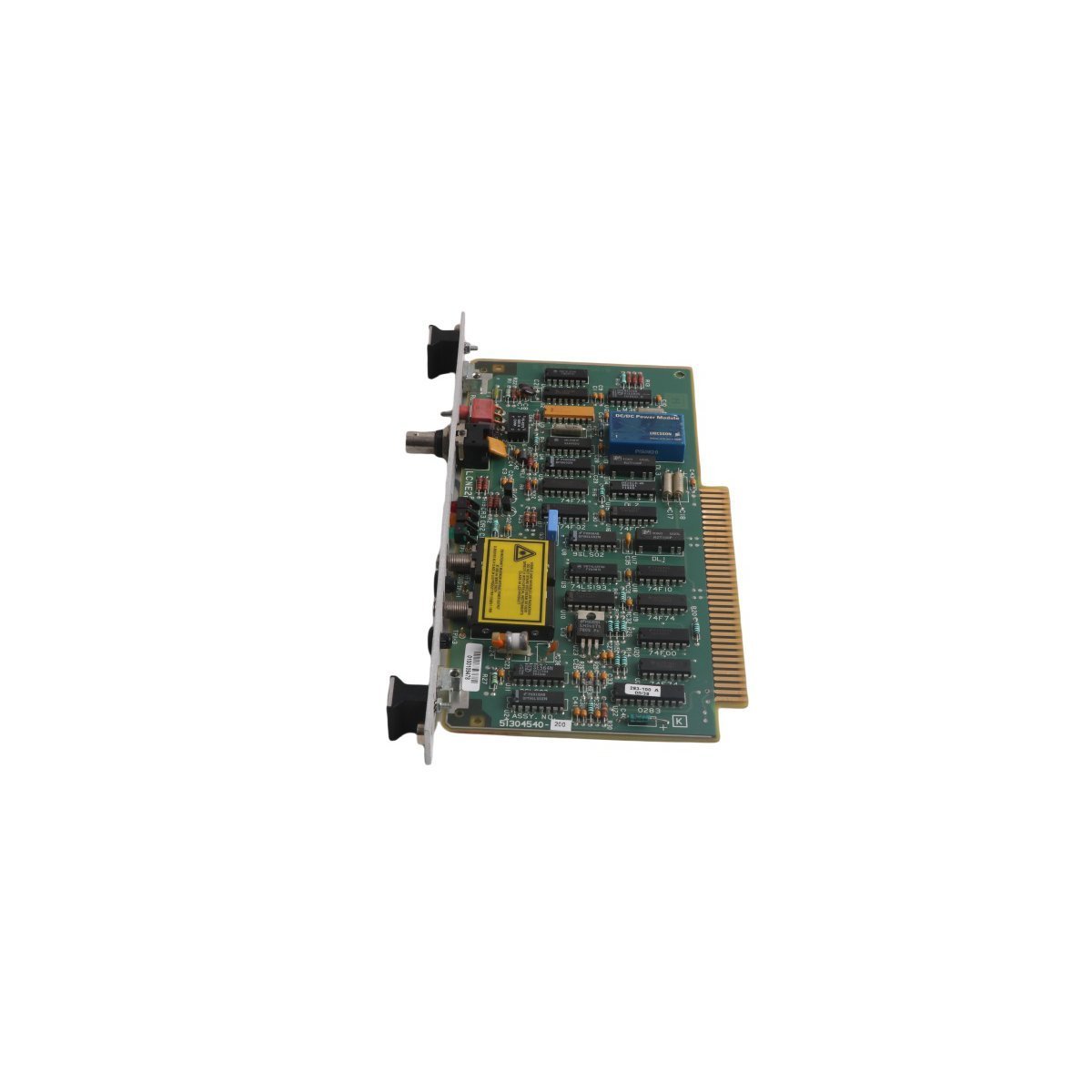

Honeywell 51304540-100 TDC 3000 LCNE-2 Module

Configured for optical signal translation and real-time data routing in Honeywell TDC 3000 platforms, the Honeywell 51304540-100 (51304540-100 Safety Manager Module) provides direct physical/electrical execution. It handles bidirectional local control network extension (LCNE-2) communications across Universal Control Network (UCN) interfaces, converting optical pulses to internal bus signals while isolating process data paths against external electrical interference.

Hardware Specifications

4-20 mA HART Loop Protocol & Channel-to-Channel Isolation

The module processes high-speed serial bus communications directly from safety logic processors, maintaining complete galvanic separation between central processing units and field instrumentation loops. Furthermore, the unit supports system architectures running 4-20 mA HART loop protocol field devices by transmitting process variables across optical data channels without introduce noise. Integrated channel-to-channel isolation safeguards internal optoelectronic transceivers from common-mode transients, thereby preventing ground loops from disrupting signal integrity across interconnected control nodes.

Frequently Asked Questions

Q: Does the 51304540-100 module require dedicated external power supply wiring?

A: No, the module draws its operational logic power directly from the system backplane assembly through its edge connector.

Q: How does the optoelectronic interface enhance system communication resilience?

A: The optical link provides complete immunity to electromagnetic interference and high-voltage surges, which ensures zero data degradation over extended cable runs.

Q: Can operators hot-swap the 51304540-100 module during system operation?

A: System engineers must power down the specific rack slot or follow Honeywell hot-swap procedures before removing the module, as improper extraction risks disrupting active UCN network segment traffic.

Field Installation Guidelines

Engineers must seat the 51304540-100 module firmly into the assigned TDC 3000 rack slot, securing all retaining screws to establish chassis ground continuity. Next, installers must inspect all fiber optic connectors for contamination, clean the optical faces with lint-free wipes, and establish proper bend radiuses along the fiber cabling to prevent signal attenuation. Technicians must route optical and communication cables through dedicated low-voltage wiring troughs, keeping them isolated from high-power AC lines. Finally, verify that the cabinet ground strap securely ties to the master station earth bar before powering the rack assembly.
