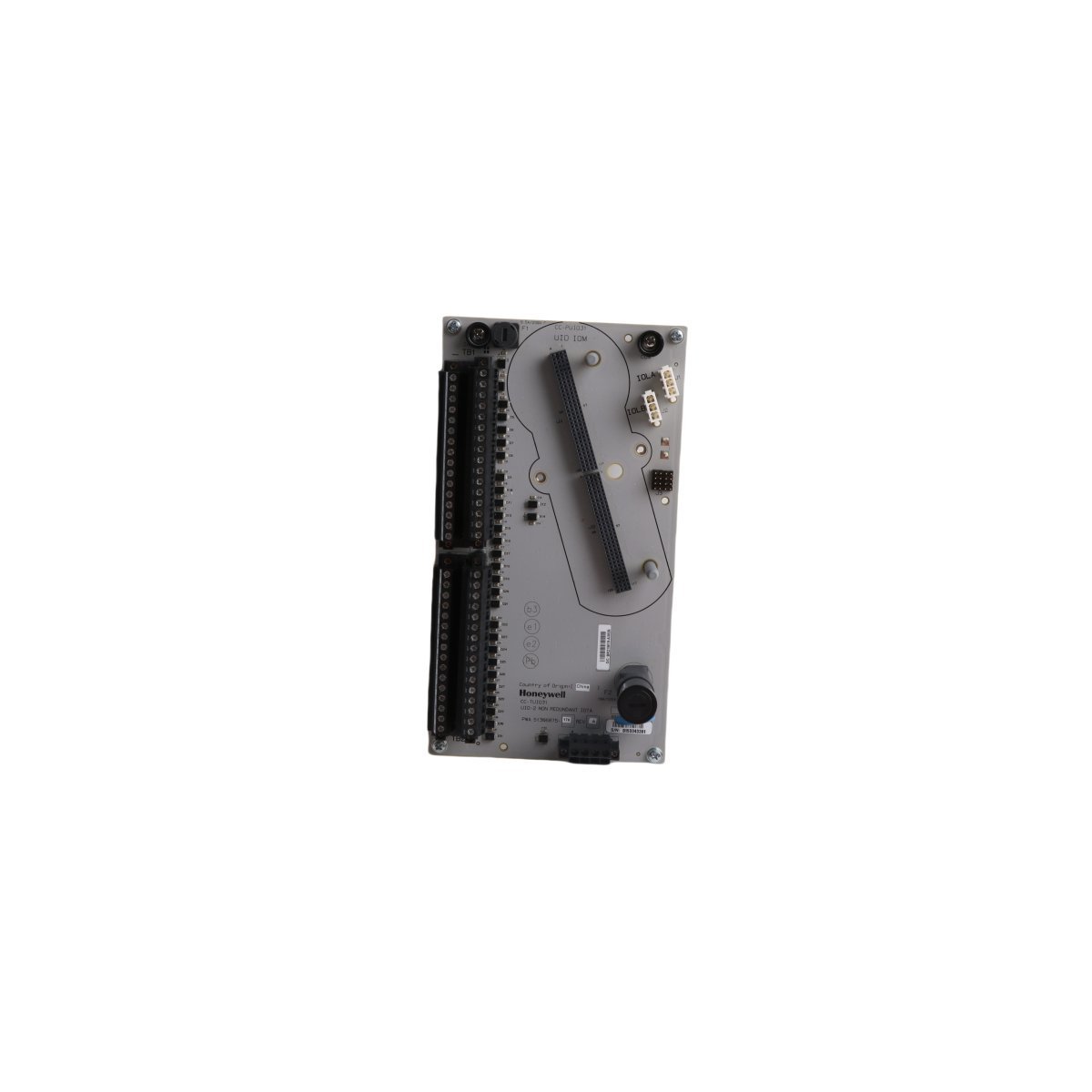

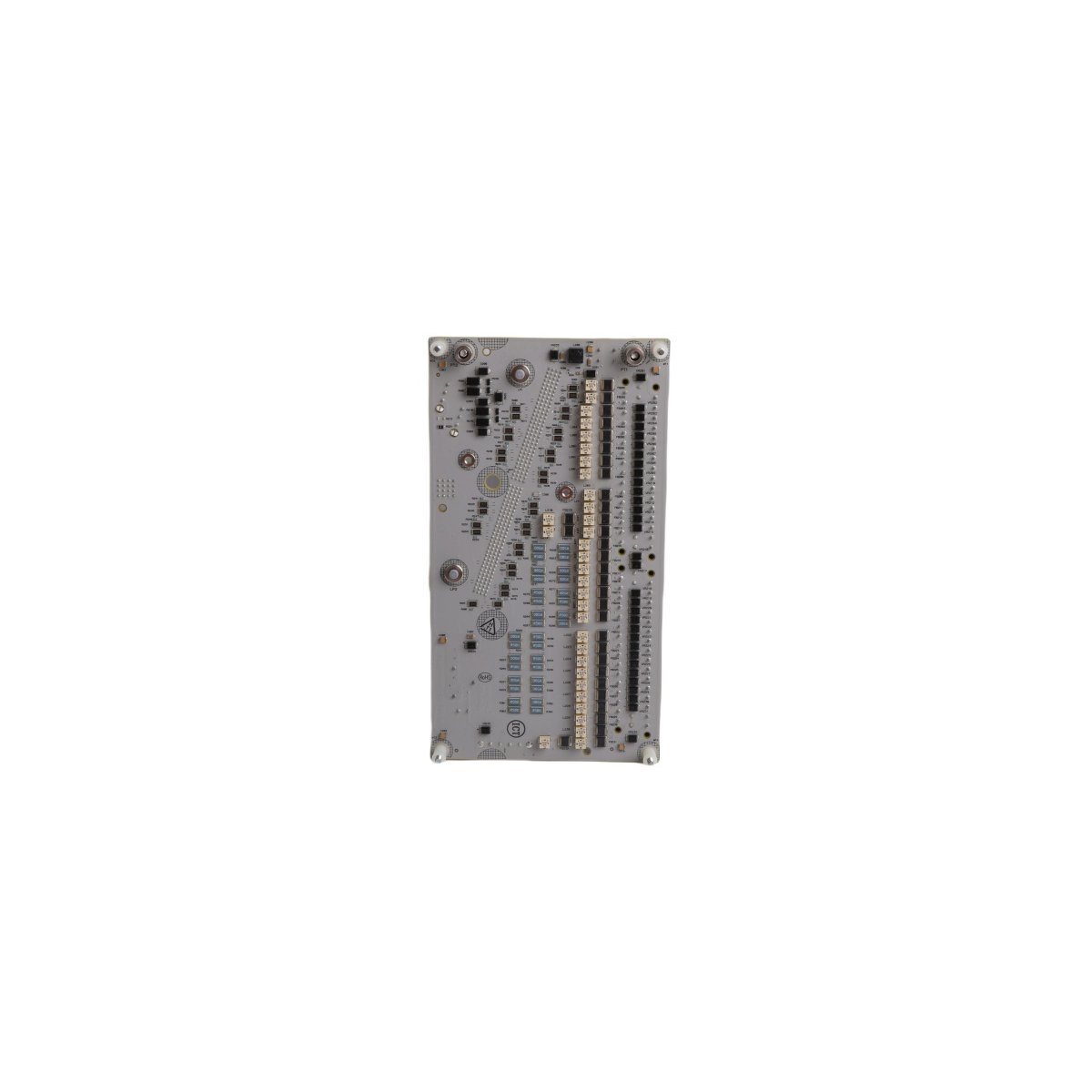

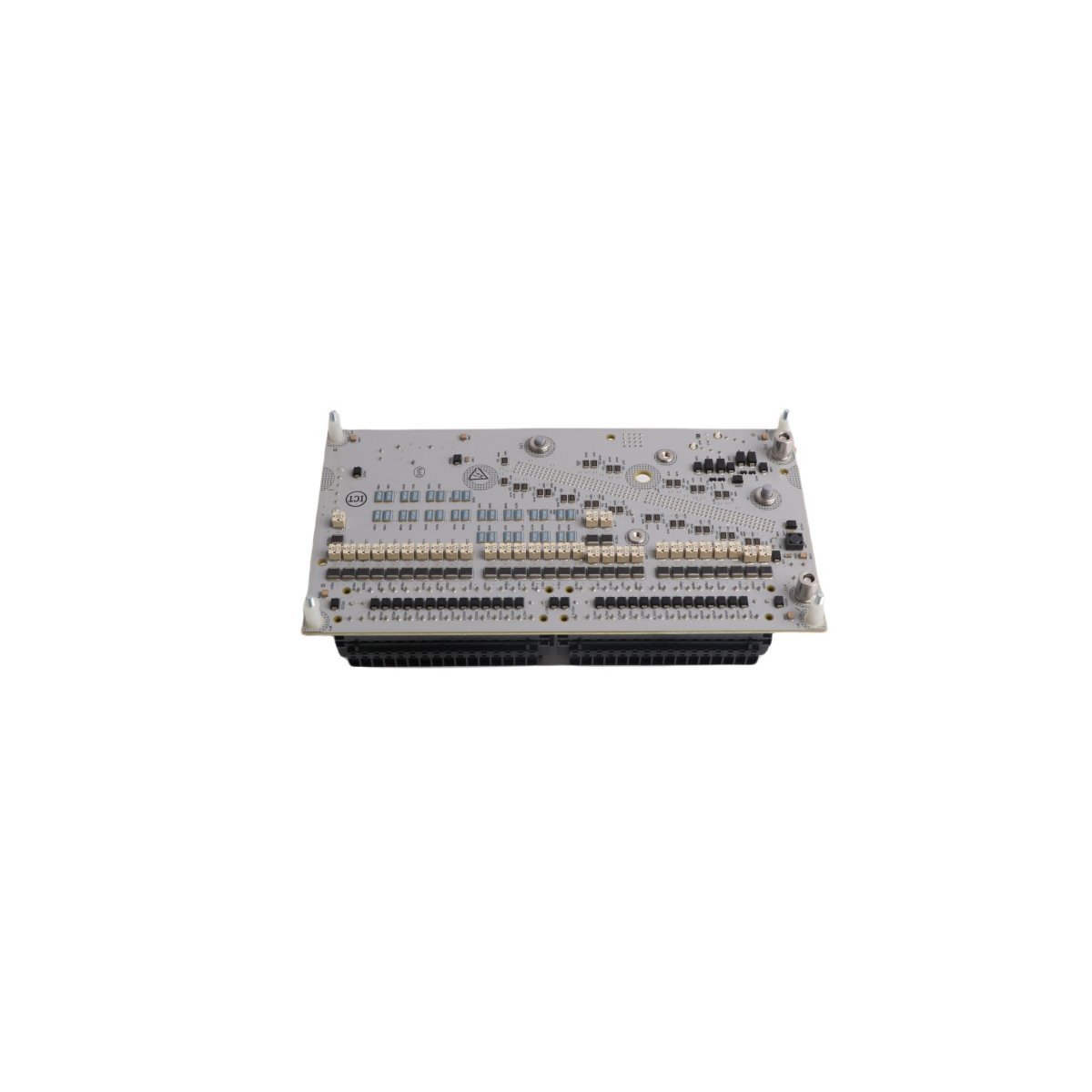

Honeywell CC-TUIO31 I/O Module

Technical Specifications

The Honeywell CC-TUIO31 functions as a high-density universal I/O interface for industrial automation. This module belongs to the Experion PKS (Process Knowledge System) hardware family. It eliminates the need for multiple specialized board types by supporting diverse signal configurations. Engineers can program each channel for either analog or digital tasks. This flexibility significantly reduces spare parts inventory and simplifies system design. Consequently, it serves as a foundational component for modern, software-configurable distributed control systems.

Core Functional Characteristics

This module features software-configurable channels that adapt to various field device requirements. It supports standard analog inputs, analog outputs, digital inputs, and digital outputs. Furthermore, the CC-TUIO31 includes integrated HART communication for intelligent field instrument management. Onboard diagnostics continuously monitor the loop integrity and health of each connection. These proactive alerts allow operators to identify wiring faults before they impact production. Additionally, the hardware utilizes a robust design to withstand high-vibration industrial environments. Its compact Series C form factor ensures efficient heat dissipation within the rack.

Industrial Applications and Integration

Honeywell engineered the CC-TUIO31 for critical sectors like oil refining and pharmaceutical manufacturing. It provides a seamless interface between the DCS and complex field instrumentation. Because it utilizes universal channels, commissioning teams can make late-stage wiring changes easily. The module connects to the system via standard Ethernet router services for rapid data transfer. This capability allows for real-time process visibility across the entire plant network. Moreover, it complies with global safety standards for use in high-availability control loops. Therefore, it remains a preferred choice for large-scale automation upgrades.
