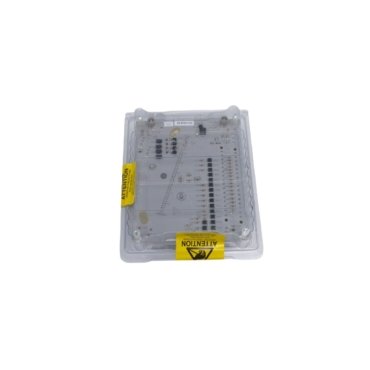

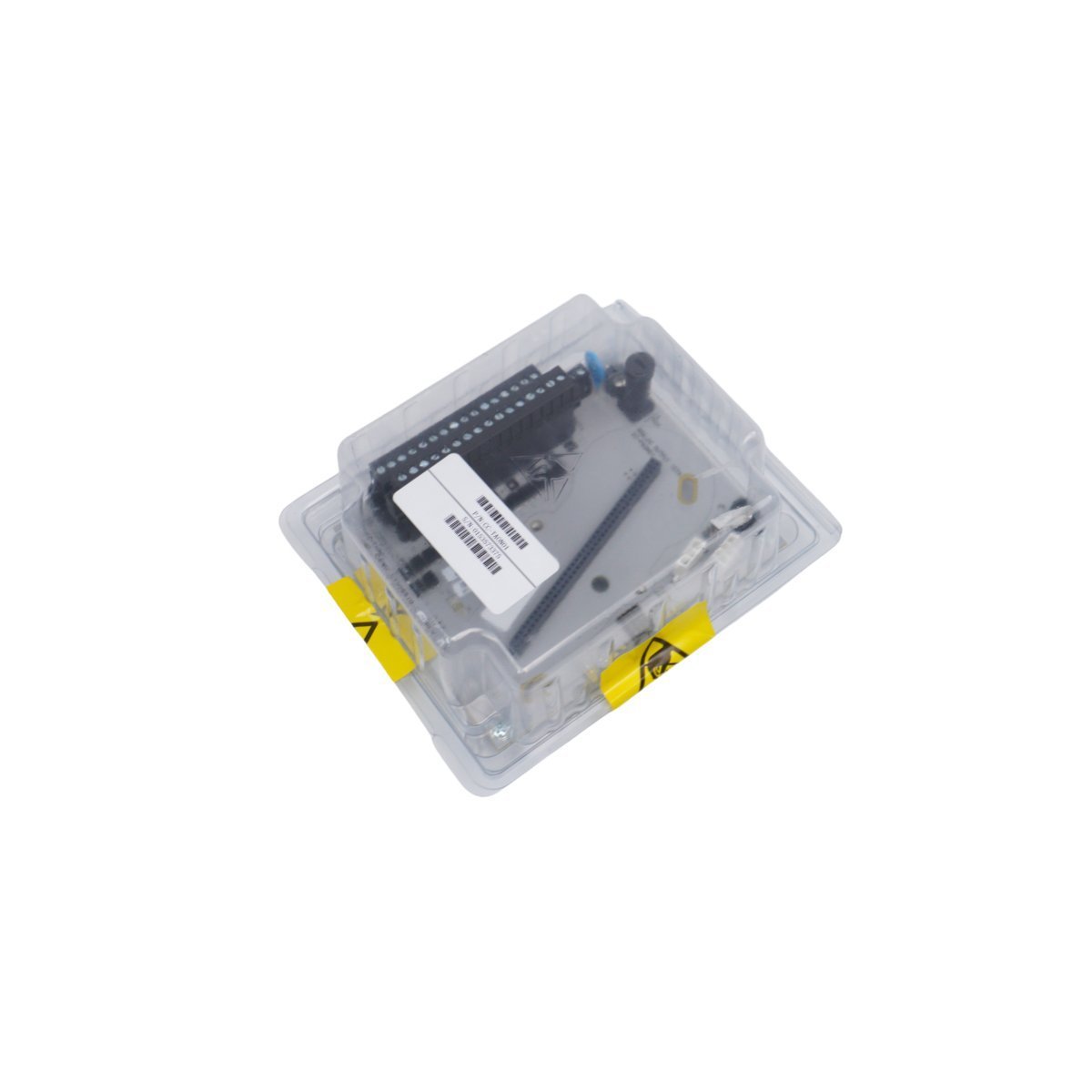

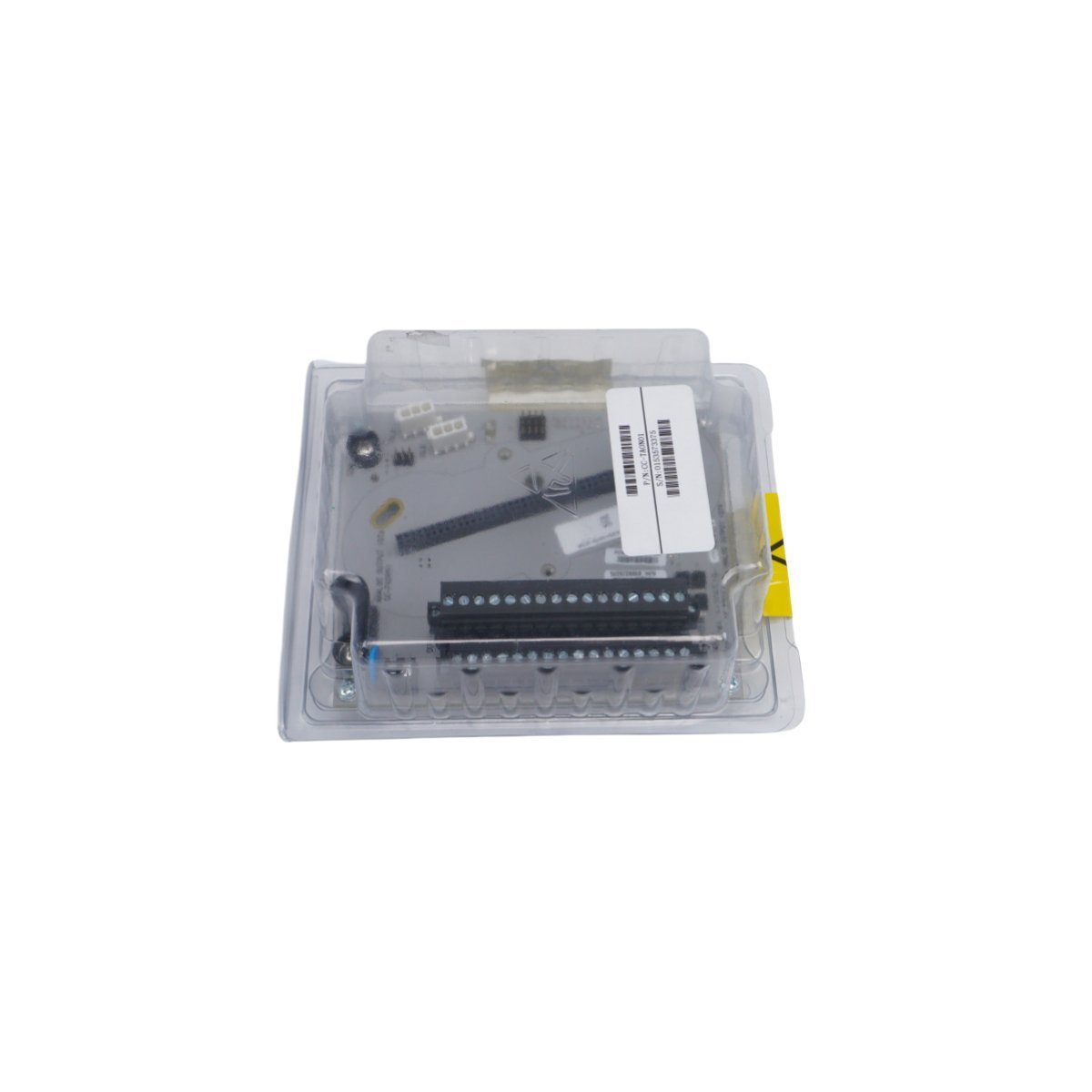

Honeywell CC-TAON01 51306519-175 Analog Output Module

The Honeywell CC-TAON01, identified by part number 51306519-175, functions as a high-precision analog output module. This component belongs to the Experion PKS Series C family. It converts digital control signals into precise 4-20 mA current loops. These signals drive field actuators, valves, and positioners with extreme accuracy. By utilizing advanced digital-to-analog conversion, the module ensures stable process regulation. The hardware specifically supports mission-critical safety systems and general DCS automation. Consequently, it maintains optimal control over complex industrial loops in real-time.

Technical Specifications

Core Functional Characteristics

The CC-TAON01 module provides multiple isolated channels for superior signal integrity. Each output path includes dedicated protection against field-side short circuits. Furthermore, the 51306519-175 supports HART protocol pass-through for intelligent instrument management. This feature allows operators to configure field devices remotely via the control network. Onboard diagnostics continuously monitor the health of the current loop. If a signal failure occurs, the module triggers an immediate system alert. Moreover, the compact form factor allows for high-density installation in Series C cabinets.

Industrial Applications and Integration

Honeywell designed the CC-TAON01 for rigorous use in oil refineries and chemical plants. It excels in controlling final control elements in volatile environments. Because it integrates with Honeywell’s Ethernet routing services, data transfer remains seamless. The module architecture prioritizes deterministic timing for synchronized process adjustments. Additionally, the unit complies with global standards for safety-instrumented systems. This compliance ensures reliable performance in emergency shutdown (ESD) scenarios. Engineers value this module for its ability to stabilize critical pressure and flow control loops.
