Honeywell 51304903-200 TDC 3000 Winchester Drive Interface Module

Honeywell 51304903-200 Winchester Drive Interface

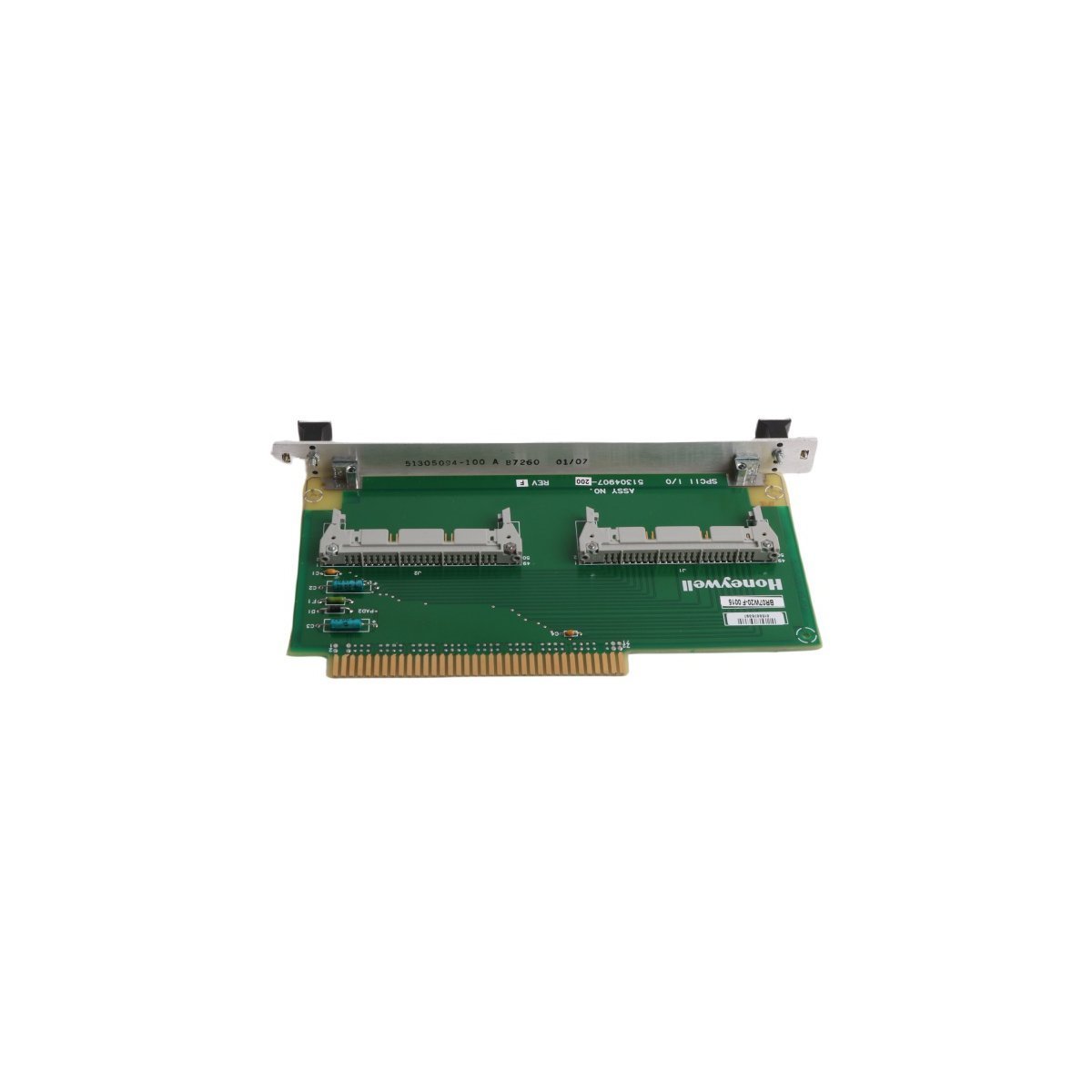

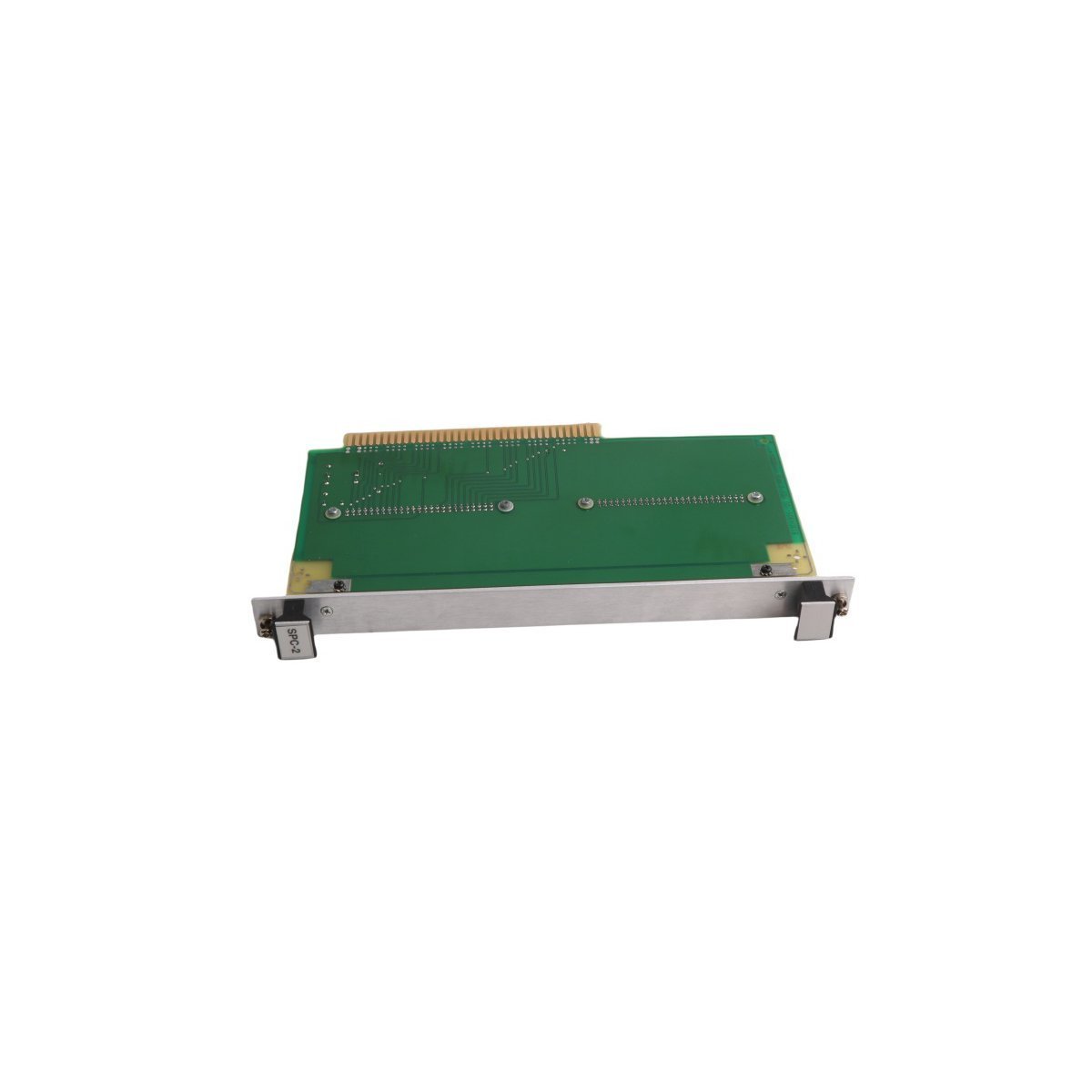

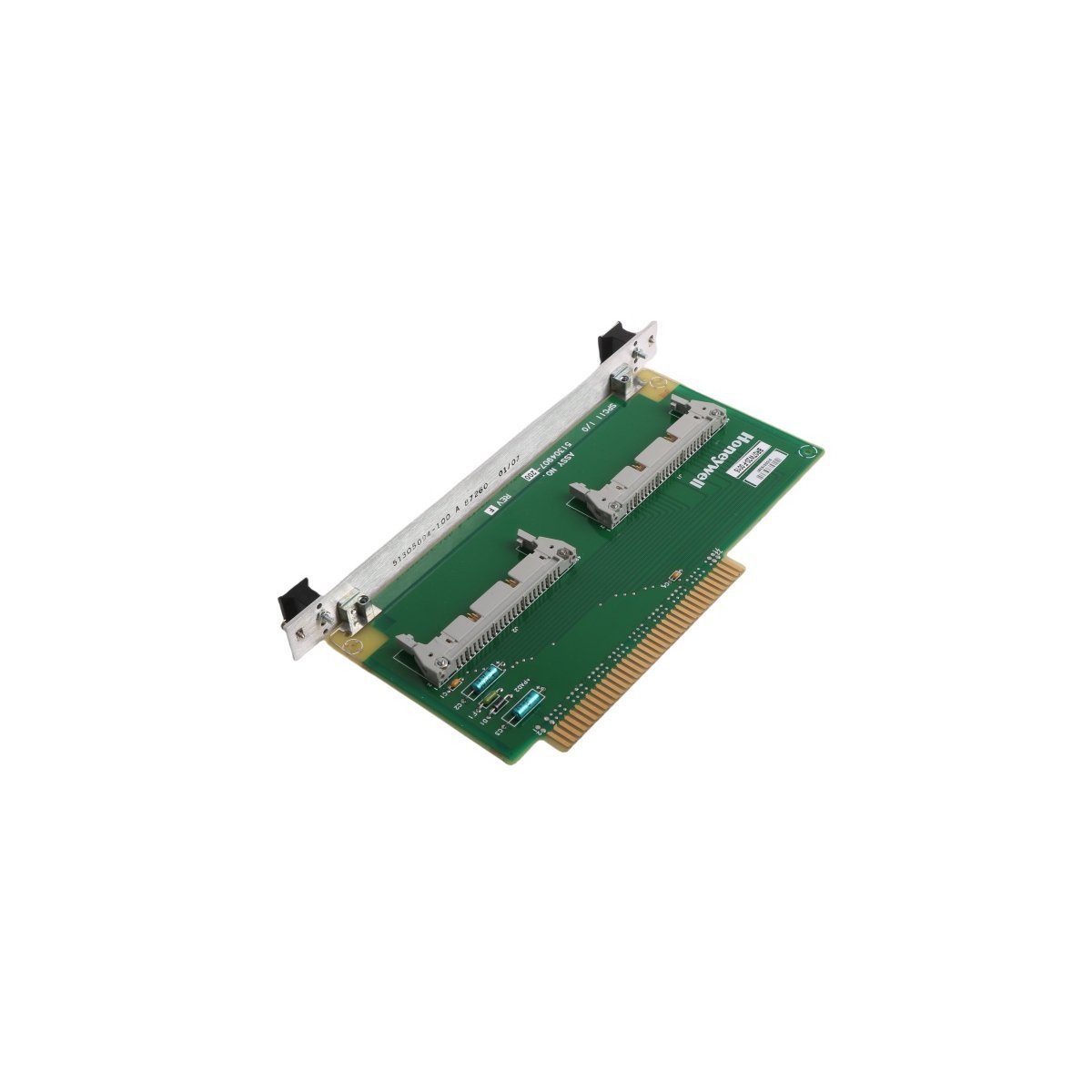

The Honeywell 51304903-200, also cataloged as the 51304903-200 Winchester Drive Interface Module, operates as a dedicated hardware component for high-capacity hard disk data storage and retrieval execution within TDC 3000 Series DCS platforms.

Suffix Breakdown & Model Matrix

The 51304903-200 represents a fixed single-part assembly without user-configurable suffix variants. Technicians specify the base model directly for all TDC 3000 system backplane integration tasks:

• 51304903-200: Standard industrial Winchester Drive Interface module designed for direct backplane mounting and physical hard drive bus communication.

Hardware Specifications

Process Control & Channel Isolation

Engineers integrate the module directly into the TDC 3000 architecture, where it manages high-speed data exchanges between the main control processor and physical hard disk storage units. While field devices utilize a traditional 4-20 mA HART loop protocol for analog process variable updates, this interface handles system-level data logging, historical trend recording, and mass storage retrieval. Electrical isolation circuits prevent backplane noise propagation, while dedicated bus logic maintains high signal integrity during continuous read and write operations.

Frequently Asked Questions

Q: Can maintenance personnel hot-swap the 51304903-200 module while the TDC 3000 system is actively running?

A: Technicians must power down the specific rack section or ensure the storage node sits in an offline state prior to removal. Pulling the module during active hard drive access risks corrupting system log files and data track indexing.

Q: How does the interface handle communication latency during intensive data logging cycles?

A: On-board controller logic optimizes sector access timing, because the card offloads raw disk I/O scheduling from the primary DCS processing unit to maintain system execution speeds.

Field Installation Guidelines

Installers must mount the card into the rack slot using standard ESD precautions. Grounding straps attach directly to the chassis frame before handling the assembly, and technicians tighten all securing screws to establish proper chassis-ground contact.

Cabling runs between the module and external drive enclosures require high-grade shielded interconnect cables. Operators must keep signal lines separated from high-voltage AC lines, while routing cables through dedicated wire troughs to prevent electromagnetic interference.
