Honeywell MC-PSIM11 51304362-350 Experion PKS Serial Interface Module

Honeywell MC-PSIM11 51304362-350 Serial Interface Module

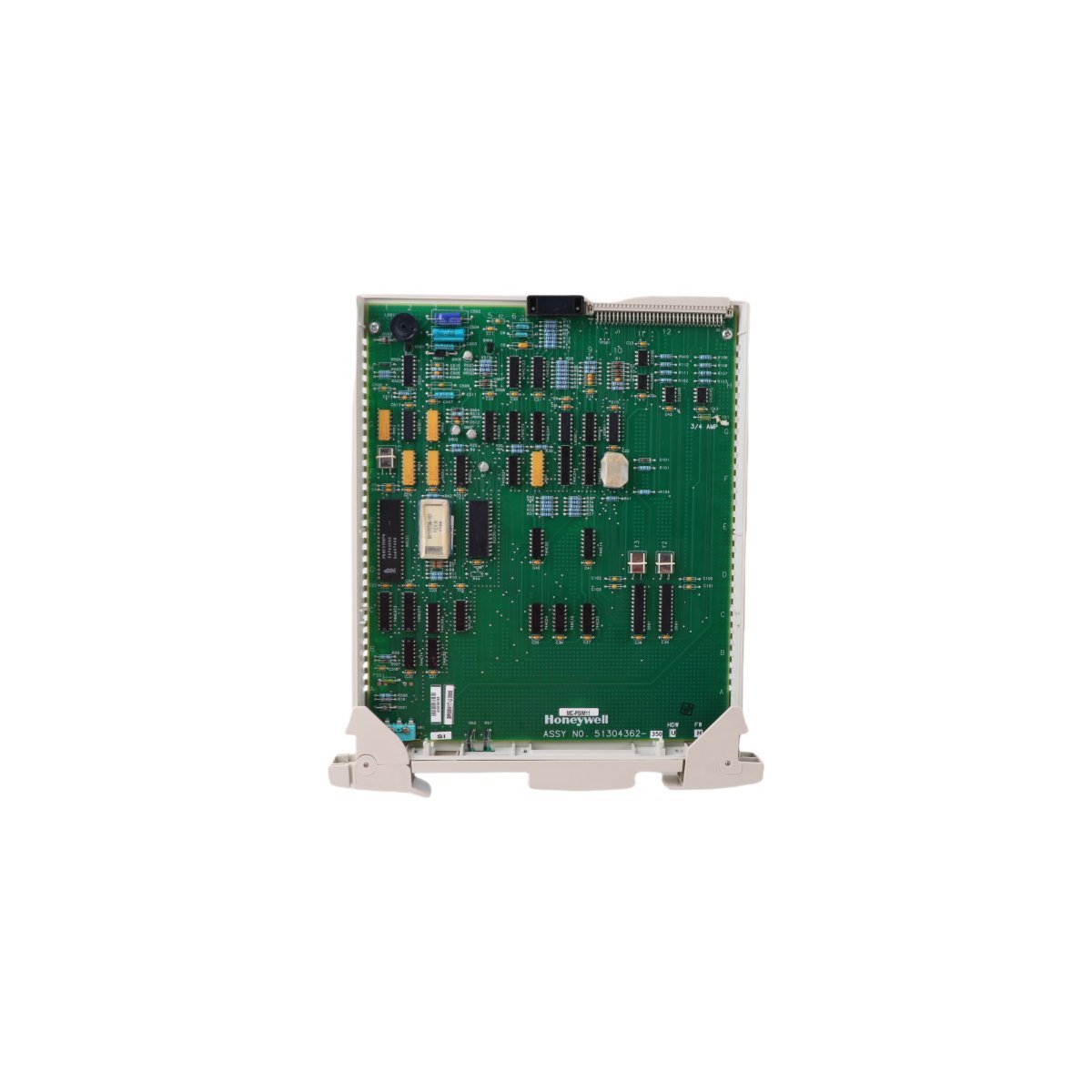

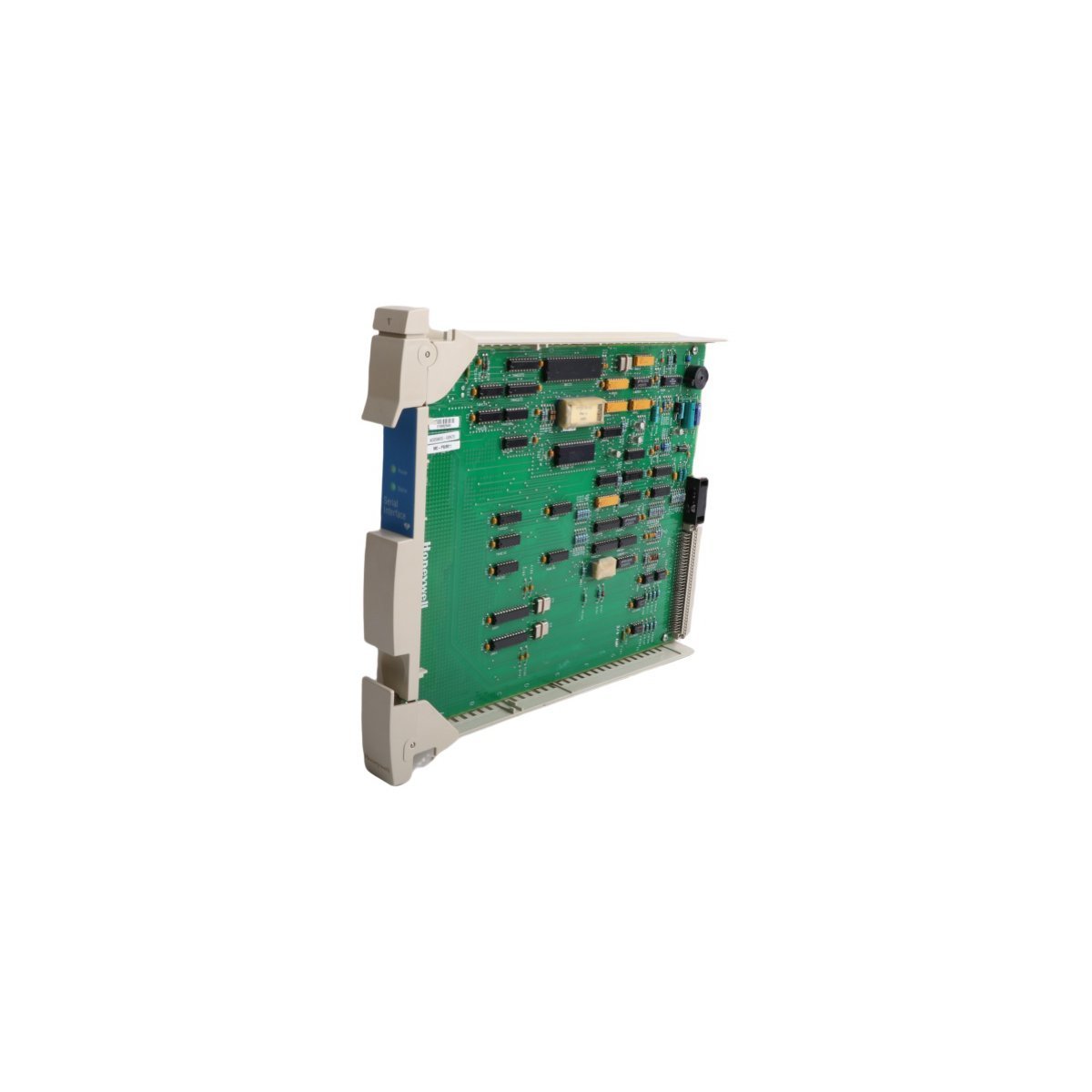

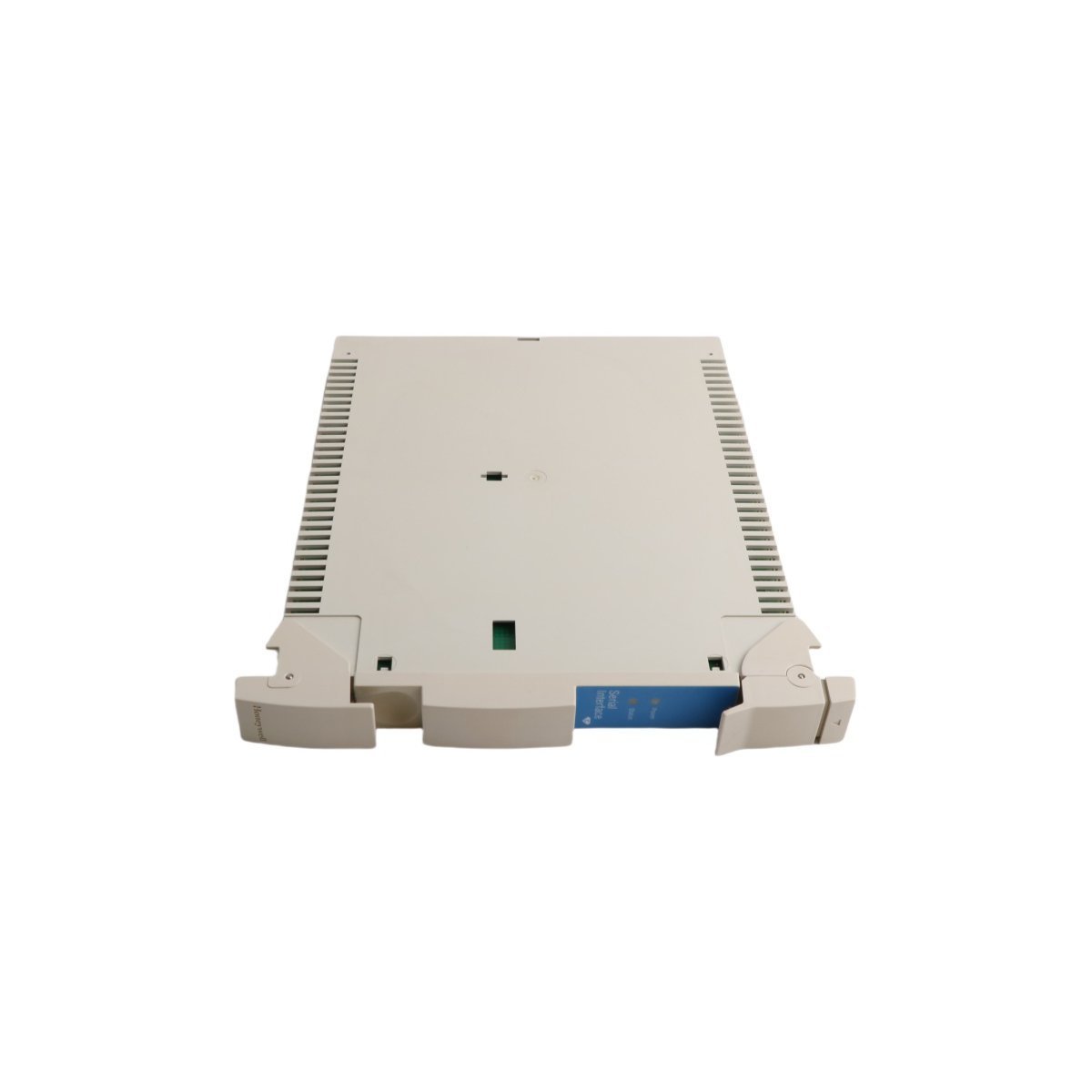

Configured for serial data exchange and isolated signal communication in Experion PKS platforms, the Honeywell MC-PSIM11 51304362-350 (MC-PSIM11 Serial Interface Module) provides direct physical/electrical execution.

Suffix Breakdown & Model Matrix

The MC-PSIM11 51304362-350 represents a standard, single-part assembly without user-configurable suffix variants. Technicians specify the complete order number directly for cabinet assembly and chassis slot integration:

• MC-PSIM11 51304362-350: Standard Serial Interface Module with integrated galvanic isolation, standard DIN-rail retention hardware, and front-panel diagnostic LED indicators.

Hardware Specifications

DCS Process Control & Channel-to-Channel Isolation

Engineers integrate the module into Experion PKS control nodes to execute serial protocol translation and field bus management. While field instruments stream analog values across traditional 4-20 mA HART loop protocol networks, this module establishes direct digital communication channels across the internal backplane bus. Built-in galvanic isolation blocks ground loops and suppresses high-frequency electromagnetic interference (EMI). Furthermore, channel-to-channel isolation safeguards sensitive processing electronics against voltage transients, while internal thermal management circuits maintain continuous voltage regulation under high-density wiring conditions.

Frequently Asked Questions

Q: How do technicians interpret the status of the module during real-time field operations?

A: Front-panel LED diagnostic lights indicate primary power supply integrity, serial bus communication activity, and real-time fault conditions. Field engineers inspect these indicators directly to identify voltage drops or interface errors without disconnecting field wiring.

Q: Can installation crews mount the unit directly onto a standard enclosure DIN-rail?

A: Yes, the housing includes integrated DIN-rail mounting clips that snap directly onto standard 35 mm DIN-rails. Installers must secure end clamps to prevent lateral movement along the rail in high-vibration control environments.

Q: How does the internal isolation circuit handle high-frequency electrical noise from adjacent motor drives?

A: Integrated optocouplers and magnetic barriers decouple the internal logic circuitry from external serial cabling. Consequently, the module attenuates common-mode electrical noise and prevents transient surges from damaging backplane controller nodes.

Field Installation Guidelines

Installers must mount the module vertically inside a metal enclosure to maximize convective thermal dissipation. Maintenance personnel must verify that ambient cabinet temperatures remain within the designated -25 to +60 deg C operating window before powering the assembly.

Wiring teams must use shielded twisted-pair cables for all serial communication interfaces. Strip the cable jacket according to terminal strip specifications, ground the shield drain wire at a single enclosure point, and route signal cables separately from high-voltage AC power lines to avoid inductive coupling.
