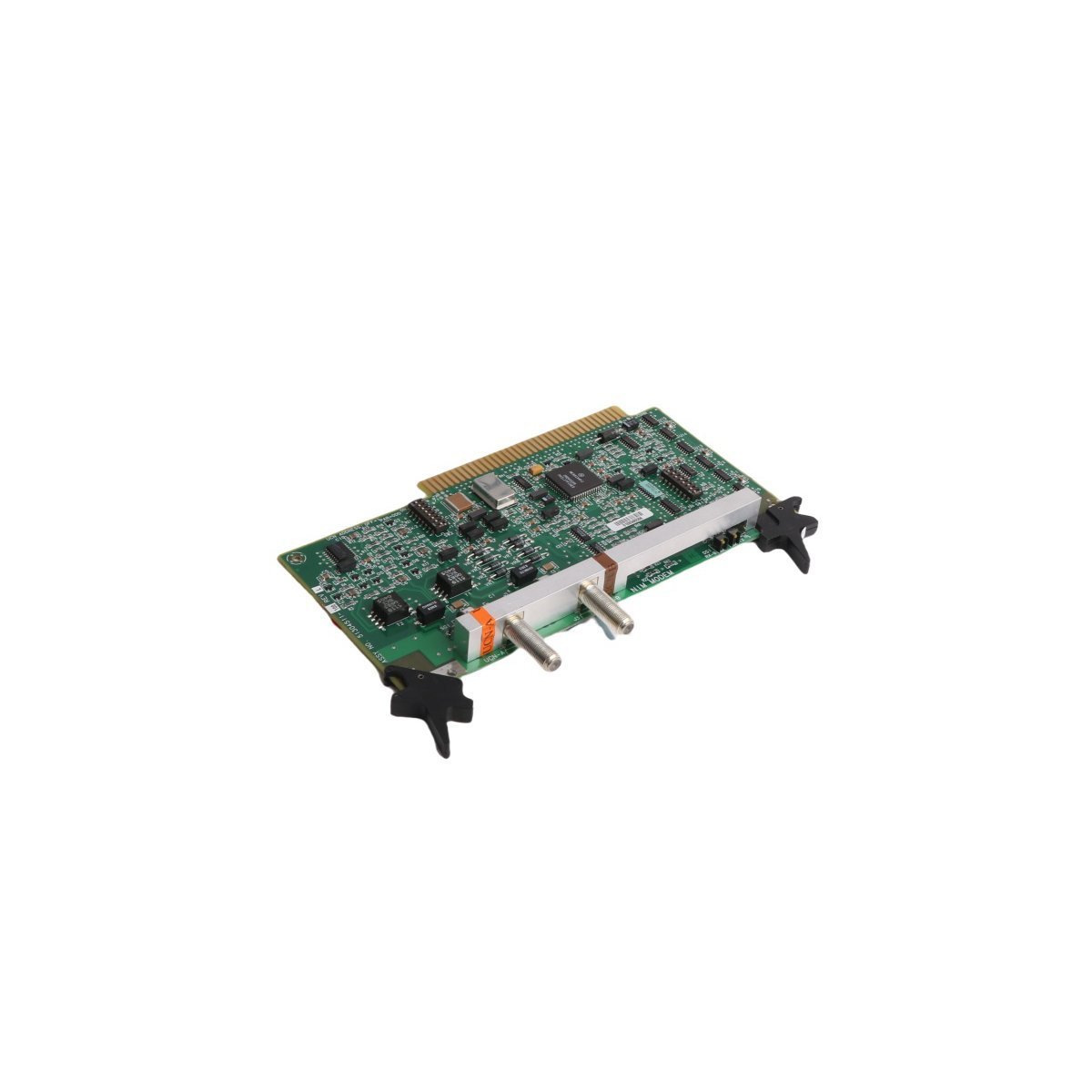

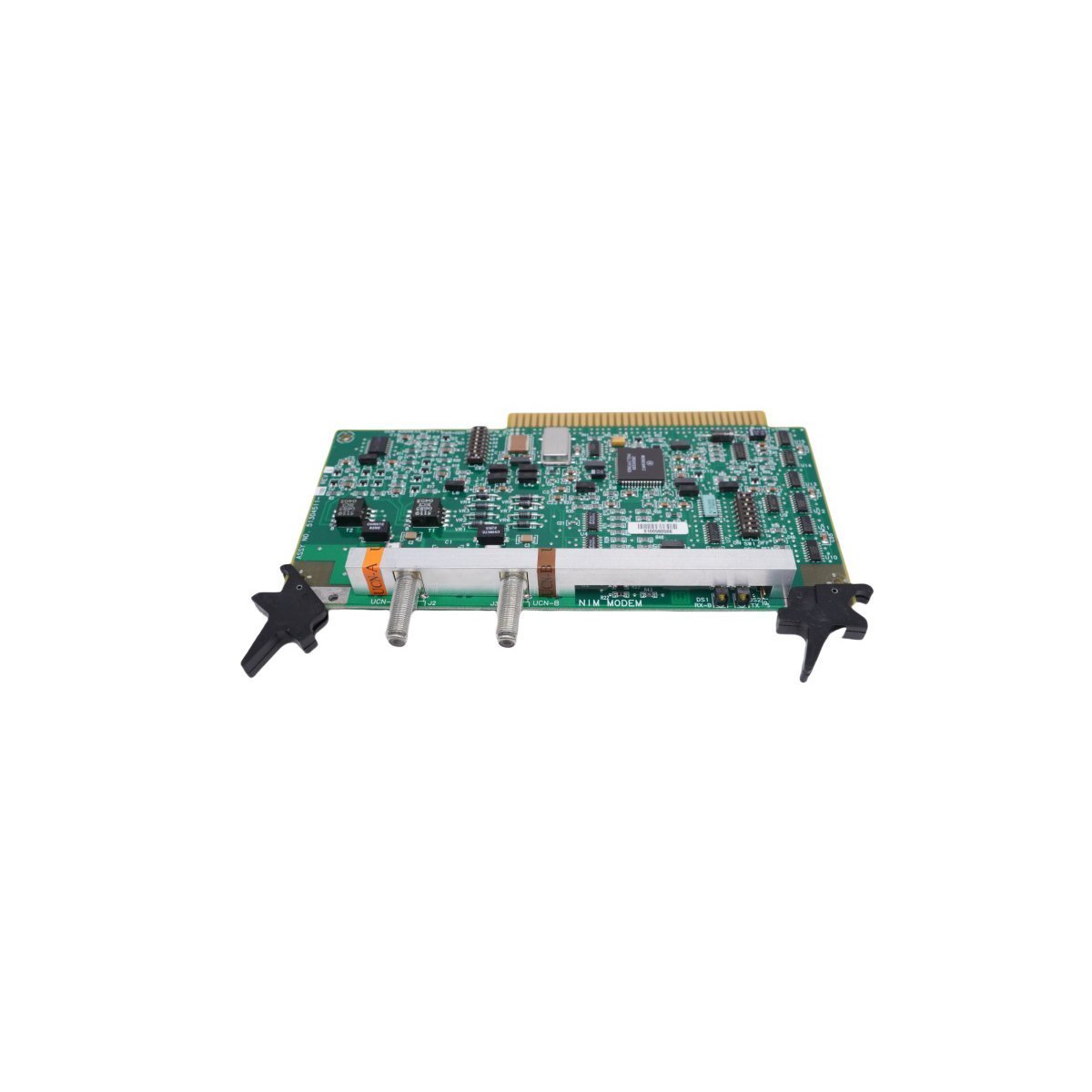

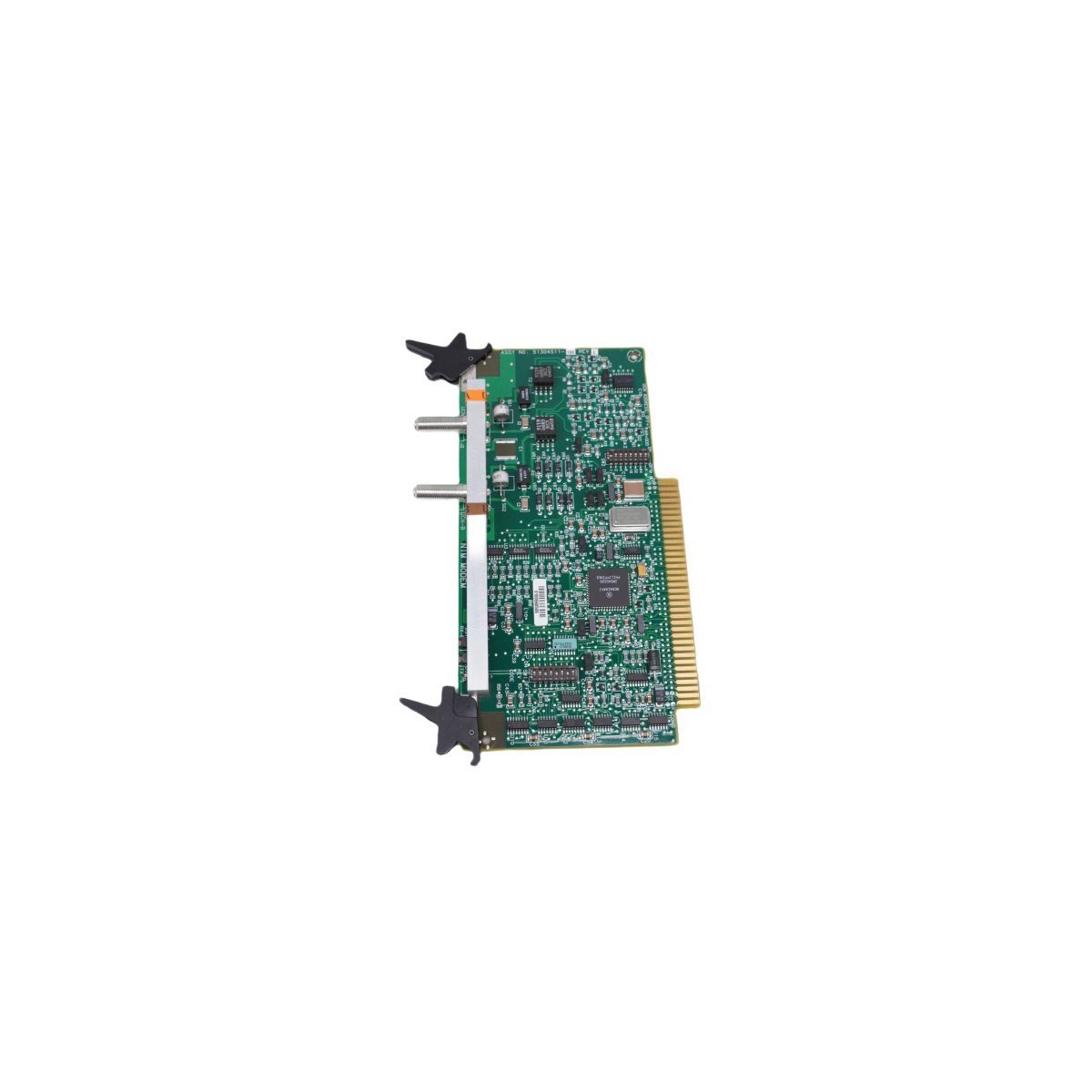

The Honeywell 51304511-100, also cataloged as the 51304511-100 Network Interface Module, operates as a dedicated hardware component for Universal Control Network data transmission within TDC 3000 platforms. Engineers install this module to process high-speed packet exchanges between local control networks and node processors across dual redundant coaxial buses. The board manages protocol conversions and physical-layer modulation directly, which prevents network collisions while maintaining continuous real-time data sync throughout the DCS architecture.

Hardware Specifications

Universal Control Network Protocol and Media Isolation

The module provides full 4-20 mA HART loop protocol routing and high-speed fieldbus packet processing across local node connections. Engineers configure the internal modem circuits to isolate incoming UCN carrier signals from sensitive backplane logic chips, because high-voltage surges and high-frequency switching noise frequently impair unshielded network lines. High-speed transformer coupling pairs maintain galvanic separation across both network cable channels, so transient ground faults on field cables cannot disrupt internal bus communications or trigger node offline states.

Frequently Asked Questions

Q: Does the 51304511-100 module support redundant coaxial cable channel switching?

A: The onboard network controller continuously monitors carrier signal health on both channel A and channel B, so it automatically switches transmission paths within microseconds if a cable fault occurs.

Q: Can maintenance personnel replace the NIM module while the local rack frame remains powered?

A: Operators must set the associated node to offline mode and power down the card slot prior to extraction, because hot-unplugging active bus interfaces disrupts active UCN token ring rotation.

Field Installation Guidelines
