Product Description

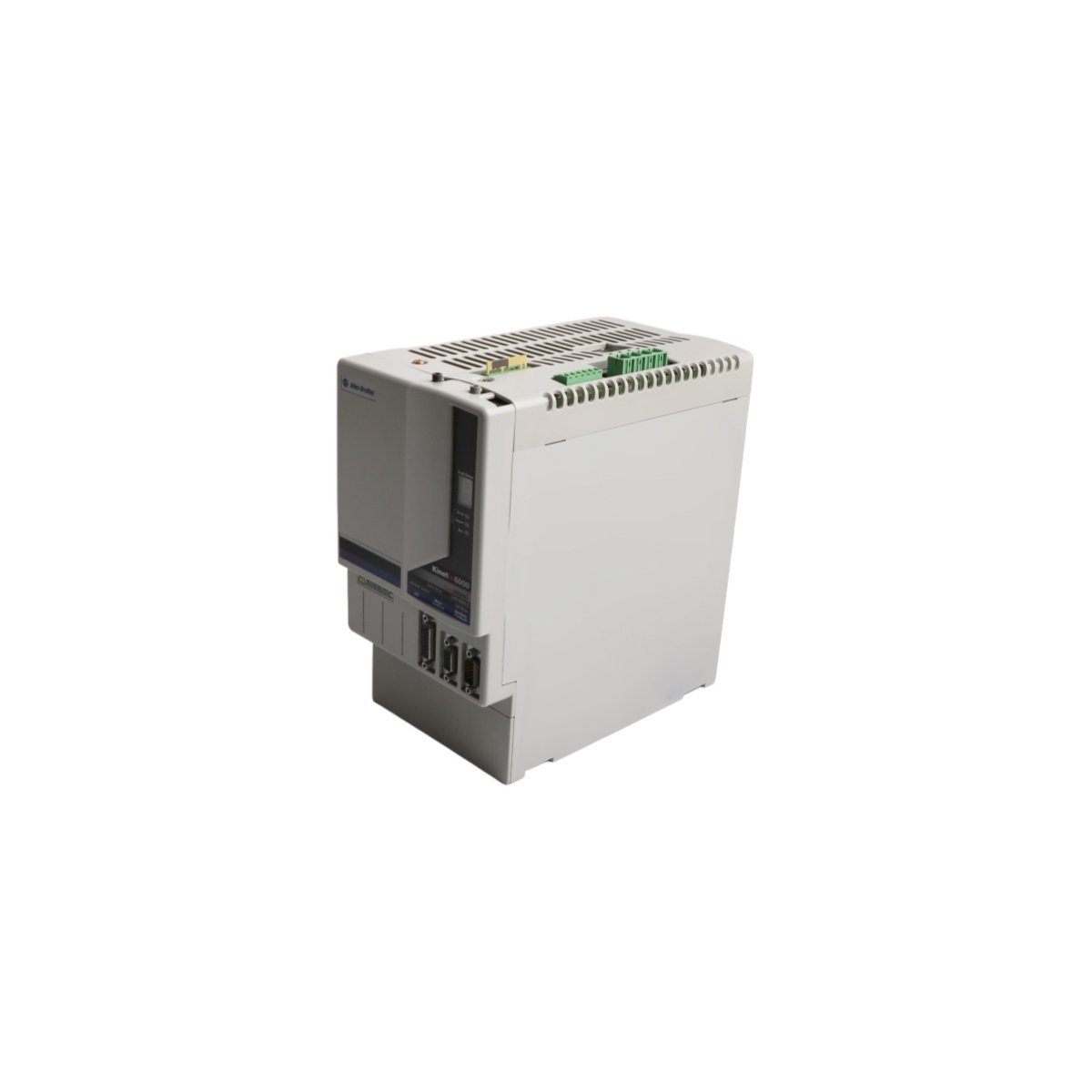

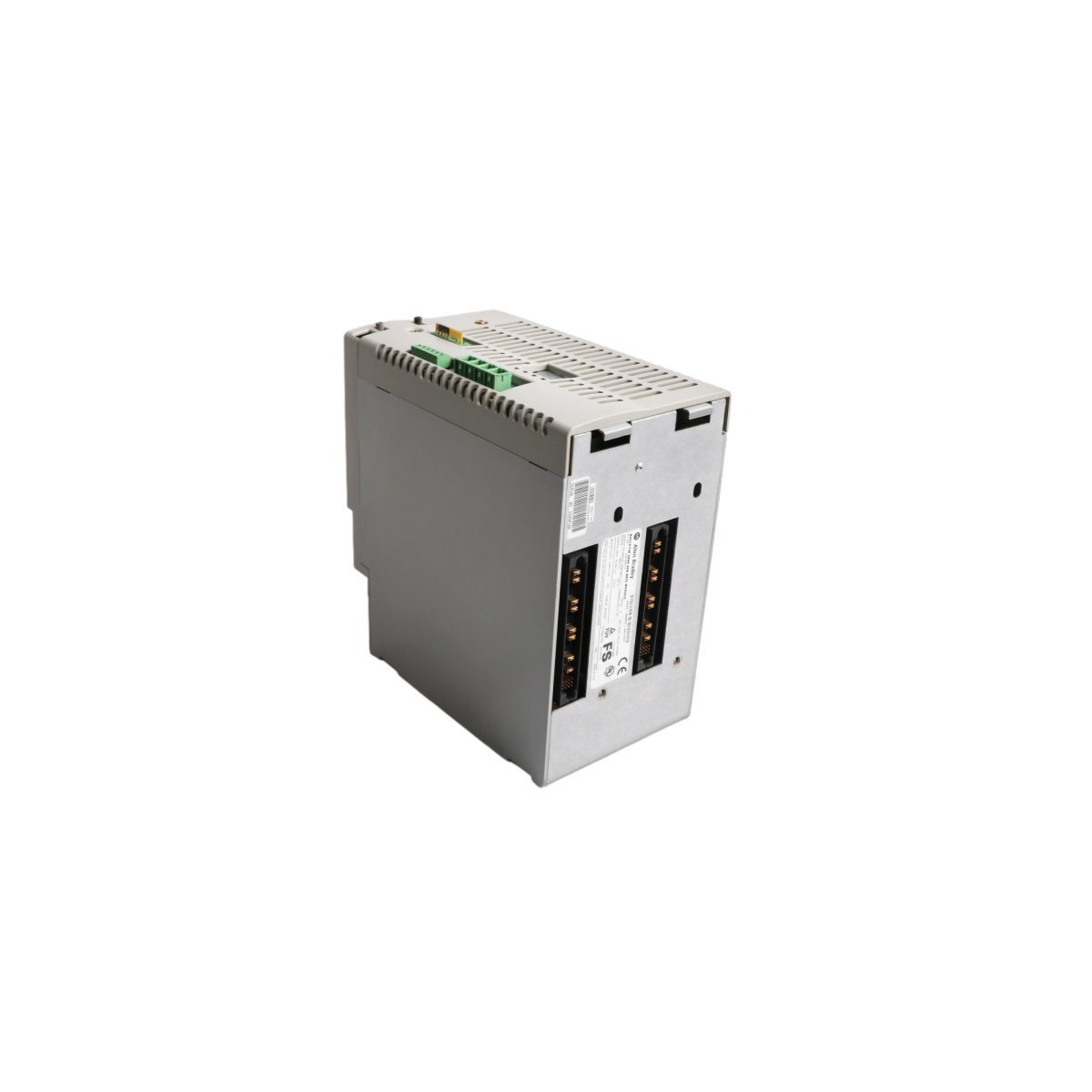

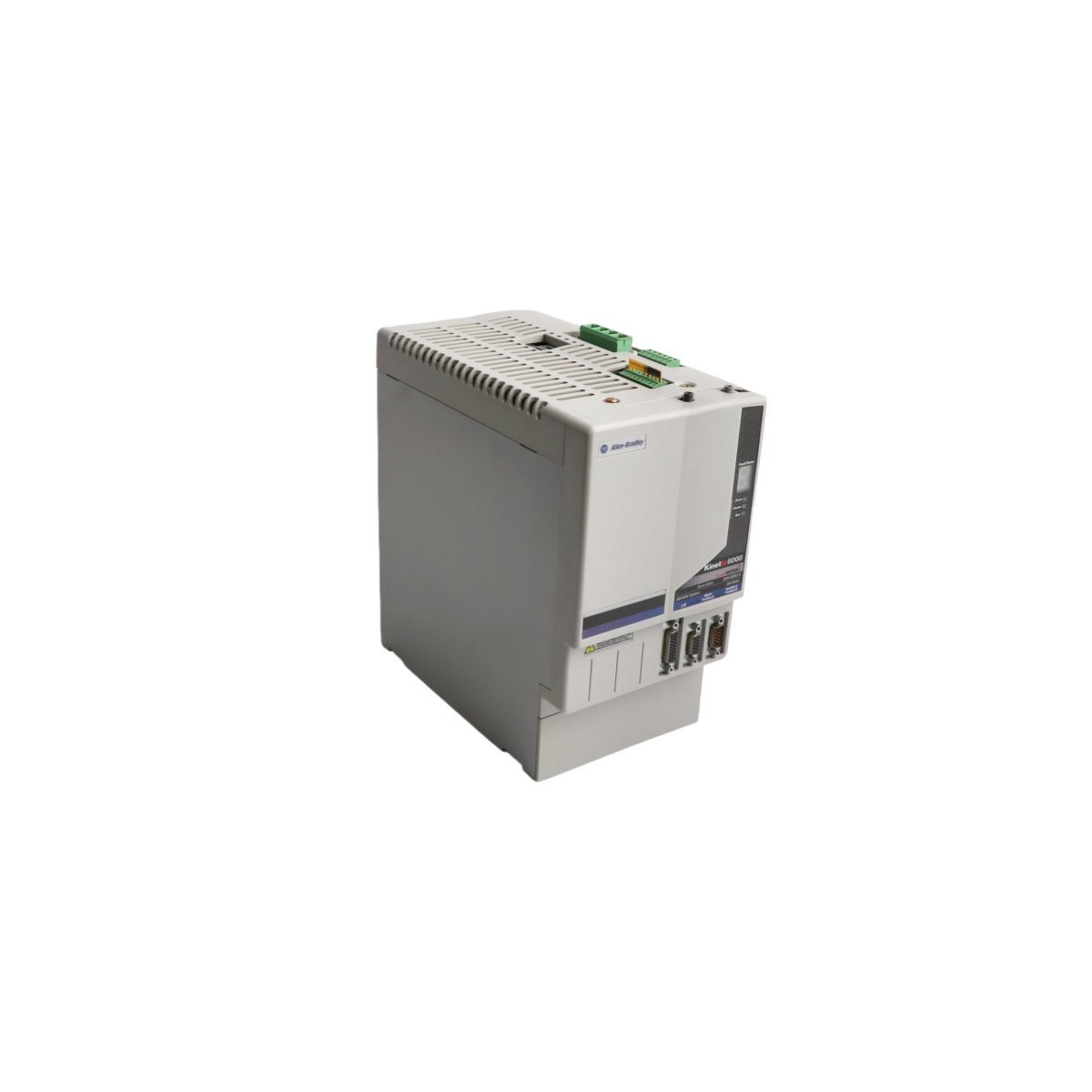

The Allen-Bradley 2094-BM03-S is a high-performance axis module engineered for the Kinetix 6000 multi-axis servo drive platform. It provides precise motion control for demanding industrial applications requiring rapid acceleration and high dynamic response.
Technical Overview
As a primary component of the Kinetix 6000 system, this module manages power distribution and motor control with high efficiency. It operates within a 400VAC class environment and handles significant power demands with a continuous output of 13.5 kW. The module integrates seamlessly with the Kinetix power rail, allowing for flexible configuration alongside shunt modules and other drive components.
Key Technical Specifications
- Continuous Current: 21.2 A
- Peak Current: 53.0 A
- Continuous Power Output: 13.5 kW
- Nominal DC Input: 650 V
- Efficiency: 98%
- Safety Feature: Integrated Safe Torque-Off
- Physical Dimensions: 3.5 x 13 x 14.5 cm
- Weight: 0.9 kg
Operational Capabilities
The 2094-BM03-S supports both standard 150% and enhanced 250% peak inverter modes, which allows the drive to adapt to varying load requirements. It processes auxiliary feedback and I/O signals directly through the control module to ensure synchronization. Furthermore, the unit features advanced diagnostics and supports multi-turn absolute encoders to preserve positional data during unexpected power cycles. Maintenance teams benefit from the modular design, which facilitates efficient replacement and installation within existing control cabinets.
