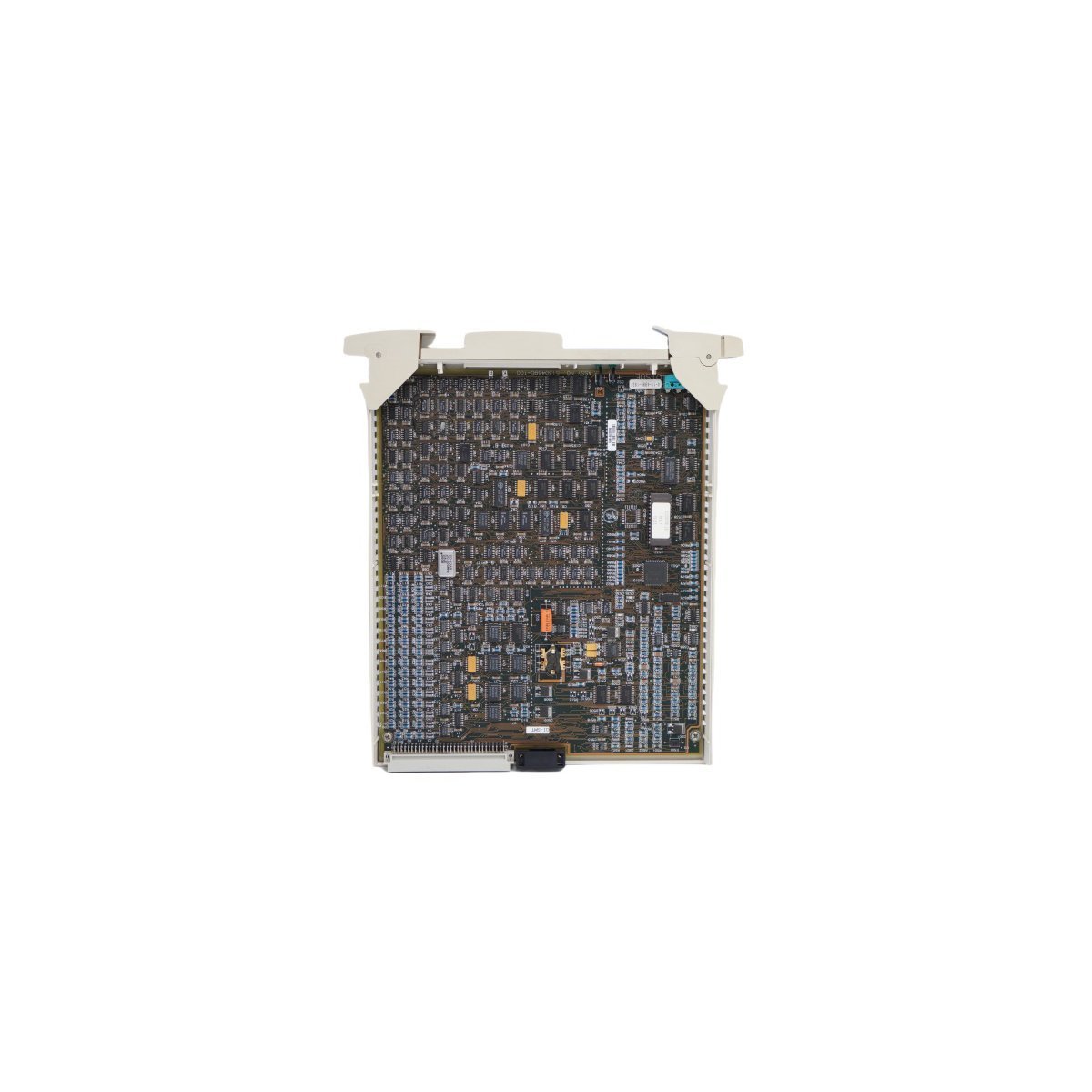

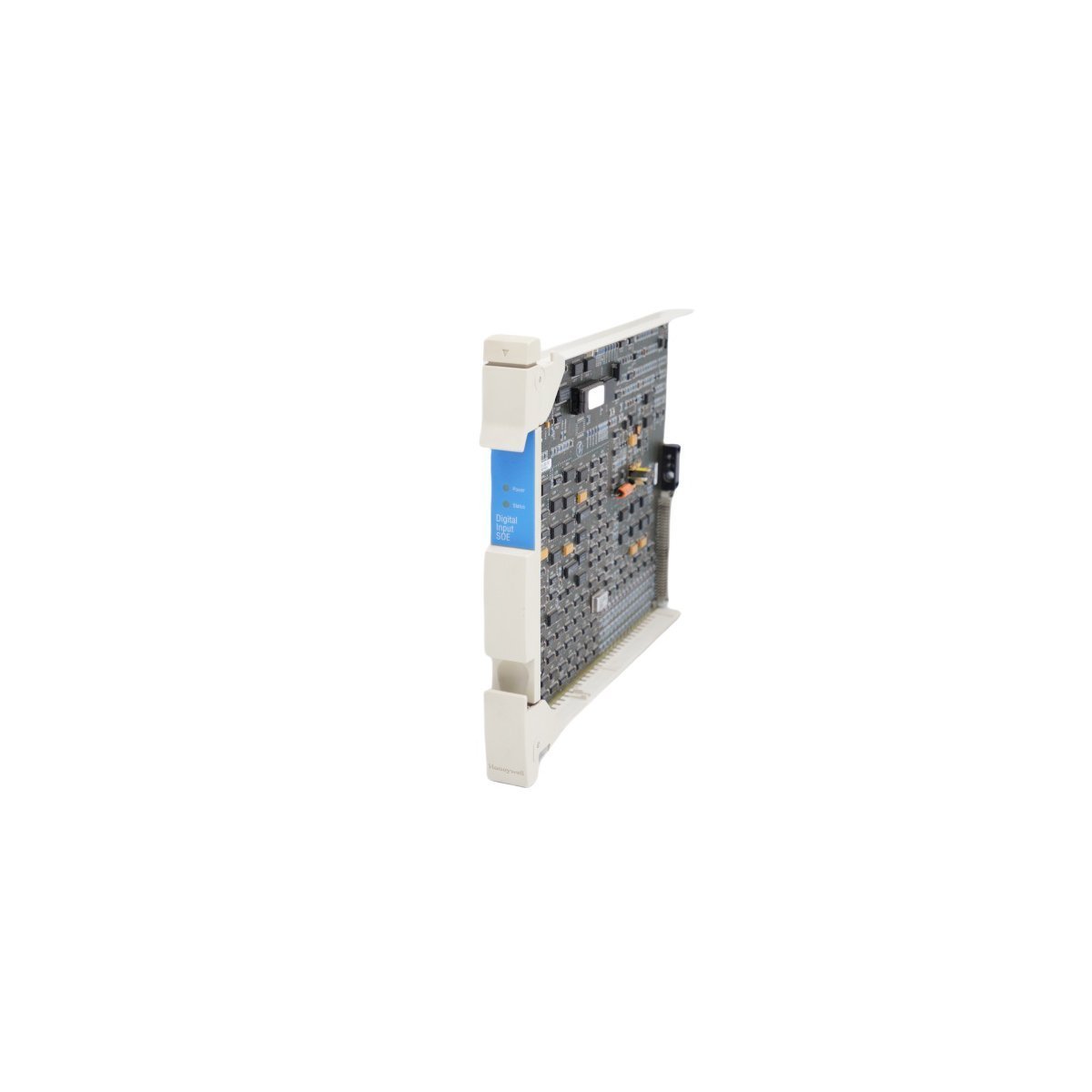

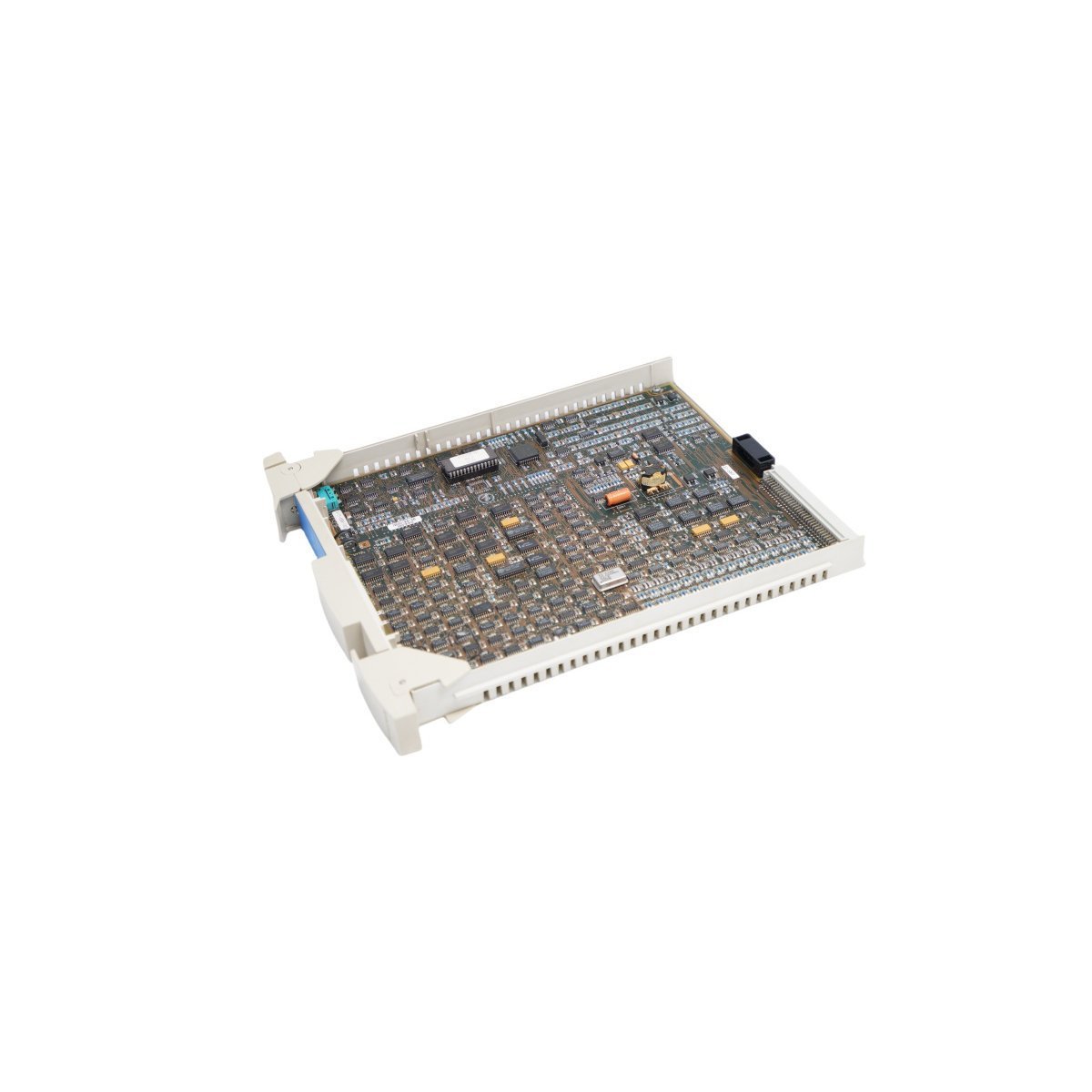

Honeywell 51304690-100 Digital Input Card

Technical Specifications

Core Functional Characteristics

The 51304690-100 card utilizes high-speed scanning technology to detect millisecond-level signal changes. Each channel captures the transition of field contacts from open to closed states. Moreover, the hardware assigns a precise timestamp to every event at the source. This localized processing eliminates communication delays within the broader control network. The card also features robust electrical isolation for every input channel. This protection prevents field-side surges from damaging the central TDC 3000 processor. Additionally, onboard filters reduce the impact of contact bounce and electrical noise.

Industrial Applications and Integration

Honeywell designed this SOE card for sectors requiring stringent safety monitoring and reporting. It performs exceptionally well in power plants, oil refineries, and chemical facilities. The module integrates directly into the TDC 3000 I/O rack for immediate signal processing. Furthermore, operators access the generated event logs through the standard HMI interface. This seamless connectivity simplifies the data collection process during emergency investigations. Because it supports high-density monitoring, the card manages numerous field devices simultaneously. It specifically aids in verifying compliance with regional safety and operational regulations.
