HONEYWELL 51204160-175 MC-TDIY22 MU-T Series Digital Input Assembly

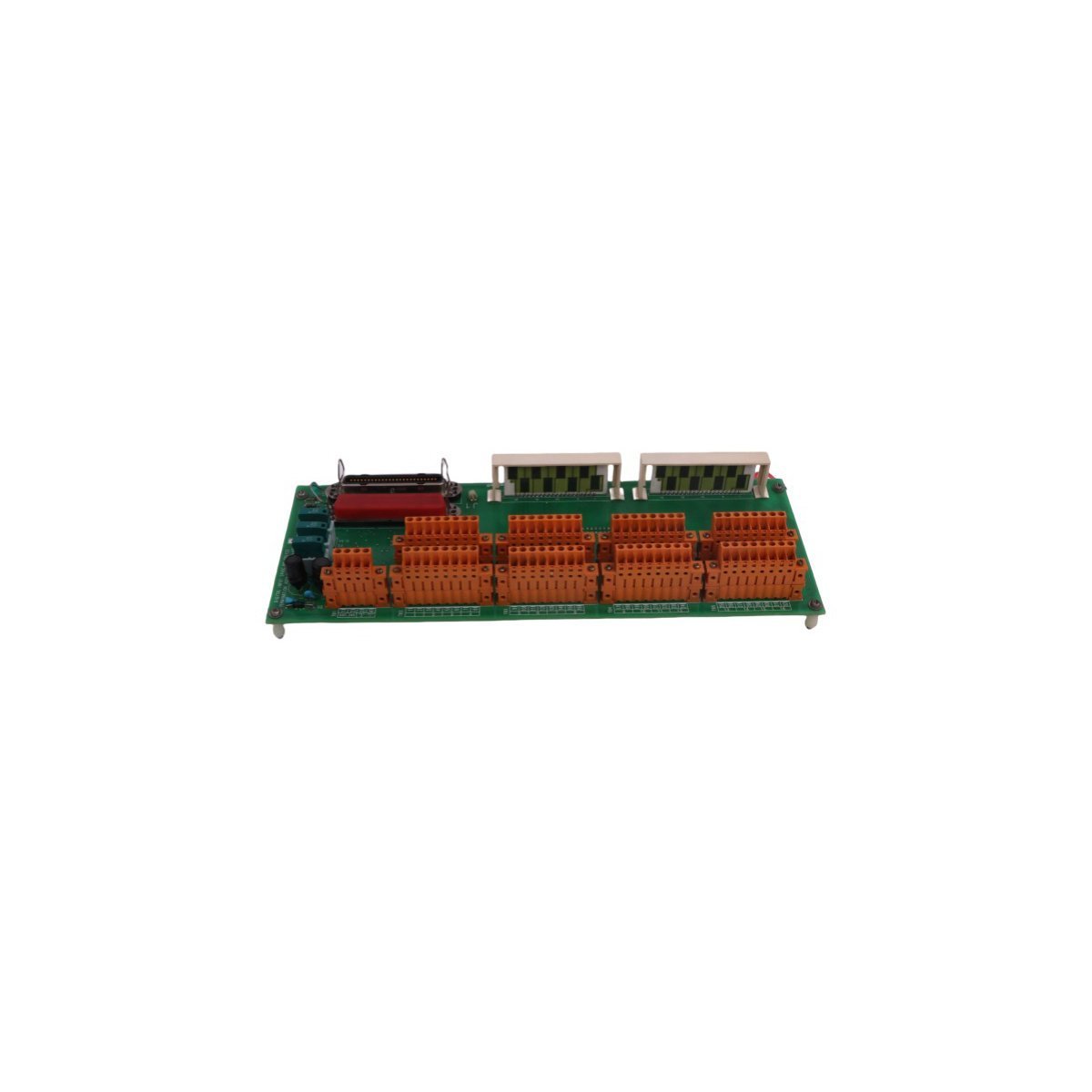

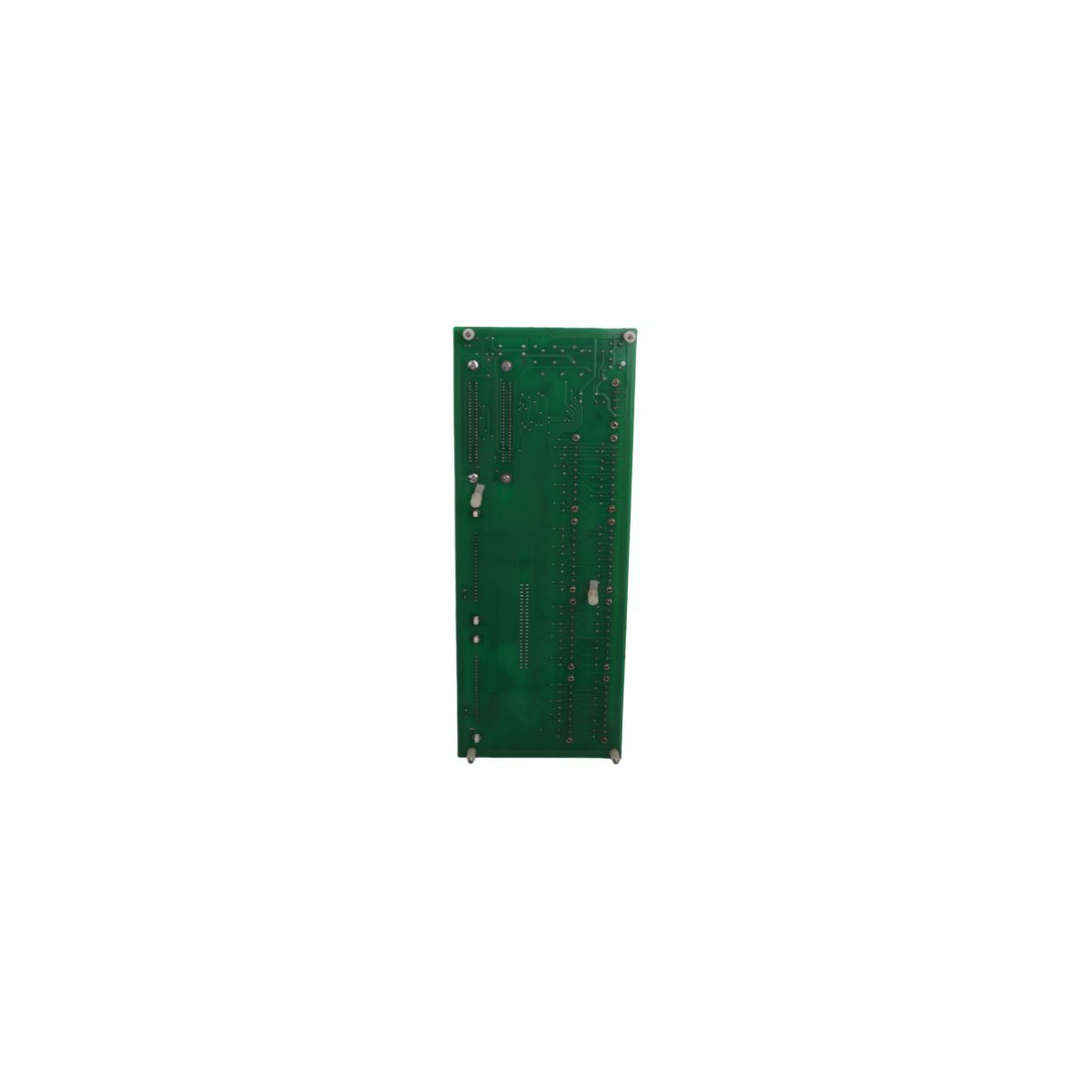

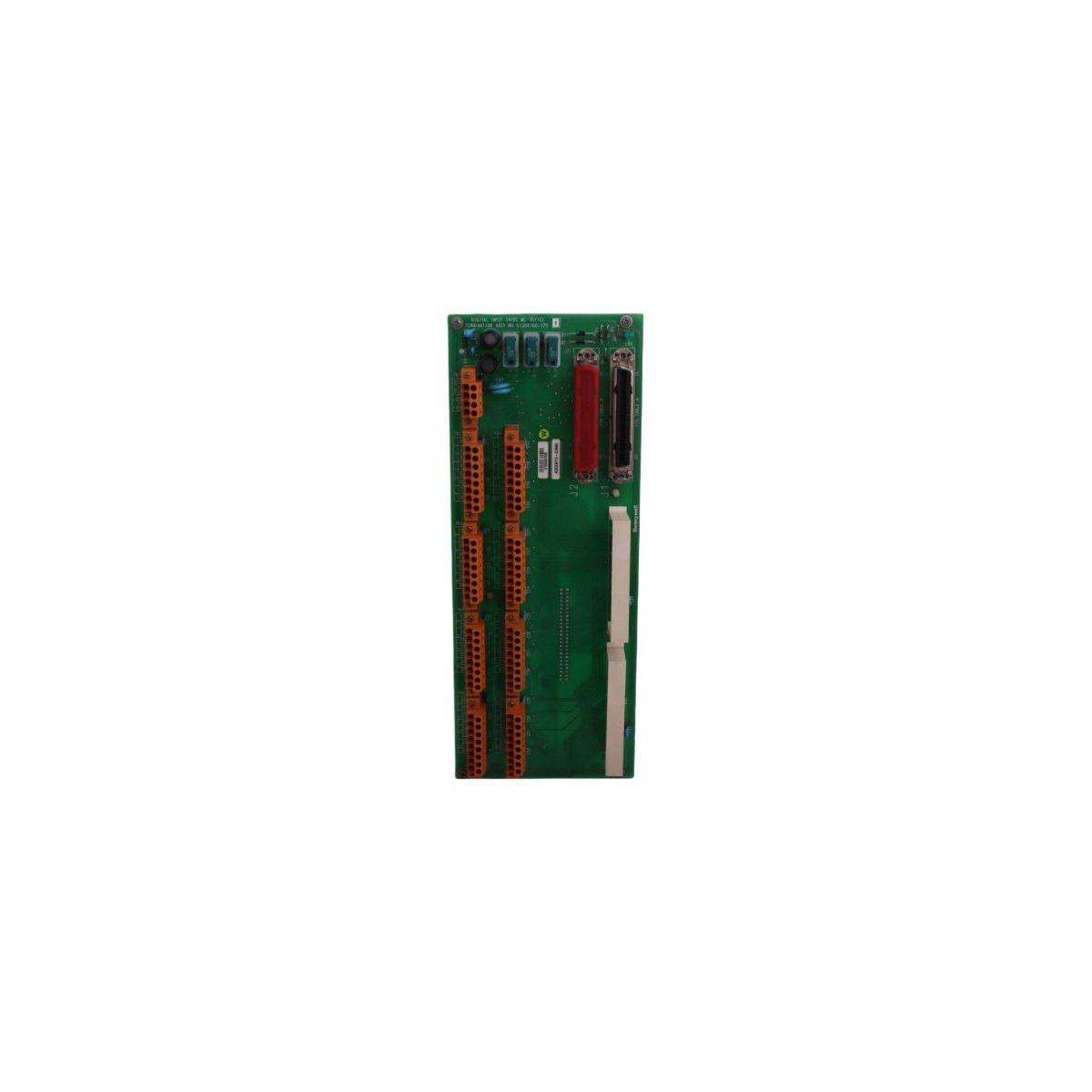

HONEYWELL MC-TDIY22 Digital Input Field Termination Assembly

Configured for field signal distribution in DCS and I/O network architectures, the HONEYWELL MC-TDIY22 51204160-175 (MC-TDIY22 Field Termination Assembly) provides direct physical and electrical connection between field sensors and controller modules.

Suffix Breakdown & Model Matrix

• MC-TDIY22: Identifies the specific assembly design for digital input signal termination within the MU-T series family.
• 51204160-175: Represents the unique Honeywell part number variant designating specific terminal layout and electrical characteristics for integration into process control cabinets.

Hardware Specifications

Process Control and DCS Connectivity

This assembly facilitates 4-20 mA HART loop protocol compatibility within the process control layer. It ensures signal integrity through comprehensive channel-to-channel isolation, which prevents crosstalk and electrical interference across digital input points. The design also incorporates cold junction compensation (CJC) pathways to maintain measurement accuracy when the assembly interfaces with thermocouple-derived inputs or mixed-signal environments.

Frequently Asked Questions

Q: Does the MC-TDIY22 assembly support active signal conditioning?

A: The MC-TDIY22 acts as a passive field termination assembly; it does not provide active signal amplification or active signal conditioning.

Q: Are there specific torque requirements for the terminal connections?

A: Users must tighten field wiring terminals to the torque specifications provided in the Honeywell MU-T series installation manual to prevent loose connections and high-resistance faults.

Field Installation Guidelines

• DIN-Rail Mounting: Secure the assembly to the standard DIN-rail to ensure mechanical stability and vibration resistance within the control cabinet.
• Grounding: Connect the internal grounding bus to the cabinet earth reference. Ensure that all shield drain wires from field cables terminate at the designated grounding points to eliminate electromagnetic interference (EMI).
• Wiring: Maintain physical separation between digital input lines and high-current power cabling. Use cable ducts to organize field wiring and prevent strain on the terminal blocks.
• Termination: Strip wires to the recommended length to minimize exposed conductors, reducing the risk of short circuits between adjacent terminals.
