HONEYWELL 51309204-125 MU-T Series Power Adapter Board Datasheet

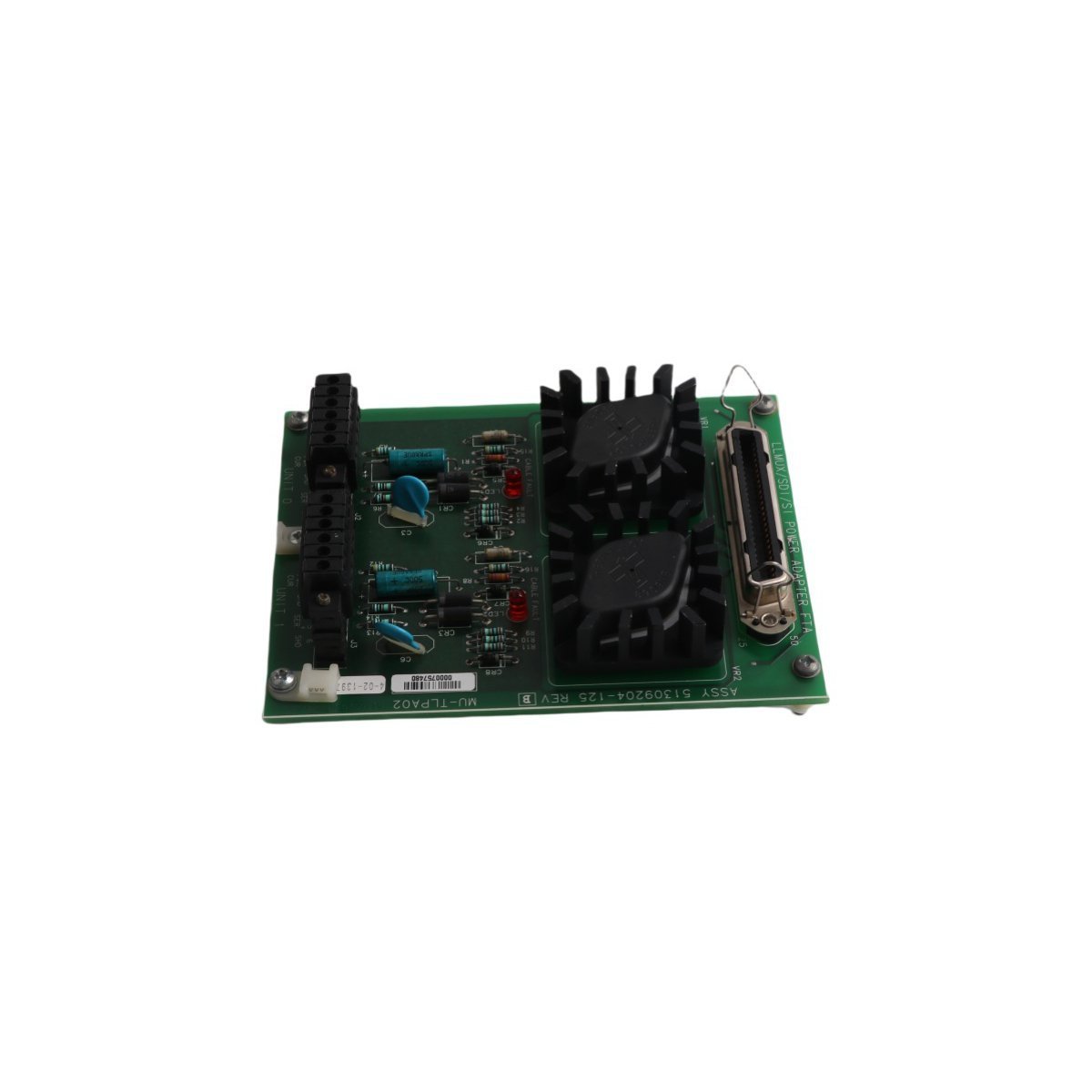

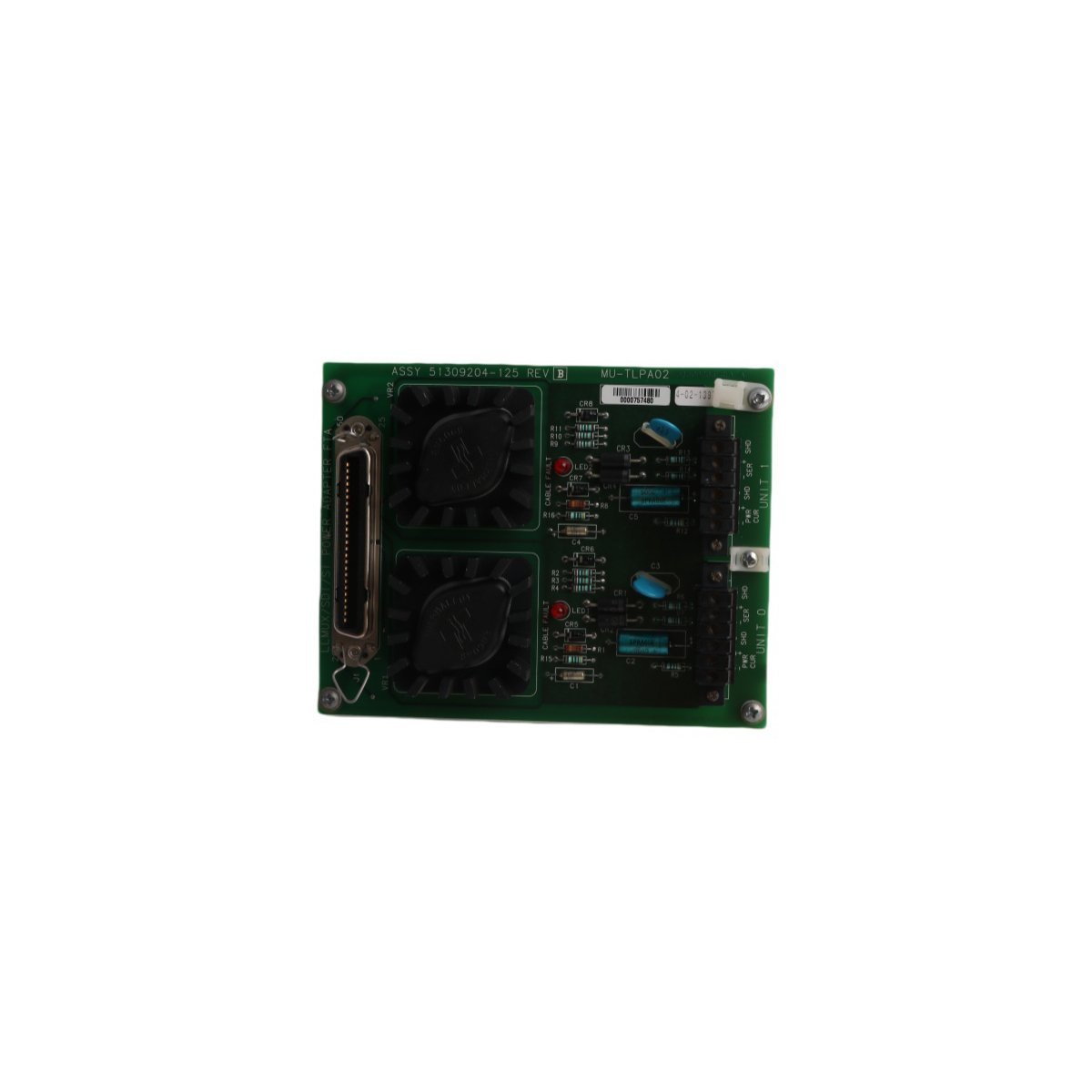

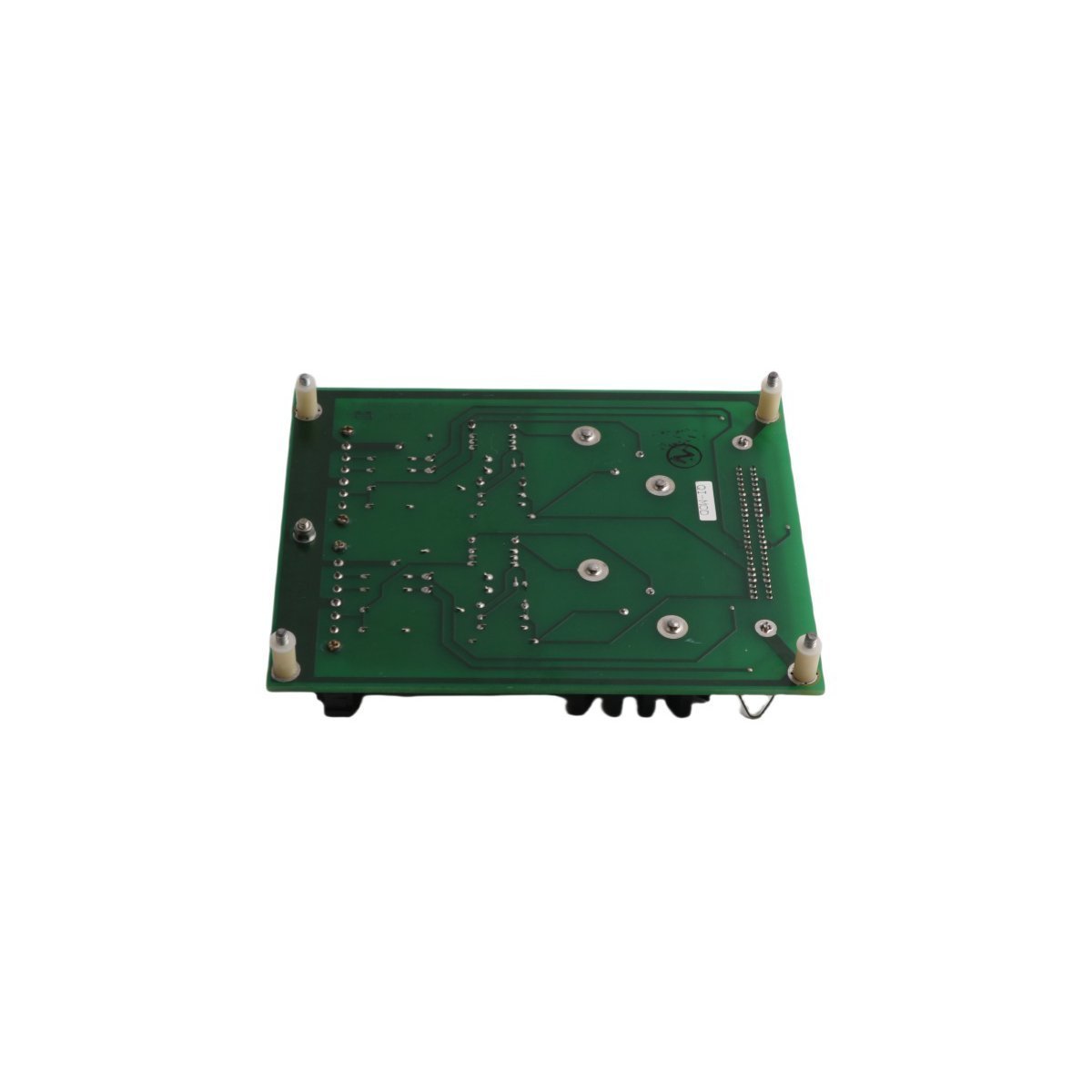

HONEYWELL MU-TLPA02 Power Adapter Board

The HONEYWELL MU-TLPA02 51309204-125, also cataloged as the MU-TLPA02 Power Adapter Board, operates as a dedicated hardware component for power distribution and voltage regulation within DCS and I/O network architectures.

Suffix Breakdown & Model Matrix

• MU-TLPA02: Designates the specific power adapter board configuration within the MU-T series family.
• 51309204-125: Represents the Honeywell part number variant defining the electrical pinout and power handling capacity for integration into process control racks.

Hardware Specifications

Process Control and DCS Connectivity

The MU-TLPA02 serves as a vital link in maintaining voltage stability across distributed control nodes. This board manages power delivery to ensure system-wide signal integrity, utilizing channel-to-channel isolation to prevent electrical noise from propagating through the backplane. It supports standardized process control environments by facilitating clean power transition to connected digital and analog input modules, ensuring minimal ripple interference in sensitive 4-20 mA HART loop protocols.

Frequently Asked Questions

Q: Does this power adapter board provide surge protection for the connected I/O modules?

A: The MU-TLPA02 incorporates transient voltage suppression circuitry to protect downstream electronic components from standard industrial power fluctuations and spikes.

Q: Is this board compatible with redundant power supplies?

A: Yes, the MU-TLPA02 architecture supports dual-feed power input configurations, allowing the module to maintain supply continuity if one power source fails.

Field Installation Guidelines

• Backplane Seating: Align the board precisely with the guide rails on the MU-T series mounting frame. Push firmly until the backplane connectors seat fully to ensure a low-resistance electrical path.
• Grounding: Secure the chassis mounting screws to the grounded enclosure frame. A solid earth connection is mandatory to maintain the board’s electromagnetic compatibility (EMC) and surge protection performance.
• Power Wiring: Use adequately sized copper conductors for the primary voltage input to minimize voltage drop. Tighten all screw terminals to the specified torque settings to prevent thermal heating at connection points.
• Environment: While the board withstands wide temperature ranges, avoid mounting it directly above high-heat generating components to maximize the operational lifespan of the internal capacitors.
