Honeywell 10310/2/1 FSC System Module Controller 10310/2/1 Card

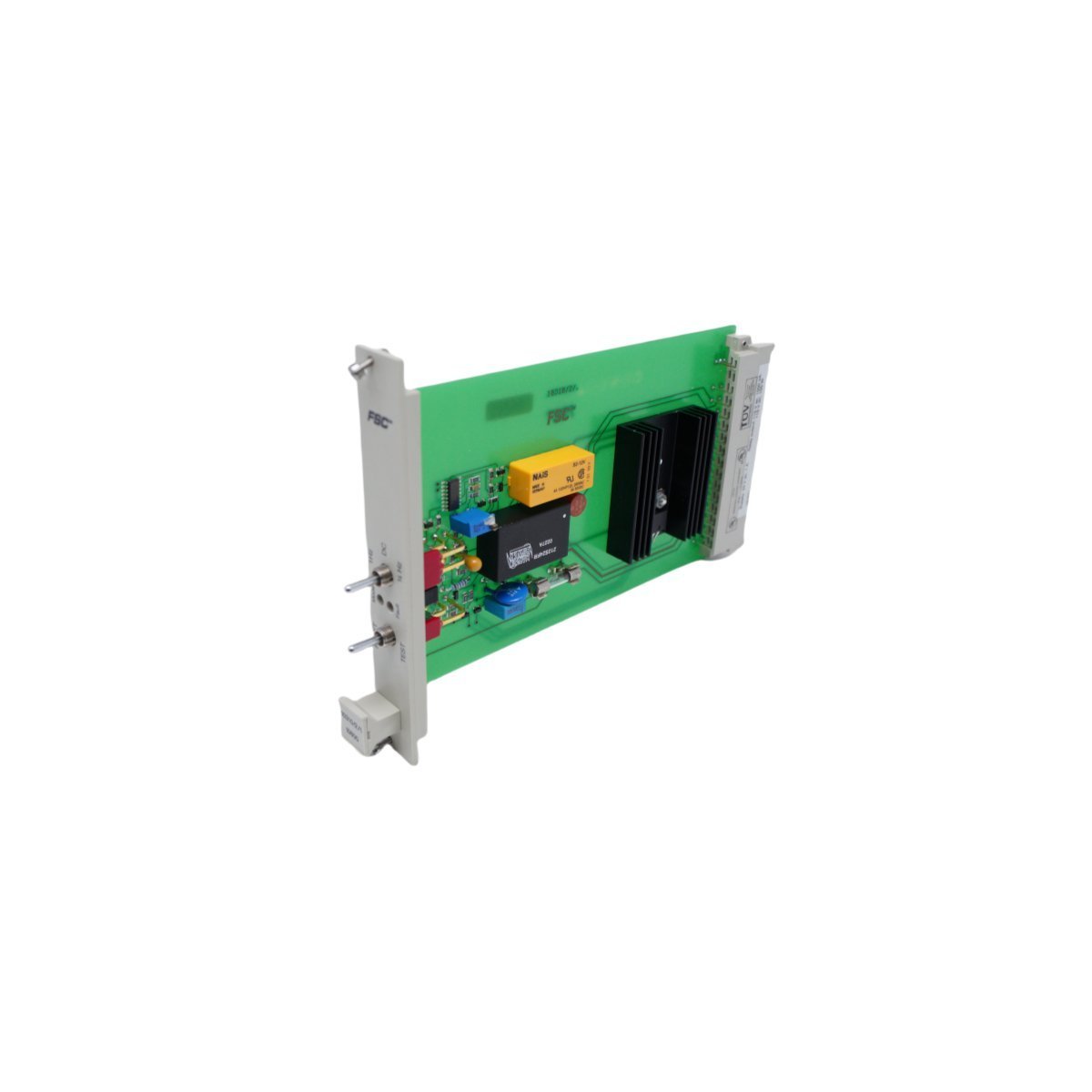

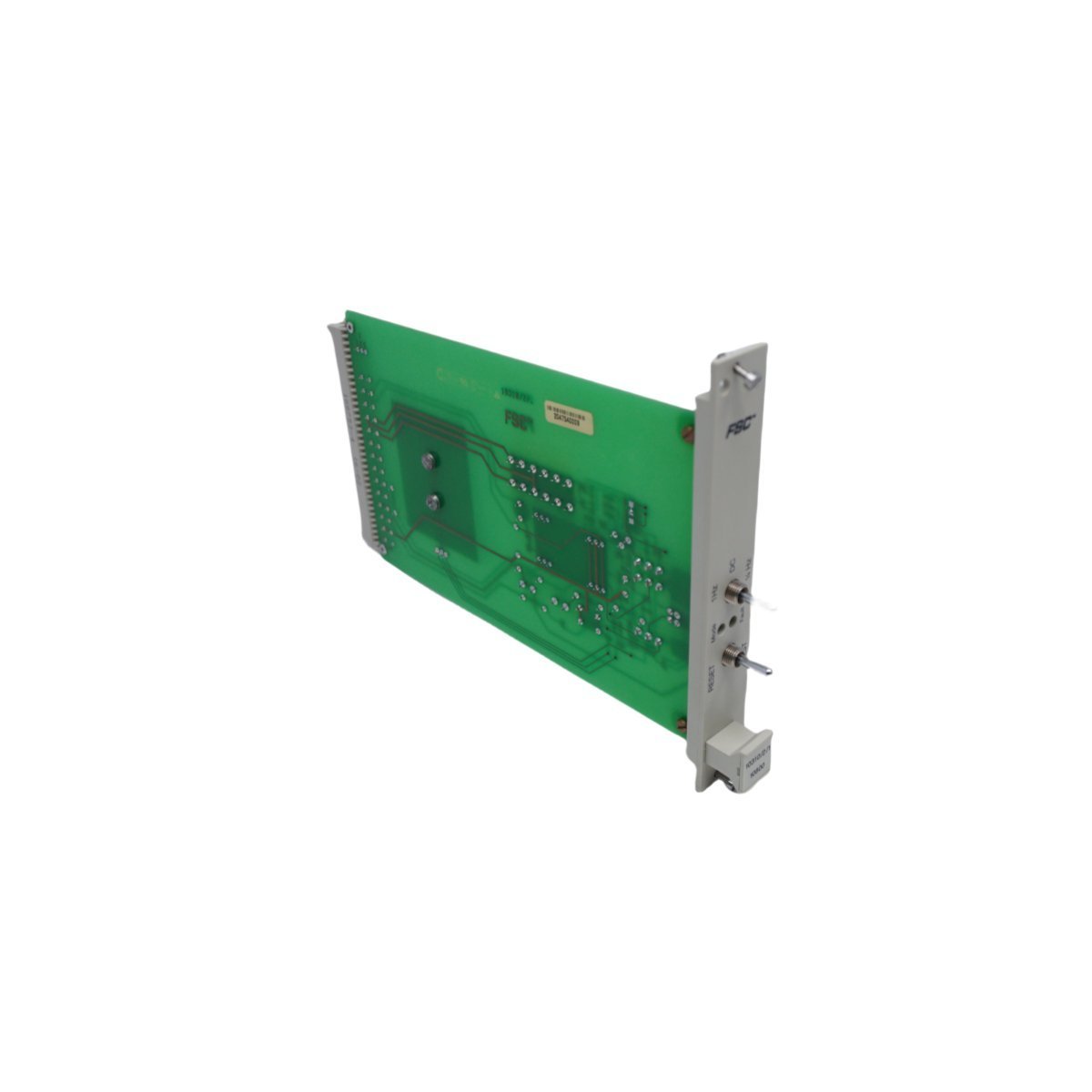

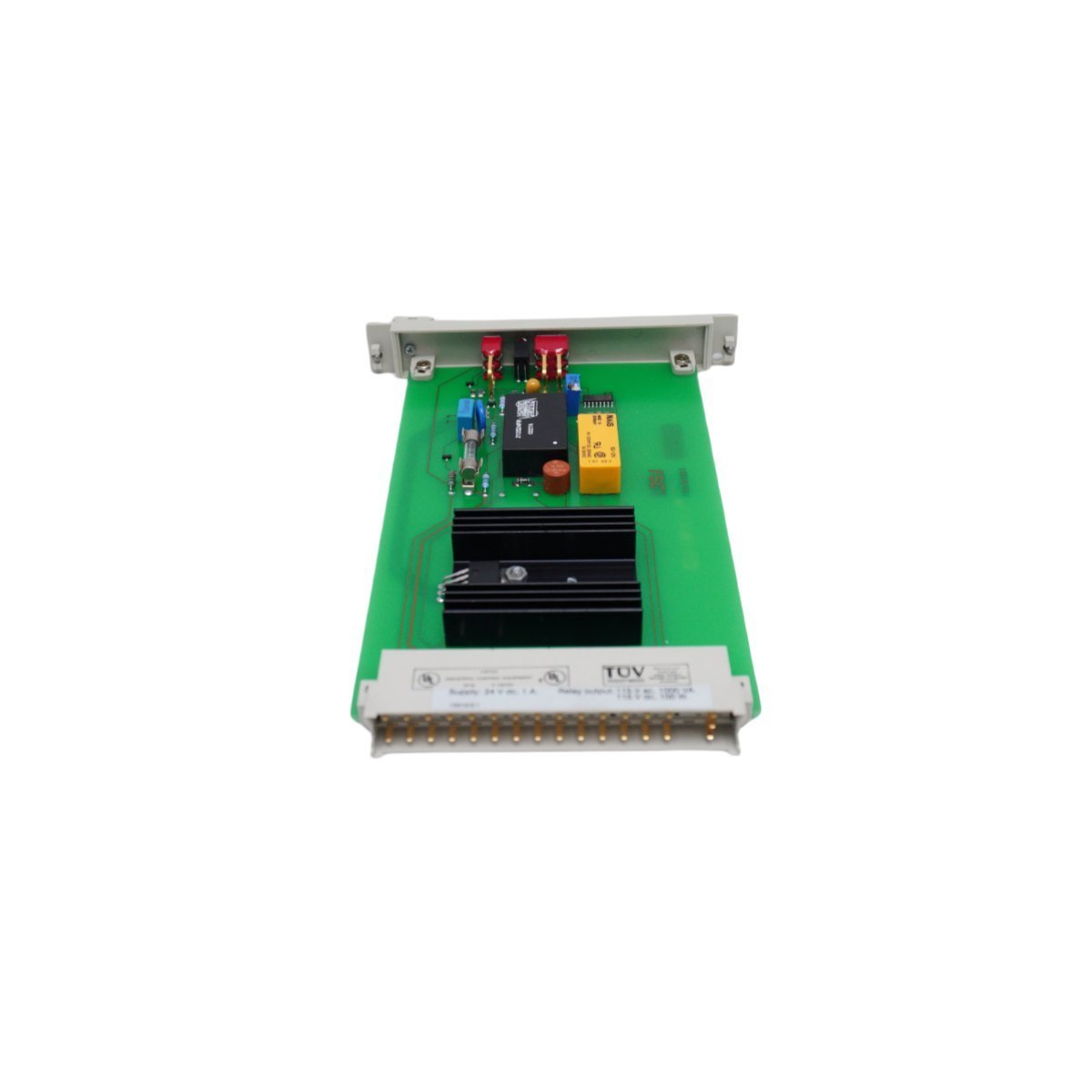

Honeywell 10310/2/1 FSC System Module Controller

Configured for fail-safe executive logic processing in Honeywell FSC systems, the Honeywell 10310/2/1 (10310/2/1 Module Controller) provides direct physical/electrical execution.

Hardware Specifications

Channel-to-Channel Isolation and Fail-Safe Diagnostics

Engineers integrate the 10310/2/1 controller module into fail-safe racks to execute real-time control logic and run active hardware diagnostics. Galvanic isolation barriers protect internal microprocessor buses from external field-side switching transients and ground loops. Meanwhile, onboard watchdog timers continuously monitor processor execution state, so the controller forces outputs into a designated safe state whenever a hardware anomaly occurs. Furthermore, internal differential bus drivers maintain signal integrity across backplane communication paths without causing data frame corruption.

Frequently Asked Questions

Q: How does the internal watchdog circuit handle microprocessor execution faults?

A: The hardware watchdog circuit continuously monitors instruction execution timing and immediately triggers a system fail-safe shutdown if software loop timing exceeds built-in thresholds.

Q: What precautions must technicians take when swapping a 10310/2/1 controller module?

A: Field personnel must de-energize rack power or verify system standby status before removing the module, as unseating active backplane connectors risks logic frame corruption.

Field Installation Guidelines

Technicians must observe strict ESD precautions and wear a grounded wrist strap before extracting or inserting the 10310/2/1 controller card. Align the circuit board edges with the enclosure rack guide rails, and then seat the assembly firmly into the backplane pin header. Tighten all top and bottom retaining thumbscrews to verify solid mechanical grounding through the rack chassis frame.

Route logic network wiring separately from high-voltage AC cables inside cabinet raceways to prevent electromagnetic interference. Installers must terminate all shielded communication lines at a single dedicated earth grounding point rather than letting shield drains float. Maintain a minimum 40 mm vertical clearance above and below the module rack to ensure natural air convection cools onboard processing components effectively.
