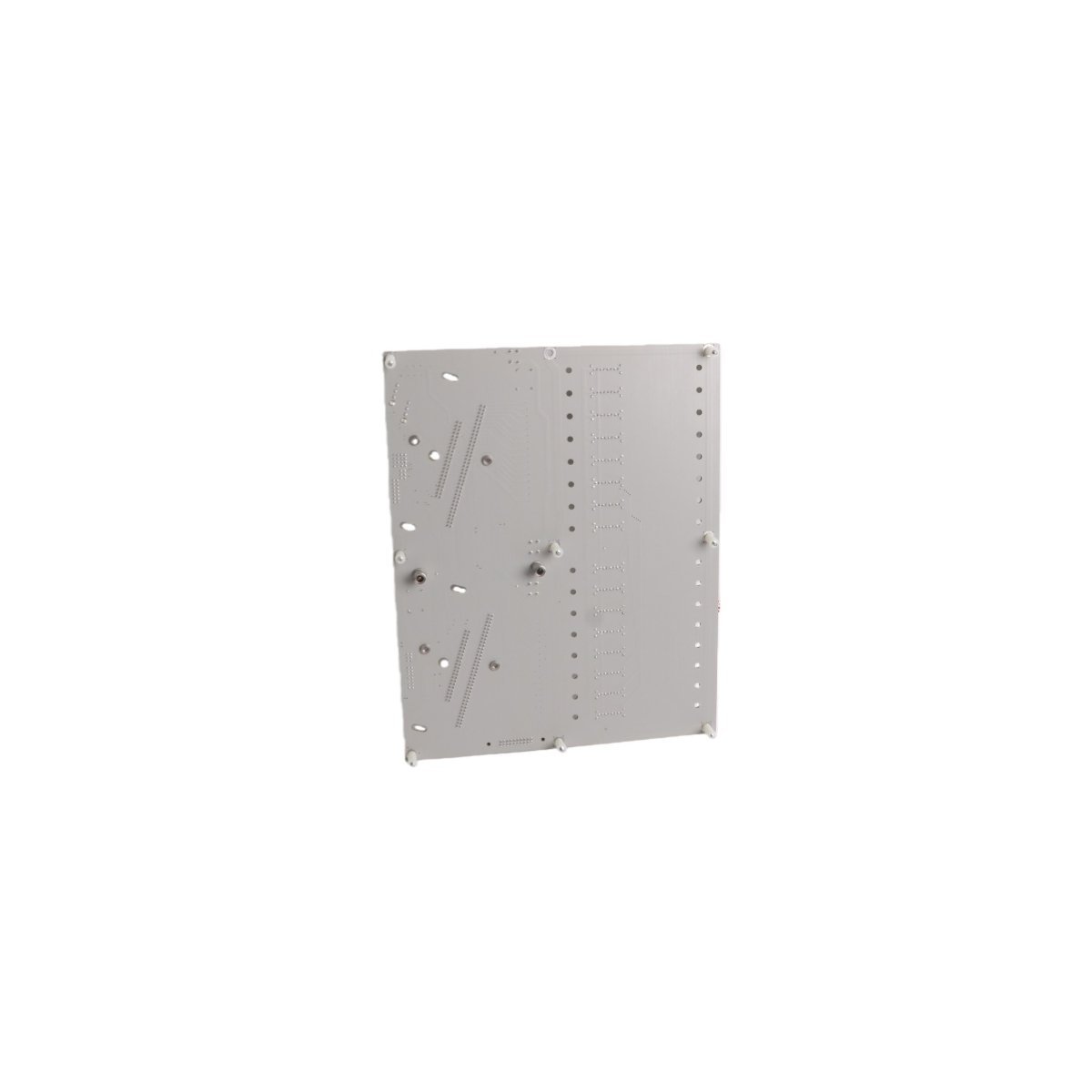

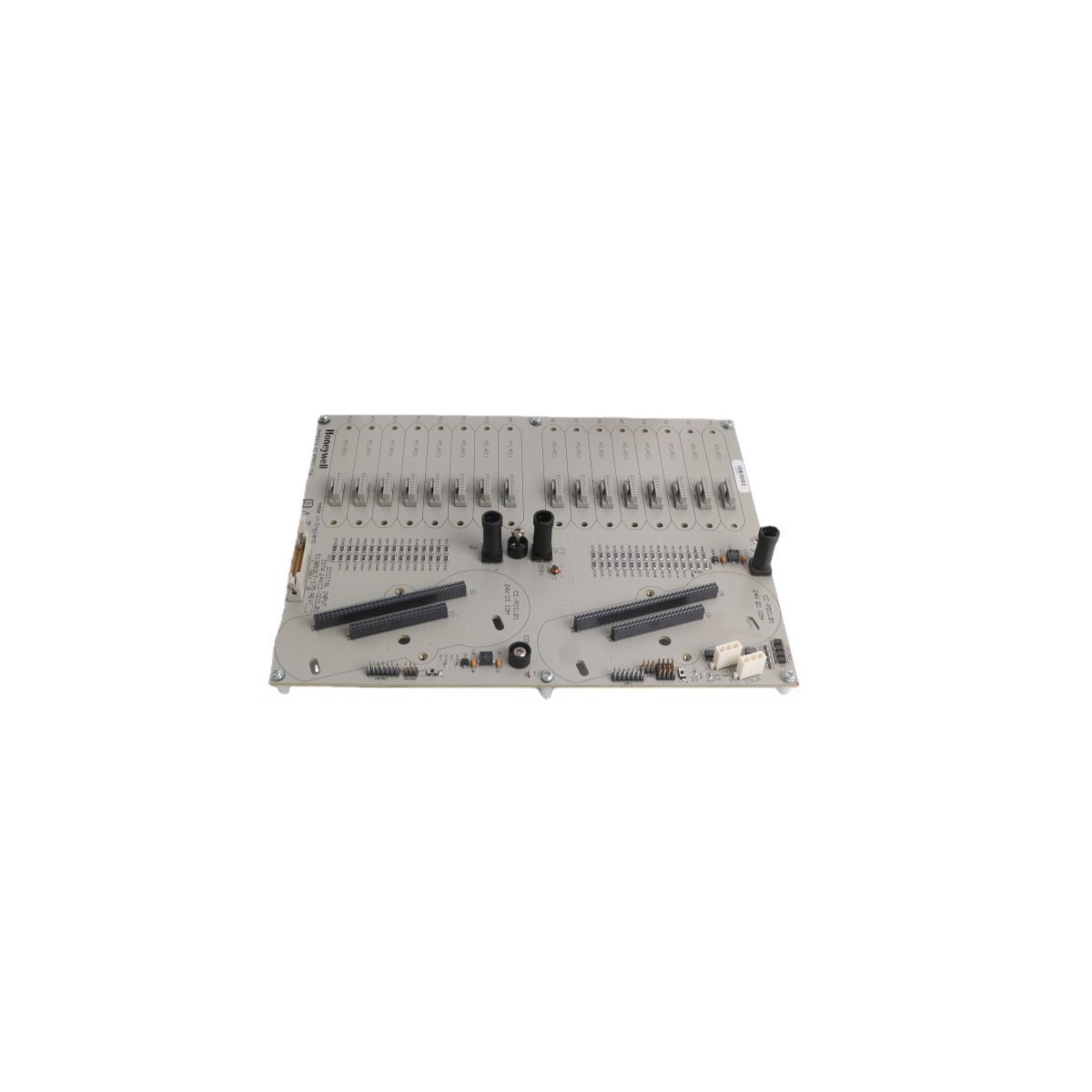

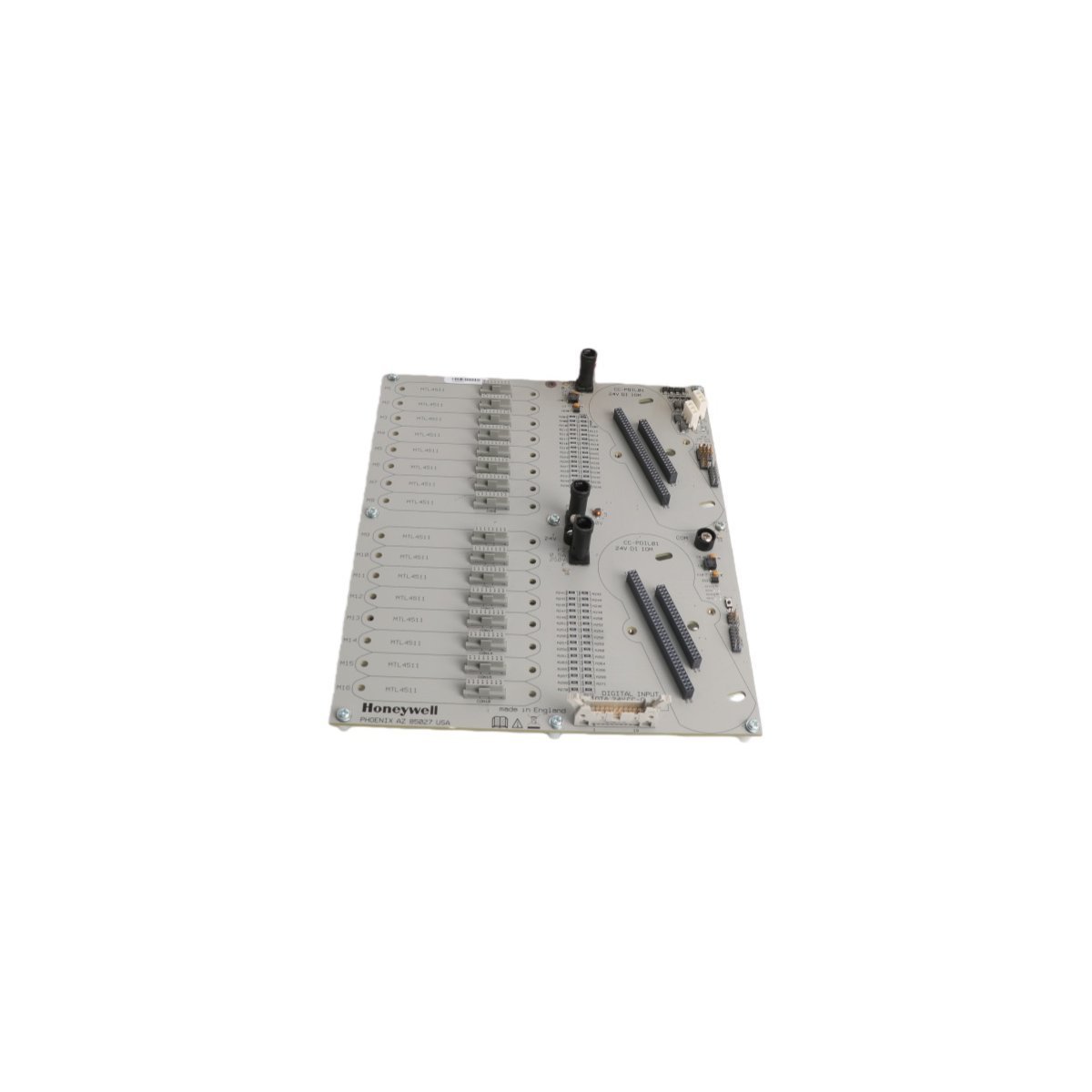

Honeywell CC-GAOX21 GI/IS Analog Output

The Honeywell CC-GAOX21 serves as a high-precision analog output interface for the C300 controller and Experion PKS platforms. This 16-channel module provides 4-20 mA signals to field actuators in safety-critical zones. Specifically, the unit features Galvanic Isolation (GI) and Intrinsically Safe (IS) design for hazardous location use. It provides a compact 6-inch form factor to maximize cabinet density without sacrificing performance. Furthermore, the hardware ensures stable signal transmission for actuators, positioners, and recording instruments in volatile industrial settings.

Precision Control and Signal Integrity

High-performance circuitry allows the CC-GAOX21 to maintain a linearity and resolution of ±0.05% of the full scale. The module effectively limits output ripple to less than 100 mV peak-to-peak for smooth device operation. Because the hardware tracks temperature drift at 0.005% per degree Celsius, signal accuracy remains consistent across varying climates. Each channel supports a resistive load up to 800 ohms when operating on a standard 24 V supply. Consequently, this module provides the dependable accuracy required for complex process loops.

Advanced Diagnostics and Safety Architecture

• HART Integration: Supports digital communication with smart field devices for remote configuration and diagnostic data collection.
• FAILOPT Configuration: Allows independent channel settings for hold-last-state or shed-to-safe-value responses during failures.
• Open-Wire Detection: Identifies field wiring breaks immediately to alert operators through the DCS interface.
• Output Read-Back: Continuously compares actual output values against commanded values to verify execution accuracy.
• Hazardous Certification: Meets non-incendive standards for direct connection to instruments in restricted process areas.
• Self-Monitoring: Runs internal hardware checks to detect component degradation before a system trip occurs.

Technical Specifications Table

Industrial Utility and Integration

The CC-GAOX21 excels in industries requiring strict explosion protection, such as chemical refining and offshore oil platforms. It eliminates the need for external safety barriers by integrating isolation directly into the IOTA. This integrated approach reduces wiring complexity and potential failure points within the control rack. Moreover, the 16-channel density allows engineers to scale their I/O requirements within a small physical footprint. By choosing the CC-GAOX21, facilities achieve a balance of technical precision and rigorous safety compliance.
