UNS2880A-P,V1 ABB 3BHB005727R0001 DCS Communication Module

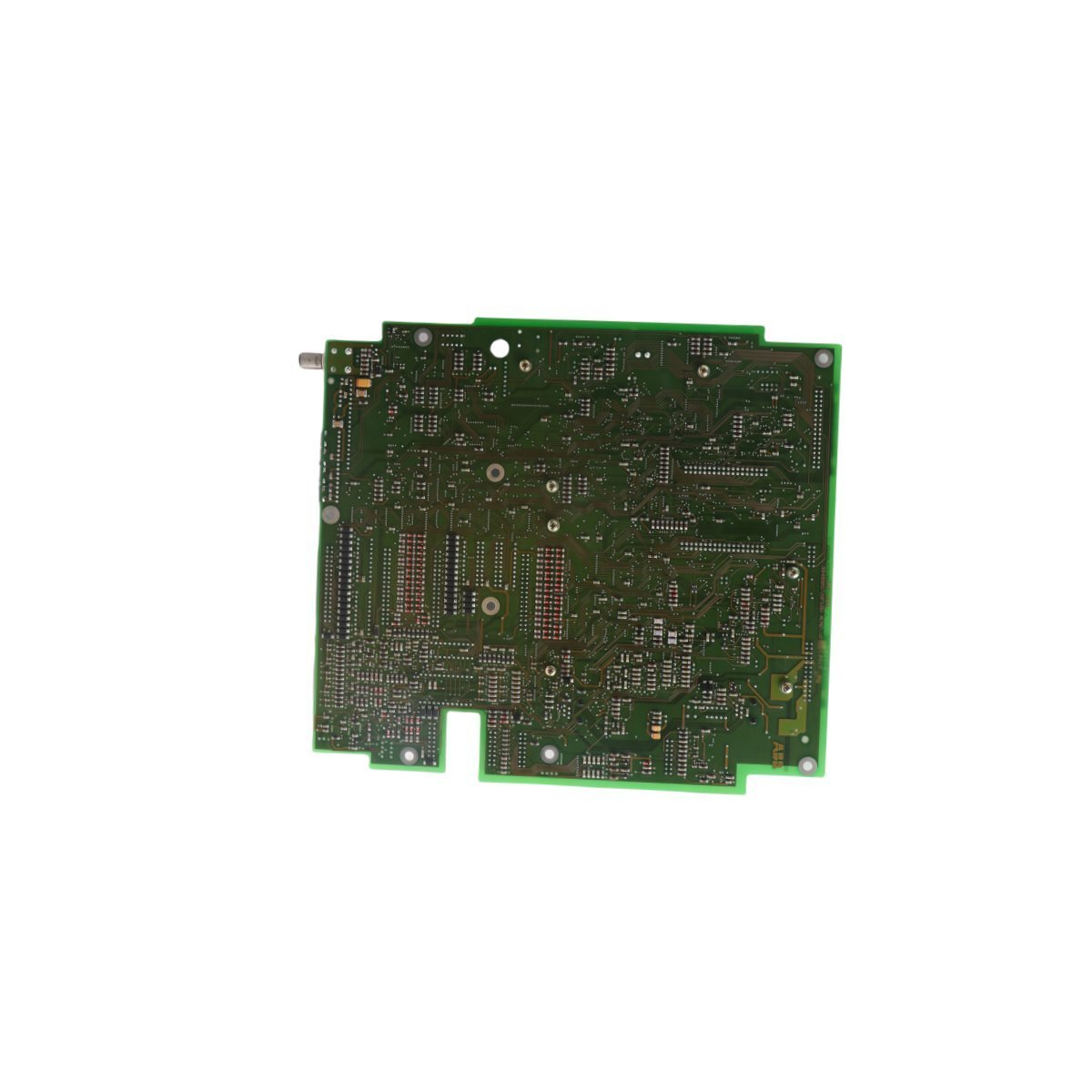

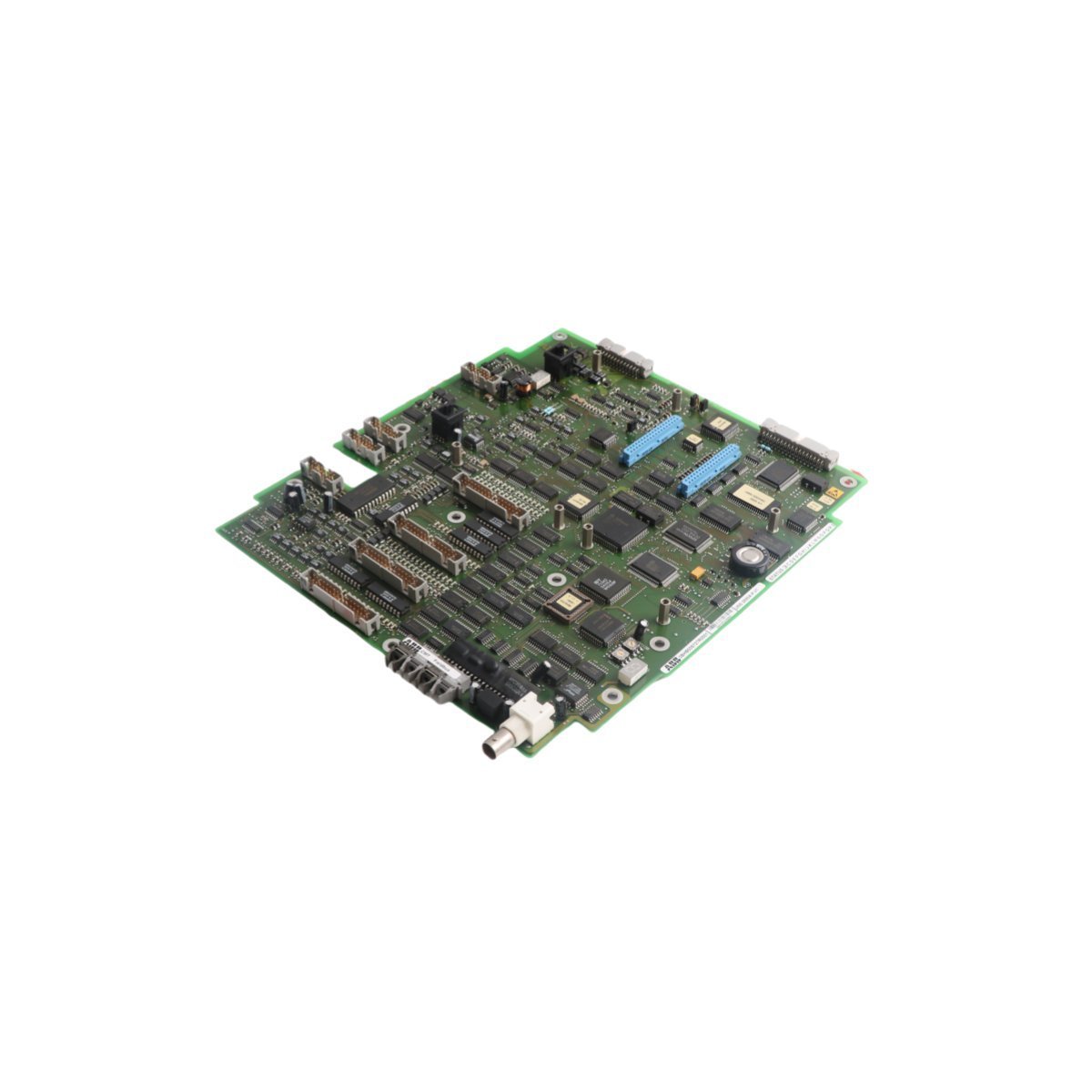

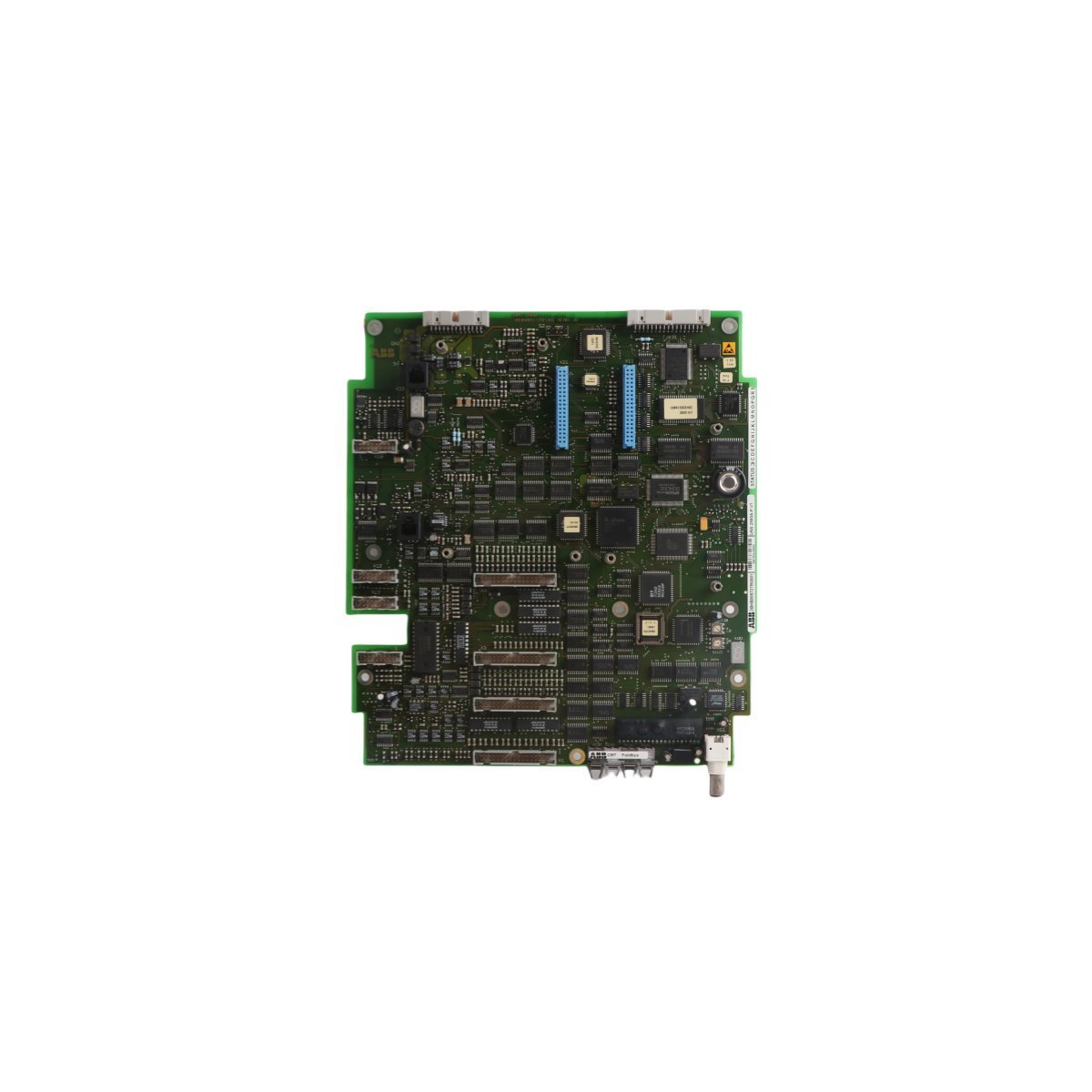

ABB 3BHB005727R0001 UNS2880A-P,V1 PC Board Module

The ABB 3BHB005727R0001 UNS2880A-P,V1, also cataloged as the UNS2880A-P,V1 PC Board Module, operates as a dedicated hardware component for real-time Ethernet routing and deterministic data exchange within ABB AC800M DCS platforms. Engineers specify this printed circuit board to maintain direct point-to-point routing routines, ensuring zero-latency communication across node controllers.

Suffix Breakdown & Model Matrix

The catalog designation 3BHB005727R0001 UNS2880A-P,V1 integrates precise hardware configuration markers that dictate functional integration within the system topology:

• 3BHB005727R0001: Represents the commercial base hardware part number, identifying the structural PCB assembly and embedded backplane layer connections.
• UNS2880A-P: Denotes the specific functional sub-series architecture configured for DCS communication, routing tasks, and node handling.
• V1: Defines the hardware revision code, signifying specific layout revisions, component-level thermal tolerance updates, and firmware flash compatibility baselines.

Hardware Specifications

Deterministic Network Routing and Backplane Bus Velocity

ABB engineered the UNS2880A-P,V1 module to maintain high-speed backplane bus communication velocity across complex automation hierarchies. By managing packet routing without CPU degradation, the card isolates network jitter while facilitating seamless multi-node synchronization. Integrated firmware flash compatibility protocols prevent operational mismatches during hot swaps or module replacements, whereas dedicated internal buffering reduces latency across deterministic networks such as Ethernet-based controller topologies. Consequently, process automation loops preserve precise cycle times during heavy traffic bursts.

Frequently Asked Questions

Q: How does the system process module diagnostics during a link failure?

A: The board continuously monitors network packet health through onboard diagnostic circuits, so when a link drops, it instantly flags the fault to the controller and updates the diagnostic LEDs.

Q: What mounting precautions must technicians observe regarding backplane connection power?

A: Field personnel must de-energize or strictly follow hot-swap guidelines before inserting the board, because unaligned insertion can damage pin headers and disturb backplane bus signals.

Field Installation Guidelines

Technicians must observe standard static-discharge protocols while handling the 3BHB005727R0001 UNS2880A-P,V1 module. Install the card into its designated sub-rack slot, aligning the edge connectors carefully before applying firm, even pressure to seat the unit.

Maintain proper DIN-rail or rack chassis grounding, and route industrial Ethernet cables away from high-voltage motor drives or AC supply lines to prevent electrical noise interference. Furthermore, ensure adequate air circulation around the mounting frame so that thermal dissipation remains within the specified operating temperature envelope.
