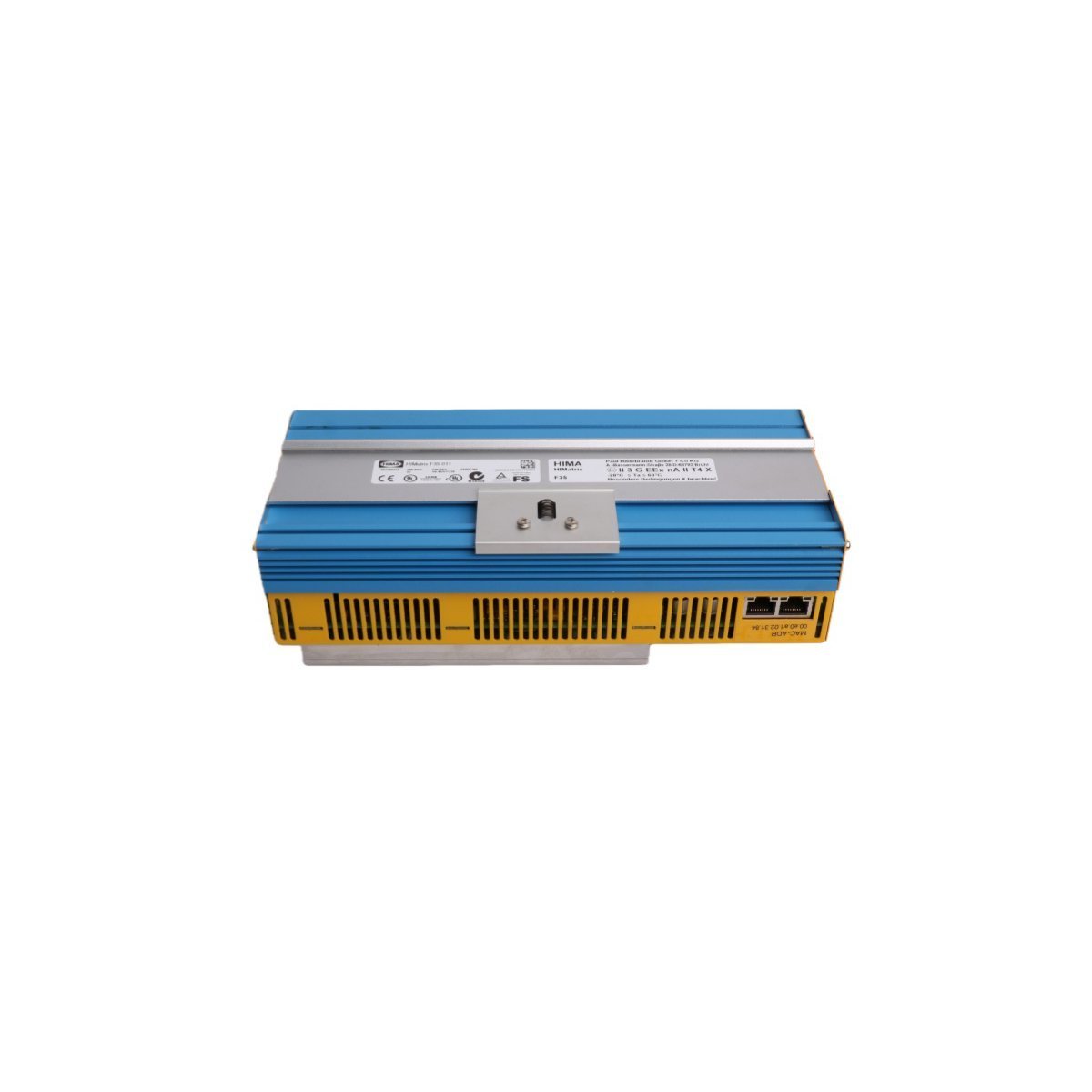

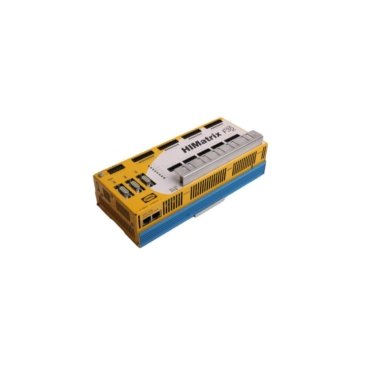

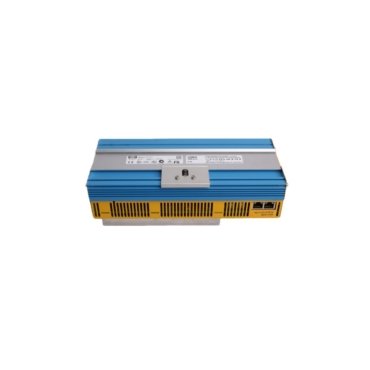

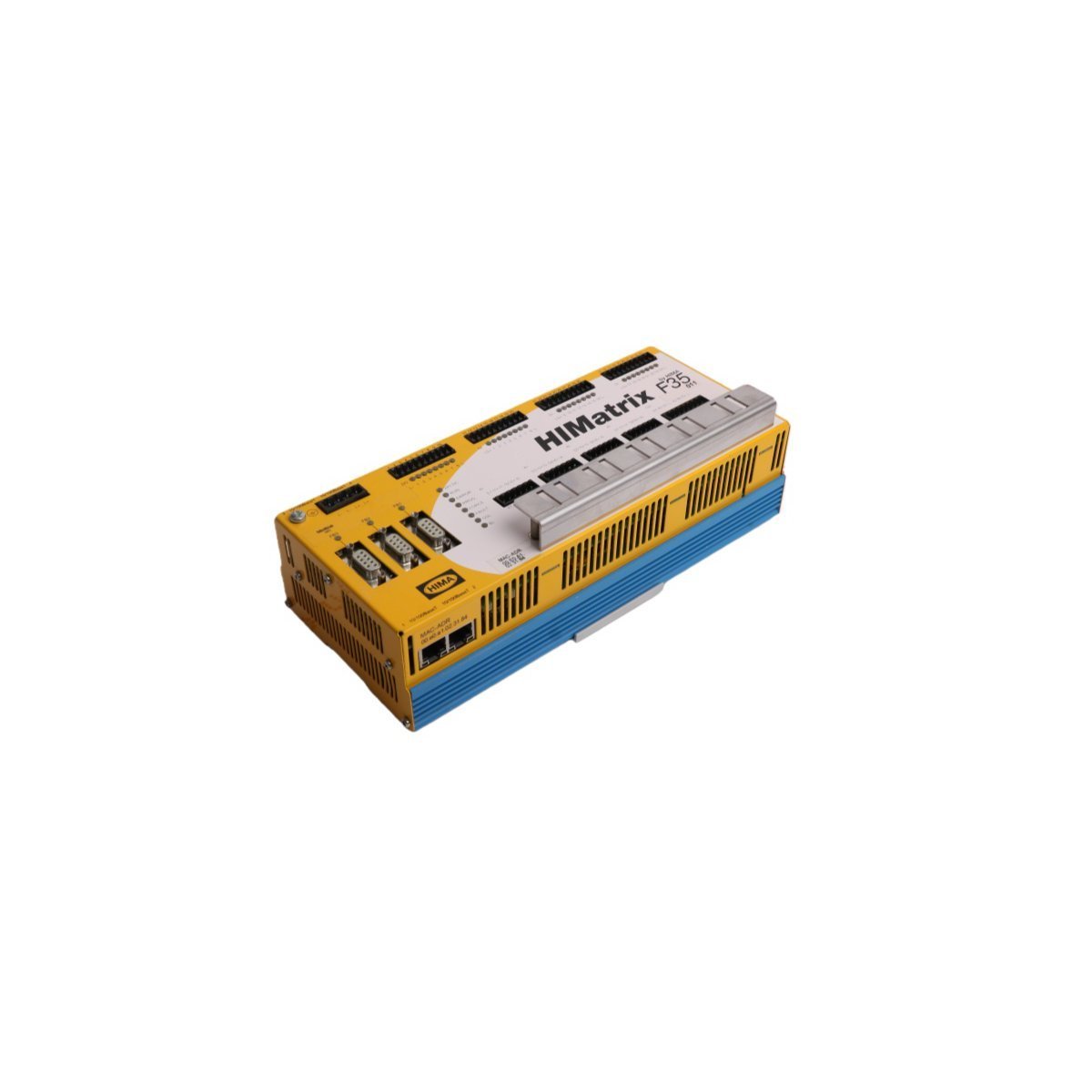

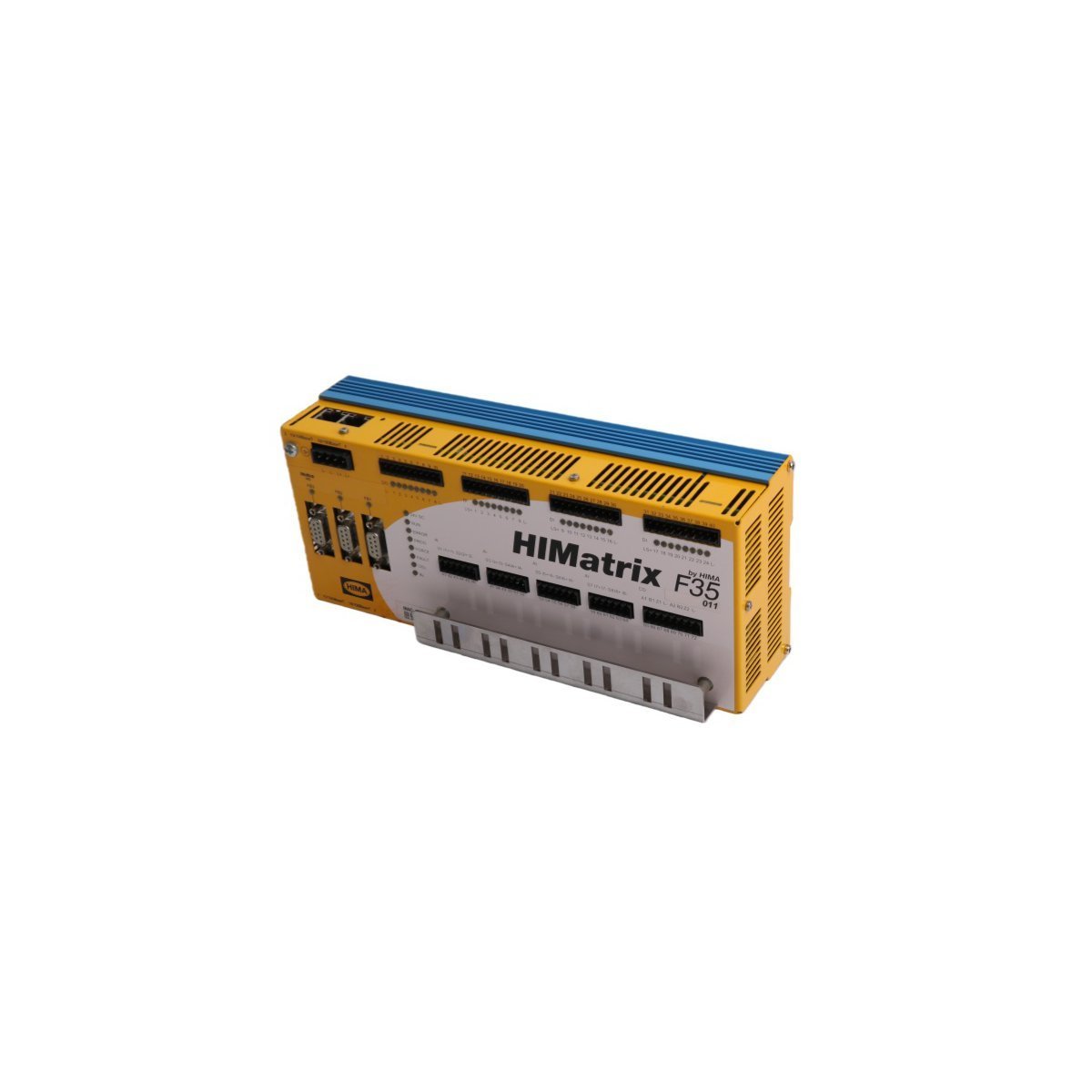

HIMatrix F35 011 30 HIMA Safety PLC Module with Analog and Digital I/O

HIMA HIMatrix F35 011 30 Safety-Related Controller

The HIMA HIMatrix F35 011 30 serves as a high-integrity, safety-related controller designed to provide reliable protection for complex industrial processes requiring SIL 3 compliance.

Product Overview

The HIMatrix F35 011 30 functions as a versatile safety PLC within the HIMatrix series, specifically engineered for high-speed safety applications. This compact controller integrates a high density of input and output channels, including analog and counter inputs, into a single robust unit. Because HIMA utilizes a metal enclosure, the module effectively resists electromagnetic interference and physical stress in demanding plant environments. Furthermore, the F35 011 30 supports both SILworX and ELOP II Factory engineering environments, ensuring that engineers can integrate the hardware into existing safety lifecycles with minimal friction.

Technical Characteristics

• Integrated I/O Configuration: The hardware features 24 digital inputs, 8 digital outputs, 8 analog inputs, and 2 high-speed counter inputs for comprehensive monitoring.
• Safety Certification: This module meets rigorous international standards, including SIL 3 per IEC 61508 and PL e according to EN ISO 13849-1.
• Hazardous Area Approval: HIMA certified this controller for installation in Ex-zone 2, allowing for safe deployment near volatile chemical or oil and gas processes.
• Process Interfacing: The 8 analog inputs allow the controller to monitor continuous variables like pressure or temperature directly, rather than relying solely on discrete switch points.
• Engineering Flexibility: Support for multiple software variants ensures compatibility across various HIMA system architectures and project requirements.

Industrial Applications

The F35 011 30 excels in sectors where functional safety is a mechanical and operational necessity. Primarily, technicians deploy this controller for Emergency Shutdown (ESD) systems and Fire and Gas (F&G) detection. Additionally, the unit manages Burner Management Systems (BMS) and safety-critical process controls in the petrochemical, power generation, and pharmaceutical industries. Since it handles high-speed pulse counting, it also proves ideal for overspeed protection in rotating equipment.

Technical Specifications Table
