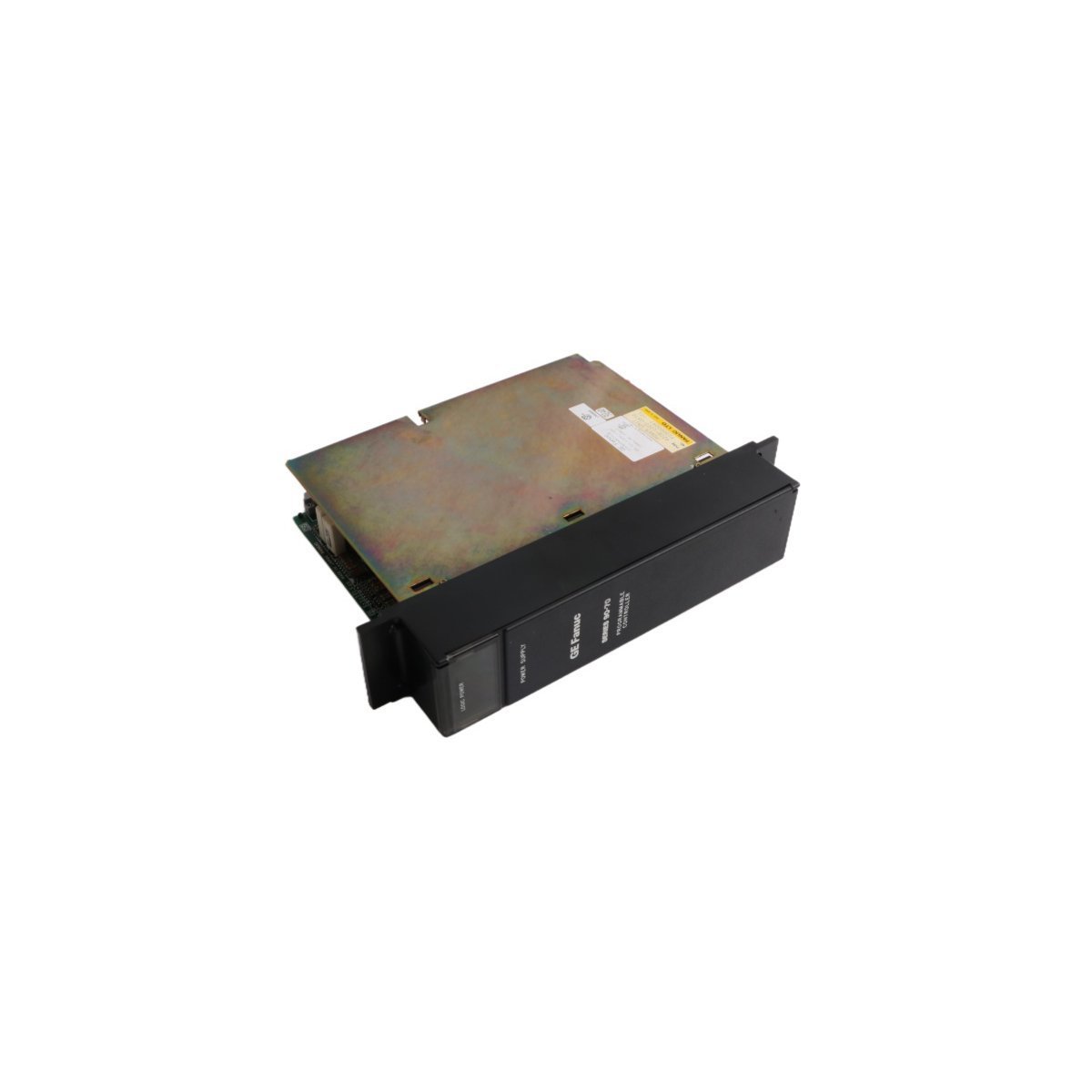

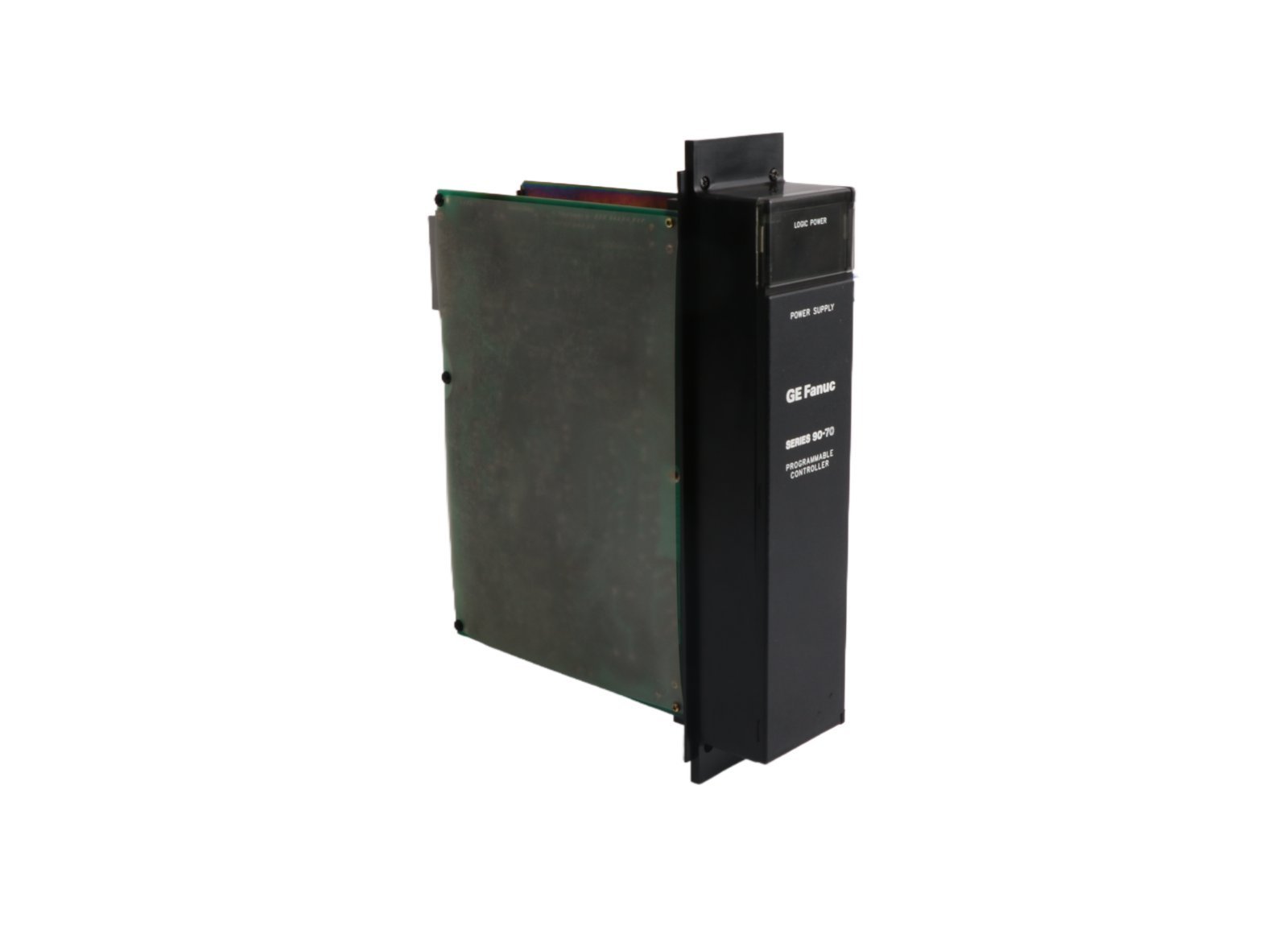

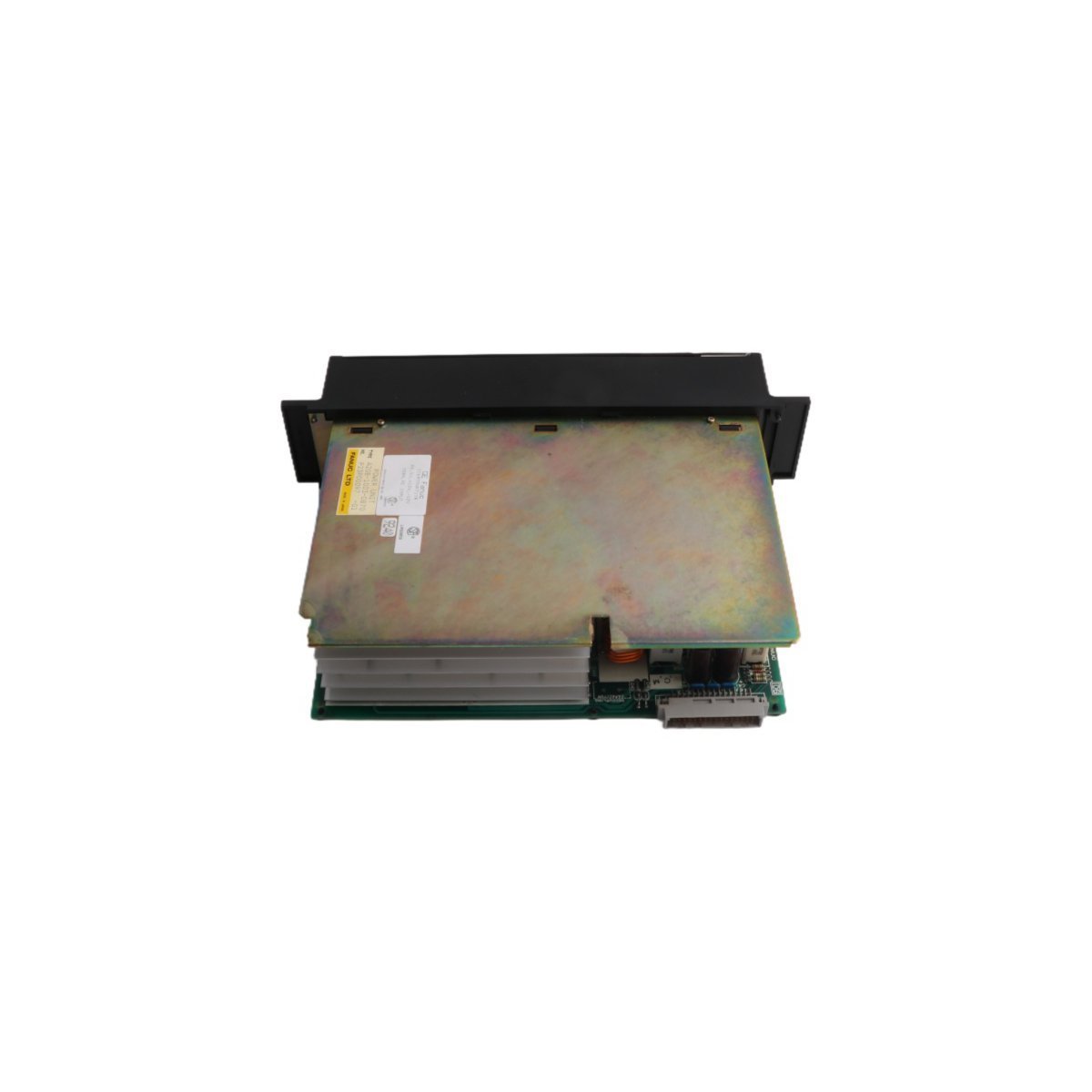

The GE Fanuc IC697PWR711 is a high-performance 100-watt power supply designed to serve as the primary energy source for the Series 90-70 PLC and VME Integrator racks. This module is engineered for maximum versatility, accepting a wide range of input voltages including 120/240 VAC and 125 VDC. To ensure high efficiency and grid compliance, the unit features integrated Power Factor Correction (PFC) during AC operation, alongside advanced electronic protection against overcurrent and short-circuit faults.
Triple-Rail Output Architecture
This module provides the necessary voltage levels to support both core logic processing and auxiliary peripheral functions. It delivers regulated power across three specific channels:
- Main Logic Supply: +5 VDC rated at 20 Amperes (100W maximum capacity).
- Positive Auxiliary Supply: +12 VDC rated at 2 Amperes.
- Negative Auxiliary Supply: -12 VDC rated at 1 Ampere.
Technical Performance Specifications
| Parameter | Specification |
| AC Input Range | 90 to 264 VAC |
| DC Input Range | 100 to 150 VDC |
| Total Output Power | 100 Watts Maximum |
| Backplane Connector | 48-pin DIN |
| Weight | 0.9 kg (approx. 2.0 lbs) |
| Dimensions | 20 x 11.5 x 5.7 cm |
| Efficiency | Optimized with Power Factor Correction |
