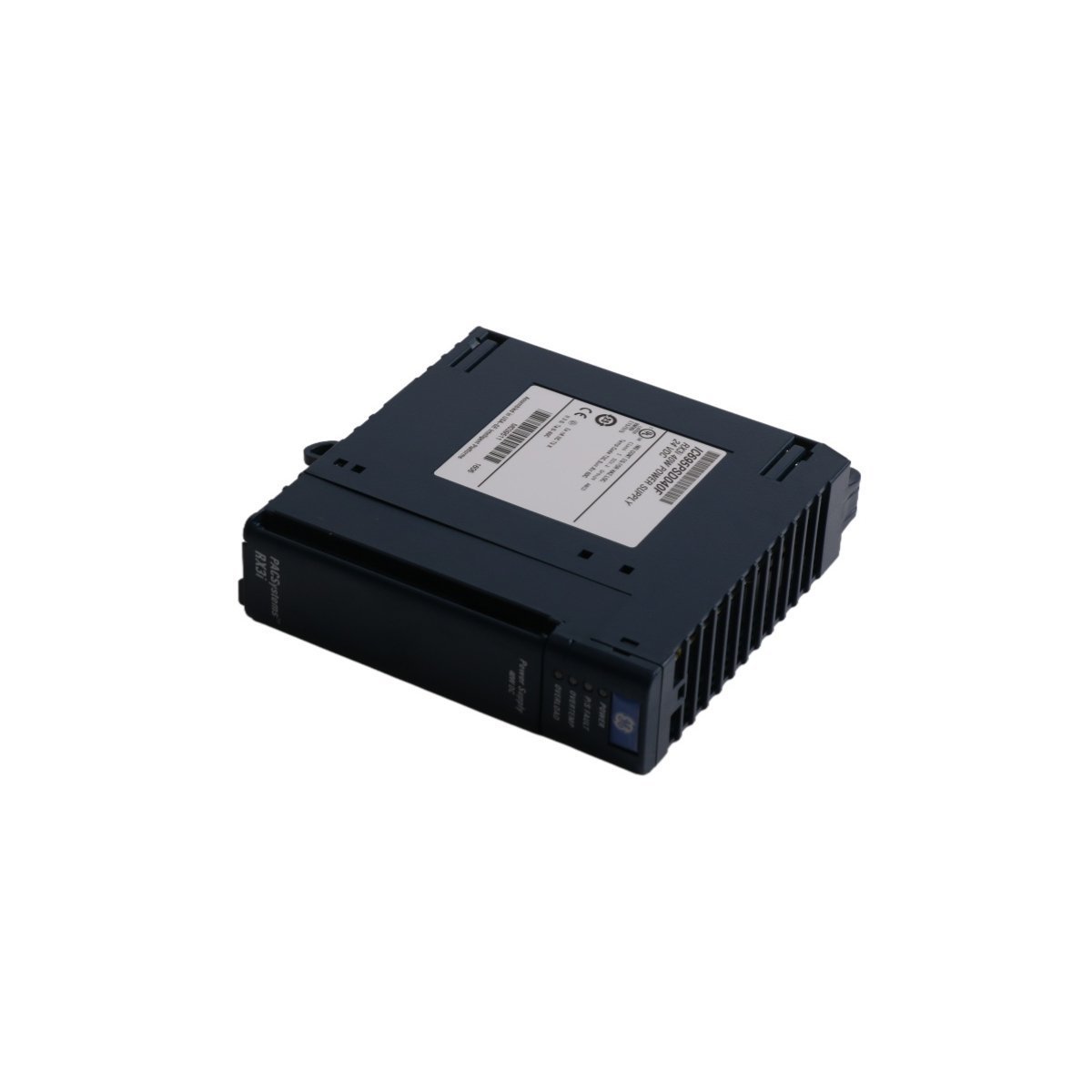

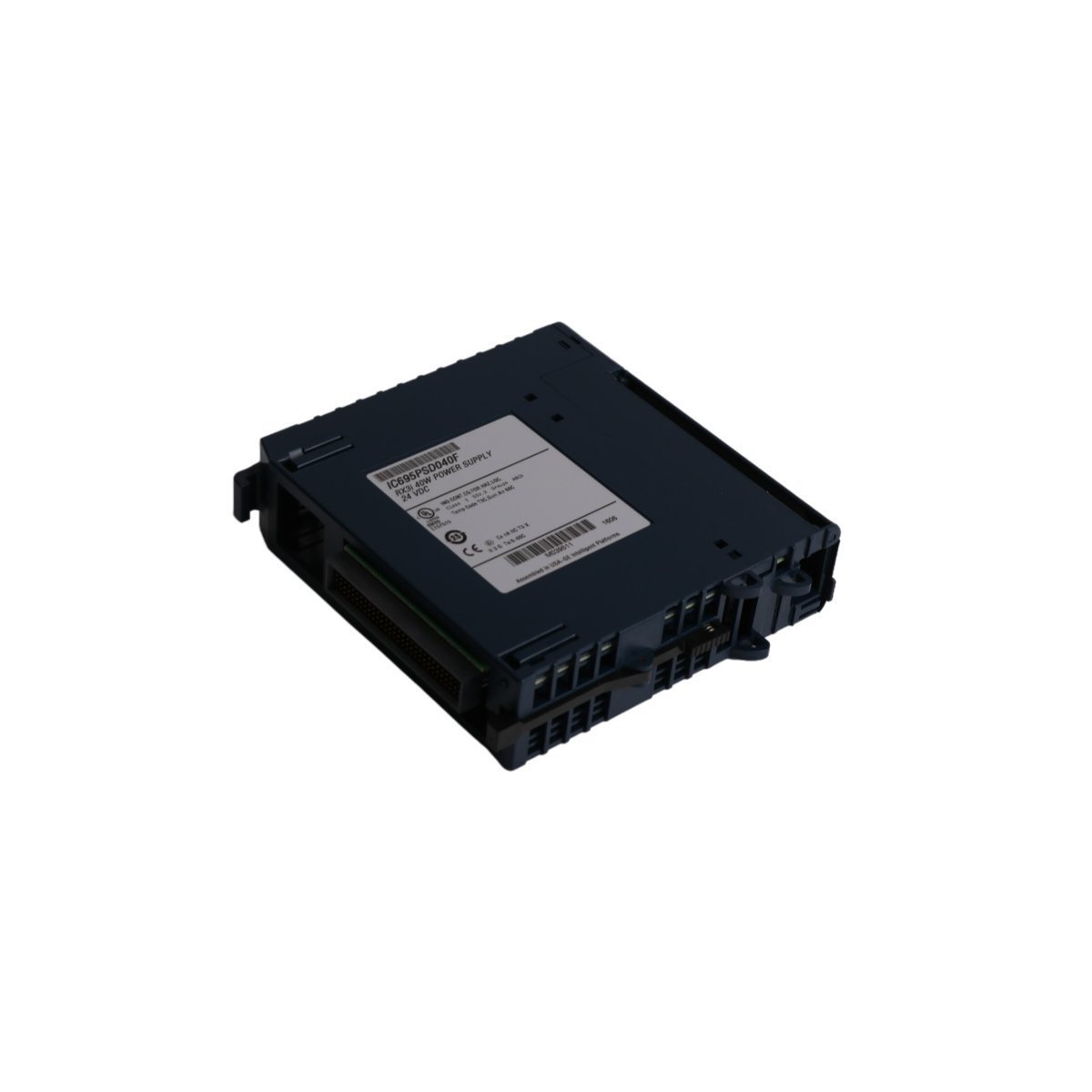

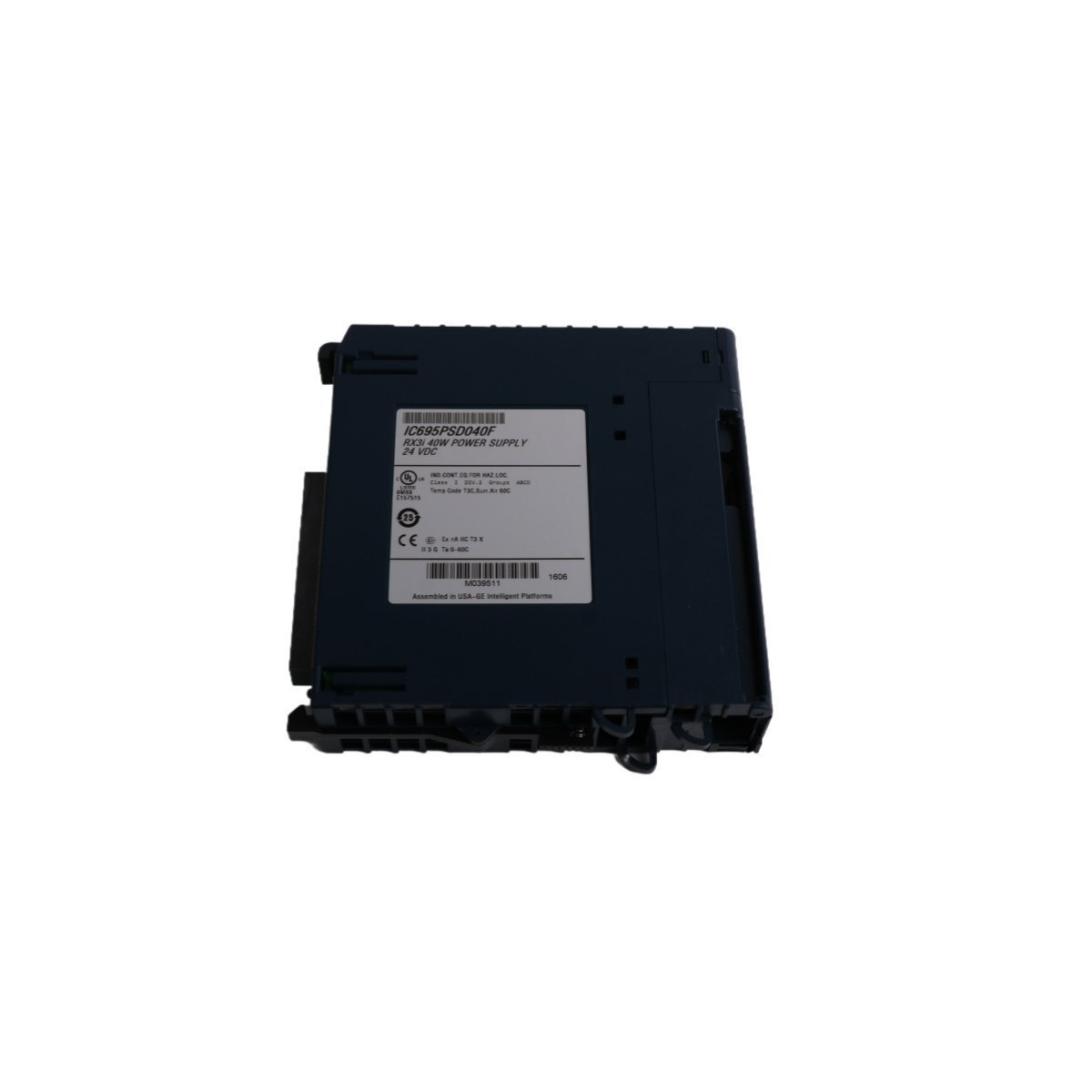

General Electric IC695PSD040F Power Supply Module

The GE Fanuc IC695PSD040F is a high-performance 24V DC power supply specifically engineered for the PACSystems RX3i series. Designed to sit directly on the universal backplane, this module provides the primary power conversion and distribution necessary for both the CPU and various I/O expansion modules. It occupies a single slot on the RX3i rack, allowing for maximum configuration flexibility while maintaining a stable 40-watt output across the backplane.

Technical Performance and Input Specifications

• Input Voltage Range: 18 to 30V DC
• Nominal Input Voltage: 24V DC
• Output Power: 40 Watts total
• Backplane Voltages Provided: 5.1V, 24V Relay, and 3.3V
• Slot Width: Single slot (Universal Backplane)
• Wiring Terminal: 14 AWG to 22 AWG copper wire support

Diagnostic Monitoring and System Safety

• Internal Protection: Overtemperature and Overload protection
• Visual Indicators: Power, Fault, and Over-temp LEDs
• Isolation: Reinforced galvanic isolation between input and backplane
• Maintenance: Supports module health reporting through the RX3i CPU
