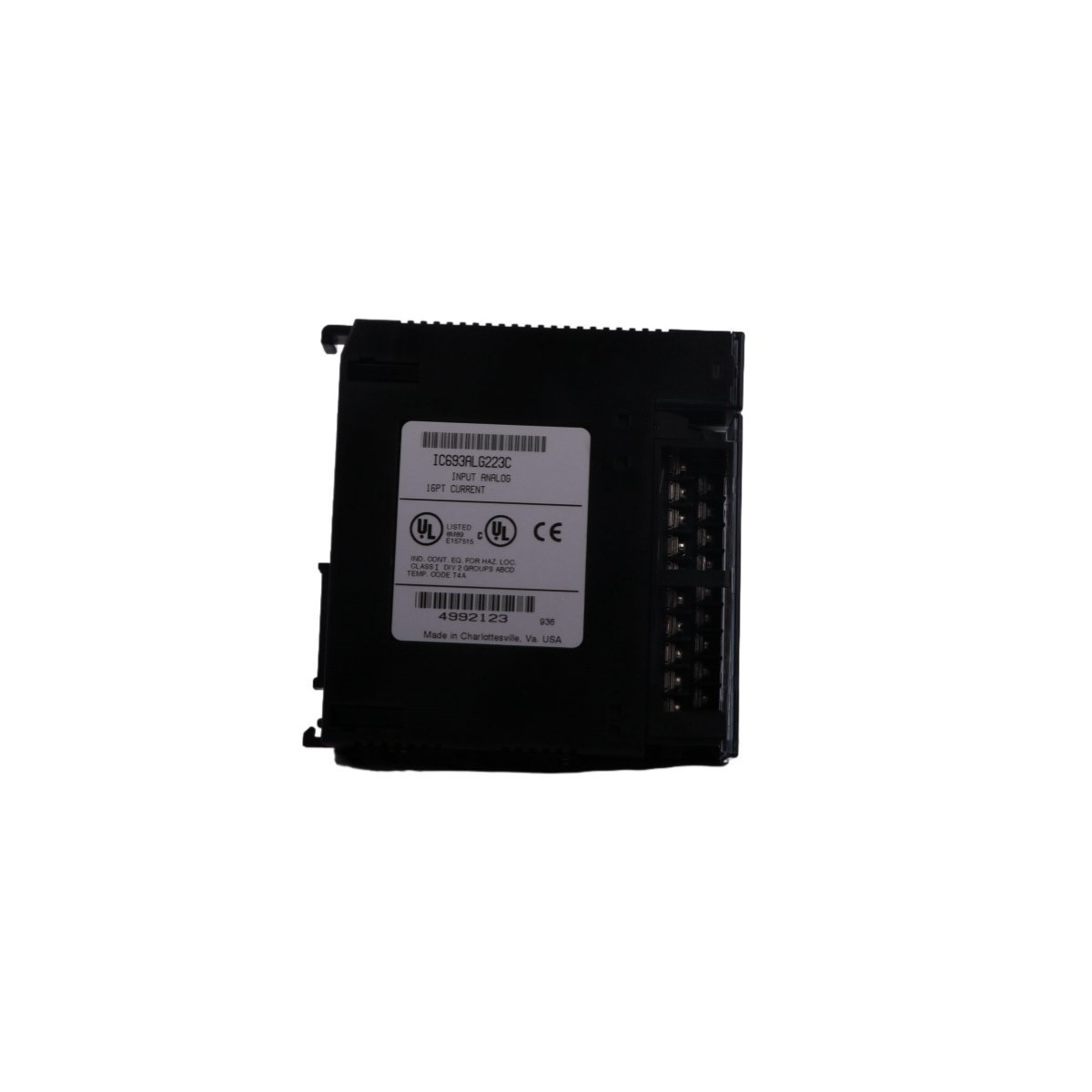

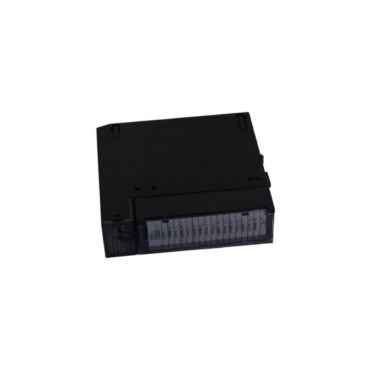

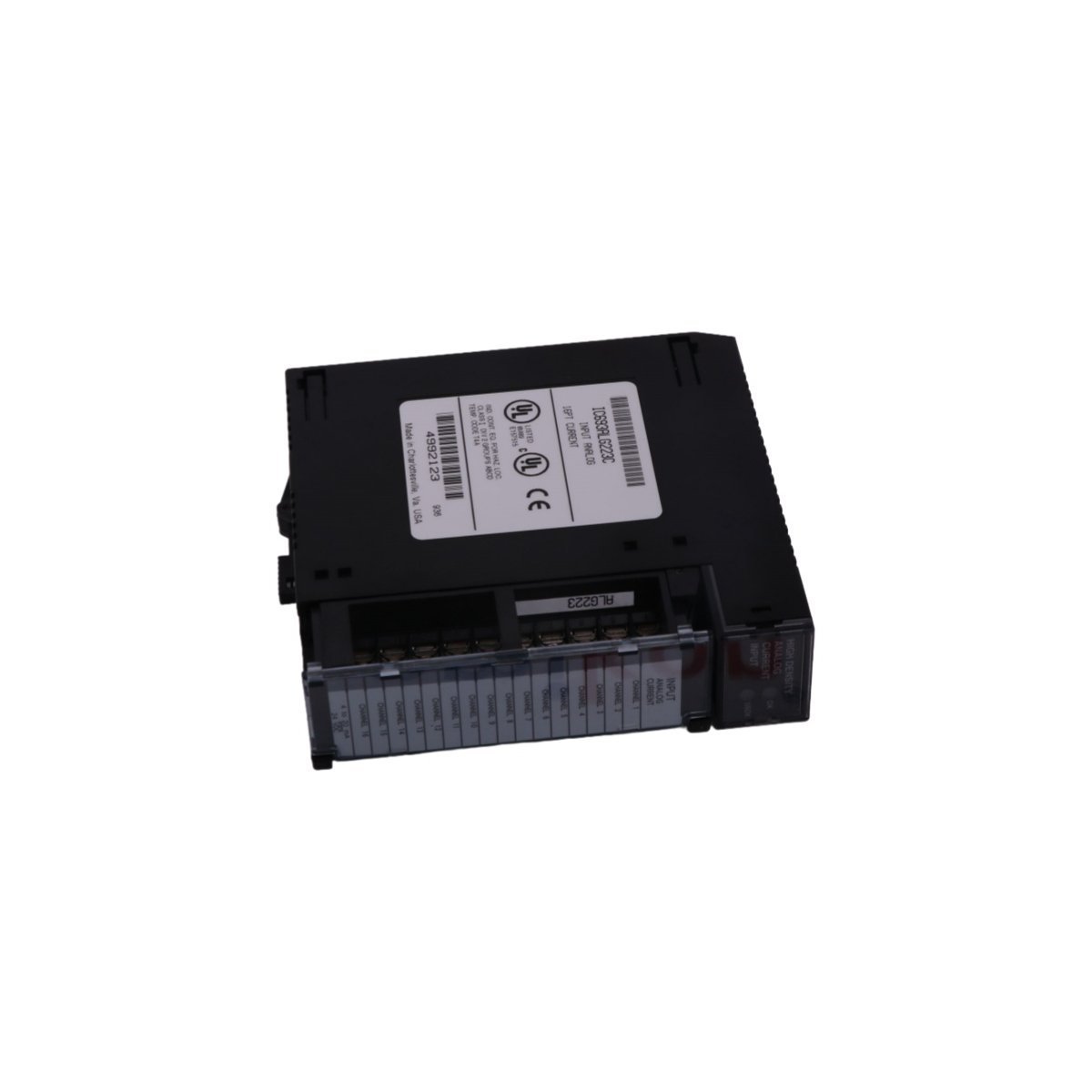

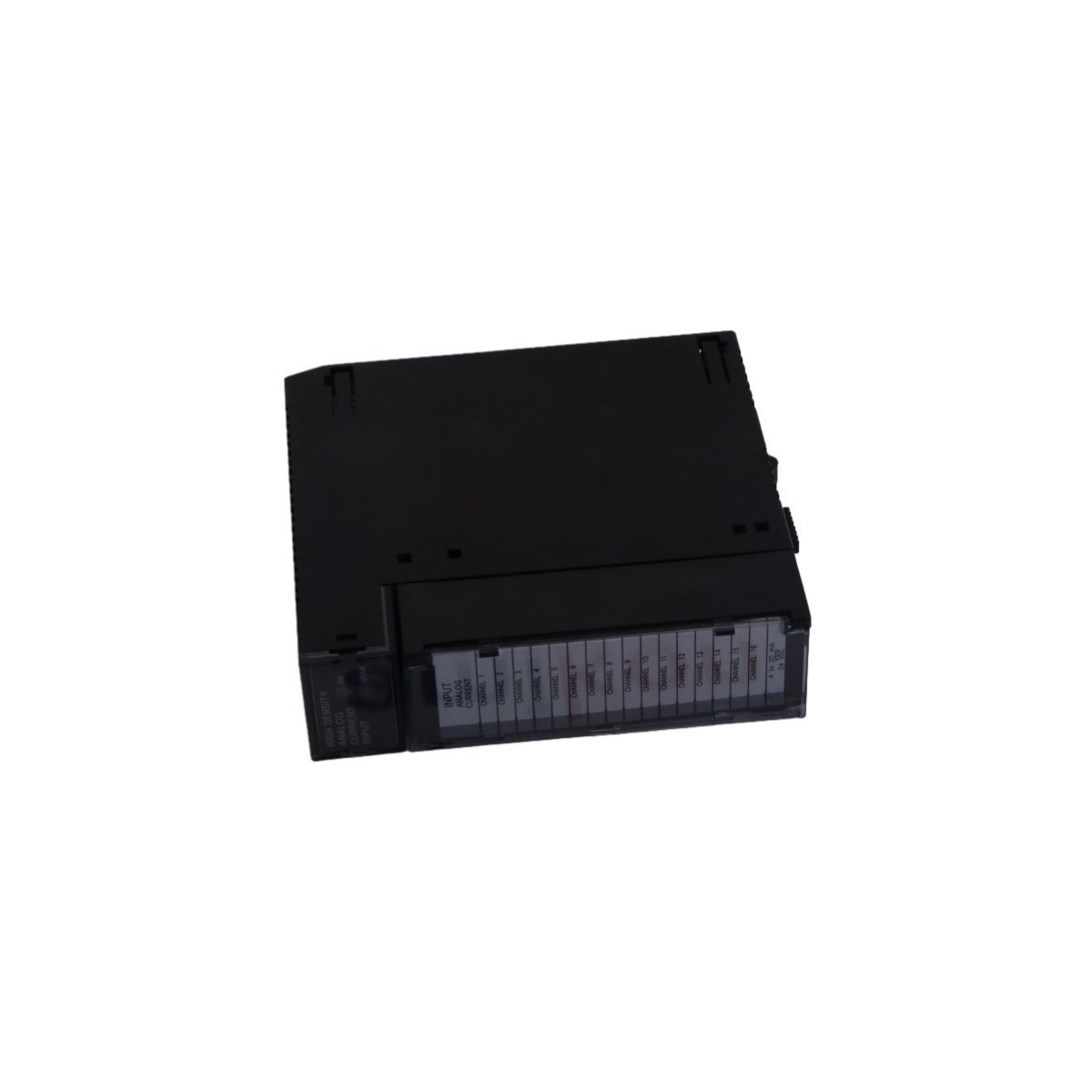

Name: General Electric IC693ALG223 Analog Input Module
Brand: General Electric
SKU: IC693ALG223
Availability: InStock

General Electric IC693ALG223 Analog Input Module

Sale!

The GE IC693ALG223 is a 16-channel analog current input module for Series 90-30 PLCs. It features 12-bit resolution, 1500V isolation, and supports 4-20mA/0-20mA ranges. Perfect for high-density sensor monitoring in Gas Turbine and DCS applications.

99 in stock

The GE IC693ALG223 is a precision 16-channel analog current input module engineered for the Series 90-30 Programmable Logic Controller (PLC) family. This high-density component is designed to interface with field sensors and transmitters, converting standard industrial current loops into 12-bit digital data. Its single-ended input architecture allows for the efficient monitoring of up to 16 distinct process variables within a single rack slot, making it an ideal solution for complex automation environments such as Speedtronic Gas Turbine Control Systems.

Performance and Power Requirements

Input Resolution: 12-bit analog-to-digital conversion.
Update Rate: 13 ms for all 16 channels.
Accuracy: ±0.25% of full scale at 25°C (77°F).
Backplane Loading: Consumes 120 mA from the +5V rail.
External Power: Requires 24 VDC field power for current loop excitation.

Technical Specification Summary

Parameter	Value
Number of Channels	16 Single-ended
Input Type	Current (mA)
Isolation	1500V (Field to Backplane)
Resolution	12-bit
Internal Power	120 mA @ 5 VDC
Operating Temperature	0°C to 60°C (32°F to 140°F)
Module Origin	USA
