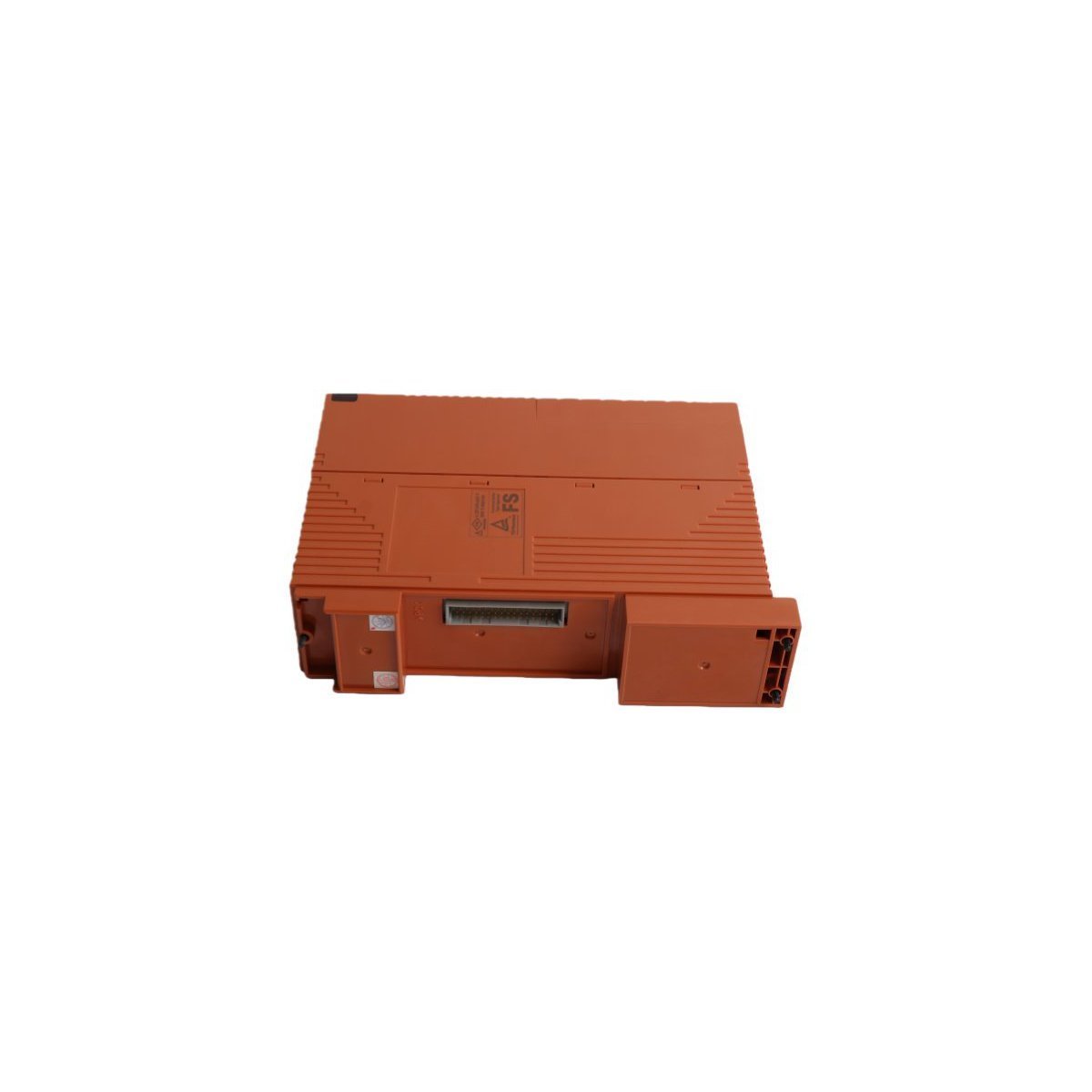

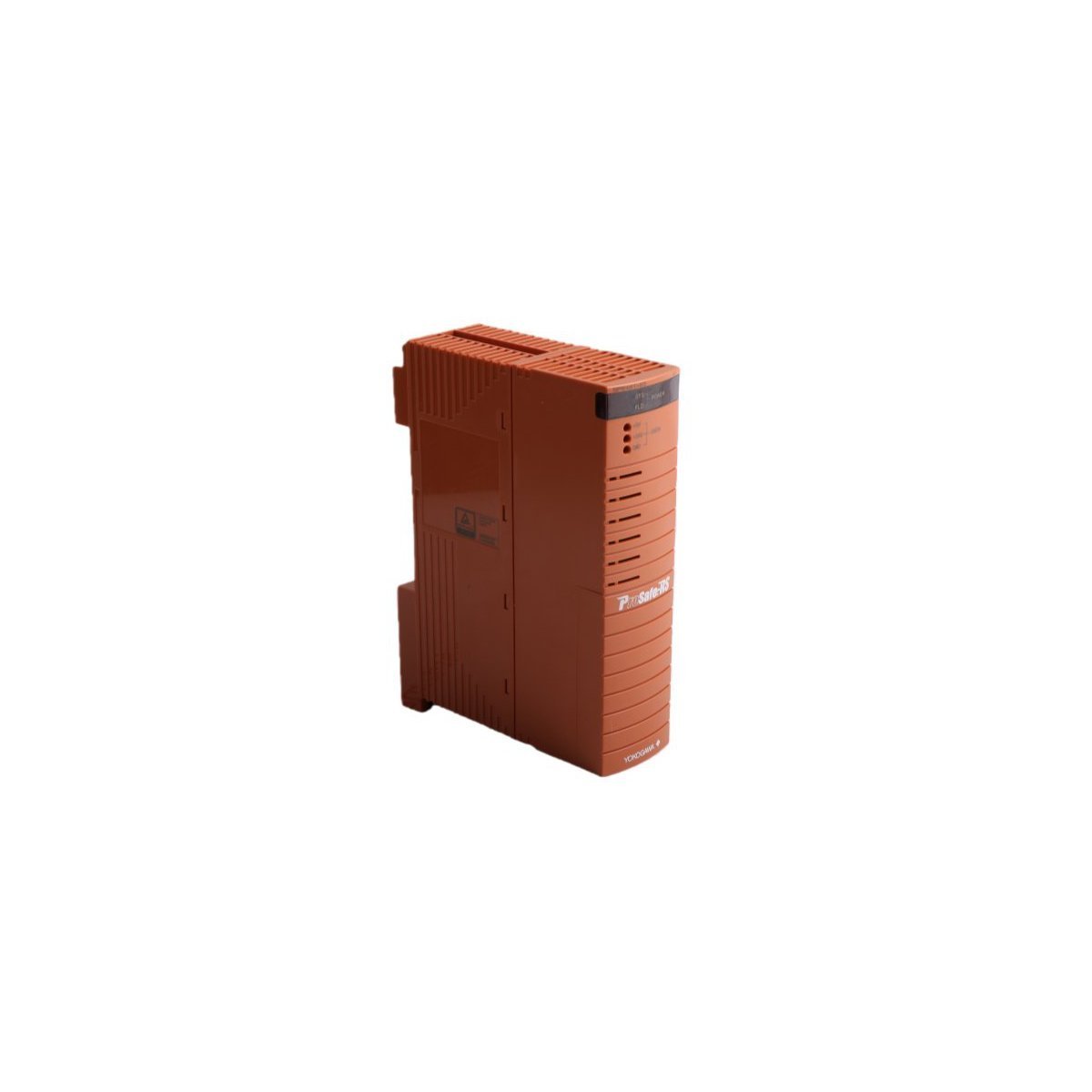

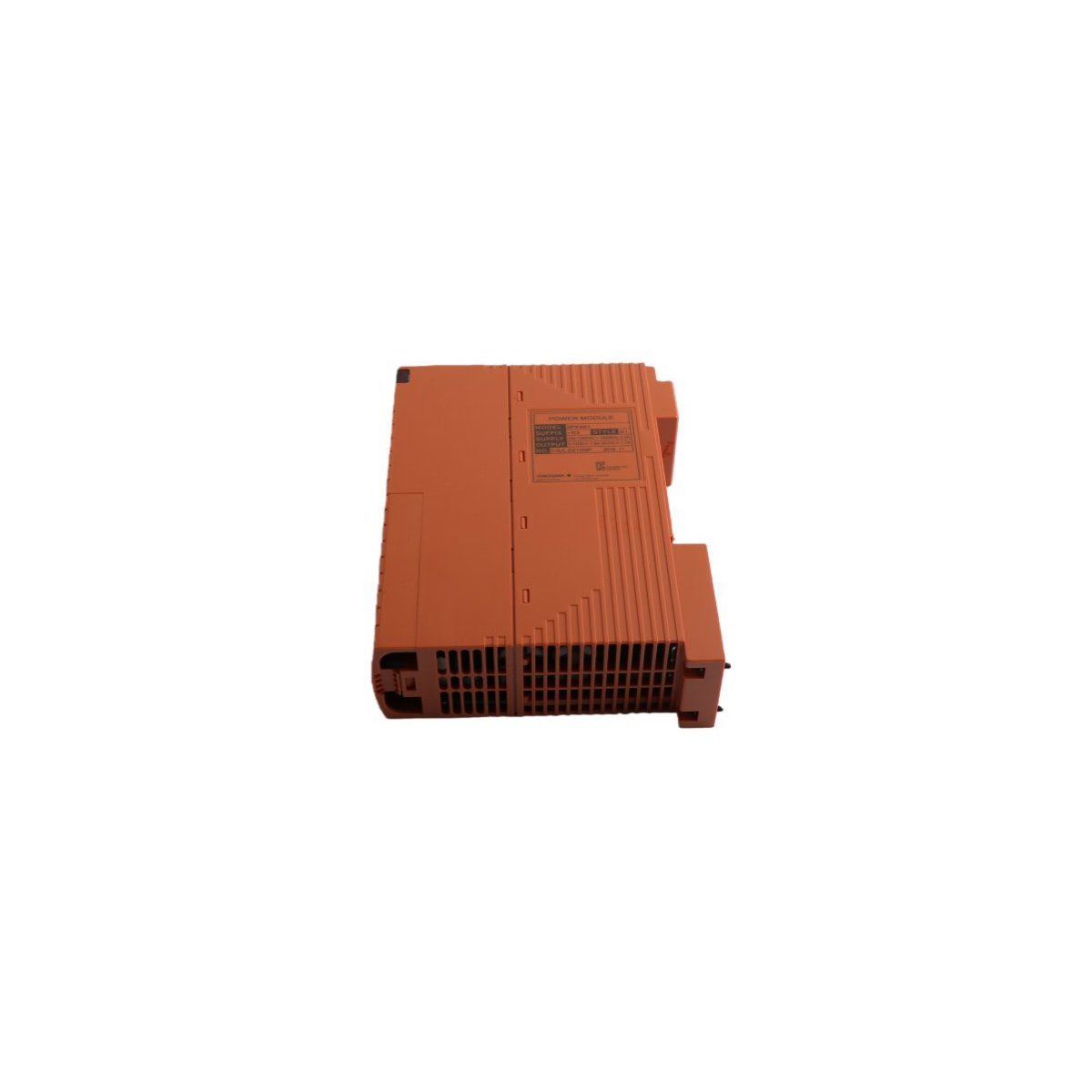

The Yokogawa SPW481-13 S1 serves as a high-integrity power conversion unit specifically engineered for the ProSafe-RS Safety Instrumented System (SIS). This module provides the essential electrical foundation for safety control stations by converting standard AC utility power into a regulated, low-noise DC output. Because safety systems require absolute stability to prevent nuisance trips, the SPW481-13 S1 employs advanced filtration and isolation circuits. This ensures that field instruments and safety logic processors receive a consistent energy supply, even when the primary power grid experiences fluctuations or industrial noise.
Technical Performance and Environmental Resistance
- Input Voltage Range: Designed for 100V to 120V AC (nominal) domestic and industrial power grids.
- Output Voltage: Delivers a stable 24V DC to power safety-critical components and I/O modules.
- Operational Temperature: Maintains full performance across a wide range from -20°C to +70°C.
- Corrosion Protection: Meets ISA Standard G3 requirements, allowing installation in corrosive or humid environments.
- Physical Profile: Compact 3.3 x 10.7 x 13 cm footprint weighing approximately 0.3 kg.
- Installation Compatibility: Specifically optimized for 19-inch rack mounting within ProSafe-RS control cabinets.
Functional Safety and System Integration
Safety compliance defines the architecture of the SPW481-13 S1. The module adheres to the rigorous requirements of IEC 61508 and IEC 61511-1, which makes it suitable for use in high-integrity process automation loops up to SIL3. By working in tandem with SCP461 controllers and dedicated safety I/O, this power module contributes to the overall diagnostic coverage of the system. While it operates as a standard non-explosion-protected component, its role within the certified ProSafe-RS framework ensures that the entire safety loop remains compliant with international risk management standards.
