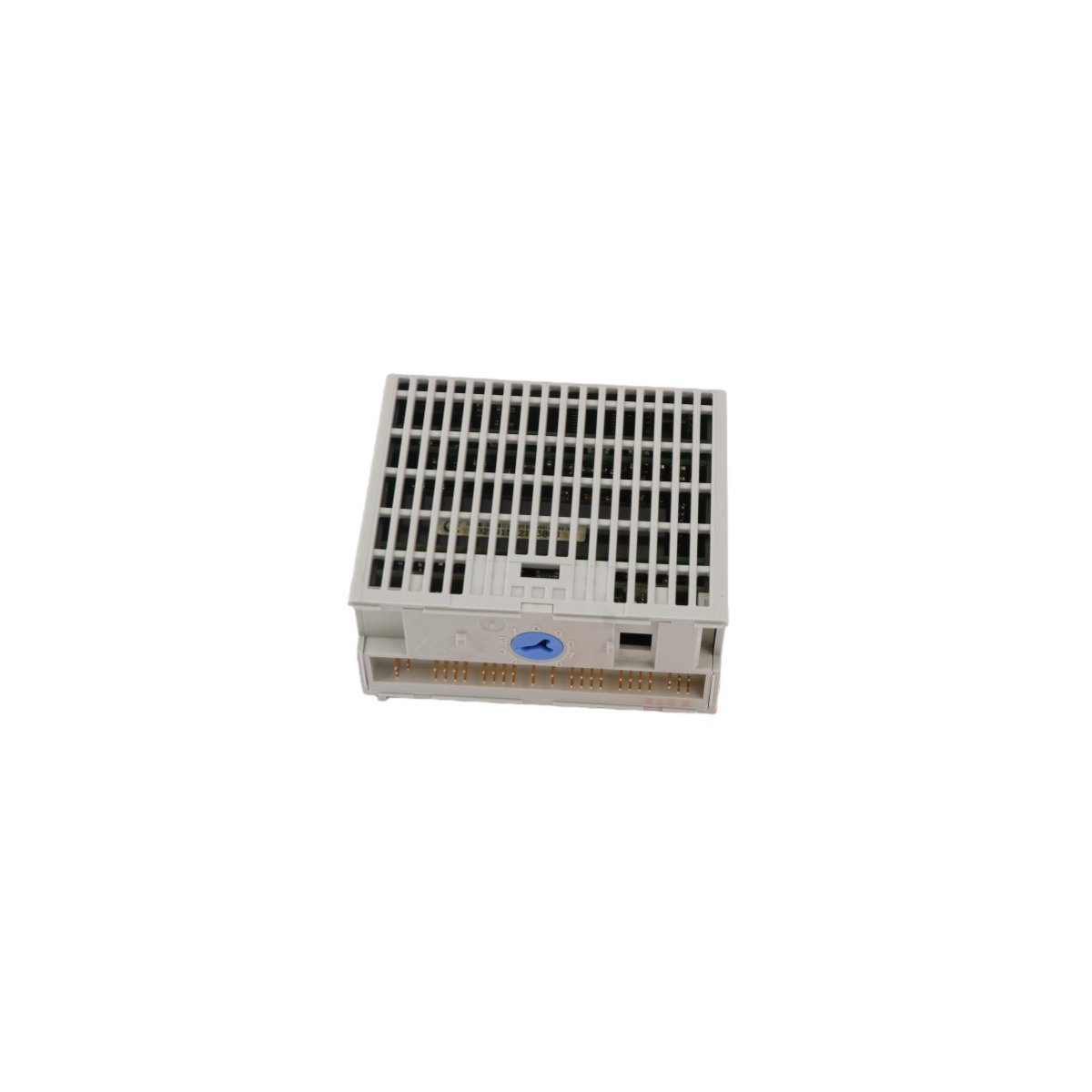

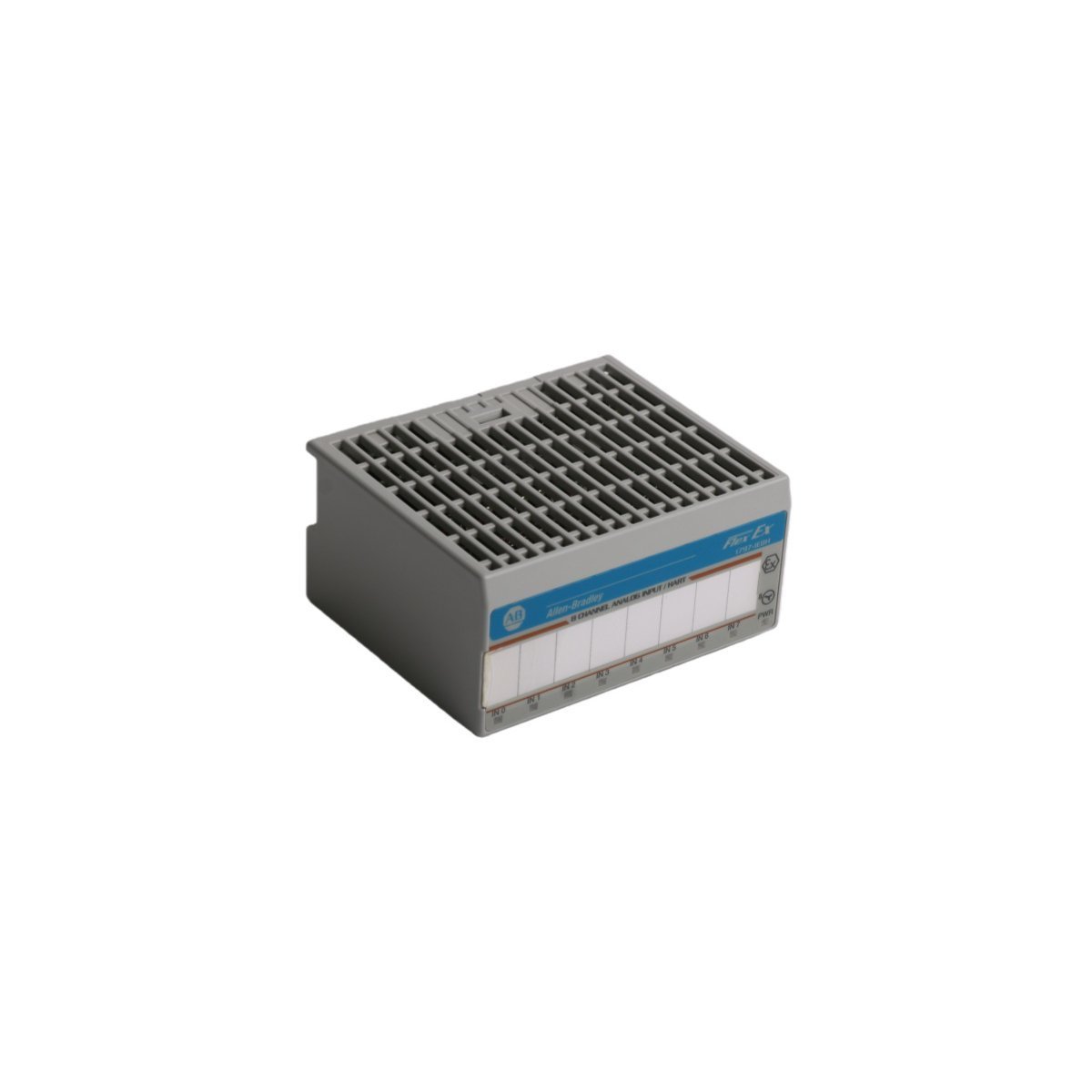

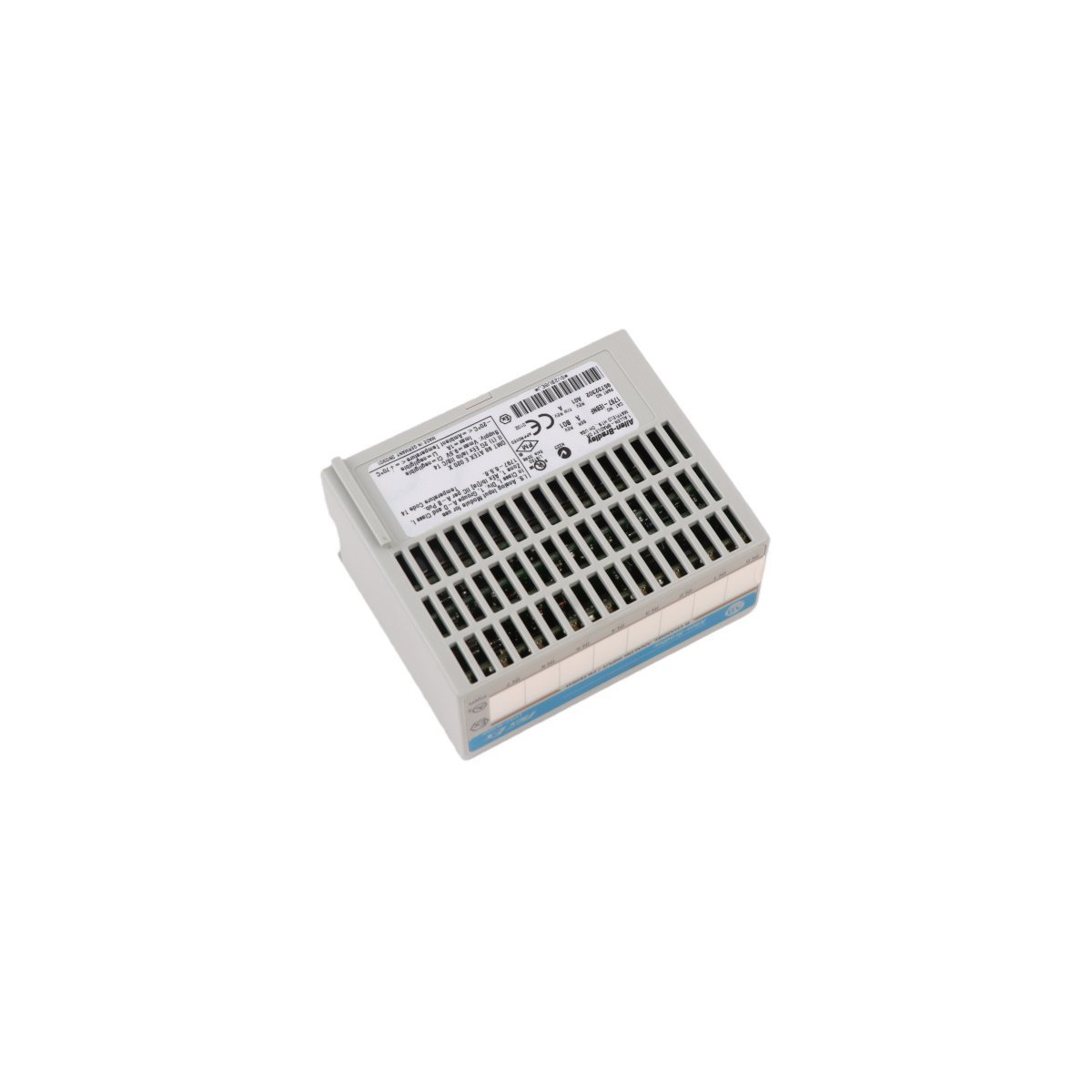

The Allen-Bradley 1797-IE8 provides a specialized solution for analog signal acquisition in volatile industrial zones. This module belongs to the FLEX Ex I/O family. It features eight high-resolution current input channels. Furthermore, the unit carries intrinsic safety certifications for Ex ia and Class I Division 1 areas. These ratings allow for direct connection to sensors in explosive atmospheres without additional safety barriers.
This hardware excels in chemical processing, oil refining, and pharmaceutical manufacturing. It maintains system integrity while delivering precise data to the central controller. Consequently, the 1797-IE8 reduces installation complexity and lowers overall hardware costs. It integrates seamlessly into distributed architectures via standard FLEX Ex communication adapters.
Core Technical Characteristics
- Manufacturer: Allen-Bradley / Rockwell Automation
- Model Number: 1797-IE8
- Product Line: FLEX Ex I/O
- Input Type: 8-Channel Single-Ended Current Input
- Signal Range: 4–20mA (Standard), 0–20mA
- Resolution: 16-bit
- Accuracy: 0.1% Full Scale at 25°C
- Safety Rating: Intrinsically Safe (IS)
- Hazardous Location: Class I Div 1, Groups A-D; ATEX Zone 1
- External Power: Powered through the 1797-PS power supply
- Dimensions: 3.5 x 13.0 x 14.5 cm
- Weight: 0.9 kg
Advanced Data Conversion and Diagnostics
The 1797-IE8 utilizes sophisticated internal circuitry to achieve 16-bit signal resolution. This high granularity allows the system to detect minute changes in process variables. Additionally, the module maintains exceptional accuracy across its entire operating range. Such precision proves vital for monitoring critical pressure, flow, and temperature levels.
Beyond simple measurement, the module performs continuous health monitoring of the field loops. It automatically identifies common faults like open circuits or wire breakages. Moreover, the unit detects signals that fall above or below calibrated limits. These diagnostic alerts help maintenance teams resolve issues before they cause process shutdowns. Therefore, the 1797-IE8 significantly improves plant safety and operational uptime.
