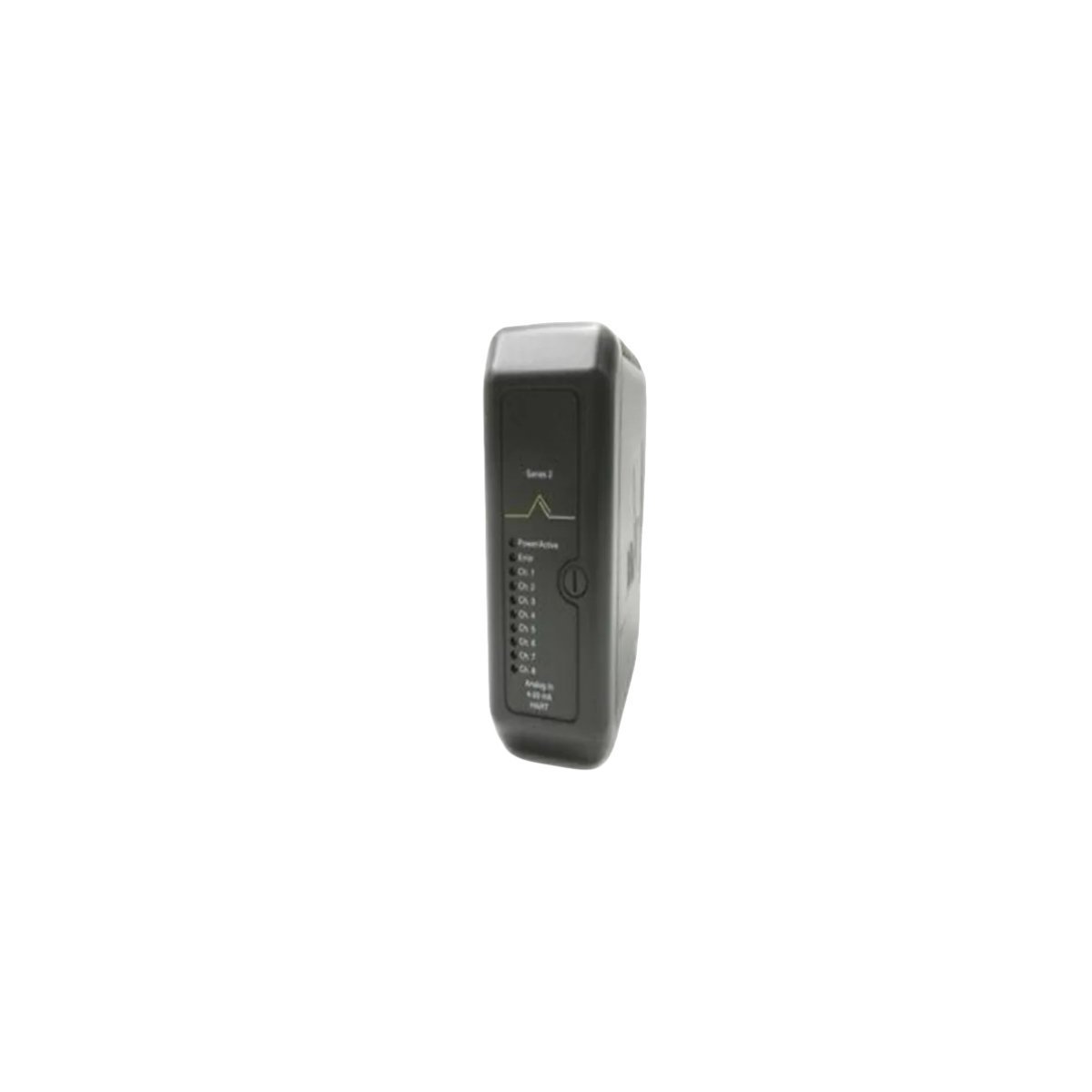

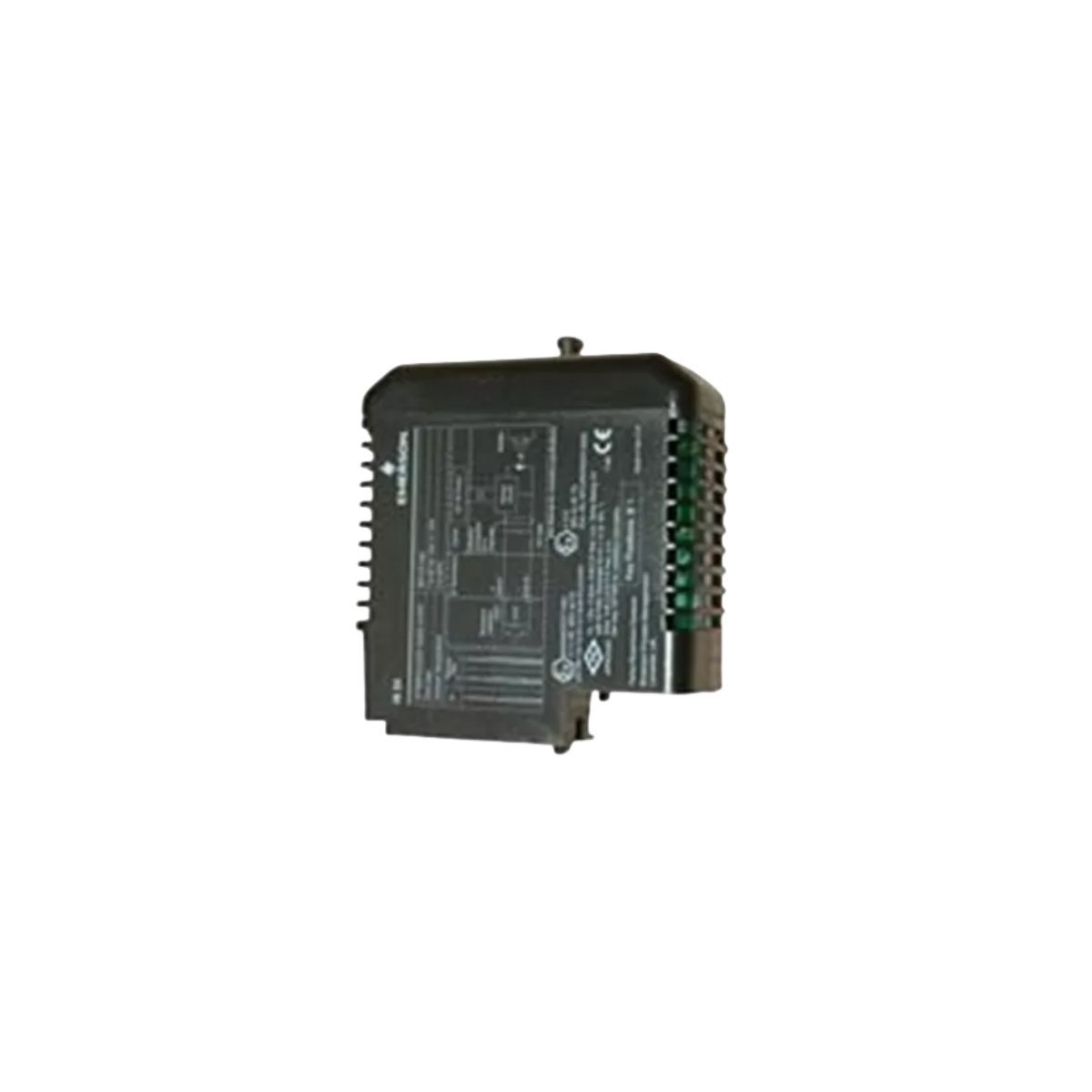

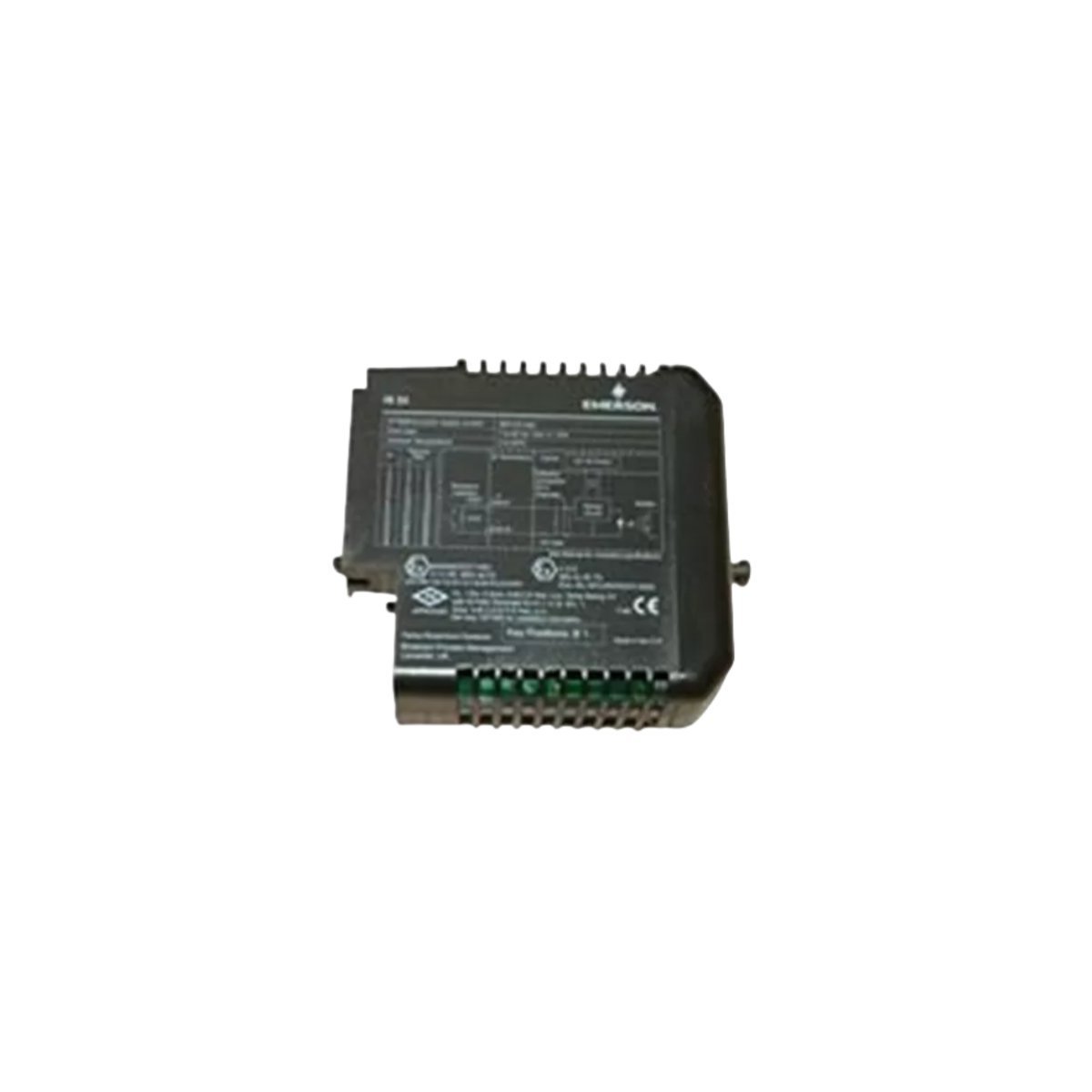

Emerson KJ3222X1-BA1 12P2532X122 VE4003S2B3 Analog Input Module

The Emerson KJ3222X1-BA1 serves as a high-performance analog interface within the DeltaV™ M-series I/O subsystem. This module precisely converts continuous analog signals from field instruments into actionable digital data. Consequently, the control system maintains real-time oversight of critical process variables. It facilitates seamless communication between the field level and the central DCS architecture. This hardware is essential for industries requiring high-speed data transmission and absolute signal integrity.

Key Technical Characteristics

• Eight Input Channels: Connects multiple field transmitters to a single I/O slot.
• 4-20 mA Signal Support: Compatible with standard industrial instruments and smart field devices.
• Mass Termination Compatibility: Uses the VE4003S2B3 block for efficient, organized wiring.
• Intelligent Self-Testing: Monitors internal circuitry and field loops for consistent performance.
• Galvanic Isolation: Prevents ground loops and protects the system from external interference.

Technical Specifications Table
