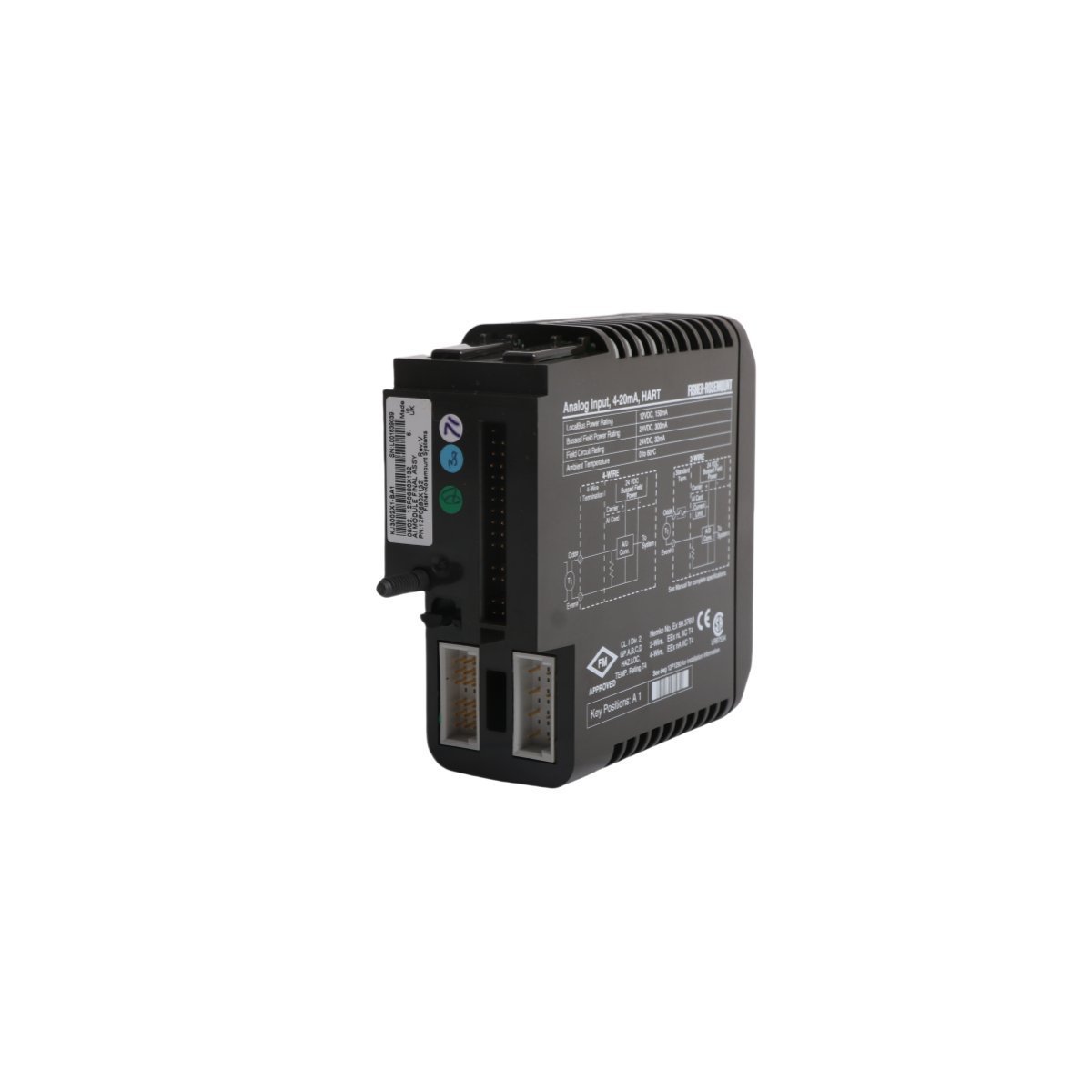

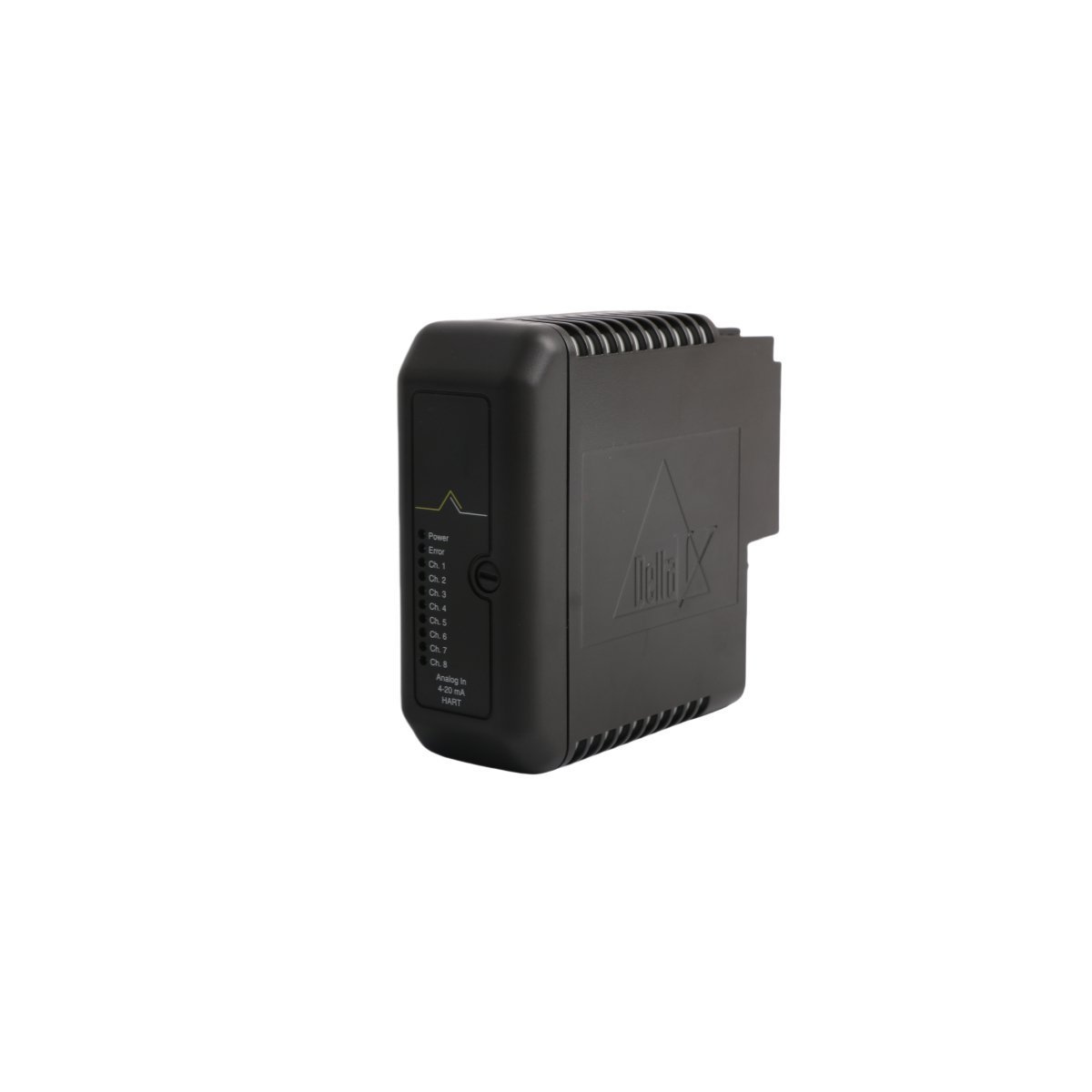

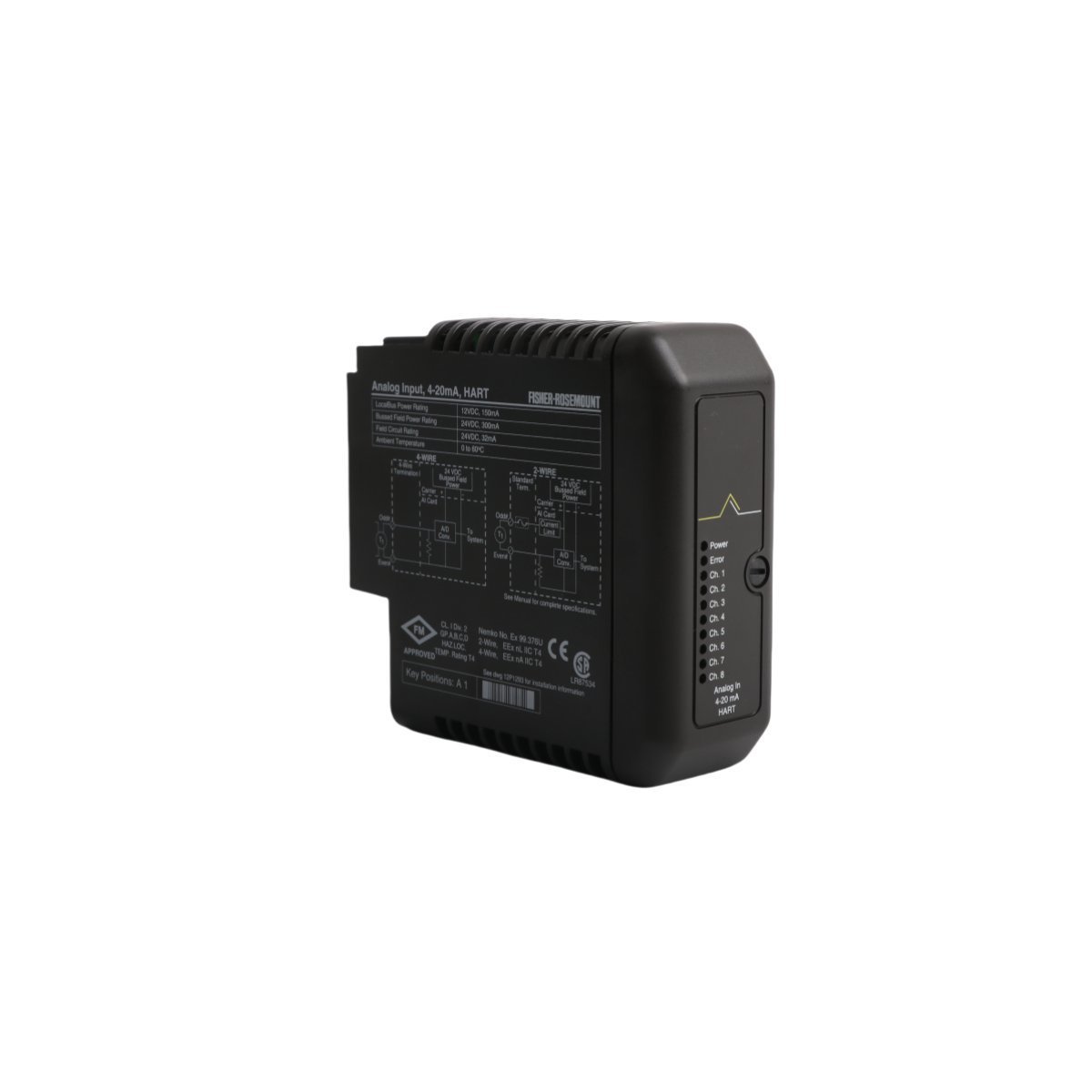

Emerson KJ3002X1-BA1 12P0680X122 Analog Input Module

The Emerson KJ3002X1-BA1 serves as a high-density 8-channel analog input module. This component integrates specifically with the DeltaV M-series I/O Subsystem. It accurately converts field signals into digital data for the controller. The module primarily supports standard 4-20 mA current loops. Furthermore, it facilitates communication with HART-enabled field instruments.

Engineers utilize this module to bridge field measurements with the control network. It provides the necessary resolution for monitoring critical variables. These variables often include pressure, flow, and liquid levels. The hardware design focuses on long-term stability in industrial environments. This ensures reliable data flow for continuous process automation.

Technical Performance and Environmental Resilience

Each channel on the KJ3002X1-BA1 12P0680X122 features robust electrical isolation. This architecture protects the system from common-mode noise and voltage surges. Consequently, the module maintains signal integrity in electrically noisy plant areas. The device also supports advanced diagnostics via the HART protocol. These diagnostics allow for remote instrument calibration and health monitoring.

The physical build handles diverse environmental challenges effectively. It operates within a temperature range of -40°C to +70°C. Additionally, the module survives in high-humidity conditions up to 95%. The compact footprint allows for efficient installation in standard DeltaV carriers. This helps optimize cabinet space in large-scale DCS deployments.

Industrial Application and Maintenance

This analog input module is ideal for oil, gas, and chemical processing. It simplifies the connection between field sensors and the central control room. Technicians can perform hot-swapping under power to minimize system downtime. The internal revision logic ensures compatibility with existing M-series hardware. Proper installation of this module enhances overall plant safety and operational efficiency.

Product Specifications

• Manufacturer: Emerson (Fisher-Rosemount Systems)
• Model ID: KJ3002X1-BA1
• Part Number: 12P0680X122
• Input Type: 8-Channel Analog (4-20 mA)
• Protocol Support: HART Digital Communication
• Weight: 0.20 kg
• Dimensions: 4.3 x 12.5 x 10.5 cm
• System Environment: DeltaV DCS M-series
