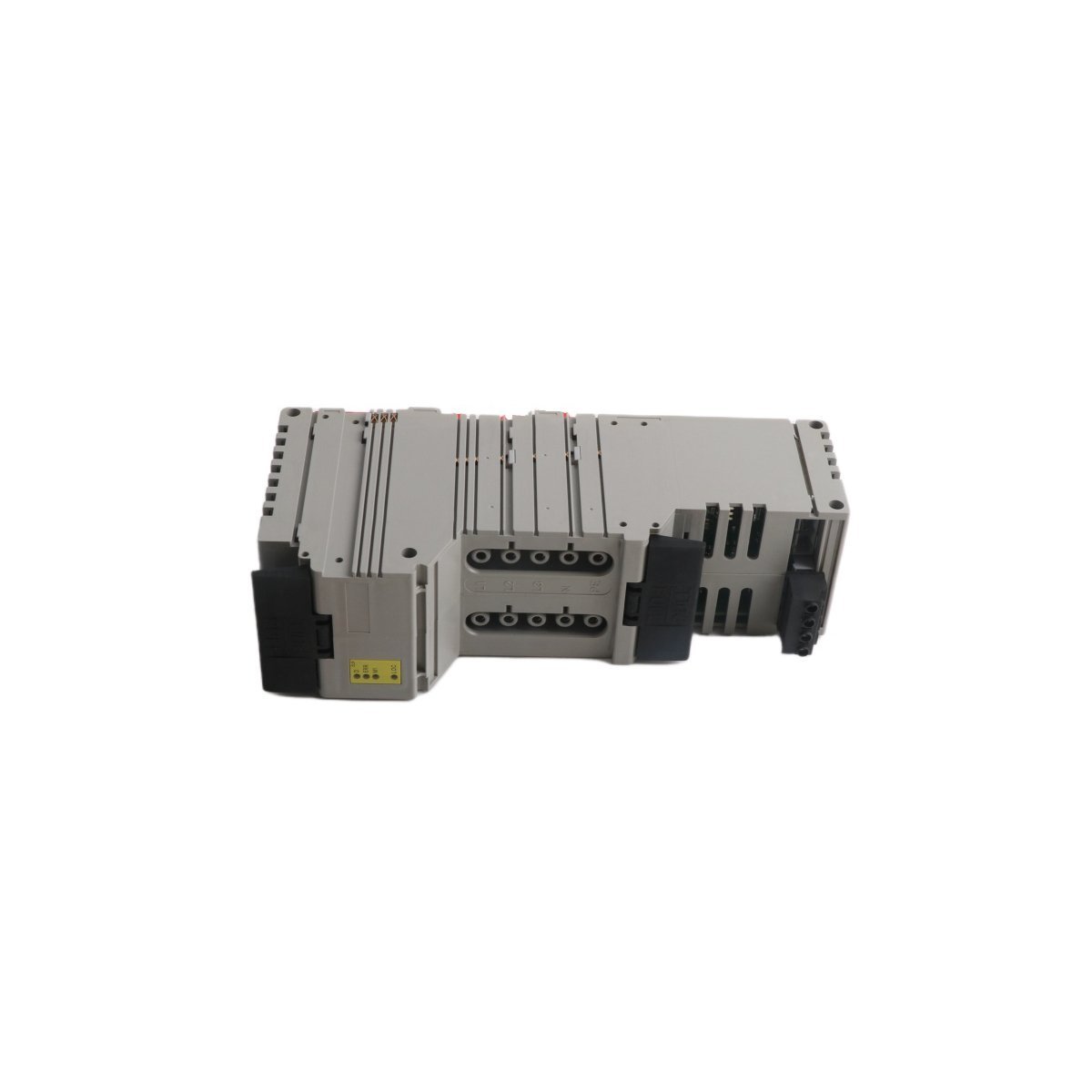

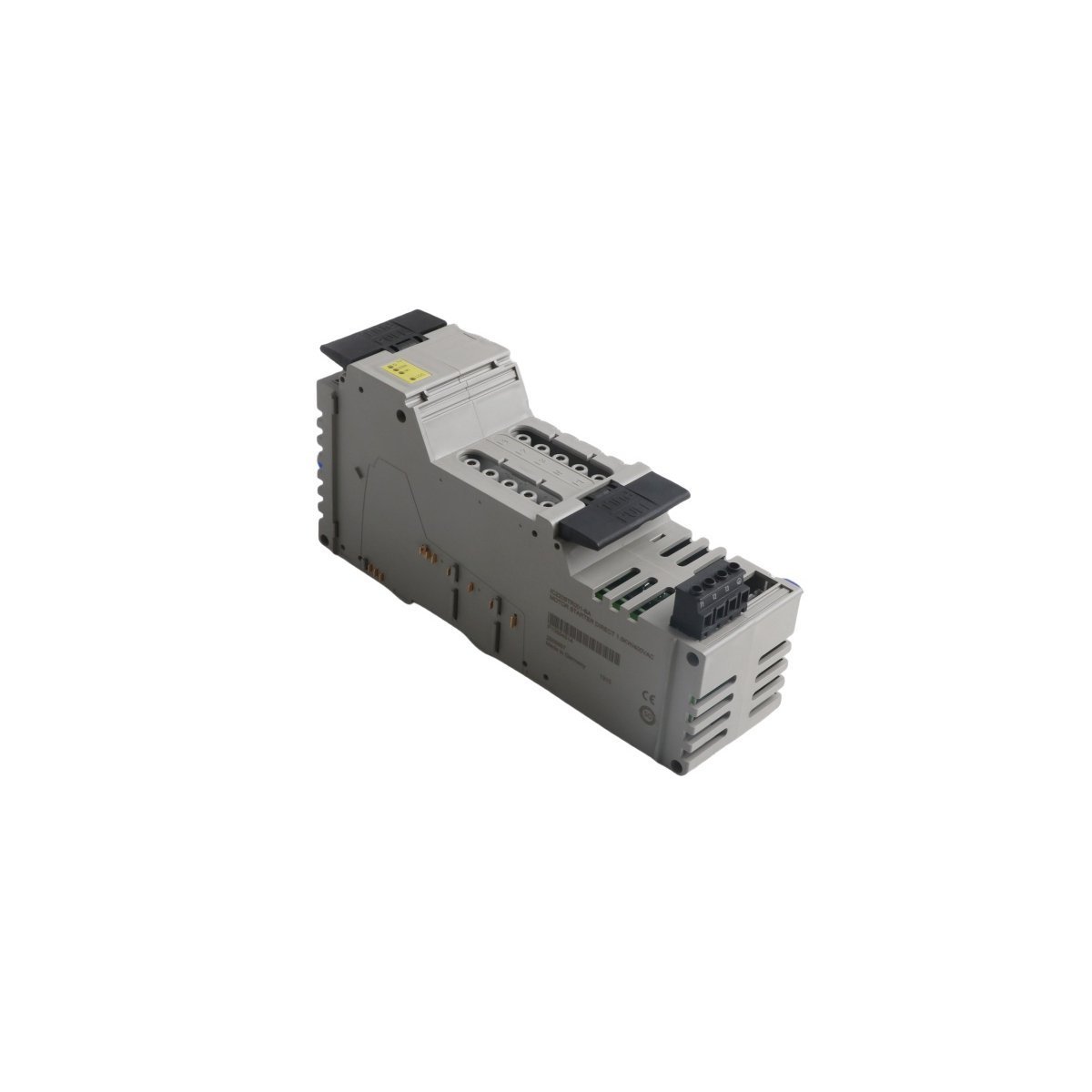

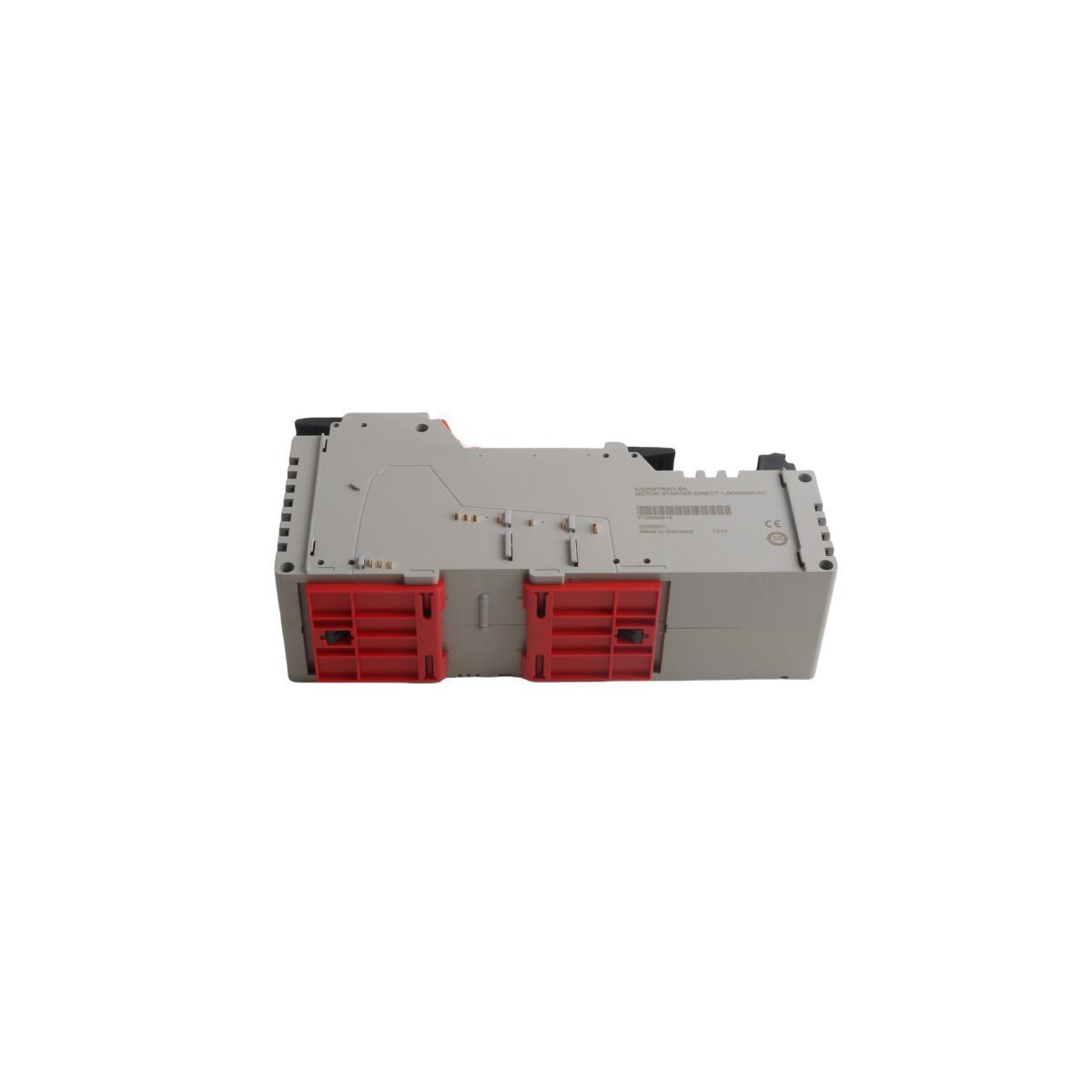

GE VersaPoint IC220STR001 Industrial Three-Phase Reversing Motor Starter

Product Overview

The GE Fanuc IC220STR001 is a specialized VersaPoint series reversing motor starter engineered for the control of three-phase asynchronous motors within a distributed I/O framework. This module provides a compact, integrated solution for bidirectional motor management, effectively eliminating the need for bulky external contactor assemblies.

Technical Description and Functional Capabilities

Operational Control and Efficiency

The IC220STR001 functions as an intelligent node within the VersaPoint station, facilitating precise clockwise and counter-clockwise rotation control. Because the module utilizes electronic switching and integrated interlocking logic, it significantly reduces mechanical wear compared to traditional magnetic starters. Furthermore, its integration into the PACSystems RX3i architecture allows for high-speed data exchange and real-time diagnostic feedback to the central controller.

Safety and Circuit Protection

This motor starter prioritizes equipment longevity through comprehensive onboard protection suites. The module monitors for thermal overload and short-circuit conditions, automatically interrupting power to prevent motor burnout. Consequently, maintenance cycles are extended, and the risk of catastrophic hardware failure is minimized. The reversing logic is hardware-interlocked, which ensures that phase-to-phase shorts cannot occur during rapid directional transitions.

Mechanical Design and Installation

Designed for high-density control cabinets, the IC220STR001 features a slim form factor that optimizes DIN rail space. The terminal block system employs spring-cage technology, which ensures vibration-resistant connections and simplifies the wiring process for field technicians. This tool-free installation method accelerates commissioning and simplifies module replacement in mission-critical environments.
