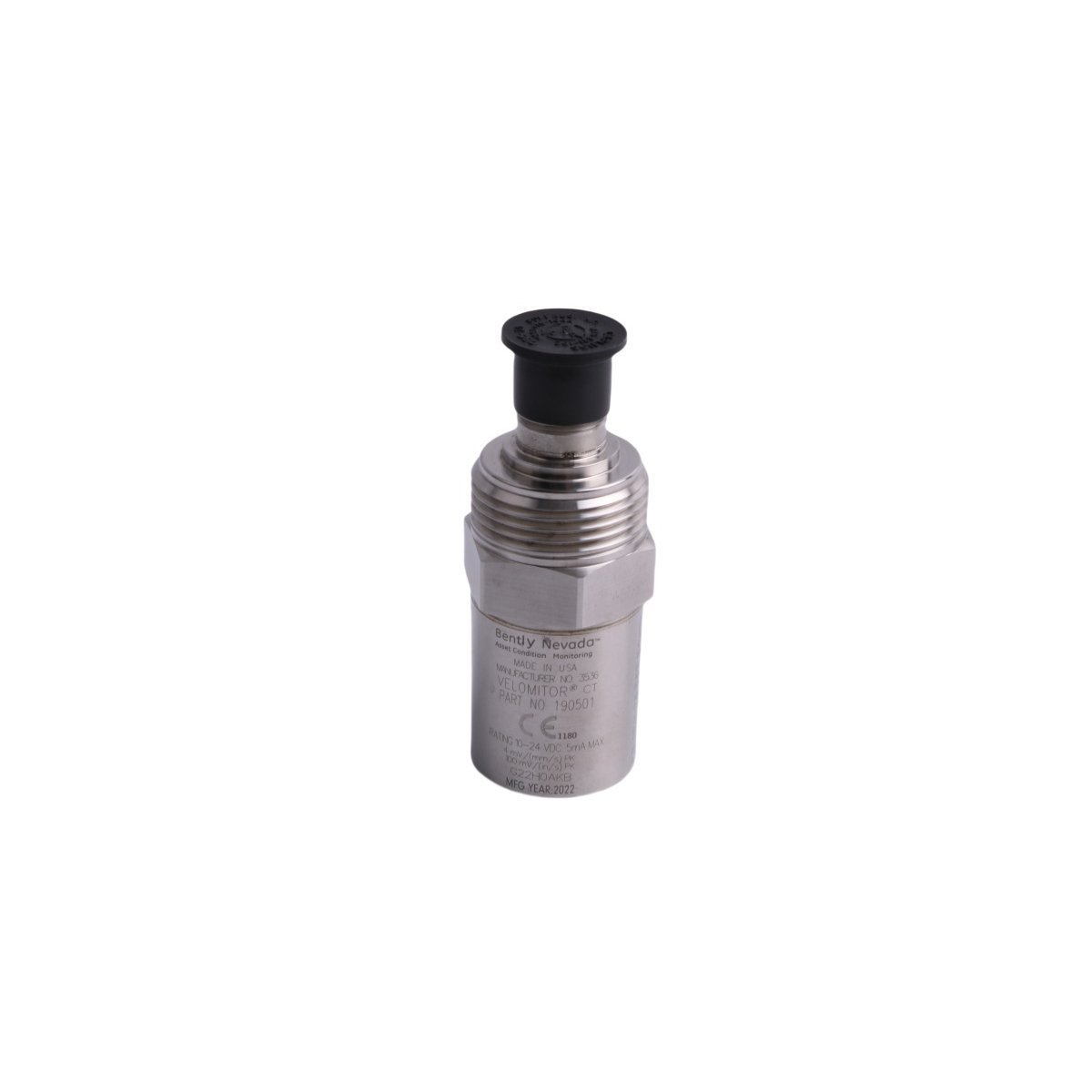

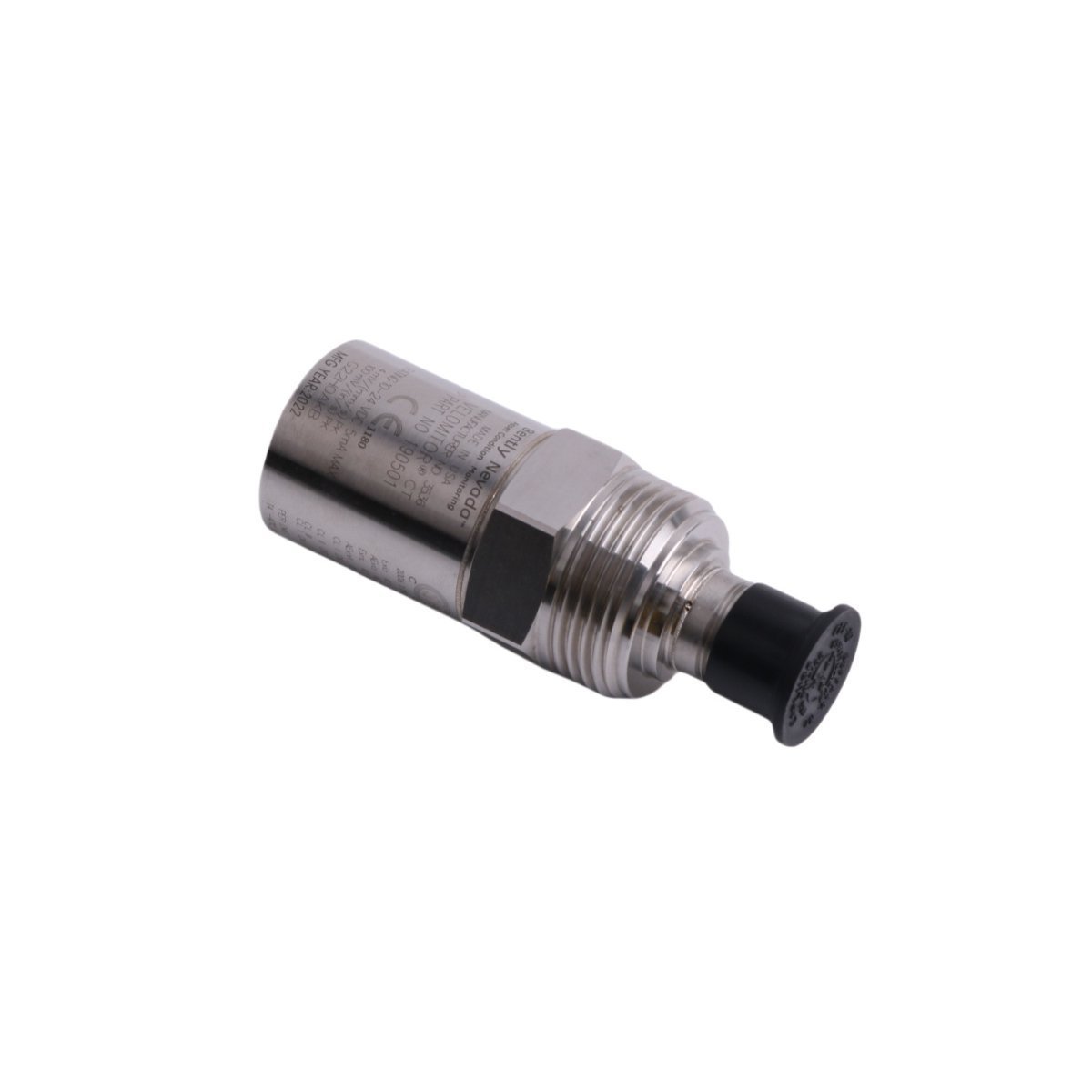

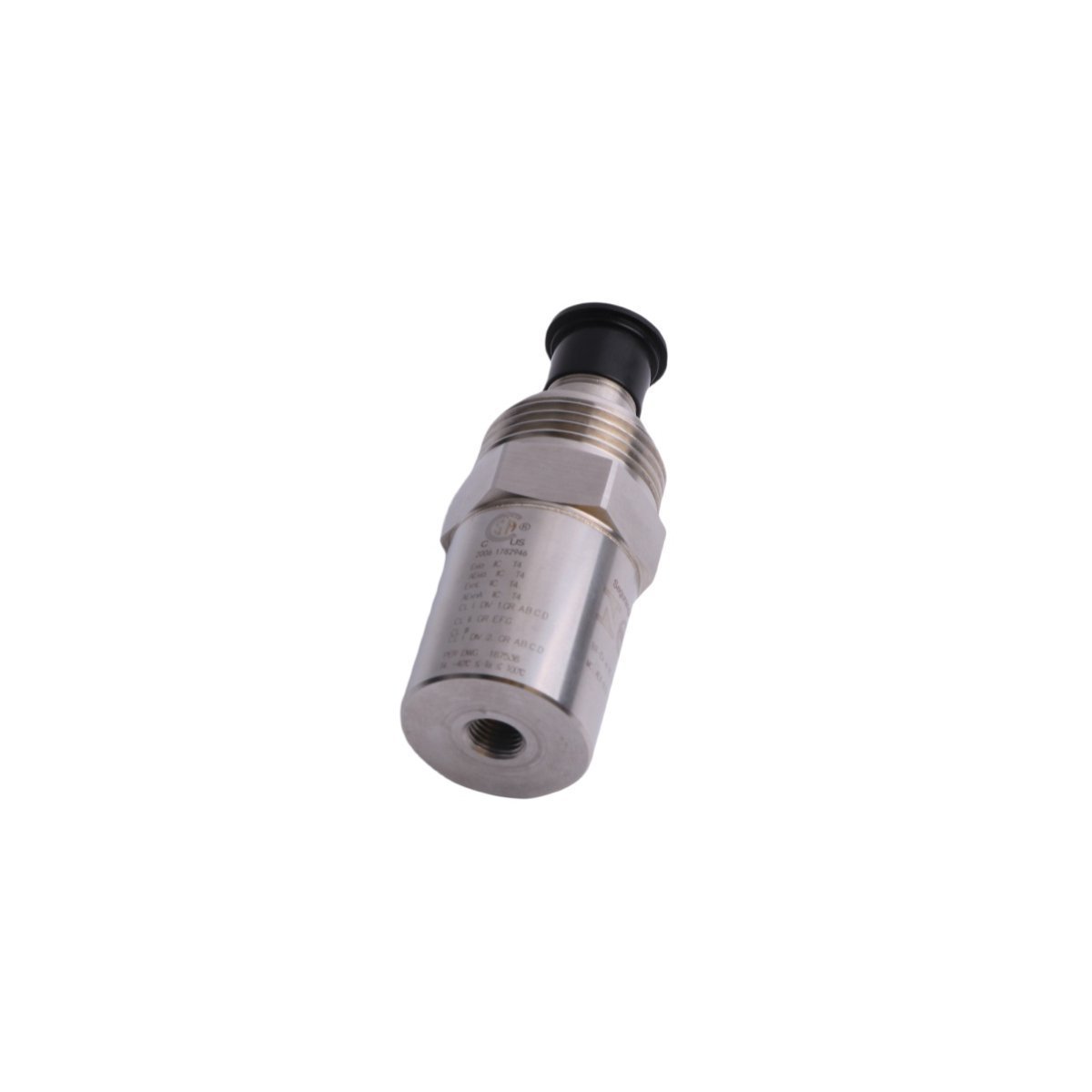

190501-02-00 Bently Nevada Cooling Tower Low-Frequency Vibration Sensor

Technical Product Overview

The Bently Nevada 190501-02-00 Velomitor CT (Cooling Tower) functions as a high-precision seismic transducer specifically engineered to monitor the vibration profiles of low-speed rotating machinery. Although standard velocity sensors typically lose accuracy at lower frequencies, this specialized unit maintains a customized frequency response ranging from 1.5 Hz to 1.0 kHz. Consequently, this extended range empowers maintenance teams to monitor equipment running between 100 and 300 RPM with high confidence. By capturing these low-frequency signals, the sensor identifies critical mechanical faults, such as structural looseness, imbalance, or misalignment, well before they escalate into catastrophic failures.

To withstand the aggressive environments typical of cooling towers and heat exchangers, Bently Nevada utilizes a hermetically sealed 316L stainless steel enclosure. This robust construction provides total immunity to 100% condensing humidity and caustic chemical exposure. Furthermore, the internal solid-state electronics actively integrate the raw acceleration data into a velocity output. This conversion provides a direct measurement of vibration severity that integrates effortlessly into Turbine Supervisory Instrumentation (TSI) and various distributed control systems.

Installation and Signal Integrity

The 190501-02-00 excels in large-scale industrial facilities because it facilitates long-distance signal transmission for cable runs reaching up to 305 meters (1,000 feet). Because the device maintains signal strength over these distances, engineers can locate sensors far from centralized control rooms without risking data degradation. To further enhance measurement precision, the transducer incorporates a specialized internal shield that minimizes magnetic field interference. Additionally, the rugged internal architecture provides an impressive 5,000g of peak shock resistance to protect the sensor against sudden mechanical impacts.

However, achieving high-fidelity data collection requires precise mounting techniques. The transducer features a 2-pin MIL-C-5015 top-mounted connector and necessitates a perfectly flat mounting surface to function correctly. Operators must apply specific torque settings during installation to preserve the integrity of the frequency response. By establishing a stable seismic reference point, the 190501-02-00 generates the consistent trend data essential for sophisticated predictive maintenance programs across the power generation and petrochemical industries.

Technical Specifications

• Manufacturer: Bently Nevada
• Model: 190501-02-00
• Transducer Type: Piezo-Velocity (Velomitor CT)
• Standard Sensitivity: 3.94 mV/mm/s (100 mV/in/s) ±5%
• Frequency Range: 1.5 Hz to 1.0 kHz (90 to 60,000 cpm) ±3 dB
• Enclosure Material: 316L Stainless Steel
• Operating Temperature: -40°C to +85°C (-40°F to +185°F)
• Shock Survivability: 5,000 g peak
• Connection Interface: 2-pin MIL-C-5015
• Mounting Options: 3/8-24 or M6x1 via specific adapters

Primary Industrial Applications

• Cooling Tower Fan Assemblies and Drive Motors
• Air-Cooled Heat Exchanger Fans (Fin-Fans)
• Low-Velocity Industrial Pumping Systems
• Hydroelectric Turbine Monitoring
• Large Diameter Industrial Blowers and Vent Fans
