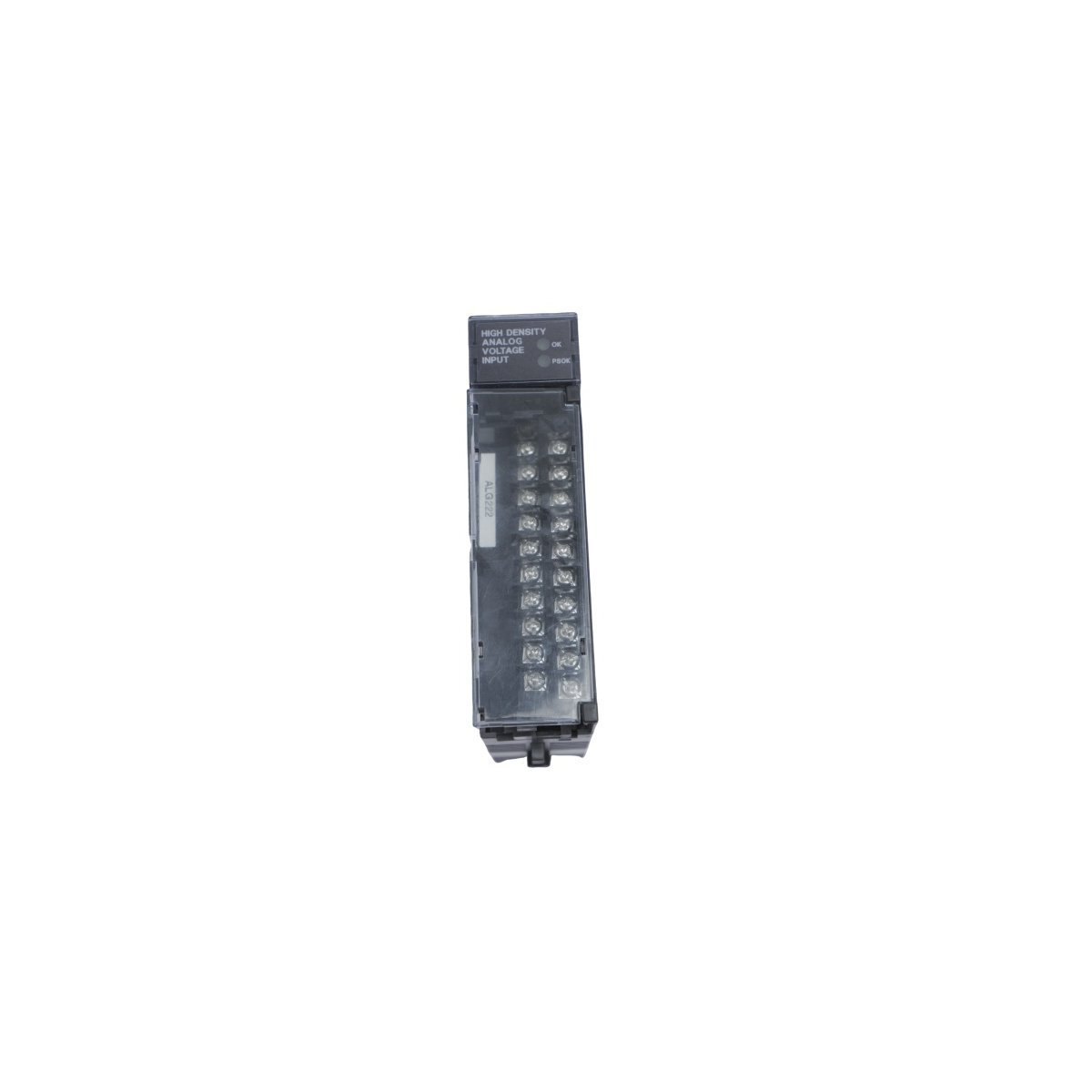

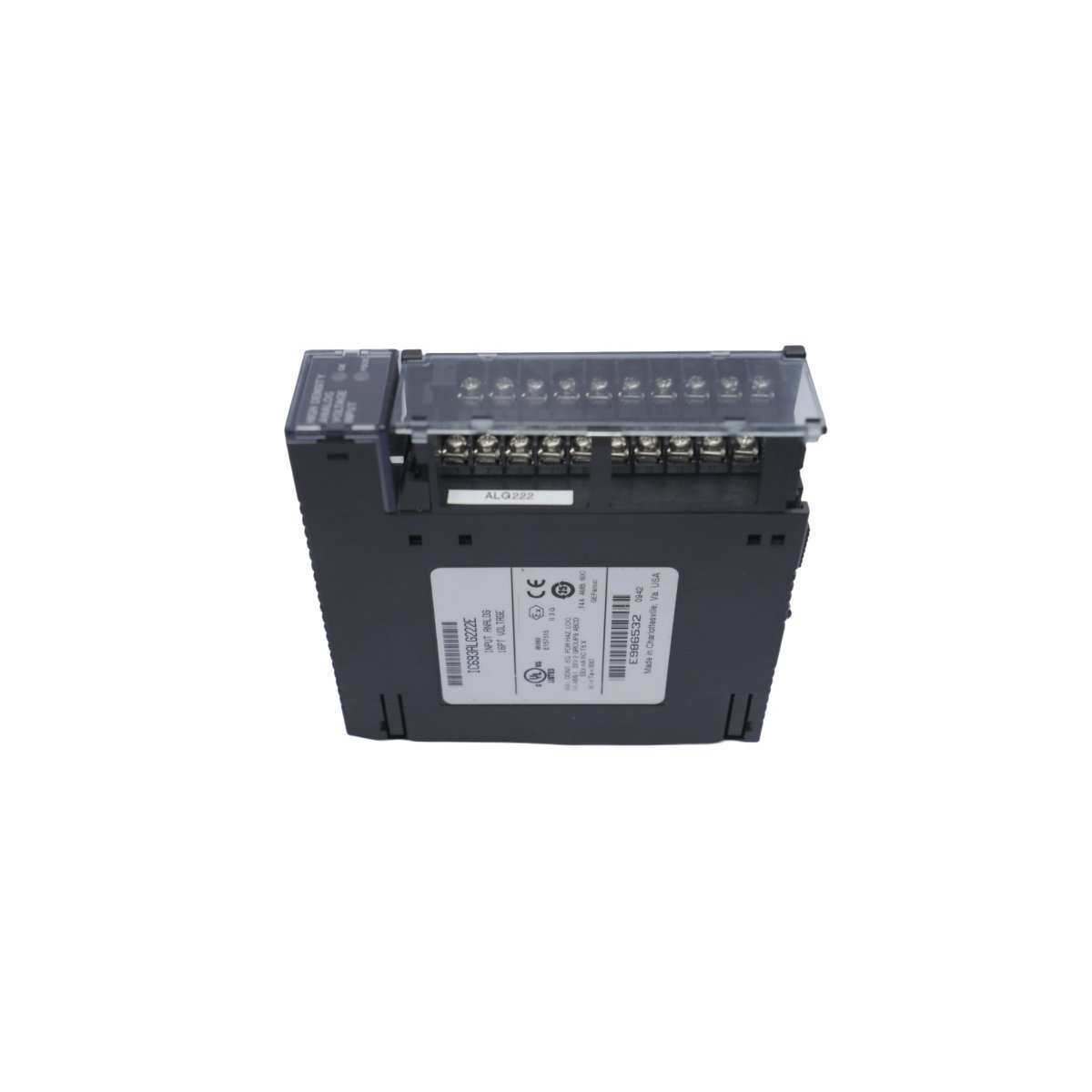

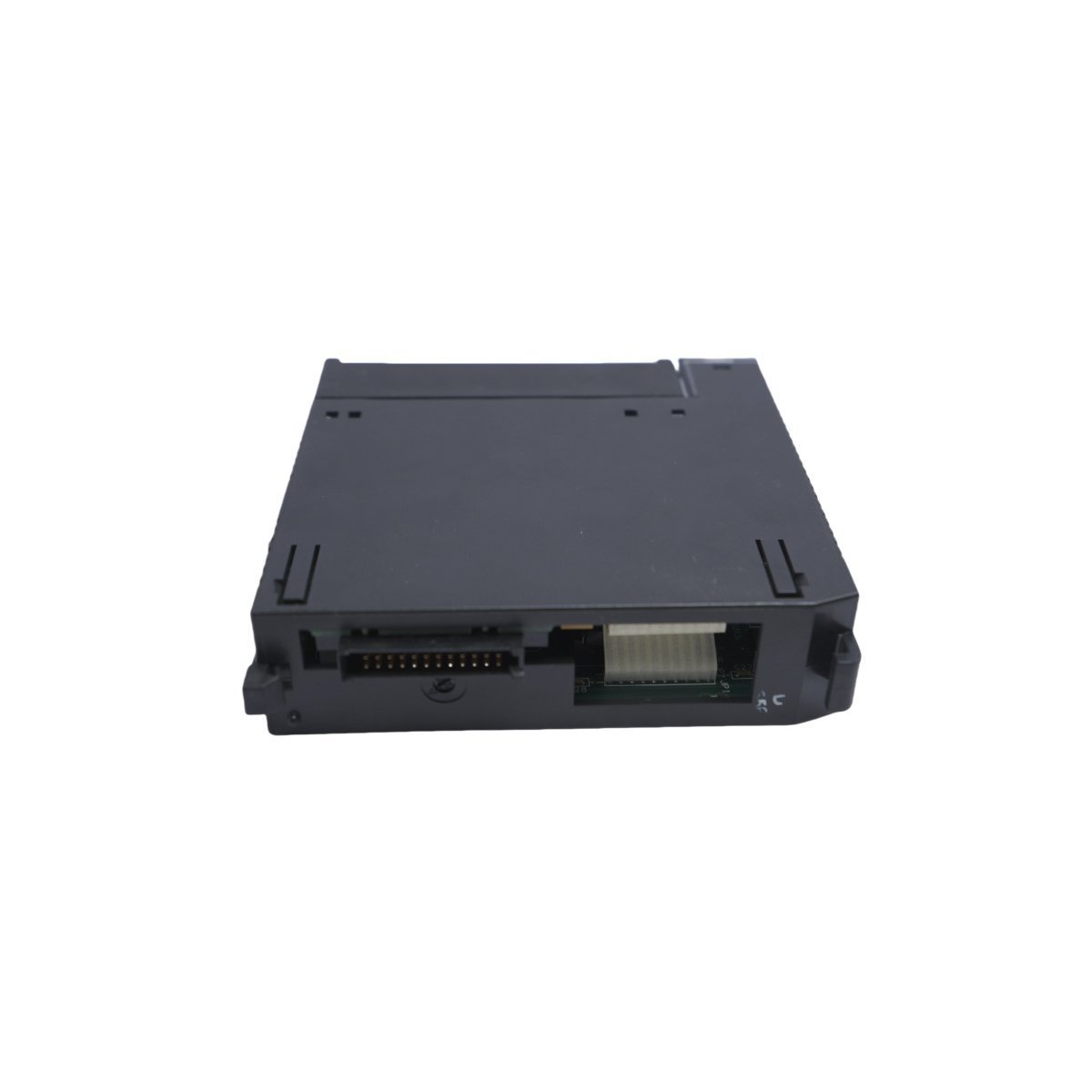

The GE Fanuc IC693ALG222 provides high-density analog data acquisition for Series 90-30 PLC systems. This module converts external voltage signals into digital data for the controller. It serves critical roles in monitoring sensors and automated industrial processes.
Technical Specifications
| Feature | Details |
| Brand | GE Fanuc / Emerson |
| Model Number | IC693ALG222 |
| Input Channels | 16 Single-ended / 8 Differential |
| Voltage Ranges | 0 to +10V (Unipolar), -10 to +10V (Bipolar) |
| Resolution | 12-Bit (2.5mV for Unipolar, 5mV for Bipolar) |
| Power Usage | 112mA (+5V Bus), 41mA (+24V Isolated) |
| Accuracy | ±0.25% at 25°C |
| Weight | 0.36 kg |
High-Performance Signal Processing
This module offers exceptional flexibility through its dual-mode input architecture. Single-ended mode allows for maximum channel density with 16 inputs. Conversely, differential mode provides 8 channels with higher noise rejection.
Furthermore, the hardware delivers rapid update speeds for time-sensitive applications. Differential inputs refresh every 3 milliseconds to ensure data freshness. Single-ended inputs complete a full scan every 6 milliseconds. These rates facilitate precise control in fast-moving automation environments.
System Integration and Monitoring
The IC693ALG222 installs easily into any Series 90-30 baseplate slot. It maintains consistent linearity across its entire operating range. Two integrated green LEDs provide immediate feedback on module health. One indicator tracks the internal circuit status. The second LED monitors the presence of the external 24V supply.
Moreover, the module protects the PLC backplane through electrical isolation. This design prevents field-side interference from damaging sensitive controller electronics. Users can configure specific channel parameters via standard GE programming software.
