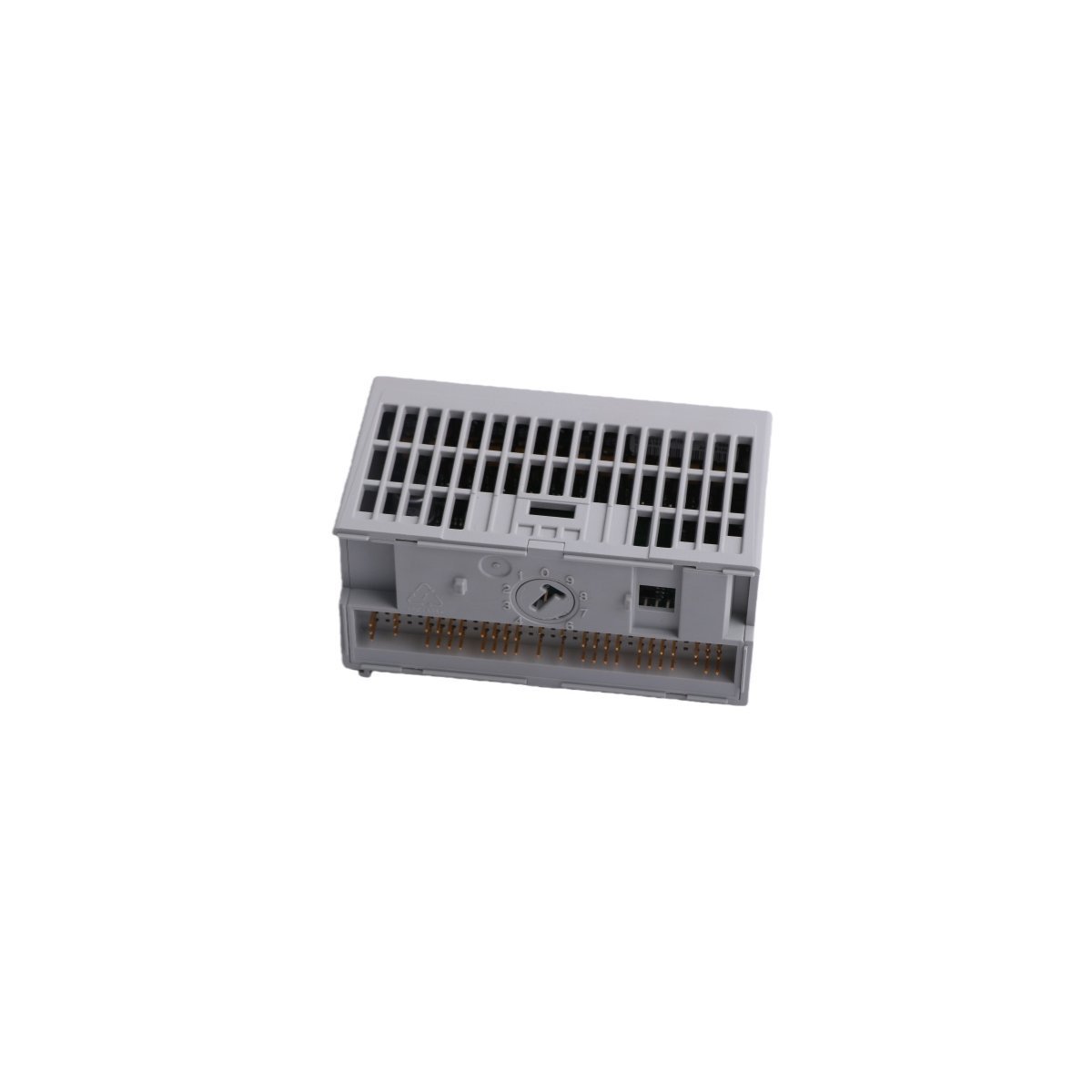

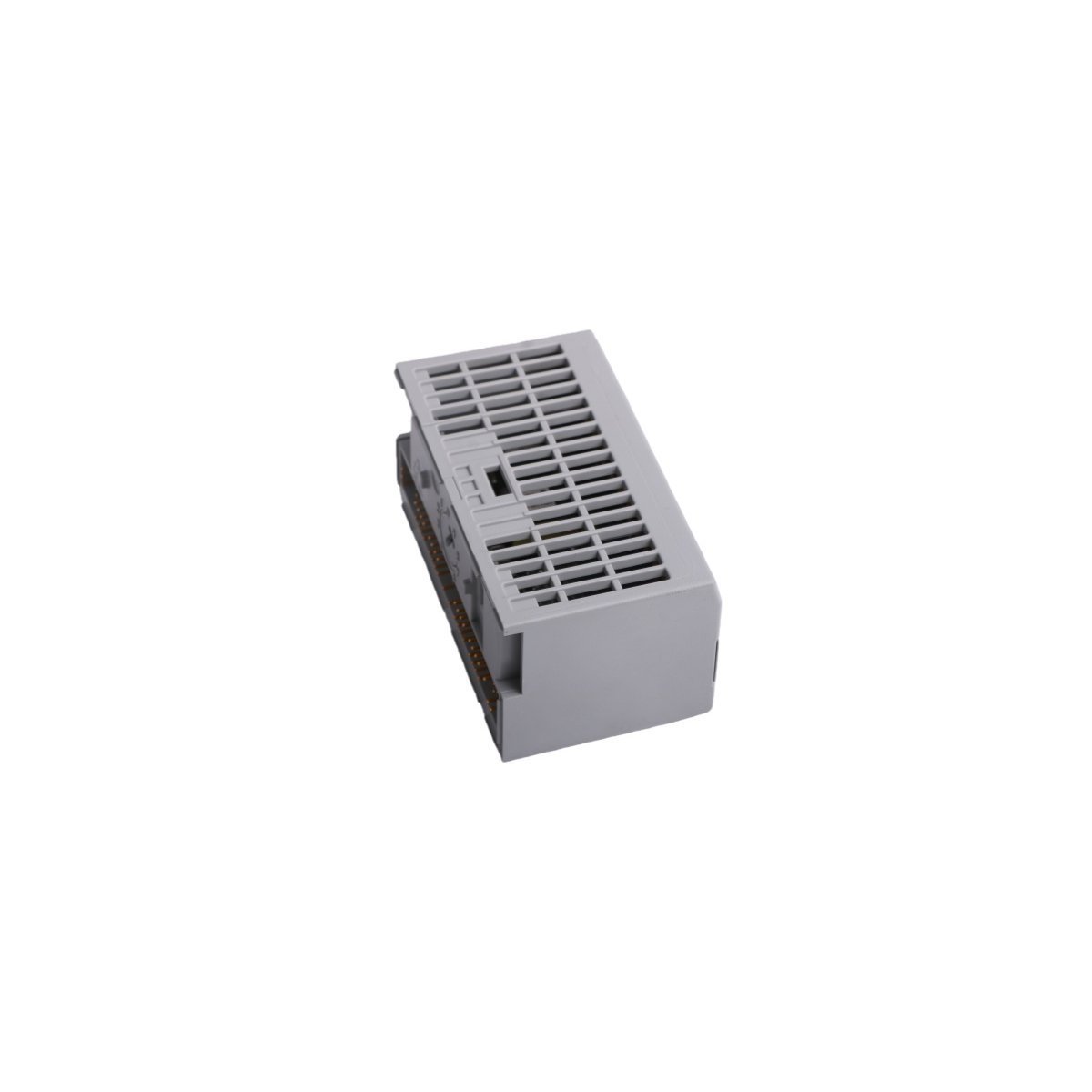

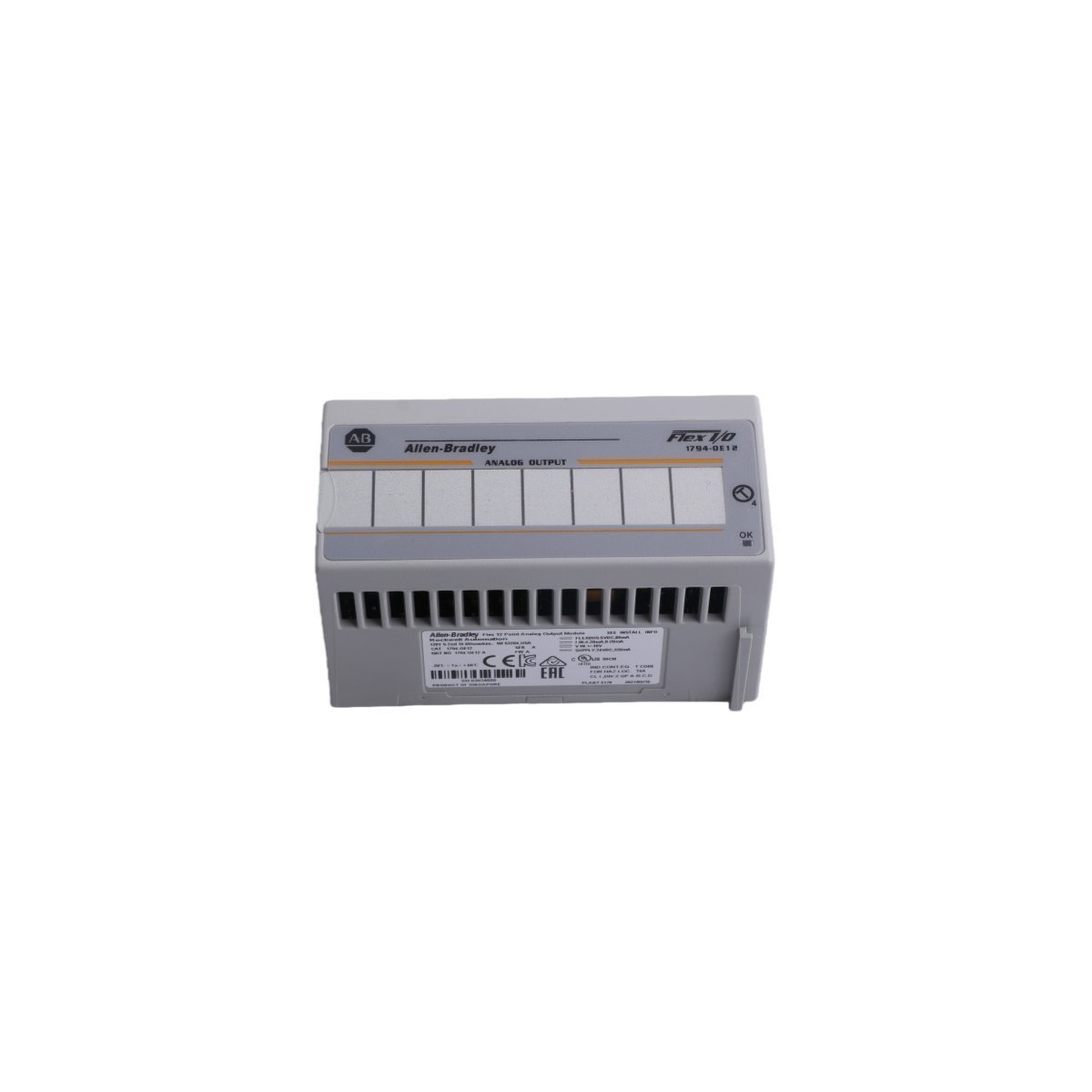

The Allen-Bradley 1794-OE12 provides a robust solution for managing multiple analog field devices. This module belongs to the FLEX I/O series and offers twelve independent output channels. It specifically targets high-density applications where control panel space remains limited. Furthermore, the unit supports diverse signal types including 4–20mA current and ±10V DC voltage. This flexibility allows engineers to drive various actuators, valves, and motor drives simultaneously.
This hardware integrates seamlessly into distributed I/O architectures across multiple network protocols. It utilizes 16-bit resolution to ensure smooth and accurate signal generation. Consequently, the 1794-OE12 excels in precision process control environments. Its compact design significantly reduces the footprint required for large-scale automation projects.
Comprehensive Technical Specifications
- Manufacturer: Allen-Bradley / Rockwell Automation
- Model Number: 1794-OE12
- Output Channels: 12 Single-ended Points
- Resolution: 16-bit (Current and Voltage)
- Current Signals: 0–20 mA, 4–20 mA
- Voltage Signals: ±10V DC, 0–10V DC
- Accuracy: 0.1% Full Scale at 25°C
- External Power: 10.5–31.2V DC (24V DC Nominal)
- Power Dissipation: 7.68 Watts @ 24V DC
- Load Impedance: 0–750 Ω (Current), >1k Ω (Voltage)
- Shock/Vibration: 30g Operating Shock / 5g Vibration
- Dimensions: 3.7 x 3.7 x 2.1 inches
- Weight: 0.9 kg
Precision Signal Generation and Protection
The 1794-OE12 utilizes advanced digital-to-analog converters to achieve superior signal granularity. It provides a resolution of 0.641 μA per count for current loops. Additionally, voltage outputs maintain a precision of 320 μV per count. These technical traits prevent stepped responses in sensitive control loops. Moreover, the module maintains its 0.1% accuracy across standard industrial temperature ranges.
Safety and stability remain central to the electrical design of the module. It effectively manages thermal loads even when all twelve channels operate at maximum capacity. Furthermore, the unit features built-in protection against overvoltage and signal noise. This ensures the 1794-OE12 delivers clean command signals to final control elements. Therefore, it remains a reliable choice for critical manufacturing and refining operations.
