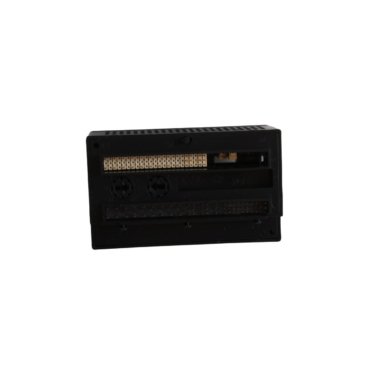

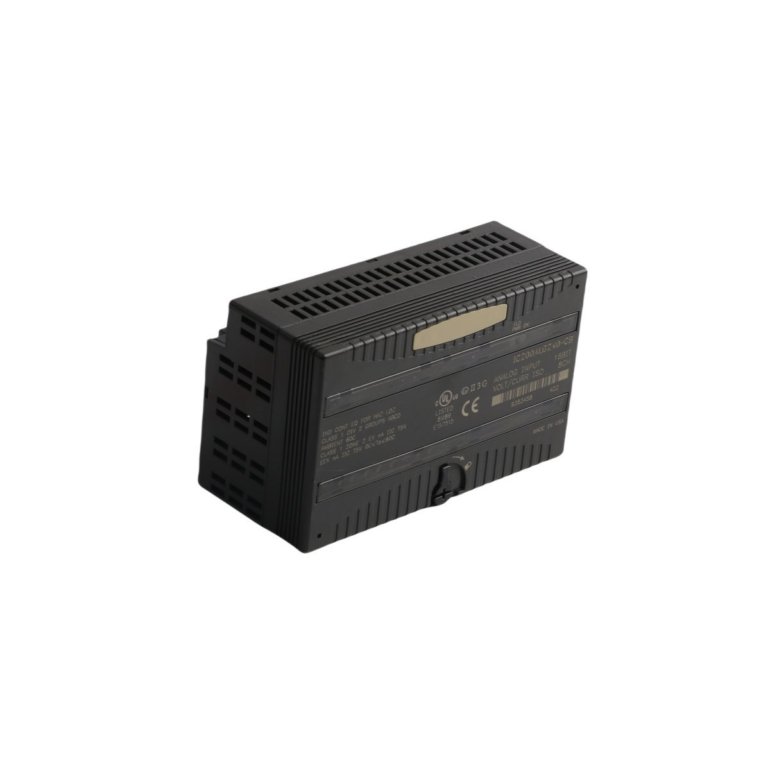

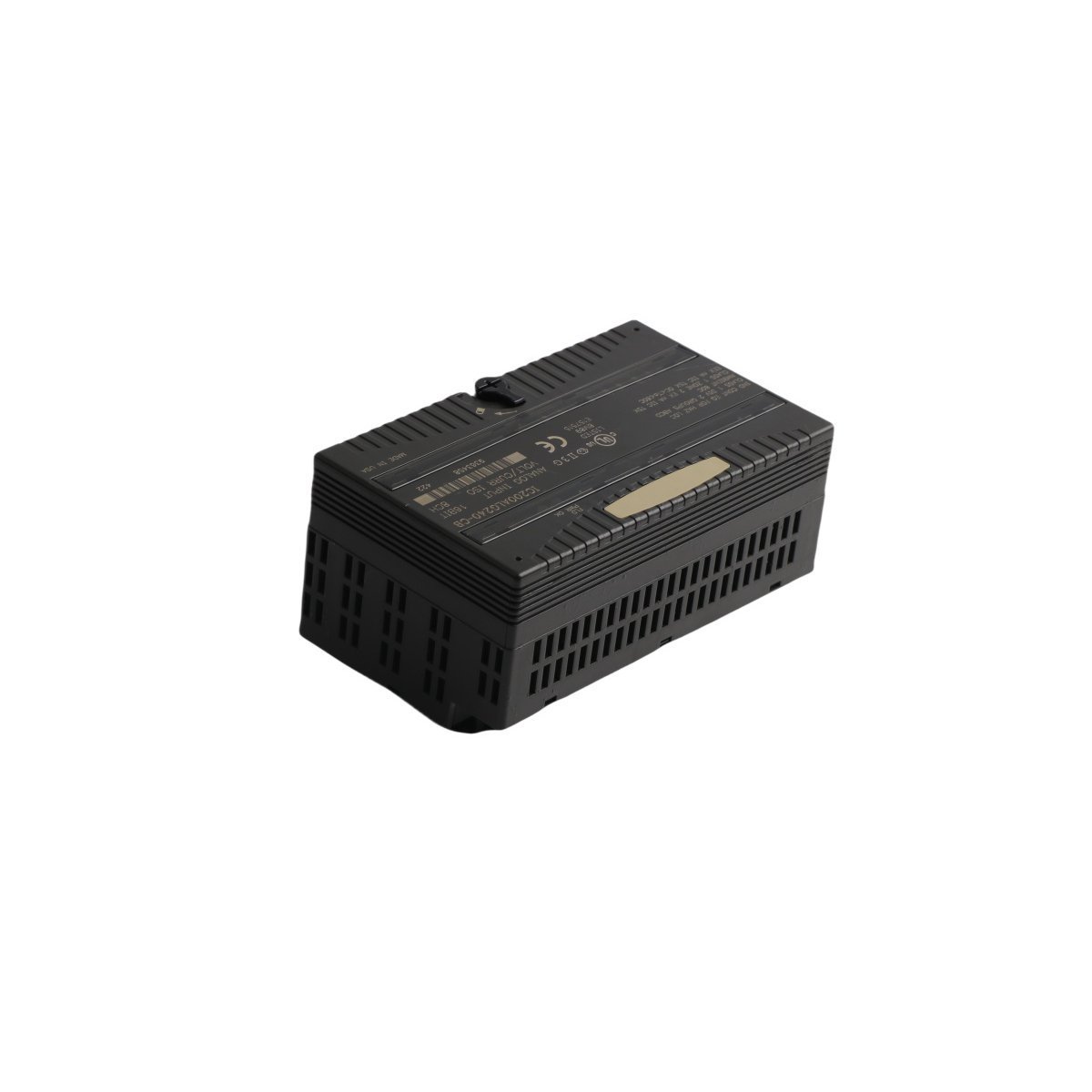

The GE Fanuc IC200ALG240 serves as a high-precision interface for Versamax I/O and PLC systems. This module features eight isolated channels that convert physical signals into 16-bit digital data. It effectively supports both voltage and current measurements in diverse industrial automation environments. By providing high-resolution sensing, the hardware allows controllers to monitor sensitive process variables with extreme accuracy. The design emphasizes modularity and ease of integration into existing DCS or PLC architectures.
Input Flexibility and Signal Ranges
Engineers can configure each channel to operate in either current or voltage mode. The module accepts a wide voltage range from -10 to +10 Volts DC. For current-based sensing, the device supports a range of 4 to 20 milliamps. Users must provide an external power supply when utilizing isolated current inputs. This flexibility allows the IC200ALG240 to interface with numerous sensor types. Consequently, a single module type can fulfill multiple measurement roles within a control cabinet.
Technical Performance Summary
The following specifications define the core technical profile of this Versamax component:
- Manufacturer: GE Fanuc (Emerson)
- Product Line: Versamax I/O
- Model Number: IC200ALG240
- Input Channels: 8 Isolated
- Data Resolution: 16-bit
- Voltage Range: -10 to +10 VDC
- Current Range: 4 to 20 mA
- Isolation Rating: 250 VAC Continuous / 1500 VAC Peak
- Dimensions: 11 x 5.5 x 6.5 cm
- Net Weight: 0.2 kg
Maintenance and Installation Standards
The compact dimensions of the IC200ALG240 allow for high-density mounting on standard DIN rails. Technicians should ensure clean power connections to maintain the 16-bit signal integrity. Regular inspection of the terminal block connections prevents intermittent signal loss in high-vibration areas. Because the module stores configuration in non-volatile memory, it retains settings during power cycles. This design choice accelerates recovery times after plant-wide power interruptions.
