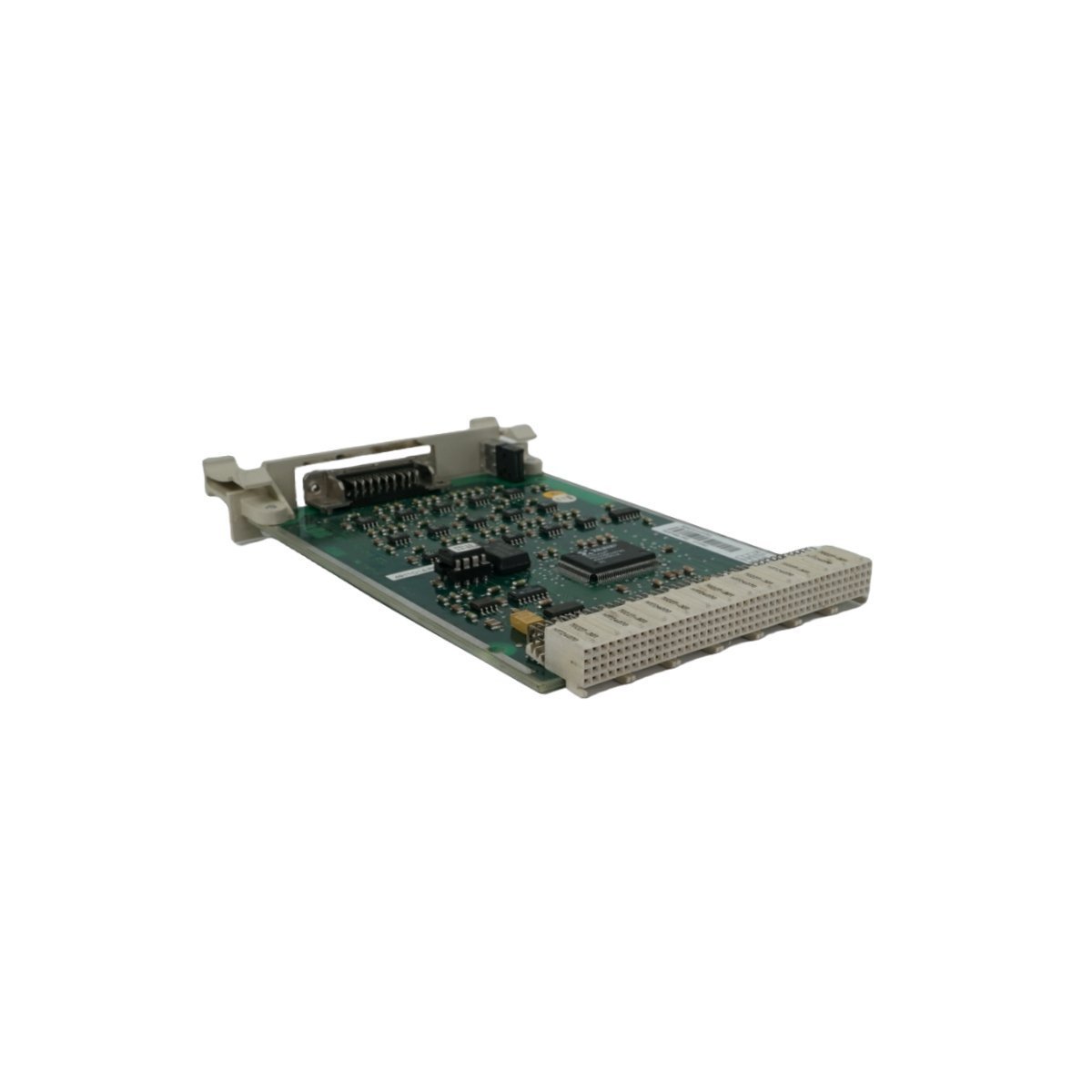

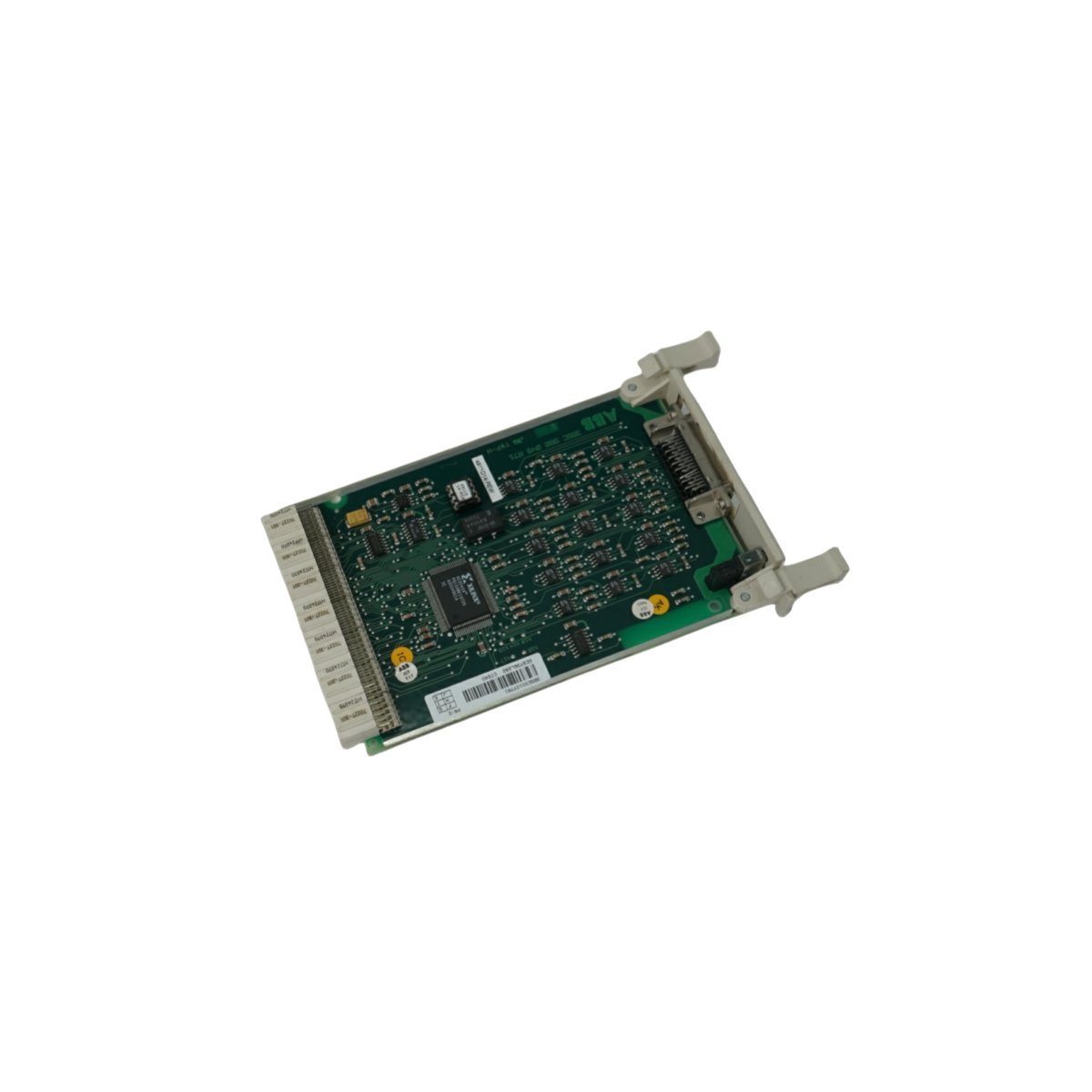

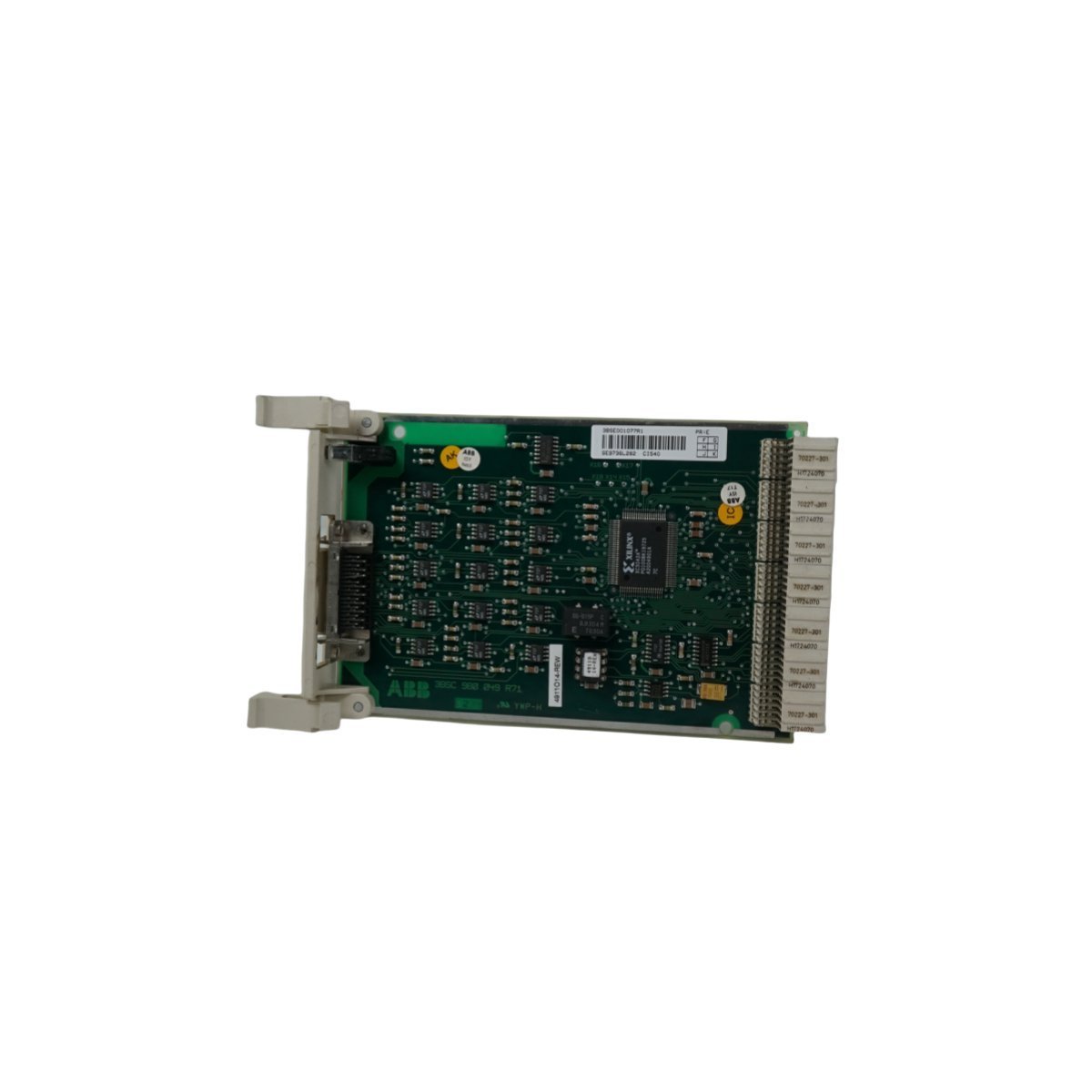

CI540 3BSE001077R1 S100 ABB I/O Bus Extension Board

ABB CI540 3BSE001077R1 S100 I/O Bus Extension Board

Configured for S100 I/O bus expansion within control systems, the ABB CI540 3BSE001077R1 (CI540 3BSE001077R1 S100 I/O Bus Extension Board) provides direct physical/electrical execution of bus signal extension and data transmission synchronization.

Hardware Specifications

Industrial Control & Communication Attributes

The CI540 3BSE001077R1 manages the electrical extension of the S100 I/O bus, facilitating the communication of discrete and analog signal data between the master controller and remote I/O sub-racks. The module architecture maintains deterministic timing for I/O scan cycles, ensuring that signal latency remains within the bounds established by the system design. Firmware flash compatibility allows for internal logic updates to align the board with current network communication protocols. By utilizing optimized backplane bus communication velocity, the module supports I/O density scaling, which enables technicians to expand existing cabinet configurations without requiring additional controller processing channels.

Frequently Asked Questions

Q: Can the CI540 module be hot-swapped while the I/O bus is active?

A: Hot-swapping the board requires immediate termination of bus traffic to prevent data corruption. Technicians must disable the corresponding I/O channels in the controller software before physical extraction to maintain signal stability across the remainder of the bus string.

Q: How does the module maintain signal integrity across extended bus lengths?

A: The board incorporates differential signaling and active termination circuits that mitigate signal attenuation. Technicians should verify that the cumulative cable length does not exceed the maximum physical segment specification to prevent bit-error-rate increases.

Q: Is external configuration required for the bus extension?

A: The system automatically detects the expansion board upon power-up and recognizes the additional I/O address space. Technicians verify the connection status via the engineering workstation’s hardware configuration diagnostic utility.

Field Installation Guidelines

• Mounting: Secure the CI540 3BSE001077R1 into the designated S100 bus rack slot. Ensure all captive fasteners sit flush against the rail to establish a low-impedance ground connection between the module chassis and the cabinet backplane.
• Bus Wiring: Connect the I/O bus cables using only ABB-specified shielded twisted-pair cabling. Technicians must ground the cable shields at the cabinet entry point using 360-degree clamps to reduce electromagnetic interference (EMI) coupling.
• Thermal Management: Install the module in a vertical orientation to maximize natural convection airflow. Maintain a minimum clearance of 50 mm above and below the module to allow heated air to dissipate from the card cage.
• Diagnostic Verification: Observe the status LEDs after energizing the rack. A constant green state indicates the bus extension is active and communicating with the master controller, while any irregular blinking patterns require a check of the bus cable continuity and termination resistors.
