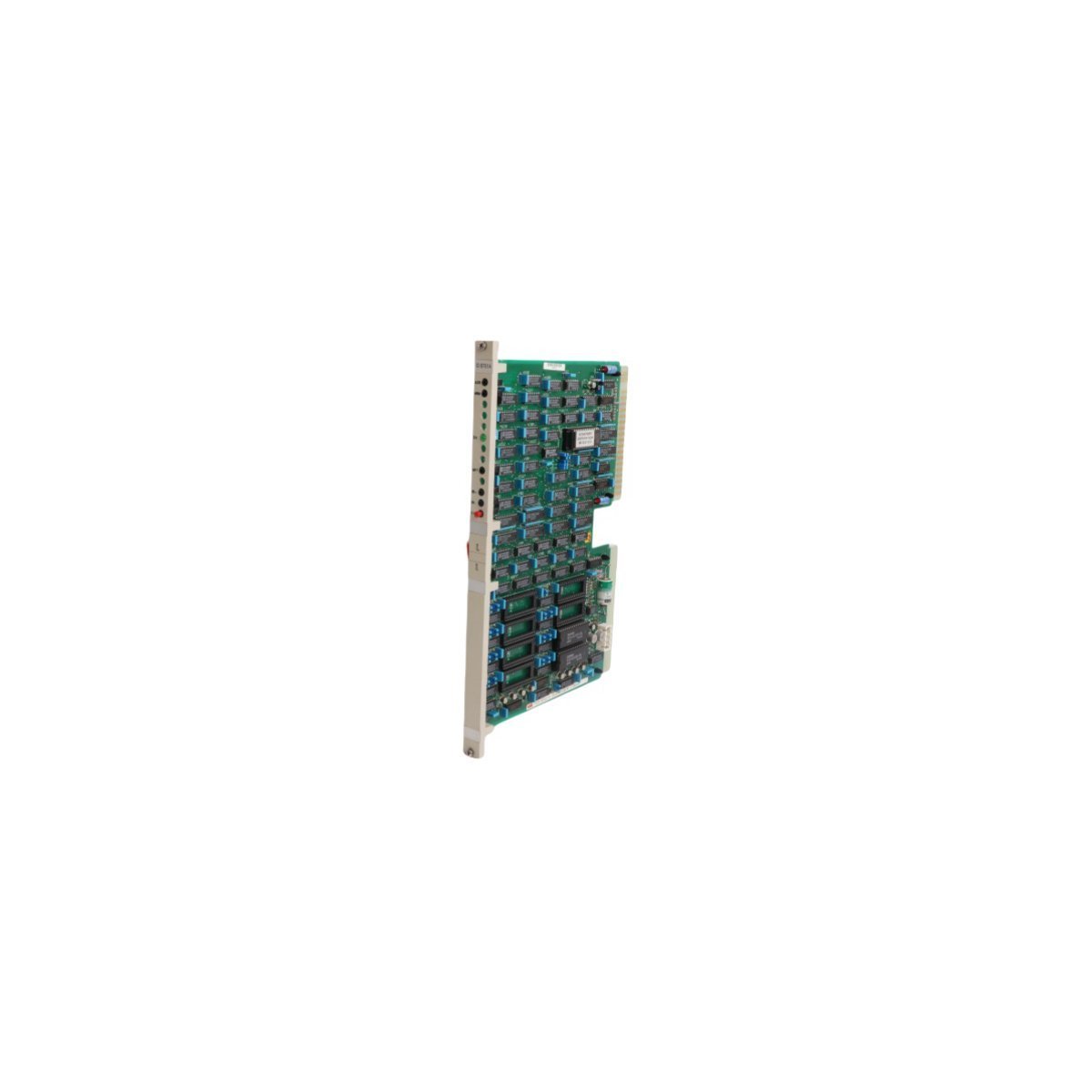

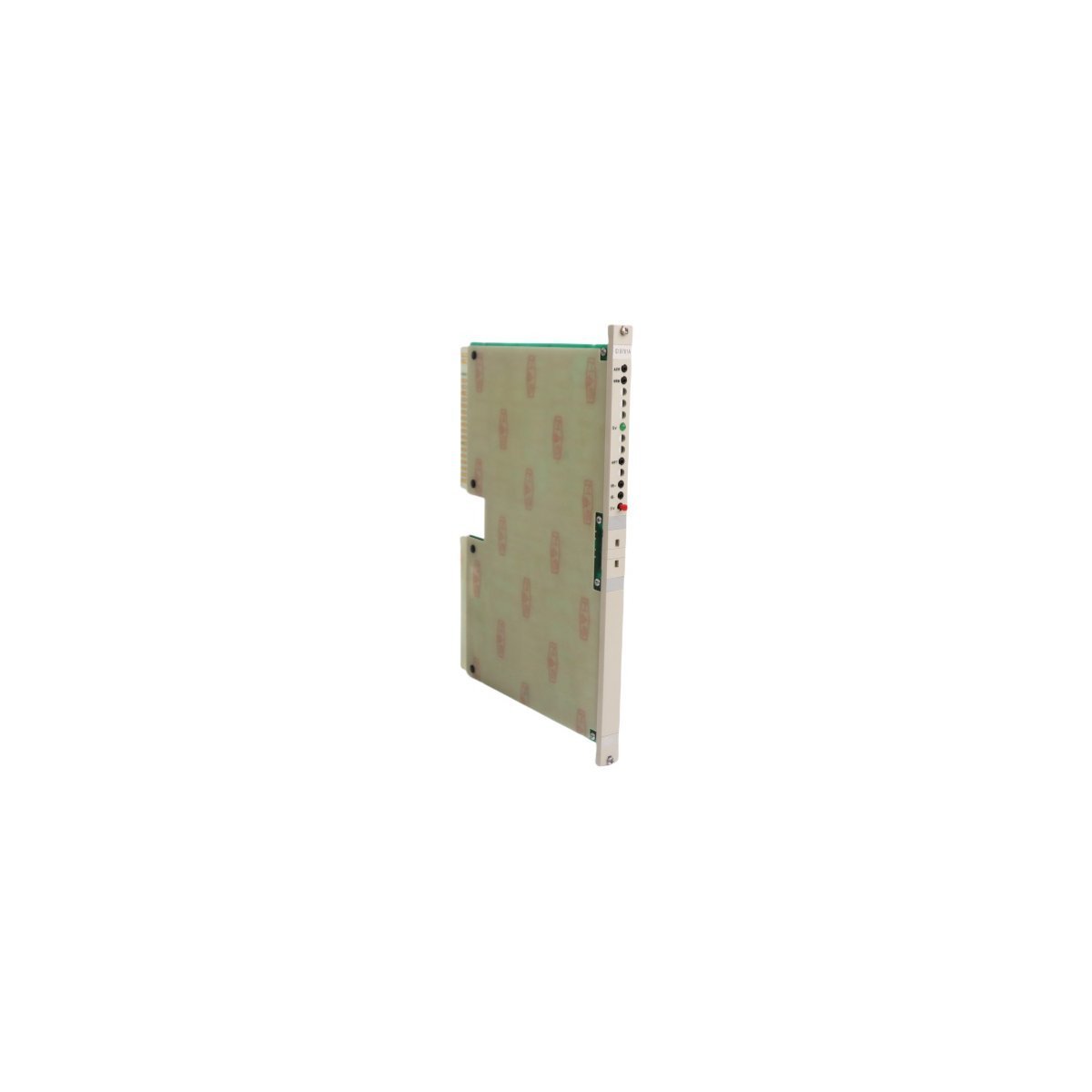

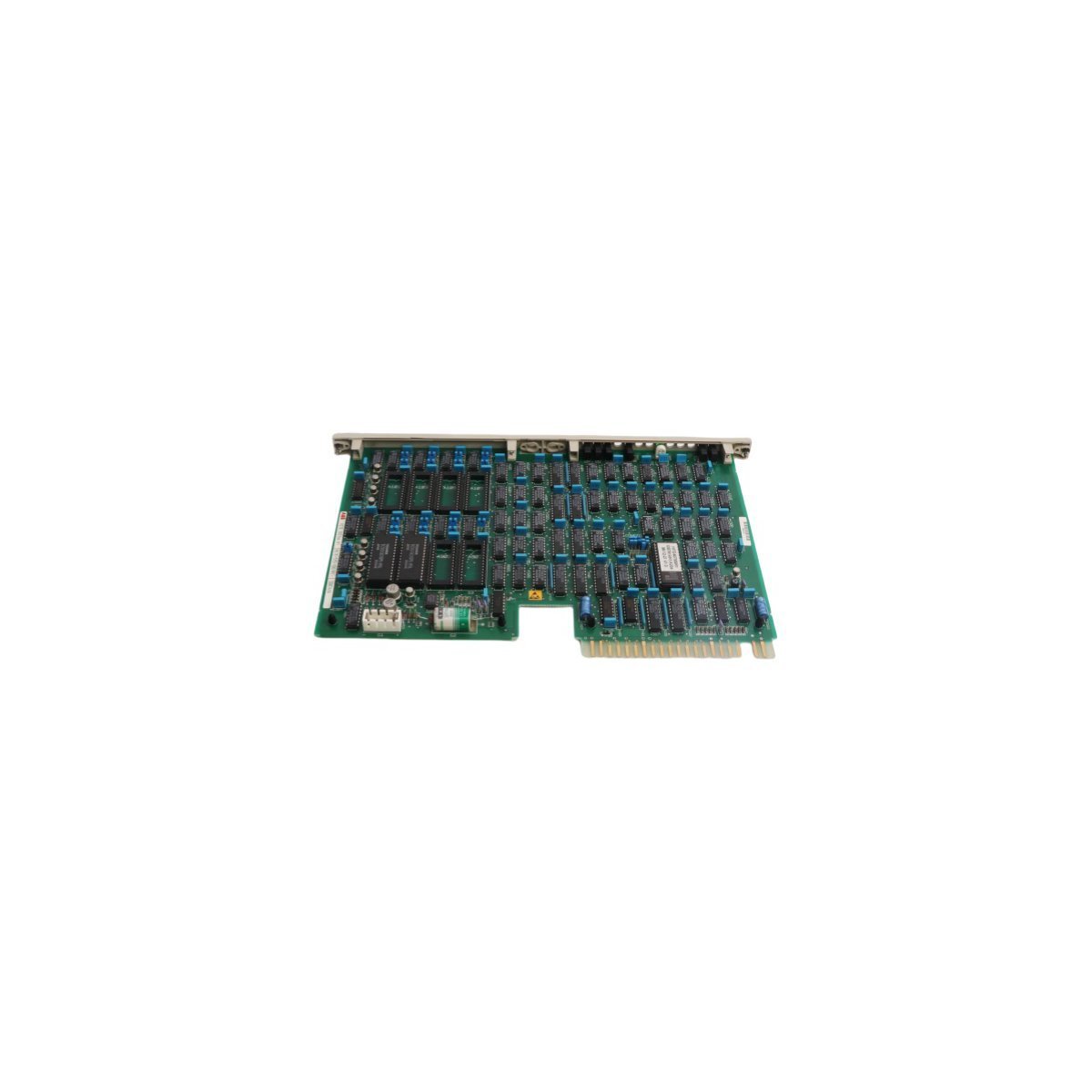

ABB HITE303166R1 HITE515100 IDB761A UNITROL 5000 Control Board

ABB HITE303166R1 HITE515100 IDB761A Control Board

Configured for excitation control and regulation tasks within UNITROL 5000 systems, the ABB HITE303166R1 HITE515100 IDB761A (HITE303166R1 HITE515100 IDB761A Control Board) provides direct physical/electrical execution of generator field regulation and supervisory control logic.

Hardware Specifications

Industrial Control & Communication Attributes

The HITE303166R1 HITE515100 IDB761A functions as a primary processing unit within the UNITROL 5000 platform, handling high-speed control loops necessary for generator field regulation. The board maintains precise signal processing by utilizing advanced backplane bus communication velocity, ensuring that control commands propagate through the system within established deterministic scan cycles. Firmware flash compatibility allows technicians to update regulation logic as generator operational requirements evolve. The board interfaces with system backplanes to manage I/O density scaling, enabling expansion across multi-controller racks without violating timing constraints or signal integrity specifications.

Frequently Asked Questions

Q: Can this control board be replaced while the UNITROL 5000 system remains energized?

A: Hot-swapping the board requires adherence to specific system lockout procedures. Operators must verify that the redundant control channel is active and assuming the current excitation load before extracting the module to prevent field loss.

Q: How does the controller interface with the site communication network?

A: The board features integrated Ethernet routing capabilities to facilitate data exchange with external supervisory control systems. Technicians configure these network parameters via the ABB engineering workstation to map specific regulation registers to the desired communication protocol.

Q: Is field-level configuration required after board replacement?

A: Replacing the board necessitates a calibration check of the regulation parameters. Technicians should download the site-specific configuration file to the new module to ensure the excitation control logic matches the generator’s thermal and electrical operating envelope.

Field Installation Guidelines

• Mounting: Insert the HITE303166R1 HITE515100 IDB761A into the appropriate UNITROL 5000 rack slot. Ensure the board guides align correctly to prevent pin damage during insertion, and verify that the front-panel locking levers engage fully to ground the module chassis to the rack frame.
• Shielding & Grounding: Terminate all signal cable shields at the designated cabinet grounding bus. Maintain physical separation between high-voltage power leads and the board’s signal-level I/O lines to prevent common-mode noise induction.
• Thermal Management: Install the module in a well-ventilated cabinet. Ensure the airflow path across the control board surface remains clear of obstructions to facilitate effective dissipation of heat generated by onboard processing components.
• Verification: Perform a loop test on the control signals before placing the excitation system into operational mode. Confirm that the board communicates correctly with the central controller and that all diagnostic LEDs report a healthy system status.
