ABB DSMB144 57360001-EL MasterPiece DCS Memory Board Module

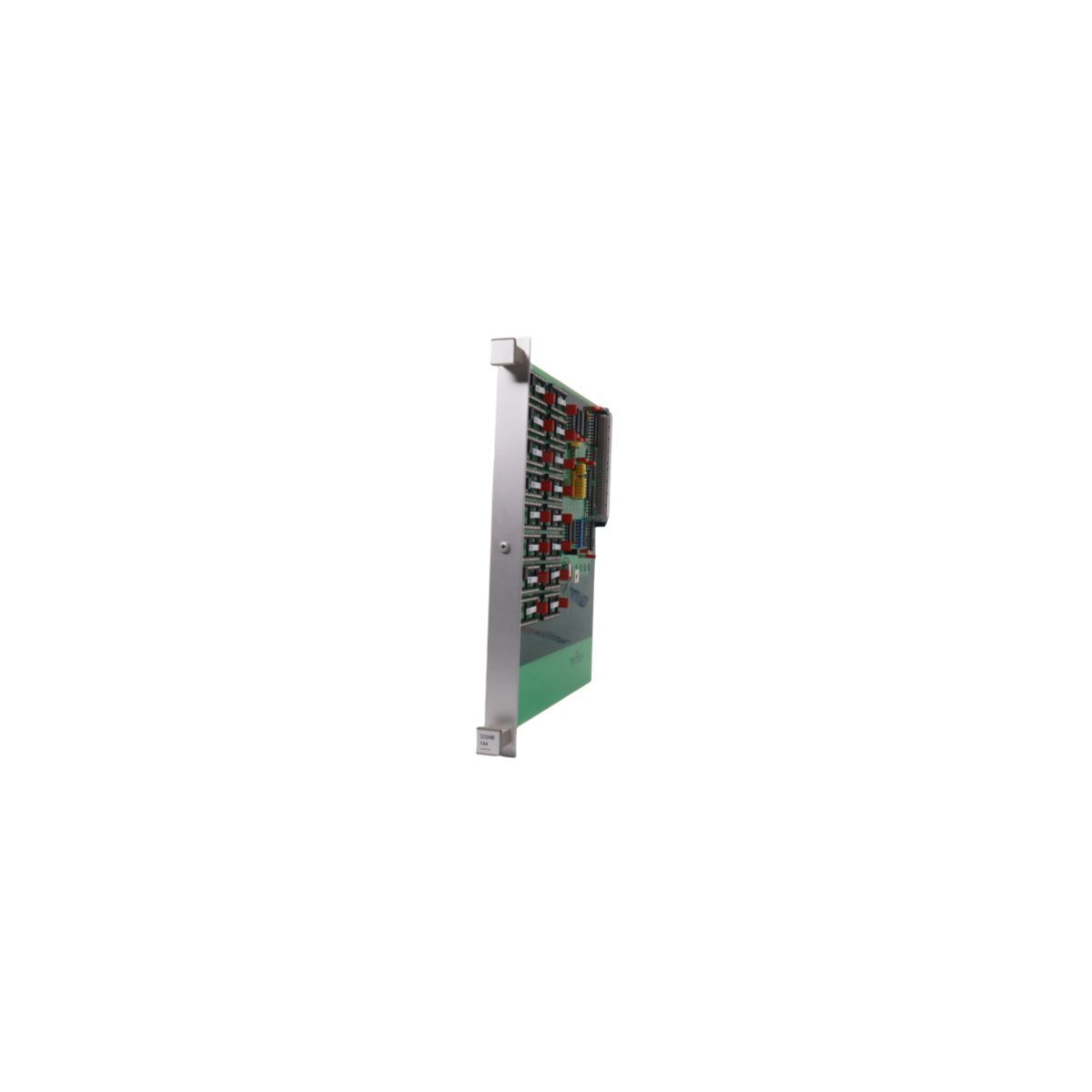

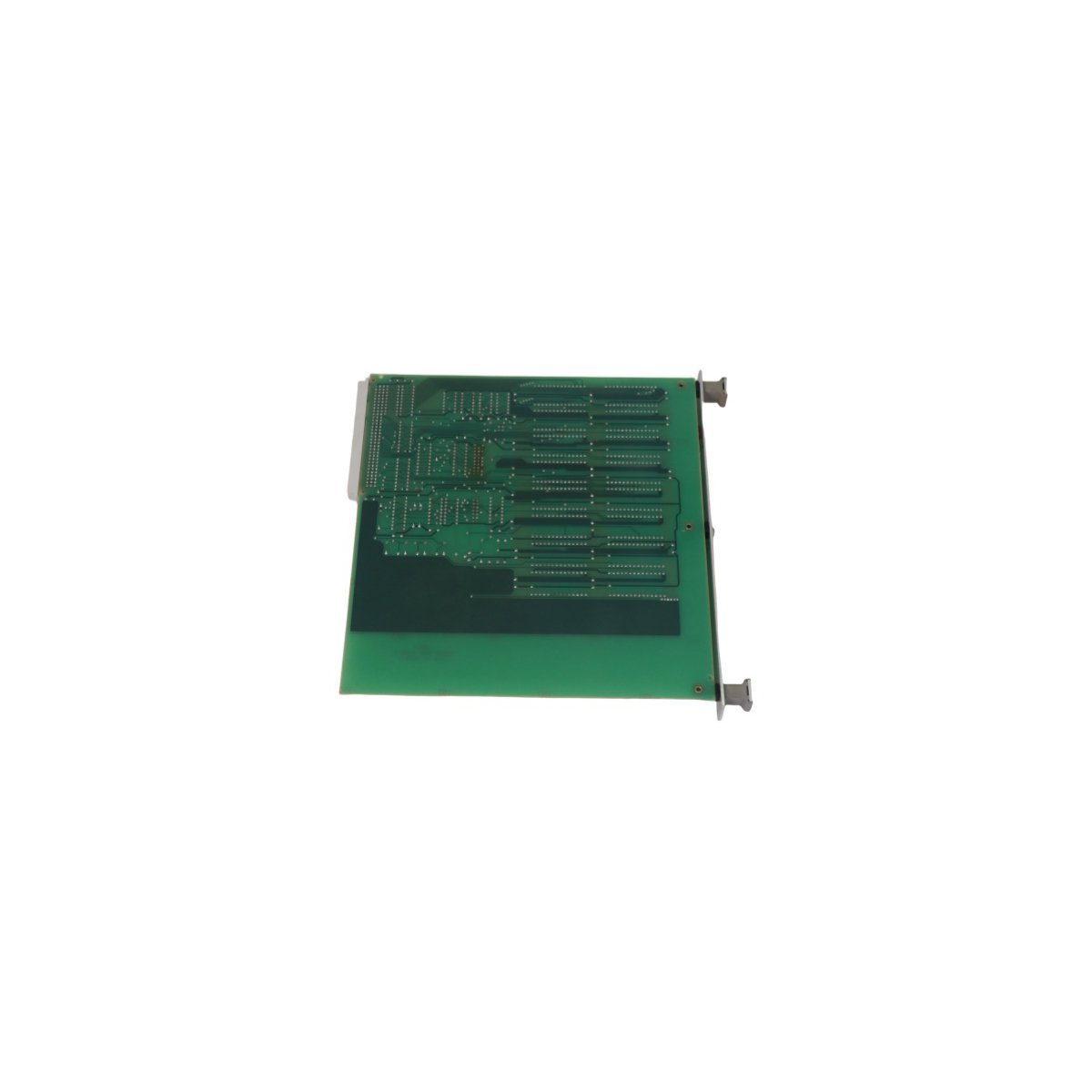

ABB DSMB144 Memory Board

The ABB DSMB144 57360001-EL, also cataloged as the DSMB144 Memory Board, operates as a dedicated hardware component for memory expansion and data storage management within MasterPiece DCS platforms.

Hardware Specifications

Industrial Control Connectivity

The architecture of the ABB DSMB144 facilitates high-speed data access required for process control cycles. It integrates into the MasterPiece system bus, enabling memory addressing for controller tasks. Galvanic isolation protects board logic from backplane electrical noise, while the onboard memory structure supports the execution of control algorithms. Firmware compatibility is maintained through standard ABB backplane protocols, ensuring integration within existing MasterPiece DCS architectures without secondary configuration overhead.

Frequently Asked Questions

Q: Does the DSMB144 support hot-swapping during system operation?

A: No. Power must be removed from the chassis before inserting or removing the memory board to prevent potential electrical surge damage to the backplane connectors.

Q: How is memory integrity maintained during power cycles?

A: The module utilizes EPROM-based storage, which preserves configured data sets and logic parameters without requiring continuous battery-backed volatile memory, ensuring state retention after power restoration.

Field Installation Guidelines

1. Power down the MasterPiece controller chassis prior to module insertion.
2. Inspect the backplane connector pins for debris or physical deformation.
3. Align the module with the designated slot guides and insert until the connector mates with the backplane.
4. Secure the board using the locking mechanism to prevent vibration-induced disconnections.
5. Verify the module status via the central controller diagnostic interface after power-up.
